CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

INSTALLATION INSTRUCTIONS

95-6546B

KIT FEATURES

• ISO DDIN radio provision

• Painted matte black

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) (2) Panel clips TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Cutting tool • Grinding tool

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness:

70-1817 (99-01) • 70-6502 (02-04)

Antenna Adapter:

N/A (99-01) • 40-CR10 (02-04)

A B C

Jeep Grand Cherokee 1999-2004

1.800.221.0932

MetraOnline.com

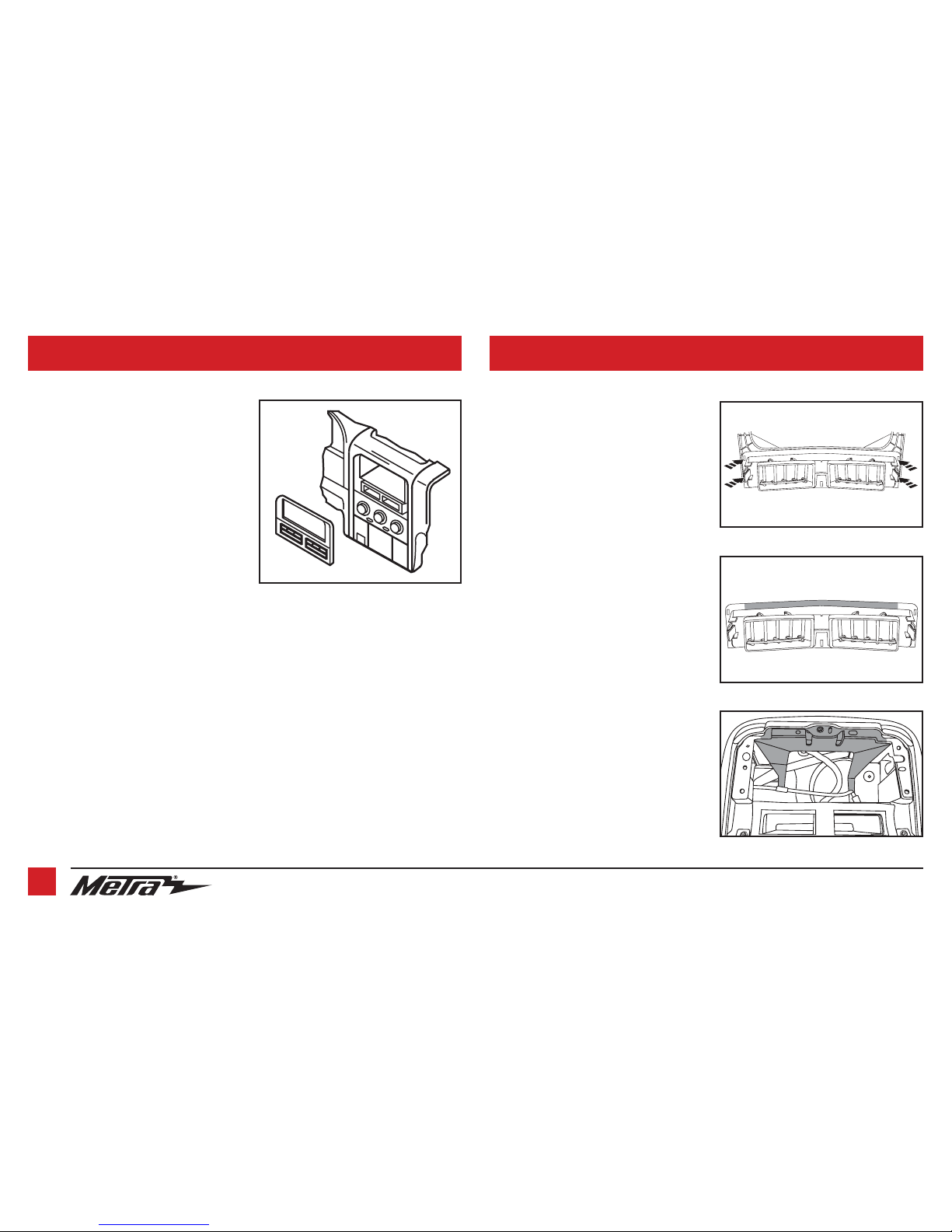

1. Unclip and remove the radio trim panel.

(Figure A)

Remove (4) Phillips screws securing the

radio, then unplug and remove the radio

Continue to Kit Preparation

Carefully grind or cut away the (4) plastic

welded tabs securing the a/c vents to the

radio trim panel, then remove the vents.

(Figure A)

Trim the top of the a/c vents. (Figure B)

Attach the a/c vents to the radio trim

panel, then secure them by either gluing

them, or plastic welding them in place.

Note:

Once the radio trim panel is

secured to the vehicle, this will also hold

the vents in place.

Attach the (2)

panel clips

provided onto

the

radio trim panel

Cut the sub-dash to allow room for the

radio assembly. (Figure C)

Continue to Kit Assembly

(Figure A)

DASH DISASSEMBLY KIT PREPARATION

(Figure A)

(Figure B)

(Figure C)

Remove shaded area

REV. 4/5/2018 INST95-6546B 3

(Figure A)

1. Secure the

radio brackets

to the radio

using the screws supplied with the

radio. (Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using

the proper mating adapter from Metra

and/or Axxess. Test the radio for proper

operation.

3. Secure the radio assembly to the dash

using the factory screws.

4. Snap the

radio trim panel

over the radio

assembly to complete the installation.

KIT ASSEMBLY

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

IMPORTANT

If you are having difﬁculties with the installation of this product,

please call our Tech Support line at 1-800-253-TECH. Before

doing so, look over the instructions a second time, and make

sure the installation was performed exactly as the instructions

are stated. Please have the vehicle apart and ready to perform

troubleshooting steps before calling.
