Metra Electronics 99-7804 Bedienungsanleitung

Installation Instructions for part 99-7804

METRA - The World’s best kits®

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Painted two-tone to match the factory dash

99-7804B - Black with silver accent

99-7804HG - High gloss black with silver accent

• Retains factory color screen

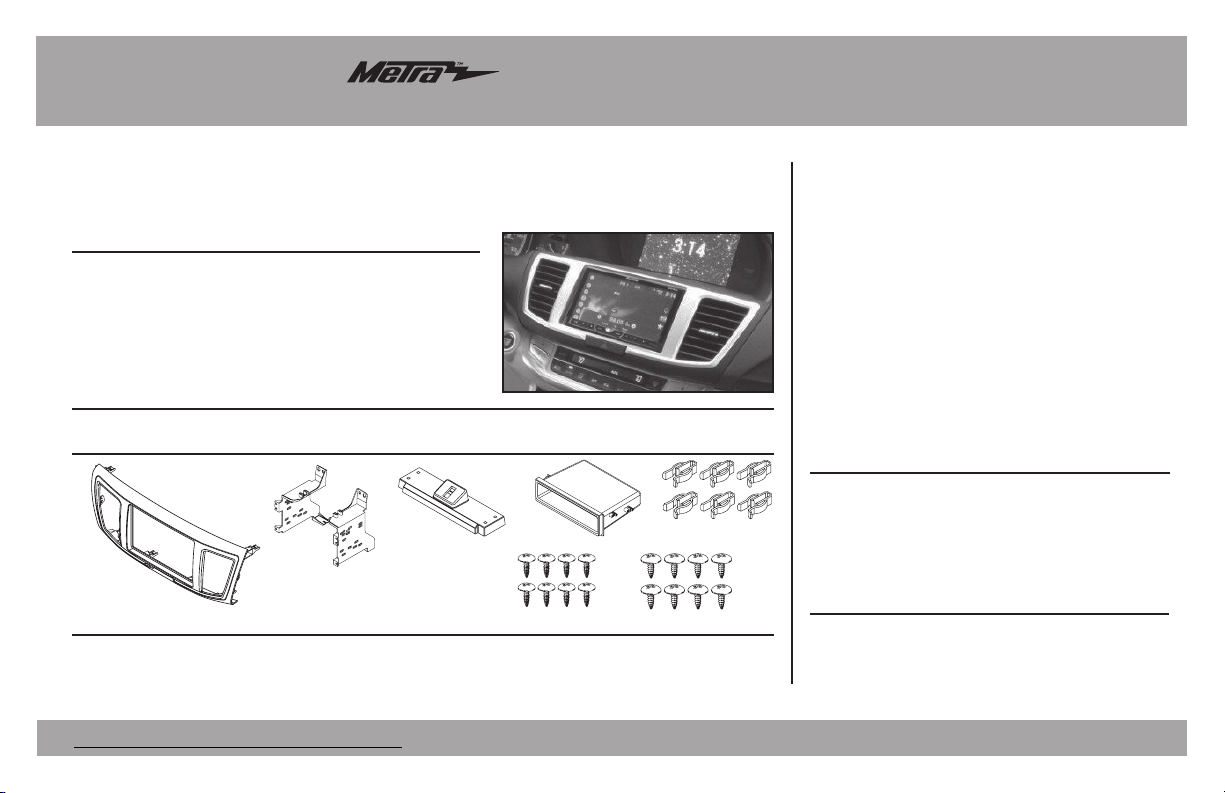

• A) Radio housing trim panel • B) Brackets • C) Top bracket • D) Pocket • E) (6) White panel clips

• F) (8) #6 x 3/8” Phillips screws • G) (8) #8 x 3/8” Phillips screws • H) Display retention interface and harness (not shown)

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: Included

Antenna Adapter: 40-HD11

Steering wheel control interface: ASWC-1 (sold separately)

• Panel removal tool • Phillips screwdriver

TOOLS REQUIRED

Honda Accord 2013-up

99-7804

C D E

Dash Disassembly................................................2-3

Kit Preparation ........................................................ 4

Kit Assembly

–ISO DIN radio provision with pocket...................... 5

–ISO DDIN radio provision ...................................... 6

Wiring Instructions............................................. 7-8

Touch Screen Instructions................................9-10

Table of Contents

99-7804

Dash Disassembly

1. Unclip and remove the side trim

panels from each side of the

console. (Figure A)

2. Remove (2) Phillips screws

exposed on pocket then remove

the pocket. (Figure B)

3. Remove (2) 8 mm screws facing

up on bottom of radio chassis

inside pocket cavity. (Figure C)

4. Unclip and remove the small trim

panel between the radio and

steering column. (Models with auto

climate will have a thermistor hose

attached to this panel. Disconnect

the hose under the dash above the

gas pedal to give it enough slack

before re-installing the panel.)

(Figure D)

Continue on the next page

(Figure A) (Figure C)

(Figure B) (Figure D)

99-7804

Dash Disassembly (cont)

5. Remove (2) Phillips screws on top

of radio. (Figure E)

6. Unclip and remove the radio

assembly. (Figure F)

7. Remove (1) Phillips screw from

each A/C vent then unclip and

remove the vents. (Figure G)

8. Remove (2) Phillips screws

securing the hazard light switch

and retain for kit assembly.

Continue to Kit Assembly

(Figure E)

(Figure G)

(Figure F)

99-7804

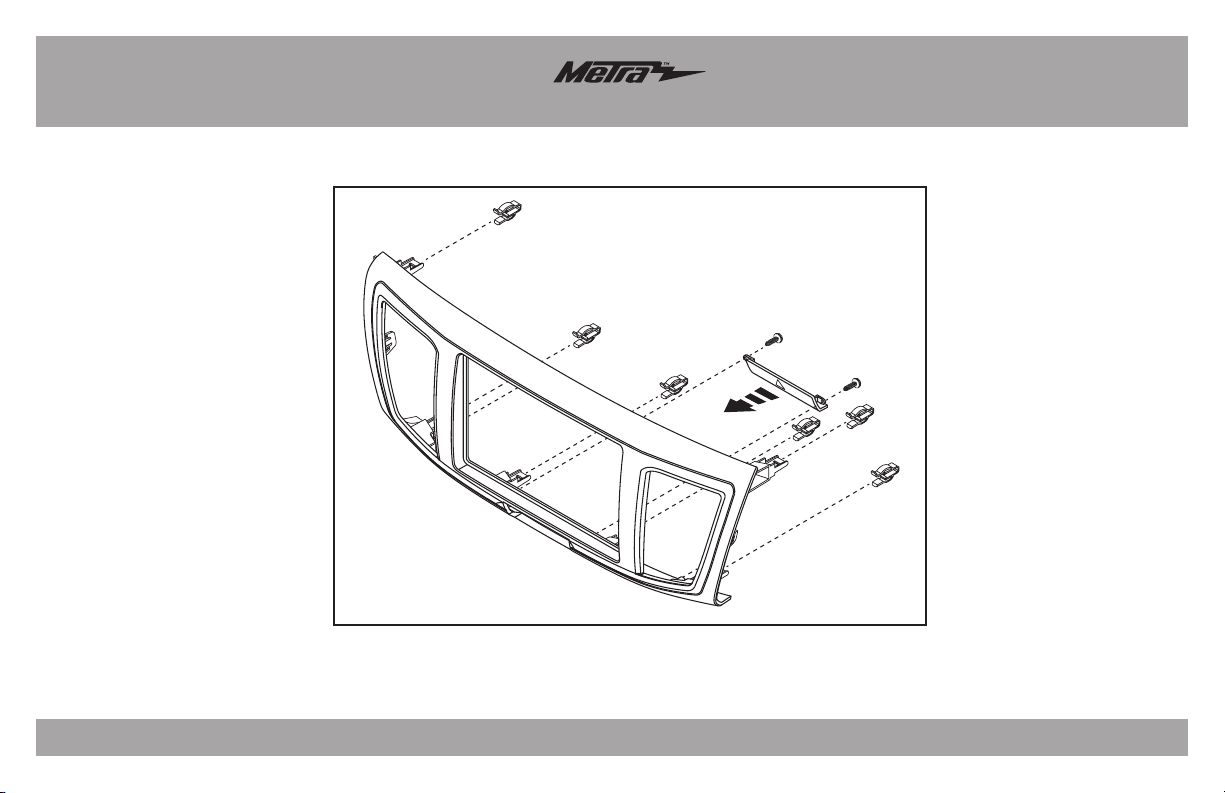

Kit Preparation

1. Attach the hazard light switch to

the radio trim panel using (2) of the

supplied #8 x 3/8” Phillips screws.

(Figure A)

2. Attach the (6) white panel clips to

the radio housing trim panel.

(Figure A)

Continue on the next page

(Figure A)

99-7804

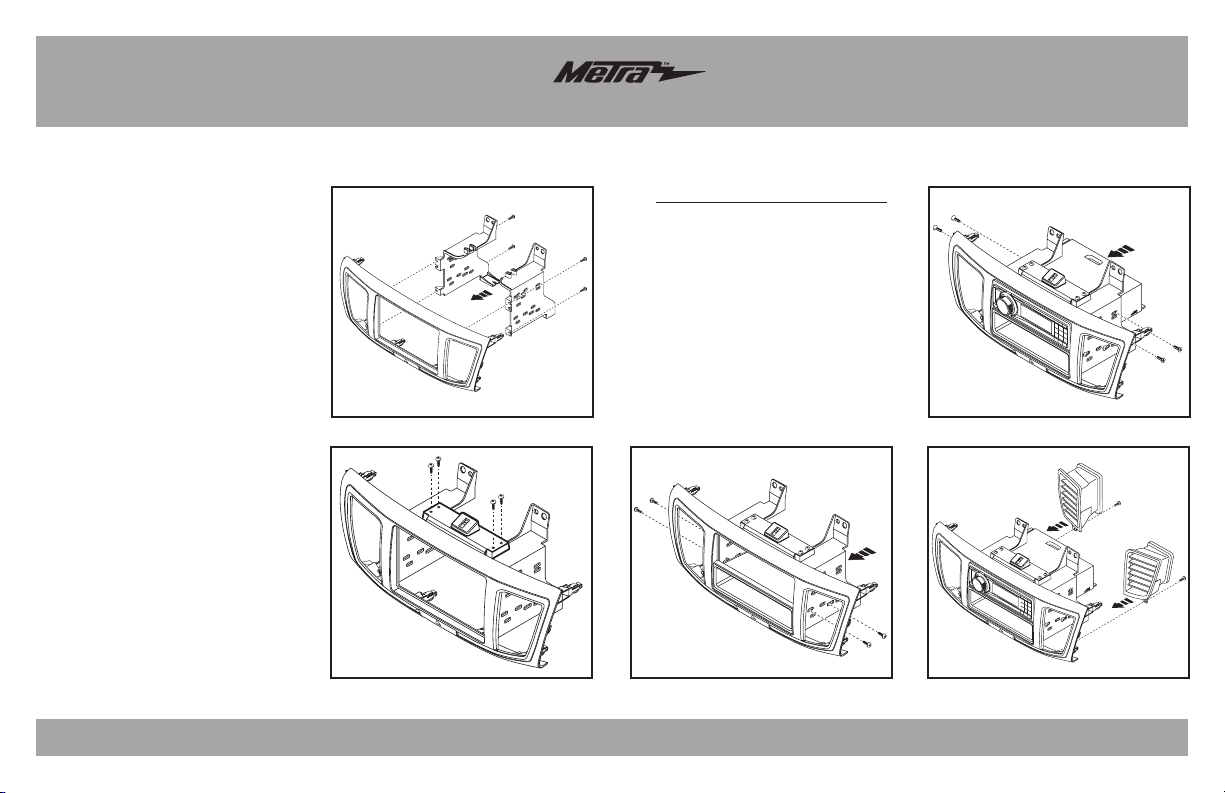

ISO DIN radio provision with pocket

1. Attach the radio brackets to the

radio housing trim panel using (4)

of the #6 x 3/8” Phillips screws.

(Figure A)

2. Attach the top bracket to the top of

the radio brackets using (4) of the

#6 x 3/8” Phillips screws supplied.

(Figure B)

3. Mount the pocket to the bracket/

panel assembly with (4) of the

#8 x 3/8” Phillips screws supplied.

(Figure C)

4. Slide the radio into the assembly

and secure with screws supplied

with the radio. (Figure D)

5. Attach the A/C vents to the radio

trim panel and secure using (2)

of the supplied #8 x 3/8” Phillips

screws. (Figure E)

6. Locate the factory wiring harness

in the dash. Follow the Wiring and

Initialization section of this manual

before completing the installation.

7. Mount the new radio assembly into

the dash and reassemble dash in

reverse order of disassembly.

Kit Assembly

(Figure A) (Figure D)

(Figure B) (Figure E)(Figure C)

99-7804

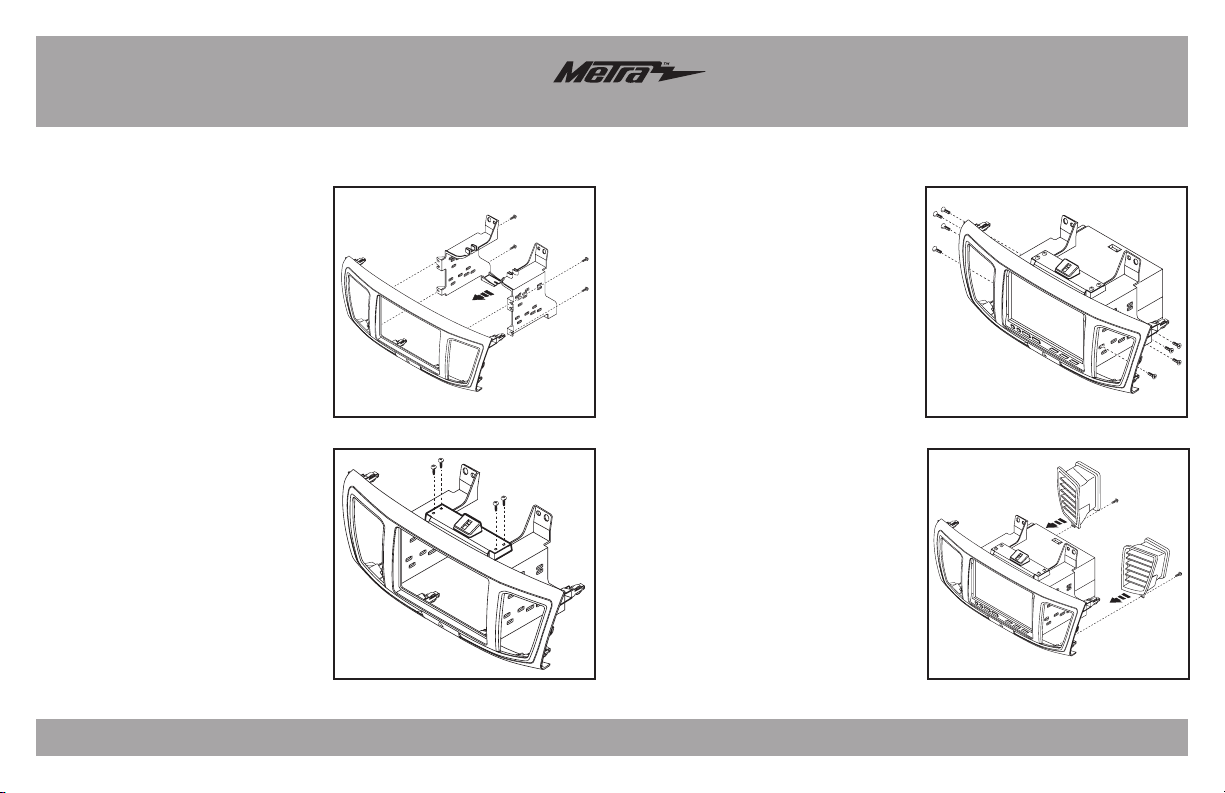

ISO DDIN radio provision

1. Attach the radio brackets to the

radio housing trim panel using

(4) of the #6 x 3/8” Phillips screws.

(Figure A)

2. Attach the top bracket to the top of

the radio brackets using (4) of the

#6 x 3/8” Phillips screws supplied.

(Figure B)

3. Slide the radio into the bracket/

trim panel assembly and secure

to the assembly using the screws

supplied with the radio. (Figure C)

4. Attach the A/C vents to the radio

trim panel and secure using (2)

of the supplied #8 x 3/8” Phillips

screws. (Figure D)

5. Locate the factory wiring harness

in the dash. Follow the Wiring and

Initialization section of this manual

before completing the installation.

6. Reassemble the dash in reverse

order of disassembly.

Kit Assembly

(Figure C)(Figure A)

(Figure B) (Figure D)

99-7804

Wiring Instructions

Harnesses Included:

• 24-pin gray Honda connector to 14-pin black interface connector, with

pre-wired 12-pin black ASWC-1 harness.

• 24-pin and 12-pin gray Honda connector to 22-pin black interface connector,

with a Yellow female RCA.

• 8-pin gray Honda subwoofer connector to White RCA.

•Blue connector to White connector LVDS cable.

Connections to be made:

From the 24-pin gray Honda connector to the aftermarket radio:

• Connect the Red wire to the accessory wire.

• Connect the Black wire to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the Blue/White wire to the amp turn on wire (this wire must be

connected to hear sound from the factory amplifier).

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

• Connect the Gray wire to the right front positive speaker output.

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the Green wire to the left rear positive speaker output.

• Connect the Green/Black wire to the left rear negative speaker output.

• Connect the Purple wire to the right rear positive speaker output.

• Connect the Purple/Black wire to the right rear negative speaker output.

99-7804

Wiring Instruction

Connections to be made:

From the 14-pin black connector to the aftermarket radio:

• Connect the Orange wire to the illumination wire. (If the aftermarket radio has

no illumination wire, tape off the Orange wire).

The following wires are for aftermarket multimedia/navigation radios that

provide these wires (if not required, tape them off and disregard them):

• Connect the Light Green wire to the parking brake wire (if applicable).

• Connect the Blue/Pink wire to the speed sense wire (if applicable).

• Connect the Green/Purple wire to the reverse wire (if applicable).

If not equipped with a factory Rearview Camera and one wants to be added:

From the 22-pin black connector to the aftermarket radio:

• Connect the Yellow RCA to the aftermarket rearview camera (female to female

barrel connector may be needed depending on camera brand, not provided).

Note: If an aftermarket backup camera is connected it must be selected

in the Menu. (Menu button on SWC>Camera Settings>Backup Camera

Source>Aftermarket Backup Camera)

If Equipped with Factory Subwoofer:

From the 8-pin gray Honda connector to the aftermarket radio:

• Connect the White RCA to the “Subwoofer Output”

(a Y-RCA adapter may be needed, not provided).

ASWC-1 (if installing)

• After the interface is initialized, plug the ASWC-1 into the 12-pin harness

of the 7804 and refer to the ASWC-1 instructions.

Note: There are a couple harnesses in the vehicle that there will be no

harness connections; these are not needed in the installation.

•Green and Gray connectors with similar small square connectors.

• 20-pin, 18-pin, & 5-pin gray connectors.

99-7804

Touch Screen Instructions

When the interface first boots up, the

OEM screen will show an Android

Boot up sequence, DO NOT touch any

controls until the clock screen appears.

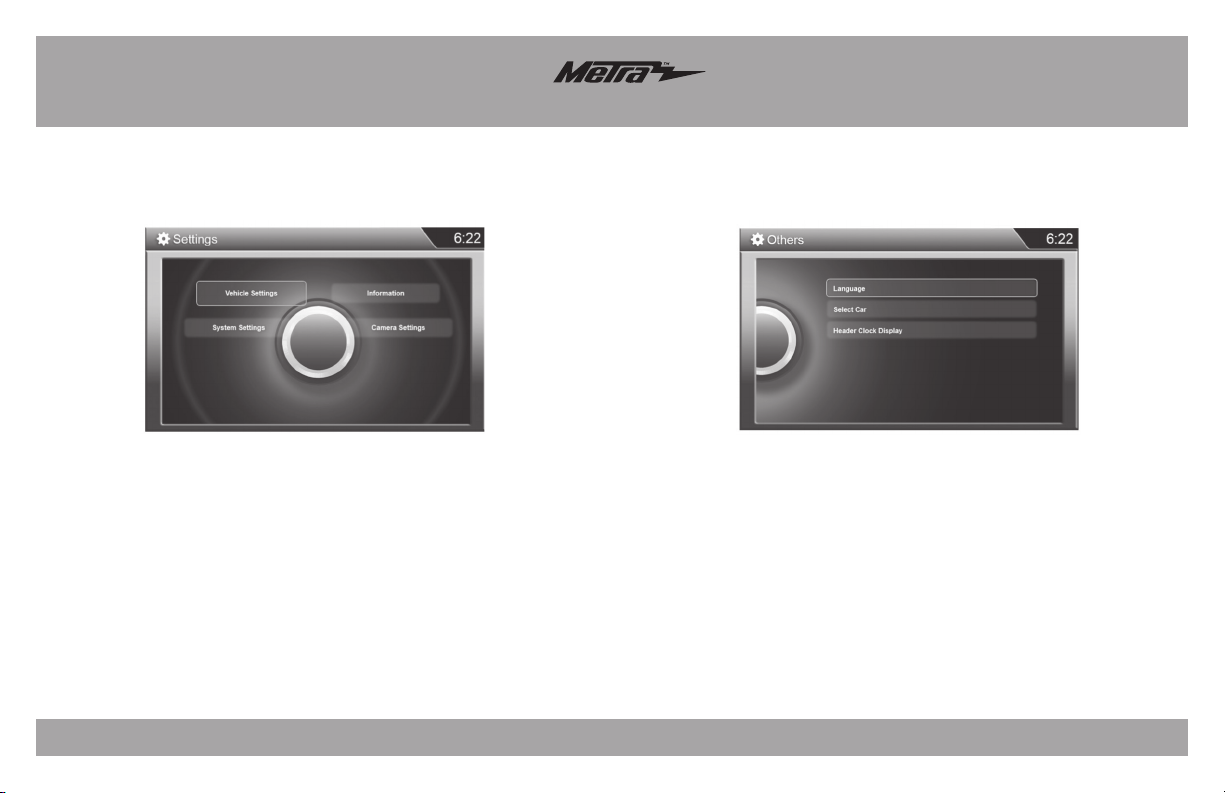

• Enter the System settings menu

to select the correct year range

for the vehicle; the instructions

to enter this menu are as follows.

Press the Menu button on the SWC

to enter the personalization menu

The steering wheel controls for the

personalization menu will override the

controls for the radio.

• Press the Menu button to enter the

personalization menu

To navigate through the menu you will

continue to use the steering wheel

controls.

then continue through the menus.

(System Settings>Others>Select

Car>2013 & 2014 Accord

OR 2015 Accord) If this step is not

done immediately after the boot

sequence, the interface will need

the power re-cycled by completely

unplugging the interface, waiting

5-10 seconds, and re-attaching

the harnessing.

The controls are as follows:

Volume up and down = Cycle

through the menu options

Source (SRC) = Enter

Seek left = Back or Return

Seek right = Not used

The personalization menu is the

same as the factory with a couple

differences.

Initialization Personalization Menu Procedure

99-7804

Touch Screen Instructions

This menu option allows for a background change

on the clock, the ability to adjust the clock, and

select the year range for interface.

This menu allows you to turn the

LaneWatch camera on and off, change

the view of the Rearview Camera, and

allow you to add a aftermarket camera

if the car is not equipped with a factory

rearview camera.

Note: Lane watch camera is default

to on. If an OE Lane watch camera is

not present please turn off the “Trigger

with Right Turn Signal” option which

located in this setting screen.

LaneWatch Calibration

Note: The LaneWatch button is located on the left

side of the steering wheel, on the stalk.

•

Press and hold the LaneWatch button for 50

seconds to begin the LaneWatch aiming procedure

(this procedure should only be done by a Honda

authorized technician). At this point the display

will also show an image of the LaneWatch

camera feed, with instructions on what to do

— a Honda authorized technician will know

what to do from here.

System Settings Camera Settings

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Metra Electronics Autozubehör Handbücher

Metra Electronics

Metra Electronics 99-7365B Bedienungsanleitung

Metra Electronics

Metra Electronics INST-GMOS05 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-9303 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3030B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7008 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3308G Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7892 Bedienungsanleitung

Metra Electronics

Metra Electronics GMLAN11-100 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-9100 Bedienungsanleitung

Metra Electronics

Metra Electronics 71-5520 Bedienungsanleitung

Metra Electronics

Metra Electronics MAZDA 6 2009 99-7511S Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3107S Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7579 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7617B Bedienungsanleitung

Metra Electronics

Metra Electronics 70-5511 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-5850B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7606 Bedienungsanleitung

Metra Electronics

Metra Electronics 70-7003 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-5816 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3300 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7318 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-6507 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7861 Bedienungsanleitung

Metra Electronics

Metra Electronics 70-6514 Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
