INSTALLATION INSTRUCTIONS FOR PART 99-7877S

99-7877S

APPLICATIONS

Honda Fit 2009-10

KIT FEATURES

•DIN Radio Provision with Pocket

•ISO Mount Radio Provision with Pocket

• Double DIN Radio Provision

•Stacked ISO Mount Units Provision

•Painted ToMatch Factory Dash

“S”= SILVER

•A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets

•E) Double DIN Trim Plate • F) Pocket

KIT COMPONENTS

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver • Socket Set

1-800-221-0932

www.metraonline.com

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

•70-1729 Honda Harness 2008-up

•40-HD10 Honda Antenna Adapter 2005-up

TOOLS REQUIRED:

Dash Disassembly

HondaFit2009-10.............................

. . . . . 1

Kit Assembly

-Kit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

-DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

-ISO Mount Radio Provision with Pocket. . . . . . . . . . . . . . . . . . . . . . . . 4

-Double DIN Radio/ Stacked ISO Mount Units Provision ............. 5

TABLE OF CONTENTS

99-7877S

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

99-7877S DASH DISASSEMBLY

HONDA FIT 2009-10

Remove (1) 8 MM bolt facing up

behind center panel.

Note: Slide the recirculation

control lever to FRESH for better

access to bolt. (

Figure A)

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove the lower center

panel below radio. (

Figure A)

Remove (2) Phillips screws securing

the hazard switch to the back of the

factory radio panel. (

Figure D)

Remove (2) Phillips screws securing

the air bag light to the backof the

factory radio panel. (

Figure E)

Remove (5) Phillips screws securing

the a/c vents to the radio panel.

Remove (7) retaining clips from radio

housing to be used later in kit

preparation.

Open the upper glove box then use

apry tool to unclip and remove the

radio/climate control assembly.

(

Figure B & C)

Continue to kit preparation.

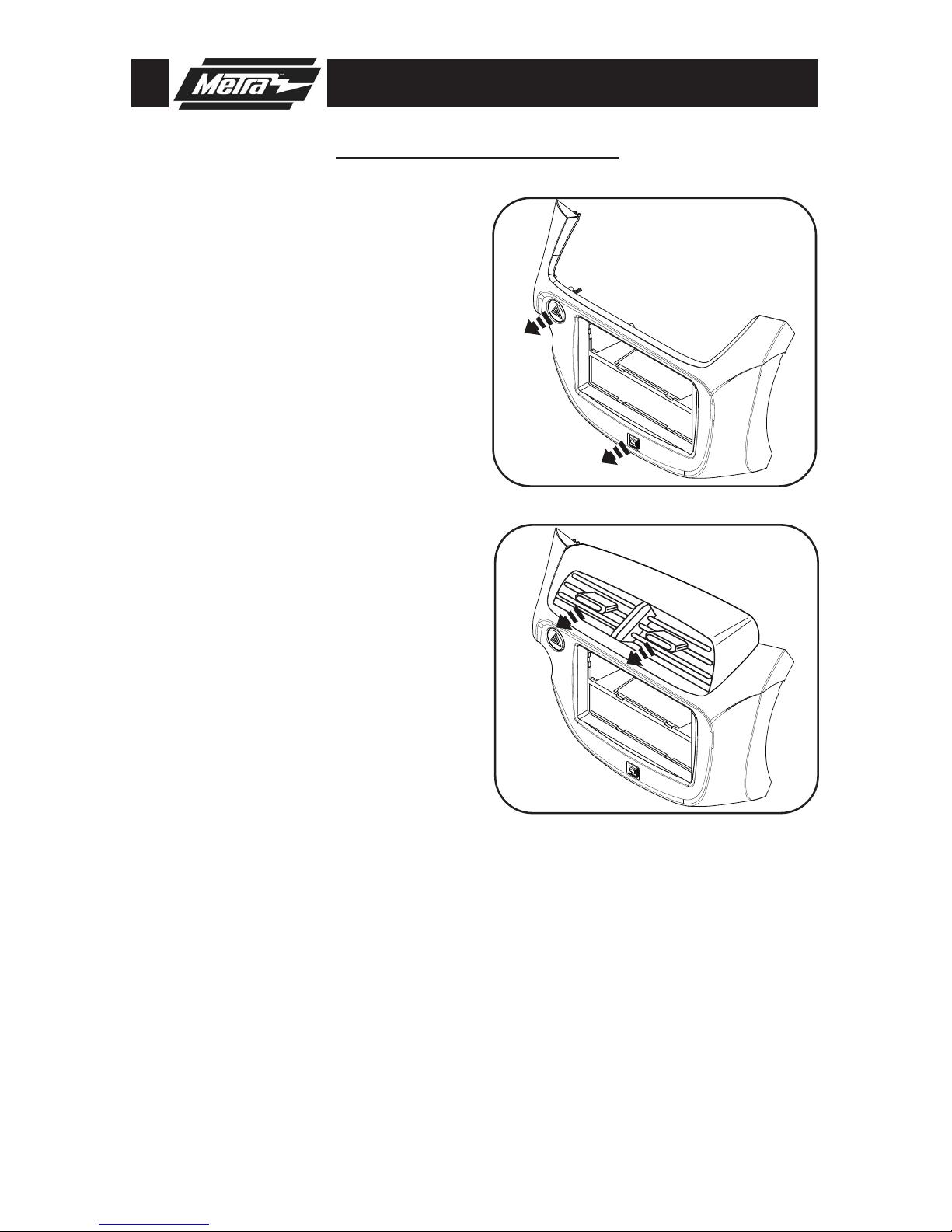

99-7877S KIT PREPARATION

KIT PREPARATION

Secure the a/c vents to the radio

housing using the factory hardware.

(

Figure B)

Secure the hazard switch into the

radio housing panel using the factory

hardware. (

Figure A)

Attach the (7) retaining clips to the

radio housing panel in the same

location as removed from the factory

radio panel.

Secure the air bag light into the radio

housing panel using the factory

hardware. (

Figure A)

Continue to kit assembly.

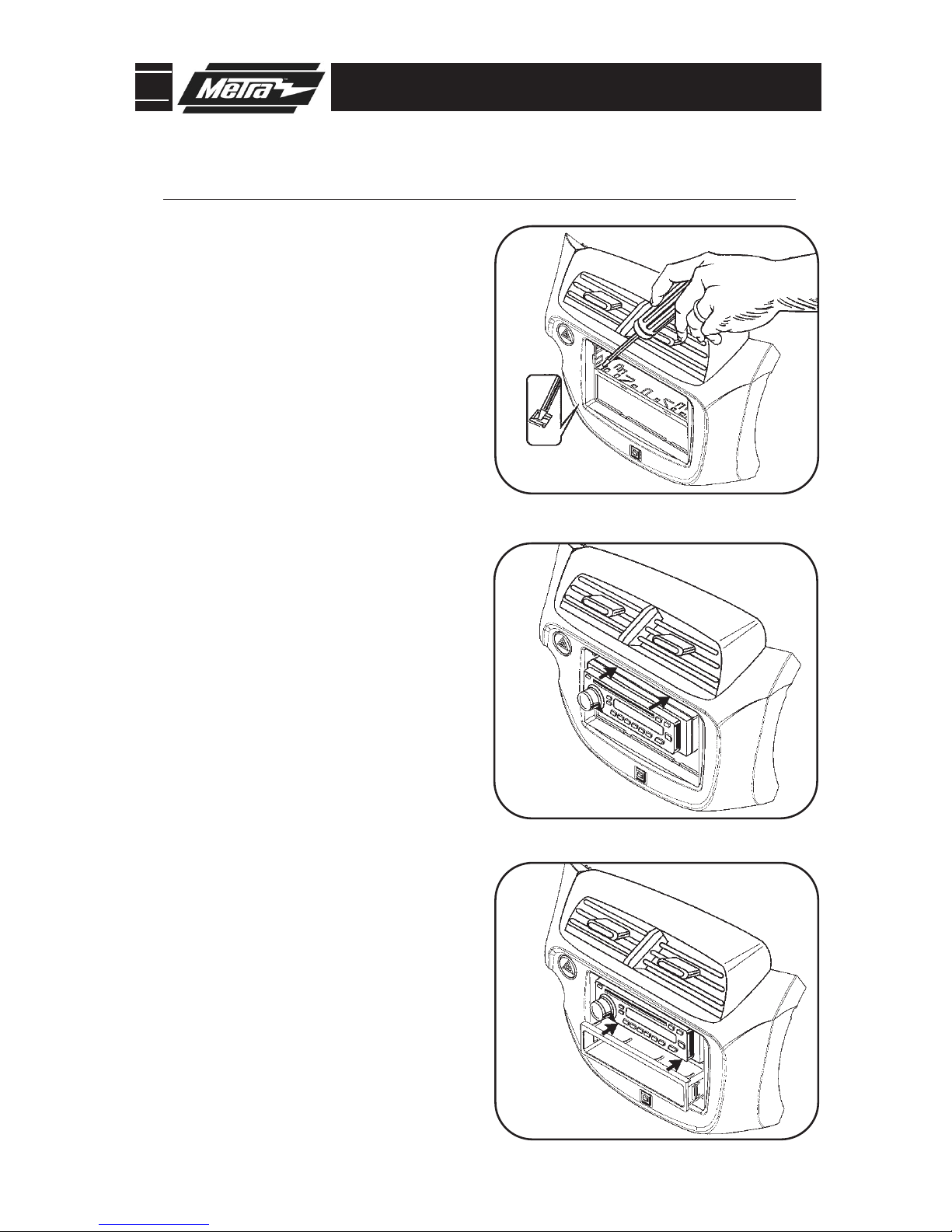

99-7877S KIT ASSEMBLY

DIN MOUNT RADIO PROVISION WITH POCKET

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from

Metra or AXXESS. Re-connect the

negative battery terminal and test

the unit for proper operation.

Slide the DIN cage into the Radio

Housing and secureby bending the

metal locking tabs down.

(Figure A)

Slide the aftermarket head unit into

the cage and secure.

(Figure B)

Snap the pocket into the Radio

Housing.

(Figure C)

Re-assemble dash in reverse order of

disassembly.

*Note: Refer also to the instructions included with the aftermarket radio.

99-7877S KIT ASSEMBLY

ISO MOUNT RADIO PROVISION WITH POCKET

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

Mount the ISO Brackets to the head

unit with the screws supplied with

the unit.

(Figure A)

Slide the head unit into the radio

opening until the side clips engage.

(Figure B)

Snap the Trim plate into the Radio

Housing.

(Figure B)

Snap the Pocket into the radio

housing.

(Figure C)

*Note: Refer also to the instructions included with the aftermarket radio.

Re-assemble dash in reverse order of

disassembly.

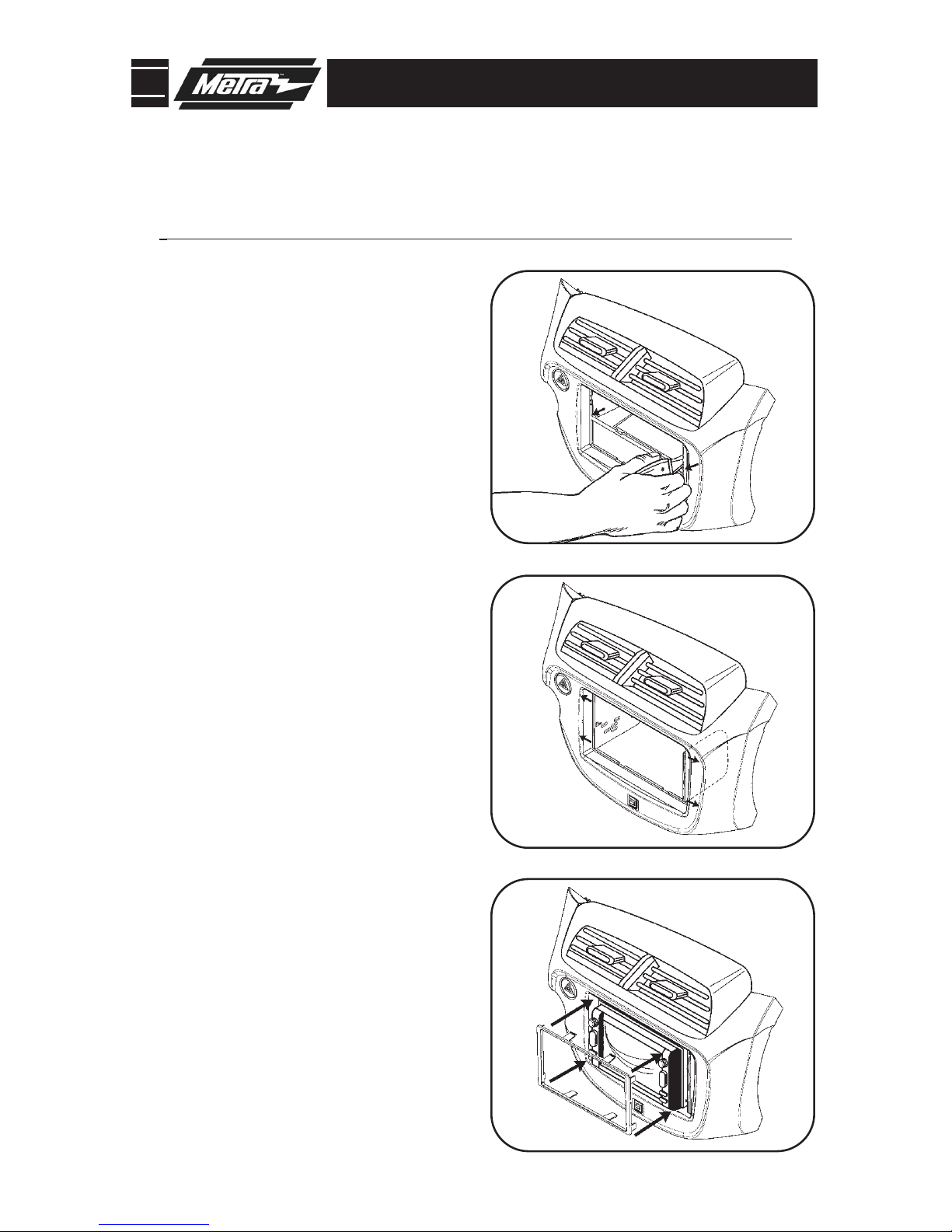

99-7877S KIT ASSEMBLY

DOUBLE DIN RADIO PROVISION/

Cut and remove the center bar from

the radio housing.

(Figure A)

Snap the Double DIN brackets to the

inside edge of the Radio Housing.

(Figure B)

Slide the Double DIN head unit or

stacked ISO head units into the

bracket/radio housing assembly and

secure the Double DIN head unit or

stacked ISO head units to the

assembly using the screws supplied

with the radio.

(Figure C)

Snap the Double DIN trim plate onto

the front of the radio/housing

assembly.

(Figure C)

*Note: Refer also to the instructions included with the aftermarket radio.

STACKED ISO MOUNT UNITS PROVISION

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

Re-assemble dash in reverse order of

disassembly.

99-7877S INSTRUCTIONS

1-800-221-0932

www.metraonline.com
