INSTALLATION INSTRUCTIONS FOR PART 99-9105

*86-9001 Head Unit Removal Tool • Flat Blade Screwdriver Or Panel Removal Tool

1-800-221-0932 www.metraonline.com

KIT FEATURES

APPLICATIONS

Audi A4 2000-2001

(Symphony Radio Only)

•DIN radio provision with pocket

•ISO radio provision with pocket

• Double DIN radio provision

A) Radio Housing • B) Pocket • C) Trim Plate • D) ISO Brackets • E) Double DIN Trim Plate

• F) Double DIN Brackets

KIT COMPONENTS

TOOLS REQUIRED:

99-9105

Note: Twosets of the head unit removal tools are recommended for

easier removal of factor head unit.

Dash Disassembly

-Audi A4 2000-2001 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Kit Assembly

-DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . 2

-ISO Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . 3

-Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Final Assembly ...................................5

TABLE OF CONTENTS

99-9105

AUDI A4 2000-2001

SAT

TAPE SCAN

RDS

TONE

LOAD

99-9105

Disconnect the wiring.

Continue to kit assembly.

Insert Metra’s 86-9001 into the

slots in the factory radio and pull

the radio from the dash.

(Figure A)

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

DASH DISASSEMBLY

99-9105 KIT ASSEMBLY

Snap the pocket into the Radio

Housing until secure.

(Figure C)

Slide the DIN cage into the Radio

Housing and secure by bending

the metal locking tabs down.

(Figure A)

Slide the aftermarket radio into the

cage and secure.

(Figure B)

DIN RADIO PROVISION WITH POCKET

Continue to final assembly.

99-9105 KIT ASSEMBLY

Slide the radio into the radio

opening until the side clips

engage.

(Figure B)

Snap the ISO Trim Plate into the

Radio Housing.

(Figure C)

Snap the pocket into the radio

housing.

(Figure C)

Mount the ISO Brackets to the

radio with the screws supplied

with the unit.

(Figure A)

ISO RADIO PROVISION WITH POCKET

Continue to final assembly.

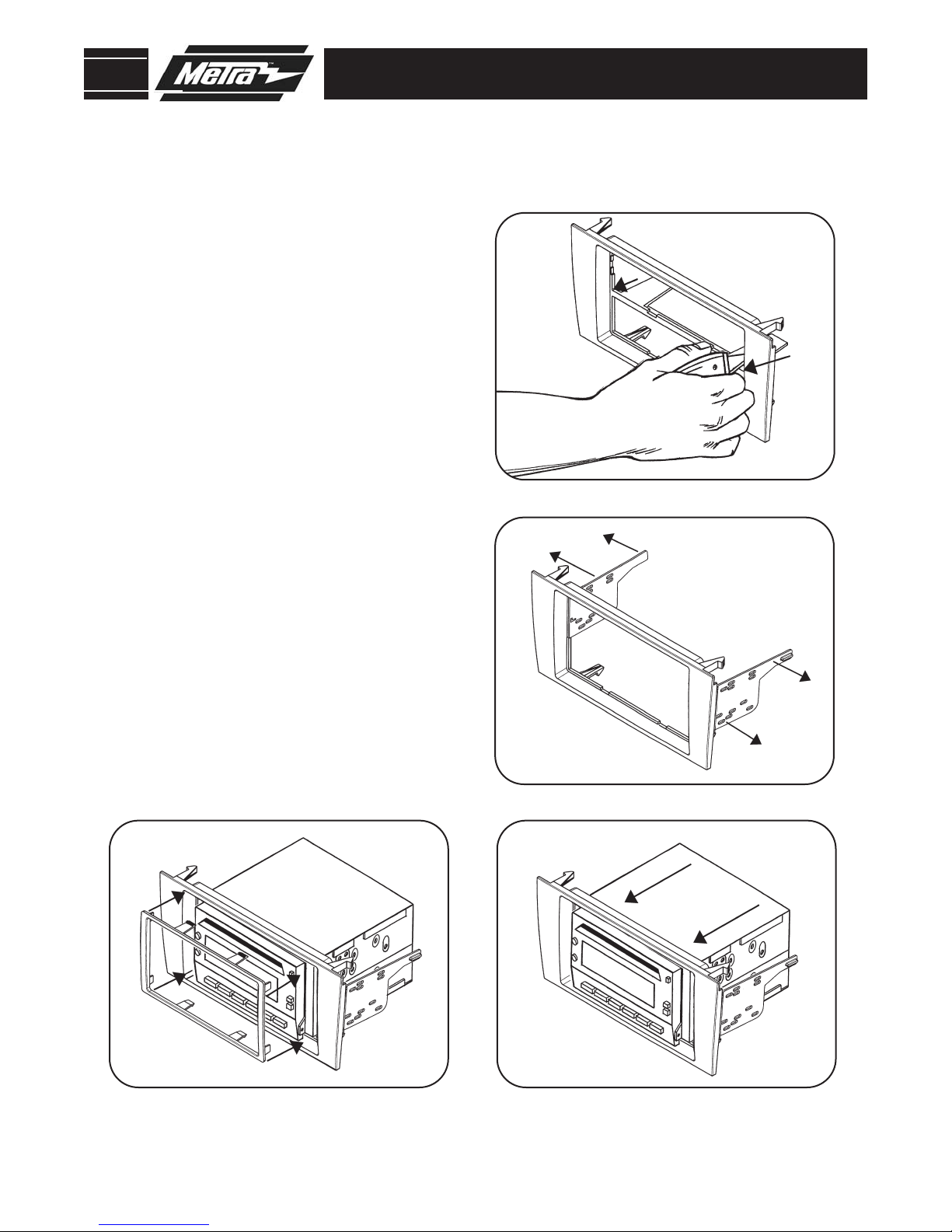

99-9105 KIT ASSEMBLY

Slide the Double DIN radio into the

Double DIN bracket/radio housing

assembly and secure the unit to the

kit using the screws supplied with

the radio.

(Figure C)

Cut and remove center divider

from radio housing.

(Figure A)

Snap the Double DIN brackets to the

inside edge of the radio housing.

(Figure B)

Snap the Double DIN trim-plate onto

the housing/radio assembly.

(Figure D)

DOUBLE DIN RADIO PROVISION

Continue to final assembly.

FINAL ASSEMBLY

Make wiring connections using the EIA color code chart shown belowand the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of any unused wires to prevent electrical short circuit.

FINAL WIRING CONNECTIONS

99-9105

FINAL ASSEMBLY

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-). . . . . . Gray/ Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

METRA / EIA WIRING CODE

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individually

tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Snap radio housing assembly into factory radio opening.

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

99-9105 INSTRUCTIONS
