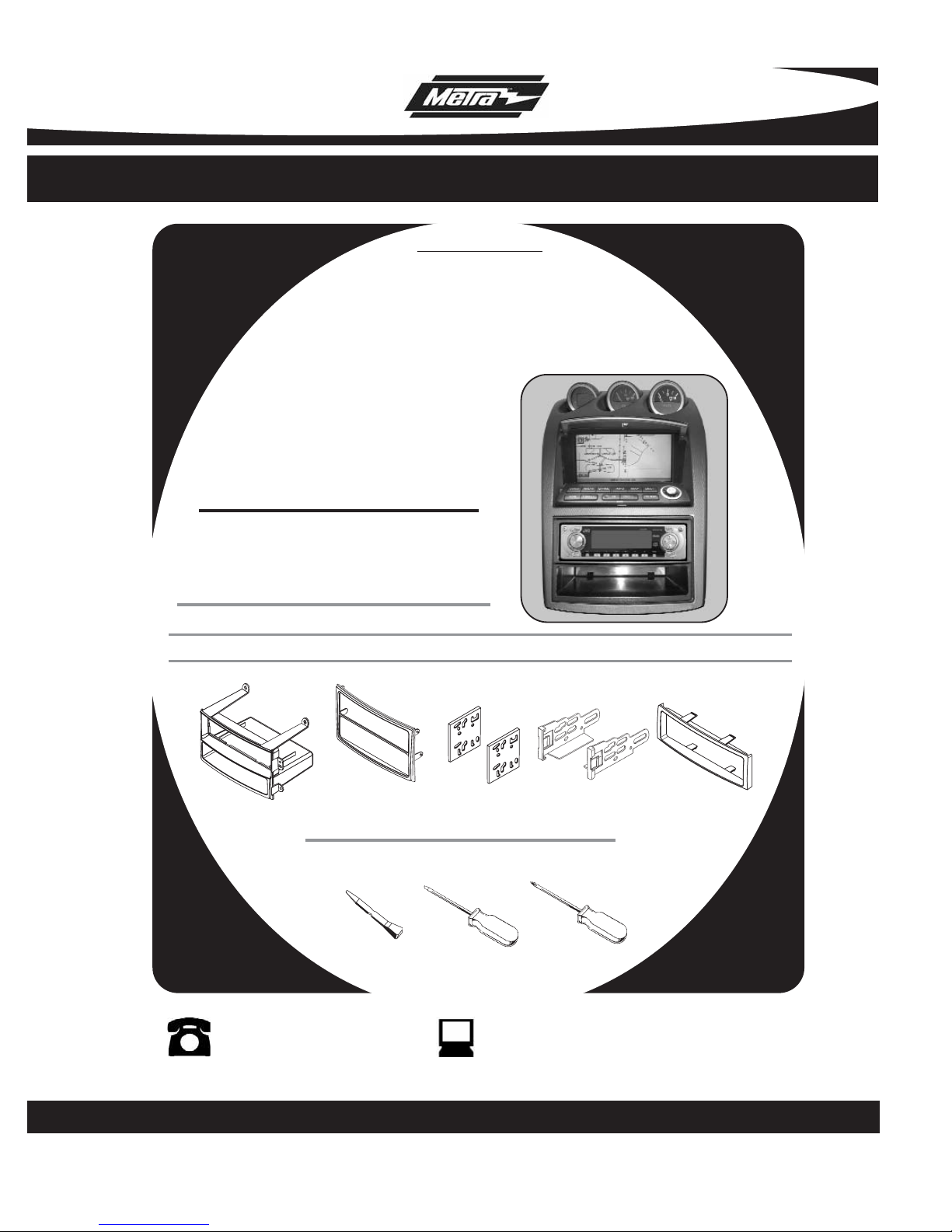

INSTALLATION INSTRUCTIONS FOR PART 99-7402

1-800-221-0932 www.metraonline.com

KIT FEATURES

• DIN Radio Provision with pocket

• ISO Radio Provision with pocket

• Two stacked ISO units provision

• Double DIN radio provision

A) Radio Housing with Pocket B) Double DIN Trim-plate C) ISO Spacer Brackets D) ISO Snap-in Brackets E) ISO Trim-plate

KIT COMPONENTS

TOOLS REQUIRED:

99-7402

APPLICATIONS

350Z 2003-2005

Phillips Screwdriver

Nissan

Panel Removal Tool or

Small Flat Blade Screwdriver

BCE

Dash Disassembly Nissan 350Z 2003-2005....................................1, 2

Kit Assembly

Din Mount Radio Provision with pocket..........................................................

ISO Mount Radio Provision with pocket..........................................................

Double DIN Radio..............................................................................................

Two Stacked ISO mount units.........................................................................

Final Assembly ................................................................................. 7

99-7402

TABLE OF CONTENTS

99-7402 DASH DISASSEMBLY

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

For vehicles with automatic trans-

mission, Unsnap and remove smaller

trim-ring from around shifter.

(Figure A)

For vehicles with manual transmis-

sion, Unscrew and remove shifter

knob.

(Figure A)

NISSAN 350Z 2003-2005

For vehicles with navigation, Unsnap

and remove navigation switch panel.

(Figure C)

For vehicles without navigation,

remove pocket mat, then remove

two screws that secure switch

mask.

(Figure D)

Unsnap and remove center console

trim panel including climate controls.

(Figure B)

99-7402 DASH DISASSEMBLY

Remove (2) screws above the radio

and (2) screws below the radio. Also

remove (2) screws securing the

radio/trim panel assembly.

(Figure E)

NISSAN 350Z 2003-2005

Remove (4) screws securing the

radio to the trim panel and remove

the radio.

Remove (8) screws securing the

factory brackets to the radio and

remove the brackets from the

radio. (These brackets are required

for stacked ISO and double DIN

installations. You can skip this step

for DIN or ISO installations with

pocket).

Unplug and remove the radio / trim

panel assembly.

(Figure F)

Con

tinue to kit assembly.

Attach the radio / housing assembly

to the radio trim panel using the

factory screws removed during

disassembly.

(Figure C)

Slide the radio into the DIN cage until

it snaps into place.

(Figure B)

99-7402

KIT ASSEMBLY

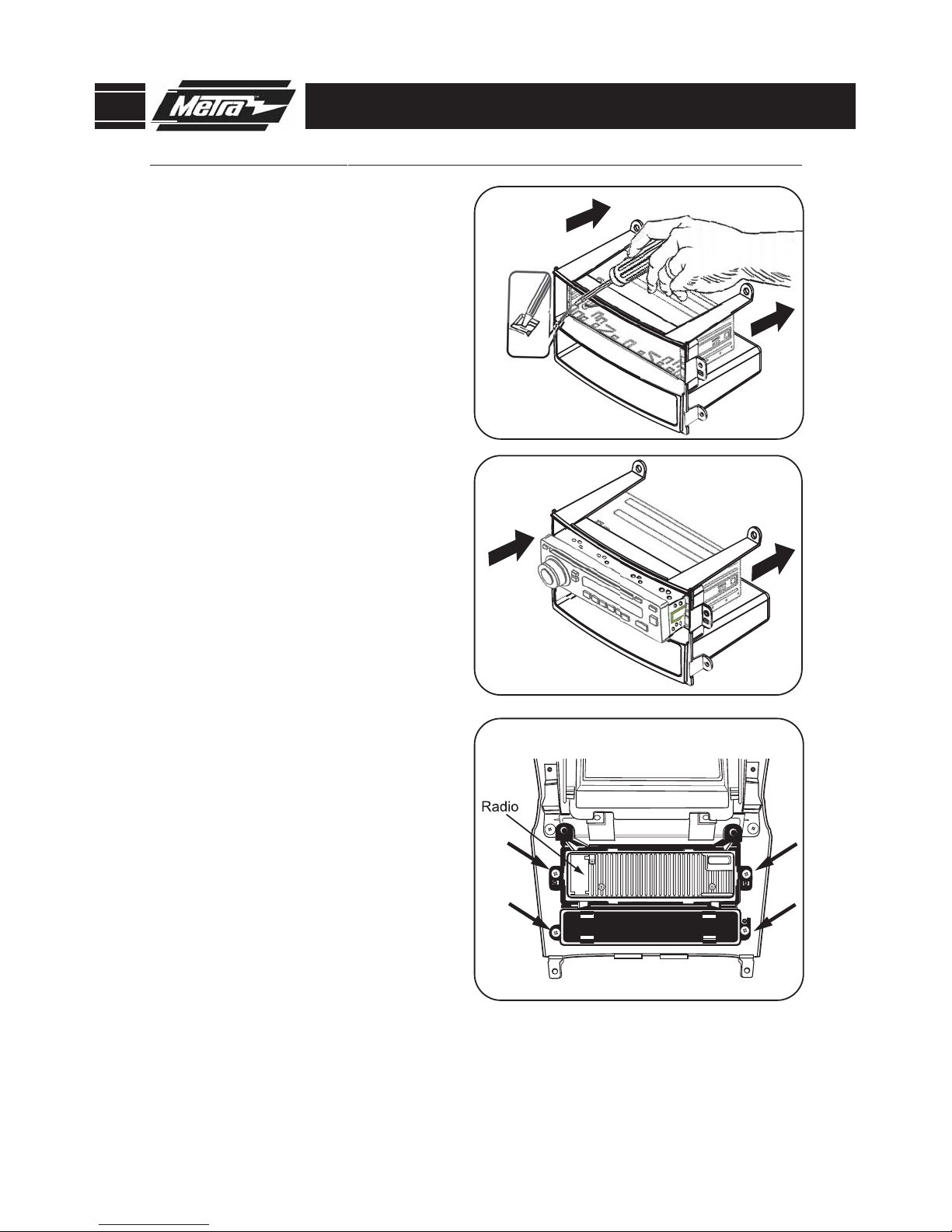

Secure DIN cage to radio housing by

bending the locking tabs outward.

(Figure A)

Continue to final assembly.

DIN MOUNT RADIO PROVISION WITH POCKET

Slide DIN cage (supplied with radio)

into the radio housing from the front.

(Figure A)

Snap the ISO trim-plate onto the front

of the assembled radio and housing.

(Figure B)

NOTE: To remove the radio unsnap and

remove the ISO trim-plate. Using a flat

blade screwdriver disengage ISO

brackets from the radio housing and

slide radio out of radio housing.

99-7402

KIT ASSEMBLY

Continue to final assembly.

Align the holes in the ISO brackets with

the holes in the radio. Mount the

brackets to the radio using screws

supplied with the radio.

(Figure A)

Slide the radio bracket assembly into

the radio housing until it snaps into

place.

(Figure B)

ISO MOUNT RADIO WITH POCKET

Attach the radio / housing assembly

to the radio trim panel using the

factory screws removed during

disassembly.

(Figure C)

Place one of the ISO spacer brackets

and the left factory mounting bracket

(removed from radio during disas-

sembly) on the left side of the radio.

The spacer bracket should be

between the radio and the factory

bracket. Align the pins on the trim-

plate with the holes on the factory

bracket and mount the factory

bracket to the radio using screws

supplied with the radio.

(Figure B)

99-7402

KIT ASSEMBLY

Continue to final assembly.

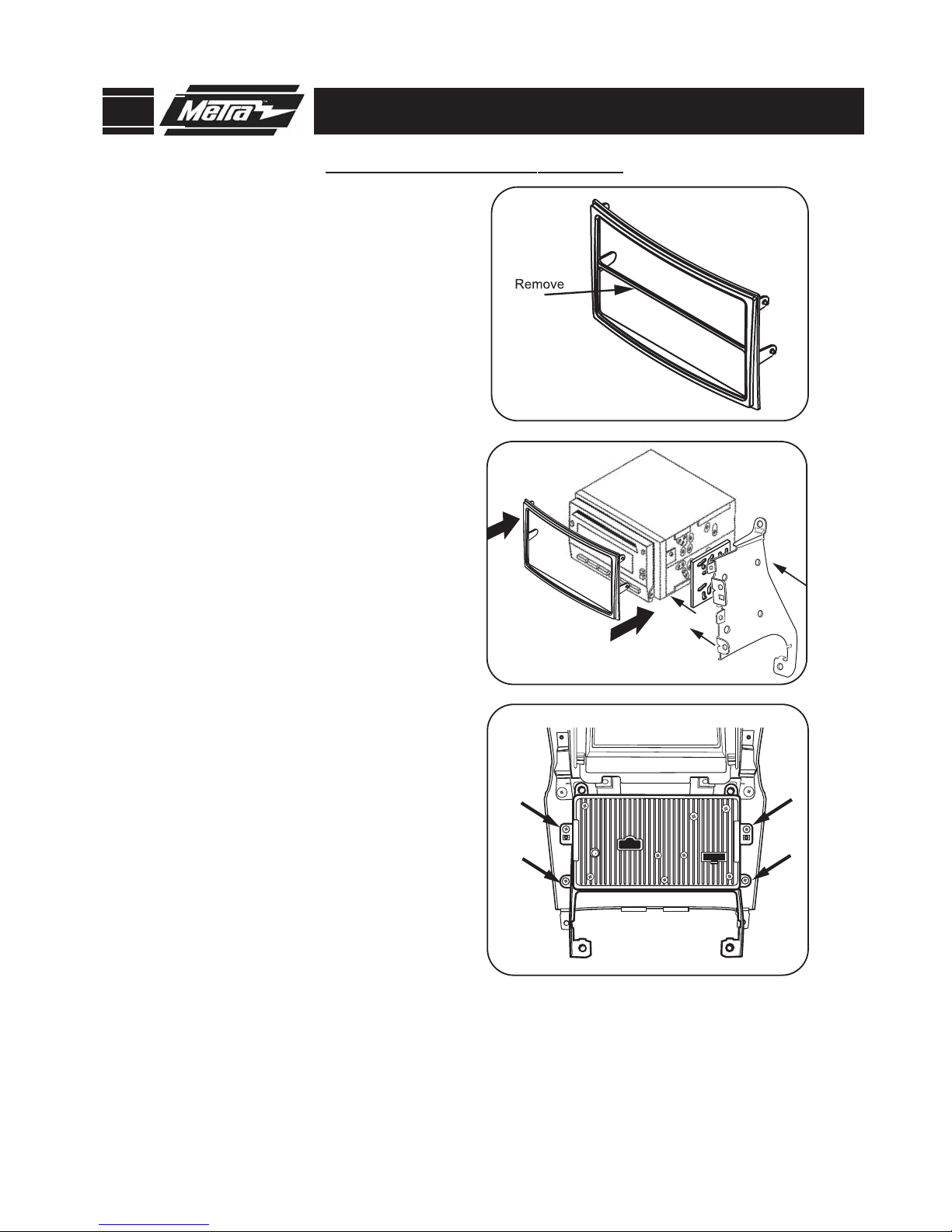

Cut and remove center divider from

double DIN trim-plate.

(Figure A)

Place the double DIN trim-plate on

the front of the radio.

(Figure B)

DOUBLE DIN RADIO

Attach the radio bracket assembly to

the radio trim panel using the

factory screws removed during

disassembly.

(Figure C)

Place one of the ISO spacer brackets

and the right factory mounting

bracket (Removed from radio during

disassembly) on the right side of the

radio. (The spacer bracket should be

between the radio and the factory

bracket.) Align the pins on the trim-

plate with the holes on the factory

bracket and mount the factory

bracket to the radio using screws

supplied with the radio.

(Figure B)

Place one of the ISO spacer brack-

ets and the left factory mounting

bracket (Removed from radio during

disassembly) on the left side of the

ISO units. (The spacer bracket

should be between the ISO units

and the factory bracket.) Align the

pins on the trim-plate with the

holes on the factory bracket and

mount the factory bracket to the

ISO units using screws supplied

with the radio.

(Figure A)

99-7402

KIT ASSEMBLY

Continue to final assembly.

Place the double DIN trim-plate on

the front of the two ISO units.

(Figure A)

TWO STACKED ISO MOUNT UNITS

Attach the assembled units and

brackets to the radio trim panel using

the factory screws removed during

disassembly.

(Figure B)

Place one of the ISO spacer brackets

and the right factory mounting

bracket (Removed from radio during

disassembly) on the right side of the

ISO units. (The spacer bracket

should be between the ISO units and

the factory bracket.) Align the pins

on the trim-plate with the holes on

the factory bracket and mount the

factory bracket to the ISO units using

screws supplied with the radio.

(Figure A)

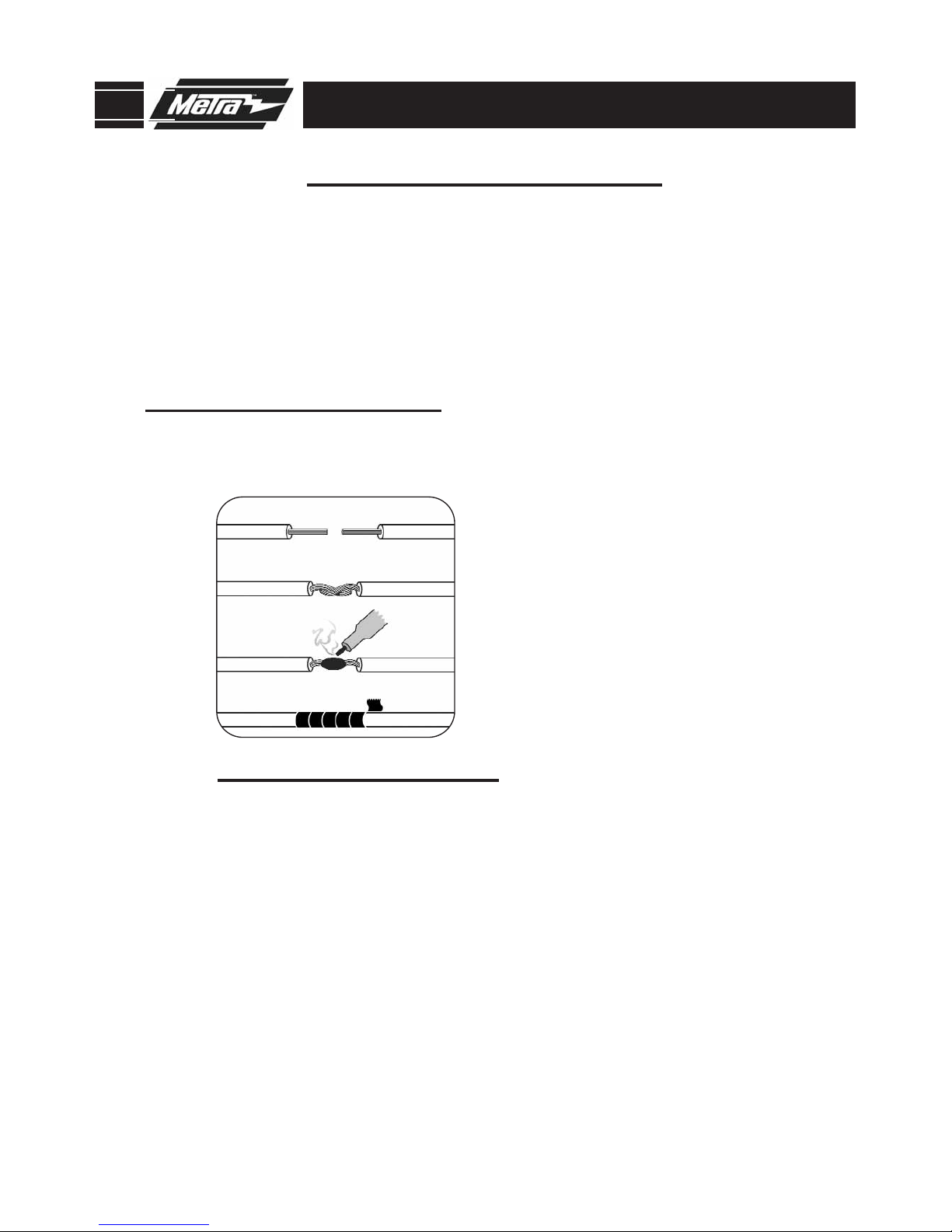

FINAL ASSEMBLY

Locate the factory wiring harness in the dash and make the connection as shown.

Metra recomends using the proper mating adapter and making the connections as

shown. (Isolate and individually tape off the ends of any unused wires to prevent

electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Make wiring connections using the EIA color code chart shown below and the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of any unused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-) . . . . . . Gray / Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

METRA / EIA WIRING CODE

FINAL WIRING CONNECTIONS

99-7402

FINAL ASSEMBLY

99-7402

NOTES
