Neilsen CT2266 Bedienungsanleitung

131PIECE THREAD REPAIR SET

CT2266

INSTRUCTION MANUAL

IMPORTANT:

These instructions accompanying the product are the original instructions. This

document is part of the product, keep it for the life of the product passing it on to

any subsequent holder of the product. Read all these instructions before

assembling, operating or maintaining this product.

Cannon Tools Limited

Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

1. SPECIFICATION

5pcs Installation Tools

5pcs Break Pin Tools

5pcs Twist Drills

1pc Hex Key

5pcs Taps

110pcs wire thread inserts:

M15 X 0.8 X 6.7mm

M6 X 1.0 X 8.0mm

M8 X 1.25 X 10.8mm

M10 X 1.5 X 13.5mm

M12 X 1.75 X 16.3mm

Warning: Wear approved safety glasses and ear defenders.

2. IMPORTANT SAFETY INFORMATION

a). Read the instruction manual fully. Do not attempt any operation until you have

read and understood this manual.

b). Most important you must know how to use the product.

c). Do not overload or misuse the tool. All tools are designed for a purpose and

are limited to what they are capable of doing. Overloading a tool will result in tool

failure and user injury.

d). Maintain your tools correctly. A well maintained tool will do the job safely.

Replace any damaged or missing parts immediately with original parts from the

manufacturer.

3. TECHNICAL DESCRIPTION

1.Twist Drill 5.2mm 2.Screw Tap M5x0.8

3.Installation Tool

4.Breaking Pin Tool

5.Twist Drill 6.3mm 6.Screw Tap M6x1.0

7.Installation Tool

8.Breaking Pin Tool

9.Twist Drill 8.3mm 10.Screw Tap M8x1.25

11.Installation Tool

12.Breaking Pin Tool

13.Twist Drill 10.5mm

14.Screw Tap M10x1.5

15.Installation Tool

16.Breaking Pin Tool

17.Twist Drill 12.5mm 18.Screw Tap M 12x1.75

19.Installation Tool

20.Breaking Pin Tool

Thread Insert 5mm Thread Insert 6mm

Thread Insert 8mm Thread Insert 10mm

Thread Insert 12mm

4. UNPACKING AND CHECKING

Carefully remove the product from the packaging and examine it for any sign of

damage that may have happened during shipping. Lay the contents out and

check them against the parts shown below. If any part is damaged or missing;

please contact the seller and do not attempt to use the product .

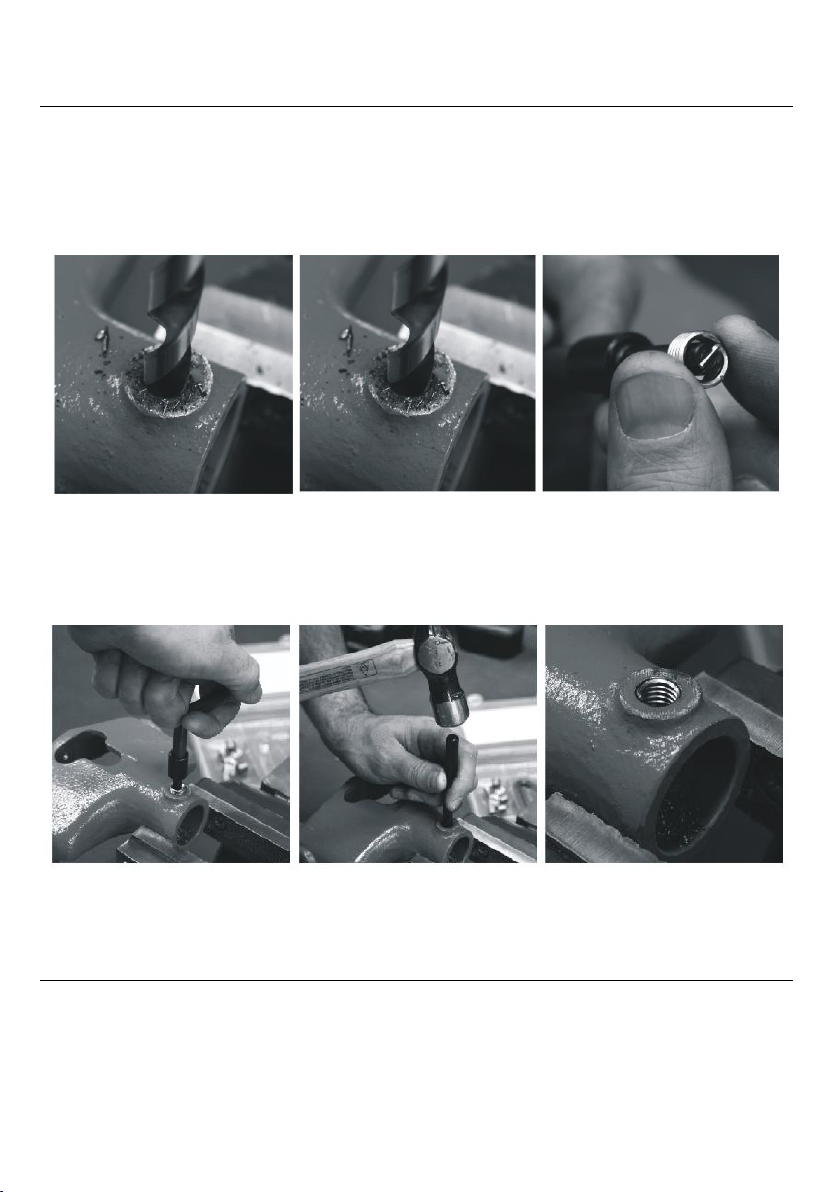

5. USING THE TOOL

1.Drill out the damaged thread using the correctly sized twist drill bit provided.

2.Tap drilled hole using screw tap provided.

3.Load thread insert into installation tool.

4.Screw insert into threaded hole.

5.Remove the tag from the using the breaking pin tool.

6.Thread is repaired and ready to use.

6. DISPOSAL

At the end of the machine's working life, or when it can no longer be repaired,

ensure that it is disposed of according to national regulations.

Contact your local authority for details of collection schemes in your area.

In all circumstances:

Do not dispose of this tool with domestic waste.

Do not incinerate.

During decommissioning of the equipment, certain hazards should be

understood and avoided:

Only with the line pressure released shall the equipment be disassembled.

7. EXPLANATION OF SYMBOLS

WARINING!

First read the instruction manual.

Wear safety glasses and ear protection.

Wear gloves.

CANNON TOOLS LTD

Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.

Made in China
