INTRODUCTION

Thank you for selecting the Oregon ScientificTM Remote

Motion Sensor. This security / monitoring device is

designed as an accessory for the POLERMO Projection

Clock with Motion Alert (RMR939PA). The remote motion

sensor can be used to:

• Activate the following alarm or light when it detects

movement;

- the motion alarm clock for 5 minutes

- the motion sensor alarm for 20 seconds

- the clock backlight for 10 seconds

Other features include:

• LED indicator to show data transmission and low

battery

• Rotary motion sensor - to direct the sensor to the

position you want

• Transmission range - up to 100 feet (open area)

• Wall mount or table stand

• Uses 3 x UM-3 / AA 1.5V batteries or 4.5V AC

adaptor for continuous operations (adaptor not

included)

Keep this manual handy as you use your new product. It

contains practical step-by-step instructions, as well as

technical specifications and warnings you should know.

MSR939A English R3 OP 12/29/04, 11:49 AM2

Black

PRODUCT OVERVIEW

FRONT VIEW

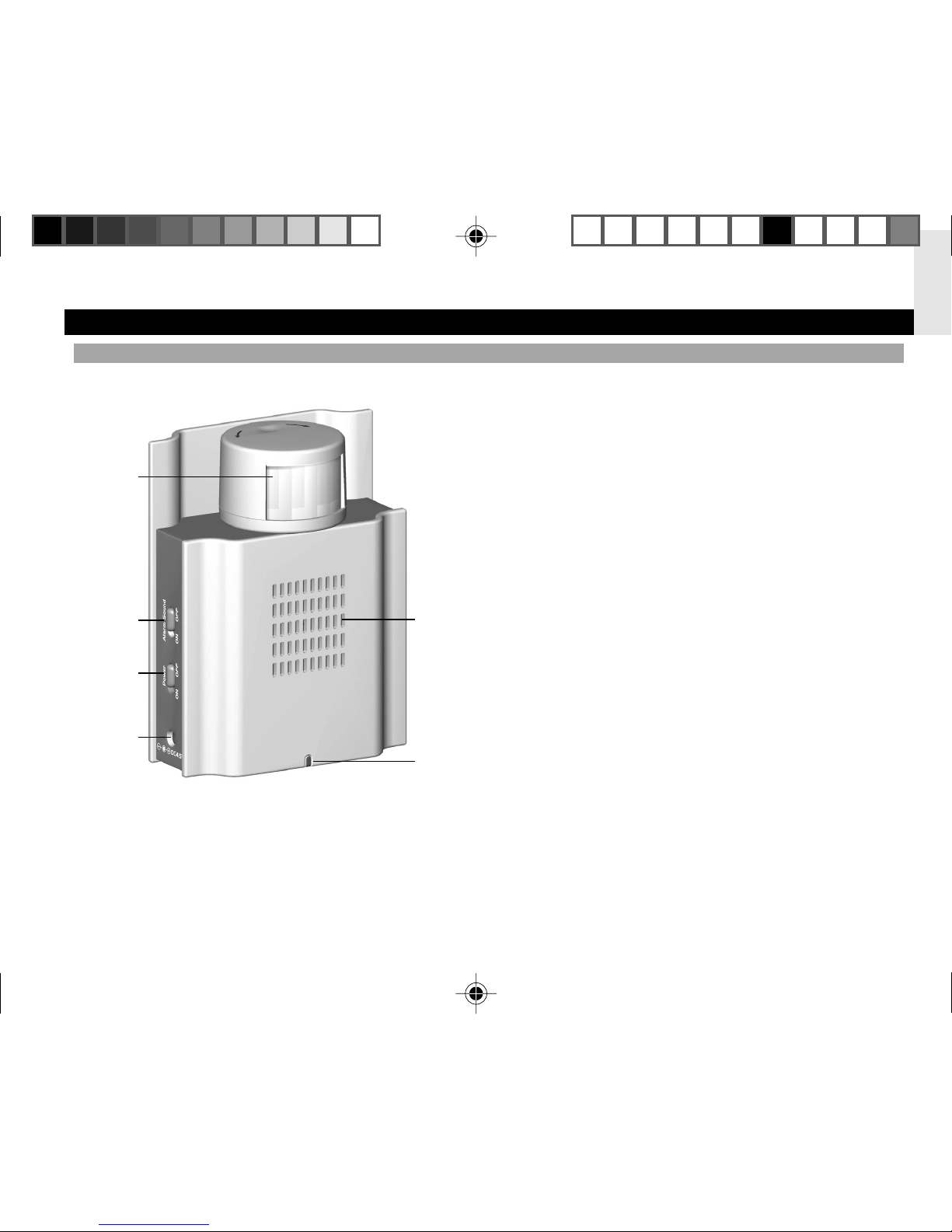

1. Rotary Motion Sensor

Detects motion and activates both alarms on the

remote motion sensor and main clock units in

accordance with the settings used.

Twist the knob to direct the sensor to the position

you want.

2. ALARM SOUND ON / OFF switch

Slide switch to ON - the sensor will sound the

alarm if it detects movement.

Slide switch to OFF - the alarm sound function

will be turned off.

3. POWER ON / OFF

Slide to turn the motion sensor ON or OFF.

4. 4.5V Adaptor Socket (adaptor not included)

5. Motion Alarm Speaker

. LED Indicator

MSR939A English R3 OP 12/29/04, 11:49 AM3

Black

BACK VIEW

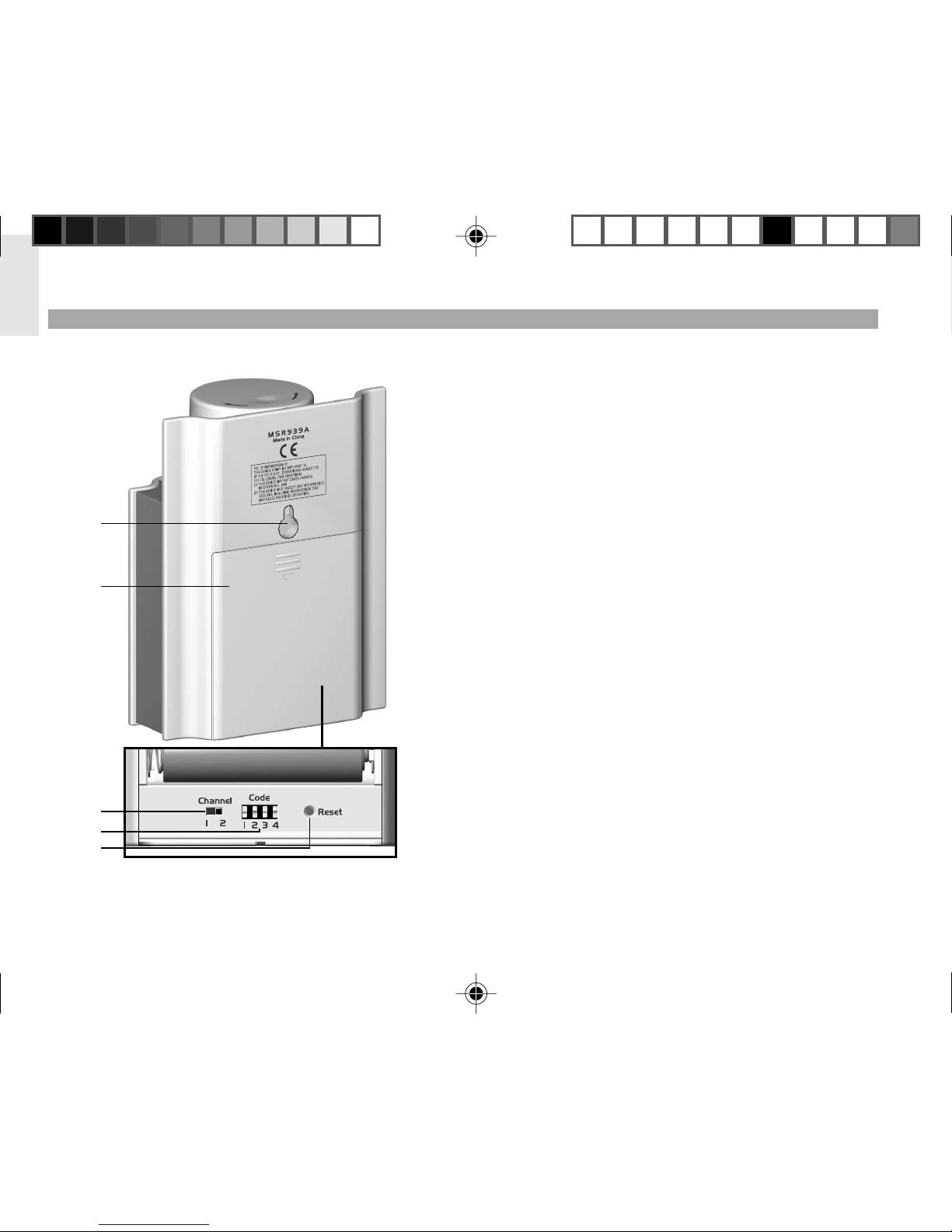

1. Wall Mount

2. Battery Compartment (cover on)

Uses 3 x UM-3 / AA 1.5V batteries.

3. CHANNEL 1 / 2

Slide to select either Channel 1 or Channel 2.

4. CODE switch

Slide to change the Code.

5. RESET hole

Insert a thin blunt instrument to return all values

to the default settings.

MSR939A English R3 OP 12/29/04, 11:49 AM4

Black

• Every effort has been made to ensure the highest

standards of reliability for your remote motion

sensor. However, if something does go wrong,

please do not try to repair it yourself - consult your

supplier.

• Do not use your product outdoors in the rain, or

handle it with wet hands - water can damage

electrical equipment.

GETTING STARTED

PACKAGE CONTENTS

When you unpack your remote motion sensor, make sure

you keep all the packing materials in a safe place, in

case you need to later transport the device or return it

for servicing.

In the box, you will find:

• Remote Motion Sensor

• 3 x UM-3 / AA 1.5V batteries

SAFETY AND CARE

SAFETY PRECAUTIONS

Please observe the following safety precautions when

setting up and using this product.

• Heat sources - Keep the product away from heat

sources, such as radiators, stoves, heaters, and

other heat-generating products.

• Water and moisture - Do not use the product in or

near water or in high moisture areas, such as a

bathroom.

• Power source - The product may be susceptible

to power surges. It should be unplugged during

severe storms or whenever you will be away for

a long time. Only use the type of power source

specified in this manual. Do not overload power

strips and extension cords, as this can cause a

fire hazard.

CARING FOR THIS PRODUCT

To ensure you receive the maximum benefit from using

this product, please observe the following guidelines.

• Do not clean any part of the product with benzene,

thinner or other solvent chemicals - this may cause

permanent damage that is not covered by the

guarantee. When necessary, clean it with a damp

cloth.

• Keep your product away from hot, humid

conditions or strong sunlight.

MSR939A English R3 OP 12/29/04, 11:49 AM5

Black

AC ADAPTOR

The motion sensor uses a 4.5V AC / DC adaptor (not

included).

The motion sensor adaptor can be inserted into the

socket as shown below:

The motion sensor has a Power ON / OFF

switch to help conserve energy. Use the AC adaptor

when using the motion sensor for long periods of time.

The batteries are a good power source for back-up use.

MOTION SENSOR

The motion sensor has a security / monitoring function.

It can set off your motion alarm on the clock for 5 minutes

and turn the backlight on for 10 seconds when it detects

movement.

NOTE

• Press RESET after each battery change.

• The LED indicator on the motion sensor will flash

in red when the batteries are low.

Do not use rechargeable batteries for the clock

or remote motion sensor.

It is recommended that you use alkaline

batteries with this product for longer performance.

NOTE

BATTERIES

The motion sensor uses:

• 3 x UM-3 / AA 1.5V batteries.

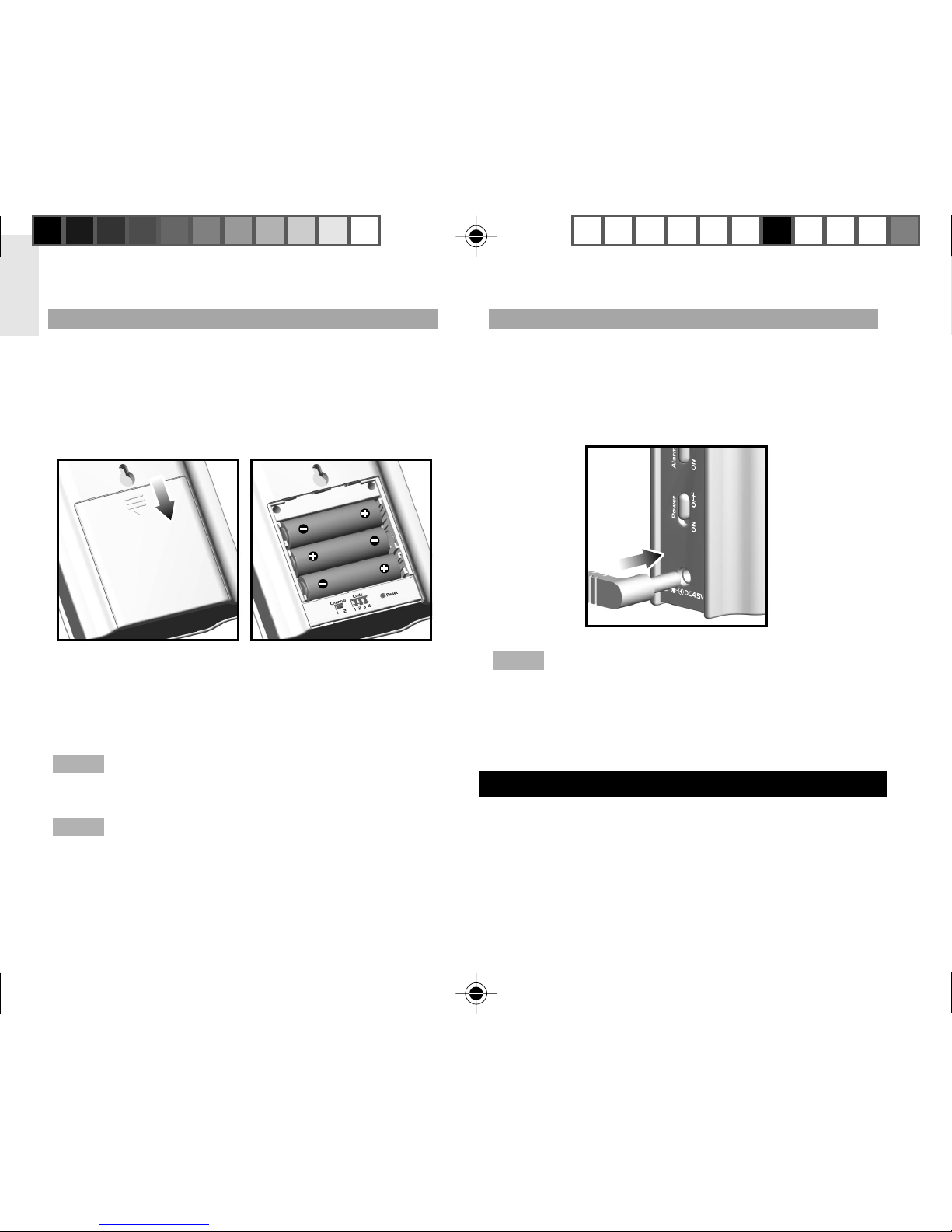

To install the batteries, simply insert them making sure

they match the correct polarities (+ and -).

MSR939A English R3 OP 12/29/04, 11:49 AM6

Black

SETUP SENSOR

1. Install the batteries.

2. Set the channel by sliding the CHANNEL switch to

1 or 2. The switch is located in the battery

compartment.

3. Set the Code by sliding the CODE switches to the

same setting as the Code on the clock display. This

enables the clock and motion sensor to interact with

each other.

4. Press the RESET button. Close the motion sensor

battery compartment.

5. Secure the sensor in the desired location using the

wall mount or table stand.

. Twist the rotary motion sensor knob to direct the

sensor to the position you want.

7. Slide the POWER ON / OFF switch to turn the motion

sensor ON or OFF.

8. Slide the ALARM SOUND ON / OFF switch to ON to

activate the alarm sound function. The motion sensor

alarm will now sound for 20 seconds if it detects

movement. Slide to OFF to deactivate this function.

SWITCH OPTION

Channel Channel 1-2. If you are using more than

one sensor, select a different channel

for each sensor.

Once it has power, the motion sensor takes

2 minutes to warm up.

For best results:

• Insert the batteries and select the channel before

you mount the sensor.

• Place the sensor out of direct sunlight and

moisture.

• Do not place the sensor more than 100 feet

(30 meters) from the main (indoor) unit.

• Position the sensor so that it faces the main

(indoor) unit, minimizing obstructions such as

doors, walls, and furniture.

• Place the sensor in a location with a clear view to

the sky, away from metallic or electronic objects.

You may need to experiment with various locations to

get the best results.

Please refer to the POLERMO Projection Clock

with Motion Alert (RMR939PA) manual for information

on the remote sensor's clock-controlled functions.

NOTE

MSR939A English R3 OP 12/29/04, 11:49 AM7

Black

WARNINGS

This product is designed to give you years of service if

handled properly. Oregon Scientific will not be

responsible for any deviations in the usage of the device

from those specified in the user instructions or any

unapproved alterations or repairs of the product.

Observe the following guidelines:

• Never immerse the product in water. This can

cause an electric shock and damage the product.

• Do not subject the product to extreme force,

shock, or fluctuations in temperature or humidity.

• Do not tamper with the internal components.

• Do not mix new and old batteries or batteries of

different types.

• Do not use rechargeable batteries with this

product.

• Remove the batteries if storing this product for a

long period of time.

The technical specification of this product and

contents of this user manual are subject to change

without notice. Images not drawn to scale.

NOTE

TROUBLESHOOTING

PROBLEM SYMPTOM

Motion

Sensor.

Does not

give out

alarm

sound.

REMEDY

1. Adjust batteries /

AC adaptor.

2. Check POWER

ON / OFF switch is

set to ON.

3. Check ALARM

SOUND switch is

set to ON.

Motion

Sensor.

Does not

activate the

motion

alarm on

the clock.

1. Adjust batteries /

AC adaptor.

2. Check POWER

ON / OFF switch is

set to ON.

3. Check the CODE

switch on the

motion sensor

matches the clock

code display.

MSR939A English R3 OP 12/29/04, 11:49 AM8

Black

TECHNICAL SPECIFICATIONS

TYPE DESCRIPTION

Remote Motion Sensor Dimensions

L x W x H 3.4 x 1. 9 x 4.41 inches

(88 x 43 x 112 mm)

Weight (without battery) 0.31 lbs (140 g)

Remote Unit

Motion Sensor

Coverage Distance

Approx. 1 feet (5 meters)

Motion Sensor Warm-

Up Time

Approx. 2 minutes after

power-on

Power

Remote Motion

Sensor Unit

3 x UM-3 (AA) 1.5V

batteries or 4.5V AC

adaptor (adaptor not

included)

Adaptor output current

≥ 50mA

It is recommended that you use alkaline

batteries with this product for longer performance.

Design and specifications are subject to change

without notice.

NOTE

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn

more about Oregon Scientific products such as digital

cameras; MP3 players; children's electronic learning

products and games; projection clocks; health and

fitness gear; weather stations; and digital and conference

phones. The website also includes contact information

for our customer care department in case you need to

reach us, as well as frequently asked questions and

customer downloads.

We hope you will find all the information you need on

our website, however if you're in the US and would like

to contact the Oregon Scientific Customer Care department

directly, please visit:

www2.oregonscientific.com/service/support or call

949- 08-2848.

For international enquiries, please visit:

www2.oregonscientific.com/about/international/

default.asp

MSR939A English R3 OP 12/29/04, 11:49 AM9

Black

Inhaltsverzeichnis

Sprachen:

Andere Oregon Scientific Zubehör Handbücher

Oregon Scientific

Oregon Scientific WA633 Bedienungsanleitung

Oregon Scientific

Oregon Scientific THGR122NX Bedienungsanleitung

Oregon Scientific

Oregon Scientific WTGR800 Bedienungsanleitung

Oregon Scientific

Oregon Scientific THWR800 Bedienungsanleitung

Oregon Scientific

Oregon Scientific HWI0003 Bedienungsanleitung

Oregon Scientific

Oregon Scientific Chamfer Chisel 91P F&B A107038 Bedienungsanleitung

Oregon Scientific

Oregon Scientific RTGN129 Bedienungsanleitung

Oregon Scientific

Oregon Scientific THGN122N Bedienungsanleitung

Oregon Scientific

Oregon Scientific UVR128 Bedienungsanleitung

Oregon Scientific

Oregon Scientific RGR122 Bedienungsanleitung

Oregon Scientific

Oregon Scientific UVN800 Bedienungsanleitung

Oregon Scientific

Oregon Scientific UVR138 Bedienungsanleitung

Oregon Scientific

Oregon Scientific GP123 Bedienungsanleitung

Oregon Scientific

Oregon Scientific Super 20 Series Bedienungsanleitung

Oregon Scientific

Oregon Scientific UVN800 Bedienungsanleitung

Oregon Scientific

Oregon Scientific THGR968 Bedienungsanleitung

Oregon Scientific

Oregon Scientific THGN800 Bedienungsanleitung

Oregon Scientific

Oregon Scientific BAR609HGA Bedienungsanleitung

Oregon Scientific

Oregon Scientific THN122N Bedienungsanleitung

Oregon Scientific

Oregon Scientific AuraBreeze WA638 Bedienungsanleitung

Oregon Scientific

Oregon Scientific WS113 Bedienungsanleitung

Oregon Scientific

Oregon Scientific UVN800 Bedienungsanleitung

Oregon Scientific

Oregon Scientific THGR810 Bedienungsanleitung

Oregon Scientific

Oregon Scientific WS909 Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung
