Order Number SD0709A55CE

Rechargeable Shaver

Model No. ES7111

ES7112

ES7115

Asia

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 5

5 Wiring Connection Diagram ---------------------------------12

6 Schematic Diagram ---------------------------------------------13

7 Exploded View and Replacement Parts List -----------14

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

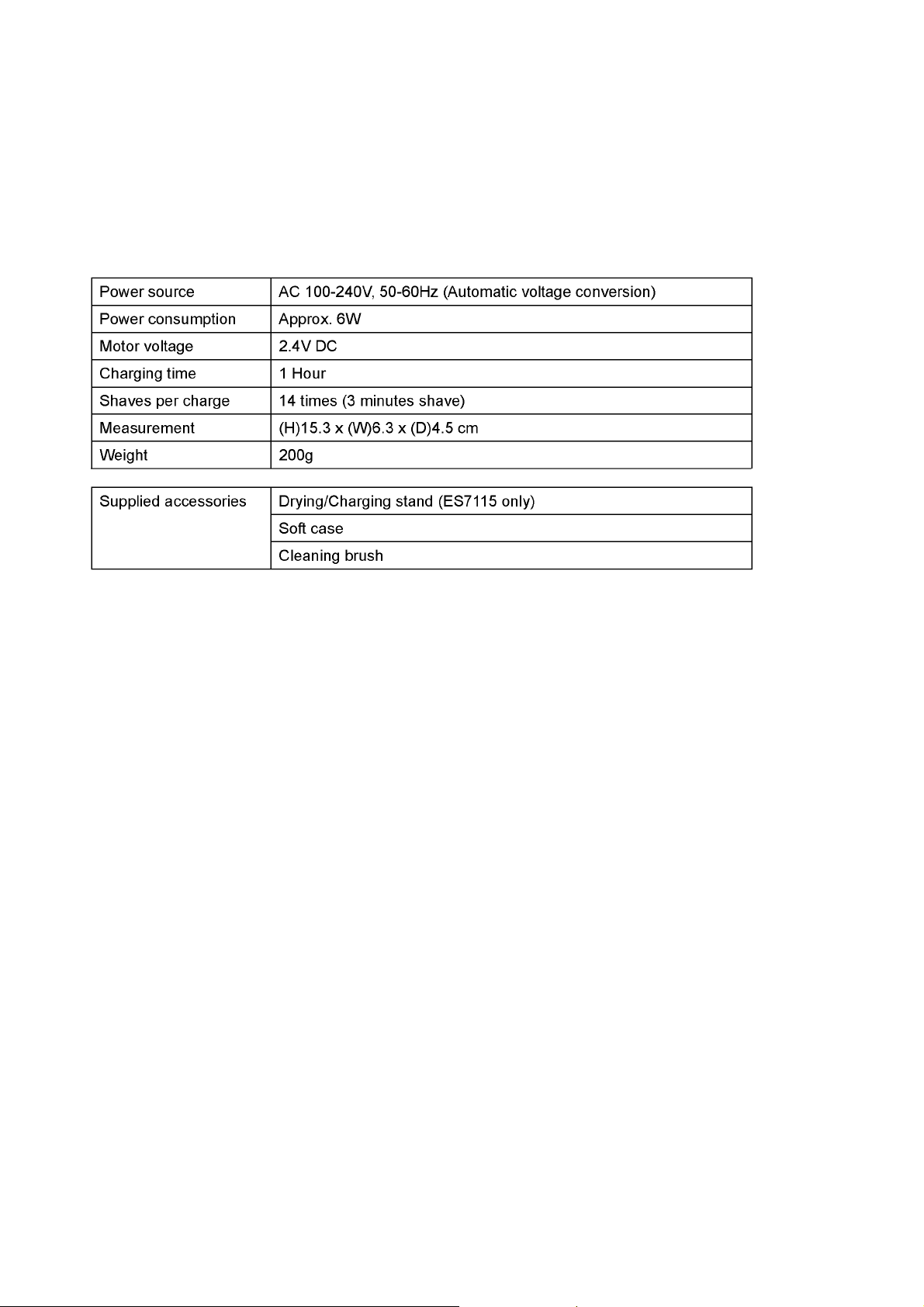

2 Specifications

3

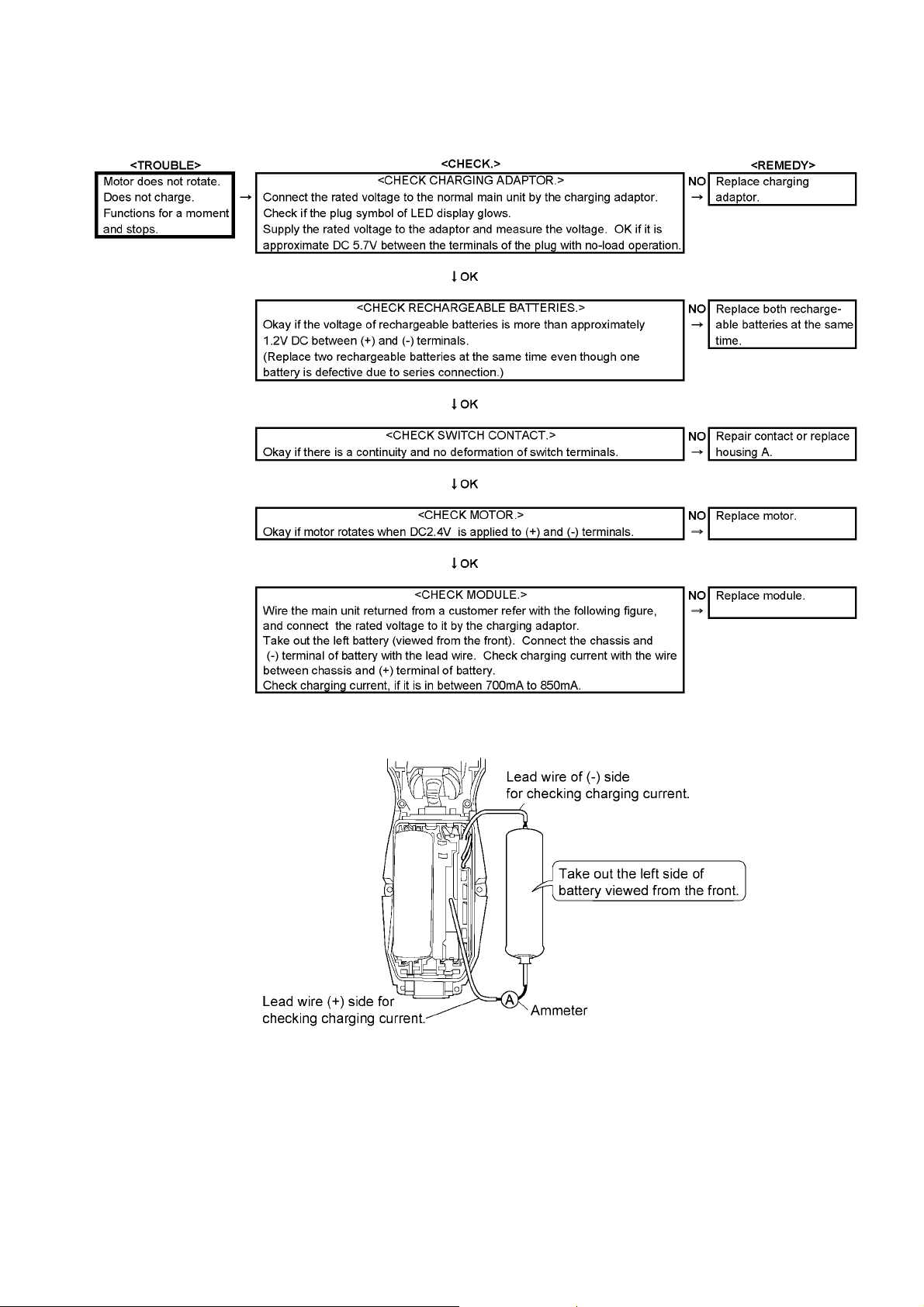

3 Troubleshooting Guide

3.1. Main unit and charging adaptor

4

3.2. Drying/Charging stand (ES7115 only)

3.3. Operation of Drying/charging stand (ES7115 only)

5

4 Disassembly and Assembly Instructions

4.1. Disassembly Instructions

Follow the procedure below to disassemble the main unit.

1. Remove the cap, the outer foil with foil frame and the

inner blade.

2. Slide the trimmer handle up to open the trimmer and

unhook the trimmer handle by inserting something like a

slotted screwdriver or plastic spatula into a slit.

NOTE:

In order to prevent the scratch or damage on the

housing, use the cushion under the screwdriver.

3. Remove trimmer and trimmer handle.

6

4. To remove the trimmer driving bar or the slit blade driving

bar, press bars outward.

5. Loosen a screw and remove the bottom cover.

6. To remove the side panels, insert a small slotted screw-

driver into the middle of housing and unhook.

7

7. Insert a slotted screwdriver into the space between the

front panel and housing. Unhook the front panel by lifting

the screwdriver up.

8. Loosen four screws on both front and back side of hous-

ing.

9. Take out the housing B.

8

10. And take out the battery assembly from housing A.

11. Remove the motor assembly and tube holder.

12. Remove the battery o-ring and washer in each battery.

Take out the rechargeable batteries from the chassis.

9

4.2. Cautions in Assembly

NOTE:

When reassembling, replace the new waterproof rubber. Make sure whether there is NO foreign substance sticking around a

part covered with water seal.

4.2.1. Motor

Insert the tube into the projection of the housing A and set the

tube holder firmly. Then hook the motor holder to the housing

and put the float springs properly.

4.2.2. Module

Align the projection of switch select button on housing A with

the groove of switch plate on module.

10

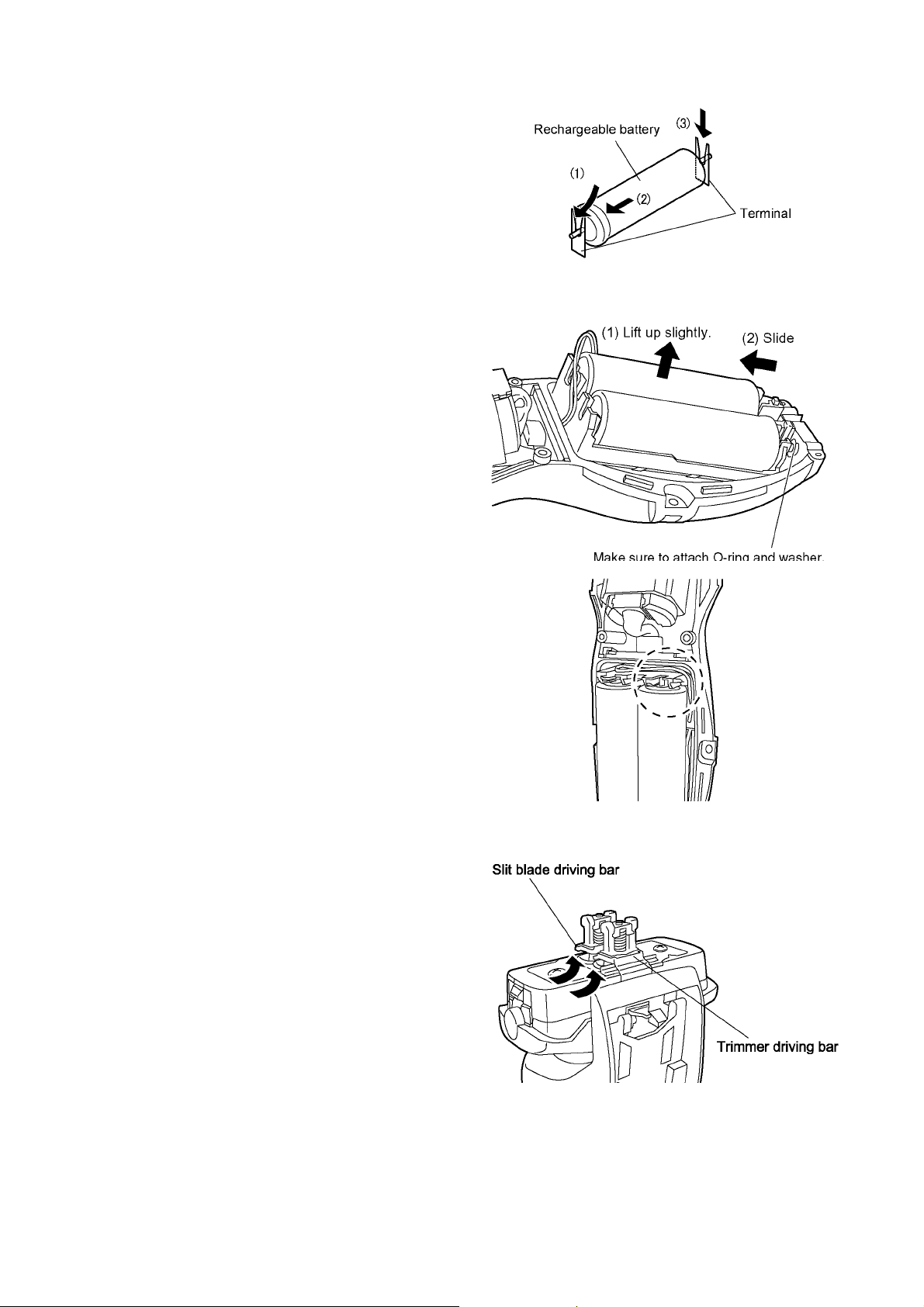

4.2.3. Rechargeable batteries

Insert the rechargeable batteries into chassis. Attach the bat-

tery o-ring and washer to the battery.

Put the battery assembly from the battery terminal side into

housing A, and insert the motor side into housing A.

NOTE:

While setting the battery assembly, pull the lead wires out in

order to prevent pinching. Then press fit the lead wires

neatly.

4.2.4. Driving bars

Set the trimmer driving bar and the slit blade driving bar.
