Paradox Digiplex DGP-620 Bedienungsanleitung
Digiplex LED Keypads
User’s Manual
KLEDEU03.fm Page -1 Friday, May 4, 2001 11:25 AM
KLEDEU03.fm Page 0 Friday, May 4, 2001 11:25 AM
TABLE OF CONTENTS
1.0 INTRODUCTION ........................................................4
1.1 Legend ..................................................................4
2.0 BASIC OPERATION ..................................................4
2.1 Auditory Feedback (Beep Tones) .........................5
2.2 Keypad Indicator Lights ........................................6
2.3 LED Keypads ........................................................6
2.4 Partitioned System ................................................8
2.5 Area Status Display ..............................................8
3.0 ARMING ....................................................................10
3.1 Exit Delay Timer ...................................................10
3.2 Regular Arming ....................................................10
3.3 Stay Arming .........................................................11
3.4 Instant Arming ......................................................12
3.5 Force Arming .......................................................13
3.6 One-Touch Buttons ..............................................14
3.7 Keyswitch Arming ................................................15
3.8 Auto-Arming .........................................................16
3.9 Bypass Programming ...........................................17
4.0 DISARMING ..............................................................20
4.1 Entry Delay Timer ................................................20
4.2 Disarming an Armed System ...............................20
4.3 Alarm Memory Display .........................................22
5.0 ACCESS CODES ......................................................22
KLEDEU03.fm Page 1 Friday, May 4, 2001 11:25 AM
5.1 System Master Code (default 123456) ................23
5.2 User Access Codes .............................................24
5.3 User Options .......................................................26
5.4 Area Assignment .................................................28
5.5 Erasing Access codes .........................................29
6.0 TROUBLE DISPLAY ................................................29
7.0 ADDITIONAL FEATURES ........................................31
7.1 Programmable Outputs (PGMs) ..........................31
7.2 Set Time and Date ..............................................32
7.3 Panic Alarms .......................................................33
7.4 Programming Chime Zones ................................34
7.5 Quick Function Buttons .......................................36
8.0 FIRE AND BURGLAR ALARMS ..............................37
8.1 Standard Fire Zone .............................................37
8.2 Delayed Fire Zone ...............................................38
8.3 Fire Safety Tips ...................................................40
8.4 Minimizing Home Fire Hazards ...........................41
8.5 Burglar Alarm ......................................................41
9.0 TESTING AND MAINTENANCE ..............................42
9.1 Burglar Alarm Testing ..........................................42
9.2 Fire Alarm Testing ...............................................43
9.3 System Maintenance ...........................................43
9.4 System Test ........................................................43
10.0 SYSTEM CHECKLIST ............................................44
KLEDEU03.fm Page 2 Friday, May 4, 2001 11:25 AM
10.1 Zone Description ................................................44
10.2 Special Buttons and Features ............................46
10.3 User Access Codes ...........................................48
KLEDEU03.fm Page 3 Friday, May 4, 2001 11:25 AM
4 User’s Manual
1.0 INTRODUCTION
Your Security System is an advanced technology security
system that will provide you with reliable security protection and
powerful features that are easy to use.
Since you will communicate your instructions to your system
through the keypad, please read this manual carefully and have
your installer explain basic system operation.
1.1 LEGEND
Indicates a warning or an important note.
Indicates useful information or tip.
[WORD]
[NUMBER] Indicates information that must be entered on the keypad.
Italics Indicates references to features, options or sections.
2.0 BASIC OPERATION
Your security system communicates by illuminating the “AC”
Light, the “Status” Light, and the various symbols on the screen
as explained in Figure 2-1.
KLEDEU03.fm Page 4 Friday, May 4, 2001 11:25 AM
LED Keypads 5

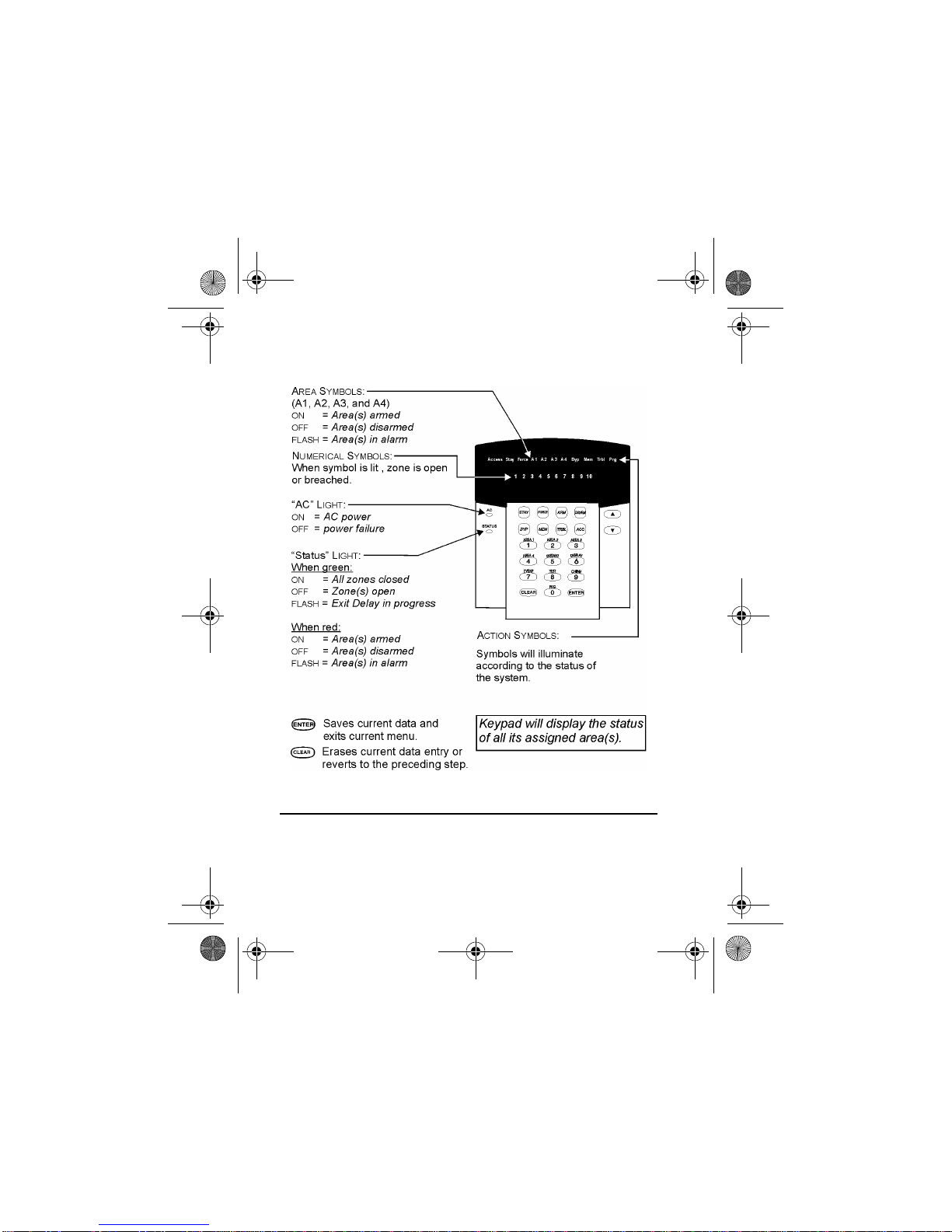

Figure 2-1: Basic Overview
2.1 AUDITORYFEEDBACK (BEEP TONES)
When you enter information on the keypad, the keypad will guide
KLEDEU03.fm Page 5 Friday, May 4, 2001 11:25 AM
6 User’s Manual
you with beep tones to communicate acceptance or rejection of
your entries.
Confirmation Beep: When an operation (i.e. arming/disarming)
is successfully entered or when the system switches to a new
status/menu, the keypad emits an intermittent beep tone (“BEEP-
BEEP-BEEP-BEEP-BEEP”).
Half Beep: When a step of an operation is successfully entered
on the keypad, the keypad emits a short intermittent beep tone
(“BEEP-BEEP-BEEP”).
Rejection Beep: When reverting to a previous status, or when
an operation is incorrectly entered, the keypad emits a
continuous beep (“BEEEEEEEEP”).
2.2 KEYPAD INDICATORLIGHTS
On all LED Keypads, the state of the “STATUS”, “AC” Lights, and
Action Symbols (see Figure 2-1 page5) represents a specific
condition in your system.
2.3 LED KEYPADS
There are two versions of the LED Keypad: the 20-zone, and the
48-zone. Each keypad can be assigned to one area or many
areas in a Partitioned System. The two keypads function in the
same way and any reference to one keypad applies to each of
the LED Keypads. The only difference between the versions is
the number of zones that each can display.
KLEDEU03.fm Page 6 Friday, May 4, 2001 11:25 AM
LED Keypads 7
2.3.1 Normal Mode
When no actions are being performed on the keypad, the keypad
will remain in Normal Mode. In Normal Mode the LED keypad will
illuminate:
•The “AC” Light if power is present
•The Numerical Symbols representing any open zones
•The Area Symbols if any areas are armed
•The [MEM]Symbol if any alarms have occurred
•The [TRBL]Symbol if any troubles are occurring
•The [BYP]Symbol if zones are bypassed and show the status
of the “Status” Light (see Figure 2-1,page5)
2.3.2 Confidential Mode
The installer can program the keypads not to display the status
of your system automatically by changing the LED keypad from
Normal Mode to Confidential Mode. In Confidential Mode all the
Symbols and Keypad Indicator Lights are extinguished.
Depending on how your keypad was programmed by the
installer, you must either press a button or enter your User
Access Code to activate Normal Mode.
2.3.3 Backlight
The illumination behind the buttons can be modified to suit your
needs.
How do I modify the Backlight?
1) Enter your [ACCESS CODE].
The keypad will emit a Confirmation Beep. The [ACCESS]
Symbol will flash.
KLEDEU03.fm Page 7 Friday, May 4, 2001 11:25 AM
8 User’s Manual
2.4 PARTITIONEDSYSTEM
Your installer can design your system to recognize up to four
separate protected areas. A separated system is called a
Partitioned System, which can be useful in situations where
shared security systems are more practical. For example, a
company that has both an office area and a warehouse area can
arm and disarm each area separately and control the access to
each area. Therefore, one person may have access to only one
area, whereas another person may have access to all areas.
Access to the areas is determined by the User Access Code.
2.5 AREASTATUSDISPLAY
In Area Status Display you will be able to see the status of the
individual areas in a Partitioned System (see section 2.4).
2) Press the button.
The keypad will emit a Confirmation Beep, the [PRG] Symbol
will illuminate, and the Numerical Symbol for the current set-
ting will illuminate.
3) Use the and buttons to increase or decrease the
illumination.
The range is between zero (Numerical Symbol [10]) and
seven (Numerical Symbol [7]) with seven being the brightest.
4) Press the button to save and exit.
KLEDEU03.fm Page 8 Friday, May 4, 2001 11:25 AM
