Paradox Spectra 1689 Bedienungsanleitung

LCD and 16-Zone LED Keypads

1689 1641BL

16-Zone LED Keypad LCD Keypad

User’s Manual

SPEK-EU07.fm Page -3 Friday, February 9, 2007 9:06 AM

SPEK-EU07.fm Page -2 Friday, February 9, 2007 9:06 AM

Table of Contents

Introduction............................................................1

Basic Operation.....................................................2

Keypad Indicator Lights.................................................2

Visual Feedback............................................................3

For the Spectra 1689 LED

Keypad Module ........................................................3

For the Spectra 1641BL LCD

Keypad Module ........................................................4

Auditory Feedback........................................................4

Alarm Memory Display..................................................5

Event List (1641BL LCD Keypad

Modules Only)...............................................................6

Trouble Display.............................................................7

Partitioning..................................................................12

Programming Access Codes..............................13

System Master Code

(Default: 123456) ........................................................13

Master Codes..............................................................13

Duress Code...............................................................14

Programming Access Codes.......................................14

Arming & Disarming............................................16

Exit Delay....................................................................16

Disarming & Deactivating an Alarm ............................16

Regular Arming...........................................................17

Stay Arming.................................................................17

Instant Arming.......................................................18

Force Arming...............................................................19

Manual Bypass Programming.....................................20

Bypass Recall Feature...........................................21

SPEK-EU07.fm Page -1 Friday, February 9, 2007 9:06 AM

One-Touch Arming......................................................22

One-Touch Regular Arming ...................................22

One-Touch Stay Arming.........................................22

Fast Exit.................................................................23

One-Touch Force Arming.......................................23

One-Touch Bypass Programming..........................23

Keyswitch Arming........................................................24

Auto-Arming................................................................24

Timed Auto Arming ................................................24

No Movement Auto Arming....................................26

Additional Features......................................... 26

Programming Chime Zones........................................26

Keypad Muting............................................................27

Panic Alarms...............................................................28

PGM Button

(Programmable Outputs).............................................28

Quick Function Keys...................................................29

Test Report ............................................................29

Call PC...................................................................29

Answer PC .............................................................29

Cancel Communication..........................................29

Programming Time and Day (clock)............................30

Keypad Settings

(1641BL LCD Keypad Modules Only)........................31

The Help Menu (1641BL LCD Keypad............................

Modules Only).............................................................32

Fire Alarms........................................................... 33

Testing & Maintenance ....................................... 37

System Checklist................................................. 38

Appendix A .......................................................... 44

SPEK-EU07.fm Page 0 Friday, February 9, 2007 9:06 AM

Spectra Keypads 1

1.0 Introduction

Thank you for selecting the Spectra Security System from

Paradox Security Systems Ltd. The Spectra Security System

will give you peace of mind by providing reliable security

protection. Spectra can realize your dreams of home

automation such as controlling garage doors, lights, heating,

temperature and much more. Consult your installer to take

full advantage of your Spectra system’s capabilities.

This advanced technology security system provides you with

reliable security protection and powerful features that anyone

can use without memorizing complex and confusing codes.

The system consists of the Spectra control panel, one or

more Spectra keypads modules, various input devices

(i.e. motion detectors, door contacts, etc.) and various output

devices (i.e. bells, sirens, lights, etc.).

The elegant and user-friendly Spectra 1689 LED Keypad

Modules and 1641BL LCD Keypad Modules allow you to

easily access your security system's functions and provide

you with an easy-to-understand display of your security

system's alarm and operational status. All of the actions

performed in your security system will be executed and

displayed through the keypad. Therefore, before using your

security system, we highly recommend that you read this

manual carefully and have your installer explain basic system

operation to you.

SPEK-EU07.fm Page 1 Friday, February 9, 2007 9:06 AM

2 User’s Manual

2.0 Basic Operation

The Spectra 1689 LED and 1641BL LCD Keypad Modules

function in the same way, but display visual feedback

differently. This section will provide an overview of the

keypads.

Many of the features in your system must be enabled by the

installer. If the feature is not programmed, the keypad will

emit a rejection beep and the action will be cancelled. Refer

to System Checklist on page 38 for details.

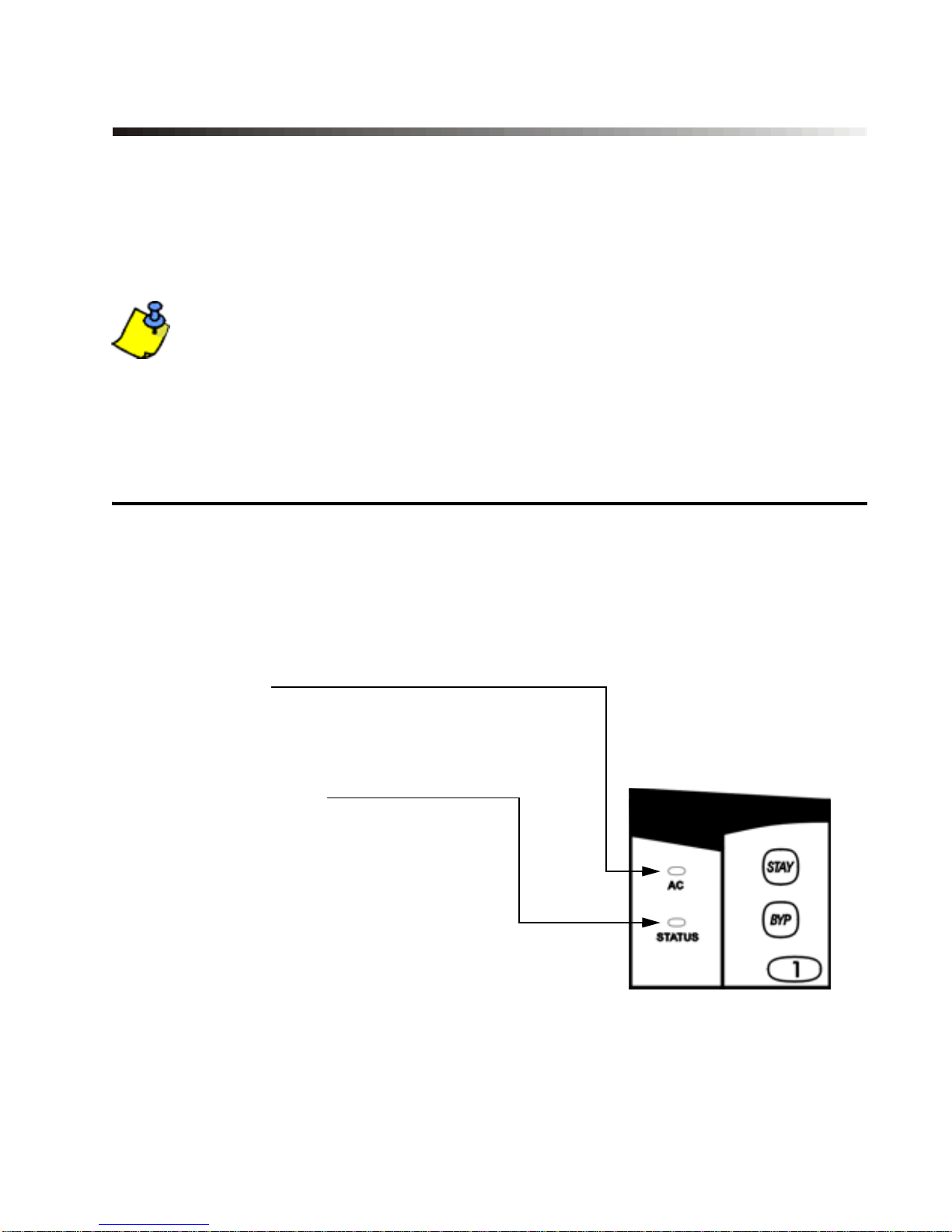

2.1 Keypad Indicator Lights

The state of each light on the Spectra keypad modules

represents a specific condition in your system as shown in

Figure 1.

Figure 1: Overview of Indicator Lights

AC Light:

ON = AC power is present

OFF = Power failure

STATUS Light:

When Green:

ON = All zones closed

OFF = Zone(s) open

FLASH= During Exit Delay

When Red (LCD keypads only):

ON = System armed

SLOW FLASH = Stay armed

FAST FLASH = Alarm

SPEK-EU07.fm Page 2 Friday, February 9, 2007 9:06 AM

Spectra Keypads 3

2.2 Visual Feedback

2.2.1 For the Spectra 1689 LED Keypad Module

The numbers and symbols on the keypad’s screen

communicate your system’s status as shown in Figure 2.

Figure 2: Overview of the 1689 LED Keypad Module

Arm Lights (red):

(for Regular and Force arming)

Arm 1 for Partition 1

Arm 2 for Partition 2

ON = Partition armed

OFF = Partition disarmed

FLASH= Partition in alarm

Trouble Display

ON = Trouble(s) occurring

Alarm Memory Display

ON = Alarm(2) occurred

Bypass Programming

ON = Zone(s) bypassed

Stay Lights (red):

(for Stay and Instant arming)

Stay 1 for Partition1

Stay 2 for Partition 2

ON = Partition armed

OFF = Partition disarmed

Zone Display:

The numbers [1] to [16]

correspond to zones 1 to 16

respectively. When illuminated,

zones are open or breached.

SPEK-EU07.fm Page 3 Friday, February 9, 2007 9:06 AM

4 User’s Manual

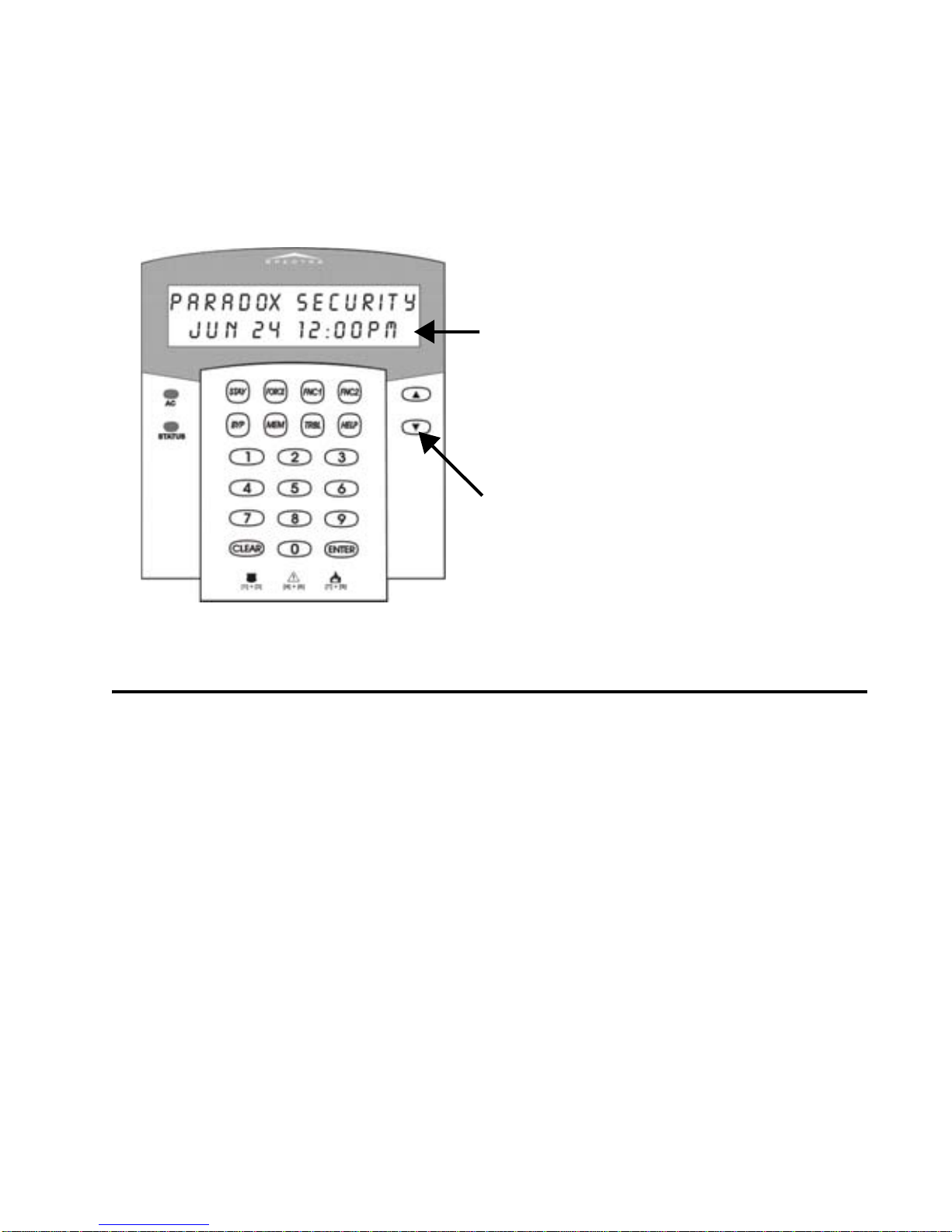

2.2.2 For the Spectra 1641BL LCD Keypad Module

The LCD (liquid crystal display) is a 32-character screen that

displays messages that can be customized to your needs.

Figure 3: Overview of the 1641BL LCD Keypad Module

2.3 Auditory Feedback

When you enter information on the keypad, it will guide you

with beep tones. You should be familiar with these:

Confirmation Beep: When an operation (i.e. arming/

disarming) is successfully entered on the keypad or when the

system switches to a new status/mode, the keypad produces

an intermittent beep tone (“BEEP-BEEP-BEEP-BEEP”).

Rejection Beep: When the system reverts to previous status

or when an operation is incorrectly entered on the keypad, it

will emit a continuous beep tone (“BEEEEEEEEP”).

The messages on the LCD

screen will display the system’s

status and guide you through the

system’s operations.

When arrows appear in the LCD

screen, use the arrow buttons to

scroll through the menu.

SPEK-EU07.fm Page 4 Friday, February 9, 2007 9:06 AM

Spectra Keypads 5

2.4 Alarm Memory Display

All zones where alarms have occurred will be stored in

memory. The system will erase the contents of the Alarm

Memory every time the system is armed.

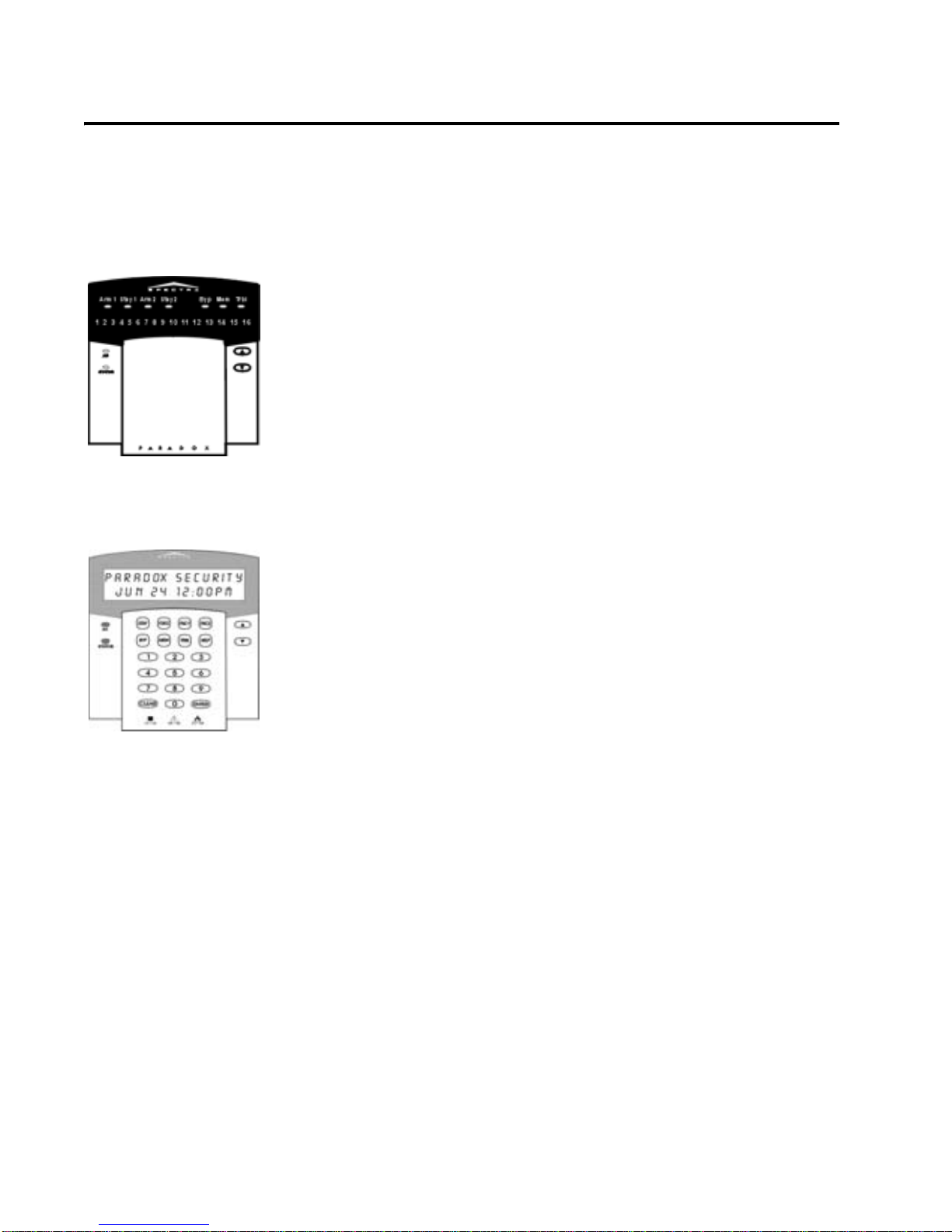

For Spectra 1689 LED Keypad Modules:

If an alarm has occurred on a zone, the [MEM]

symbol will illuminate. After disarming the

system, press the [MEM]key to illuminate the

number symbols corresponding to the zones

that were in alarm. To exit the Alarm Memory

Display, press the [CLEAR] key.

For Spectra 1641BL LCD Keypad Modules:

If an alarm has occurred on a zone, “Zone(s)

in Memory [MEM] to view” will appear on the

LCD screen. After disarming the system,

press the [MEM]key. Use the [U] or [V] keys

to view the zones that were in alarm. To exit

the Alarm Memory Display, press the [CLEAR]

key.

SPEK-EU07.fm Page 5 Friday, February 9, 2007 9:06 AM

6 User’s Manual

2.5 Event List (1641BL LCD Keypad Modules Only)

The Event List will record all the actions that occur in the

system.

Each event that occurs generates two Event Screens (see

Figure 4). Once you enter the Event List, the time and the day

the event occurred and what event occurred will scroll on the

screen. As you press the [V] key, the next pair will scroll.

Figure 4: Example of Event Screens

How do I view the Event List?

1. Press the [MEM] key.

2. Press the [FNC2]key.

3. Use the [U] or [V] keys to view the Event Screens.

4. Press [CLEAR]twice to exit.

SPEK-EU07.fm Page 6 Friday, February 9, 2007 9:06 AM

Andere Handbücher für Spectra 1689

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Paradox Tastenfeld Handbücher

Paradox

Paradox Imperial Digiplex Evo R915 Bedienungsanleitung

Paradox

Paradox 1686V Bedienungsanleitung

Paradox

Paradox Spectra 1689 Bedienungsanleitung

Paradox

Paradox Esprit+ 642 Bedienungsanleitung

Paradox

Paradox Digiplex EVO DGP2-641BL Bedienungsanleitung

Paradox

Paradox K32LCD+ Bedienungsanleitung

Paradox

Paradox TM50 Touch Bedienungsanleitung

Paradox

Paradox Digiplex DGP2-648 Bedienungsanleitung

Paradox

Paradox Digiplex DGP-641 Bedienungsanleitung

Paradox

Paradox IMPERIAL V32 Bedienungsanleitung

Paradox

Paradox Digiplex EVO DGP2-641BL Bedienungsanleitung

Paradox

Paradox Digiplex DGP-620 Montageanleitung

Paradox

Paradox Digiplex DGP-641 Bedienungsanleitung

Paradox

Paradox Magellan MG32LRF Service-Handbuch

Paradox

Paradox K32LCD Fehlerbehebungshandbuch

Paradox

Paradox TM50 Touch Bedienungsanleitung

Paradox

Paradox K32+ Bedienungsanleitung

Paradox

Paradox Grafica Bedienungsanleitung

Paradox

Paradox Paradox Digiplex DGP-610 Bedienungsanleitung

Paradox

Paradox Spectra 1689 Bedienungsanleitung

Paradox

Paradox DigiplexNE DGP2-641 Bedienungsanleitung

Paradox

Paradox SP5500 Bedienungsanleitung

Paradox

Paradox K32+ Bedienungsanleitung

Paradox

Paradox Spectra 1641 Montageanleitung

Beliebte Tastenfeld Handbücher anderer Marken

BFT

BFT SELETTO Bedienungsanleitung

Micro Id

Micro Id MP7G3BL Gebrauchsanweisung

WindowMaster

WindowMaster WLI 130 Bedienungsanleitung

ACT

ACT ACT PRO 1030 Bedienungsanleitung

Cardin

Cardin SSB Series Bedienungsanleitung

Harman Kardon

Harman Kardon KP 1 Bedienungsanleitung

Chamberlain

Chamberlain KPR2000 Benutzerhandbuch

CYP

CYP CR-KP1 Bedienungsanleitung

Aeware

Aeware k-35 Series Referenzhandbuch

Aritech

Aritech CS-175 Series Bedienungsanleitung

GE NetworX NX-1600E Series Bedienungsanleitung

Lenze AC Tech

Lenze AC Tech MC SERIES Bedienungsanleitung

Burg Wächter

Burg Wächter secuENTRY 7711 Bedienungsanleitung

Aeware

Aeware in.k450 Bedienungsanleitung

Lenze

Lenze EPM-H410 Bedienungsanleitung

Toshiba

Toshiba RKP007Z Bedienungsanleitung

Gemini

Gemini GEM-DXK1 KEYPAD Bedienungsanleitung

Russound

Russound MDK-C5 Betriebsanleitung
