Paradyne 5030 Bedienungsanleitung

HotWire 5030 POTS Splitter Customer Premises

Installation Instructions

Document Number 5030-A2-GN10-10

October 1997

Before You Begin

Verify that:

The local loop POTS service is connected to the POTS/DSL network at the

punchdown block or network interface device (NID).

New or existing unshielded twisted-pair wiring (CAT3 or better) is used with

this product. The CAT3 wiring must meet EIA/TIA-568 specifications with

24 AWG (.5 mm) or 26 AWG (.4 mm).

For RADSL (Rate Adaptive Digital Subscriber Line) RTU installation information, refer to

the appropriate RTU document:

Document Number Document Title

5216-A2-GN10

HotWire 5216 Remote Termination Unit (RTU)

Customer Premises Installation Instructions

5246-A2-GN10

HotWire 5246 Remote Termination Unit (RTU)

Customer Premises Installation Instructions

5446-A2-GN10

HotWire 5446 Remote Termination Unit (RTU)

Customer Premises Installation Instructions

Package Checklist

Verify that your package contains the following:

POTS splitter and housing with closure screw

Small plastic bag with two 8–15 x 1″Type A combination Phillips/slotted-head

screws and two 1″plastic anchors

Warranty card

Tools Required

Flat-blade screwdriver to tighten terminal screws

3/8″nut driver to close housing securely

Phillips-head or combination Phillips/slotted-head screwdriver to mount the housing

Drill and 3/16″drill bit to mount the housing in cement or cinder block

What Does the POTS Splitter Do?

The POTS splitter and HotWire Remote Termination Unit (RTU) are components in the

RADSL Access System. This system provides high-speed Internet or corporate LAN

access over traditional twisted-pair copper telephone wiring.

The POTS splitter filters out the DSL signal and allows the POTS frequencies to pass

through. The RADSL RTU and telephone can function simultaneously over the same

pair of copper wires at the customer premises when a POTS splitter is used at both

ends of the local loop.

Copper pairs run from the central office to the customer premises to create the local

loop. The local loop terminates on the customer premises at the demarcation point in a

punchdown block or NID.

Wiring is connected from the demarcation point to the POTS splitter and to the DSL

jack. Wiring also connects the demarcation point to an RJ11 wall jack for DSL access

by the RTU.

97-15346-01

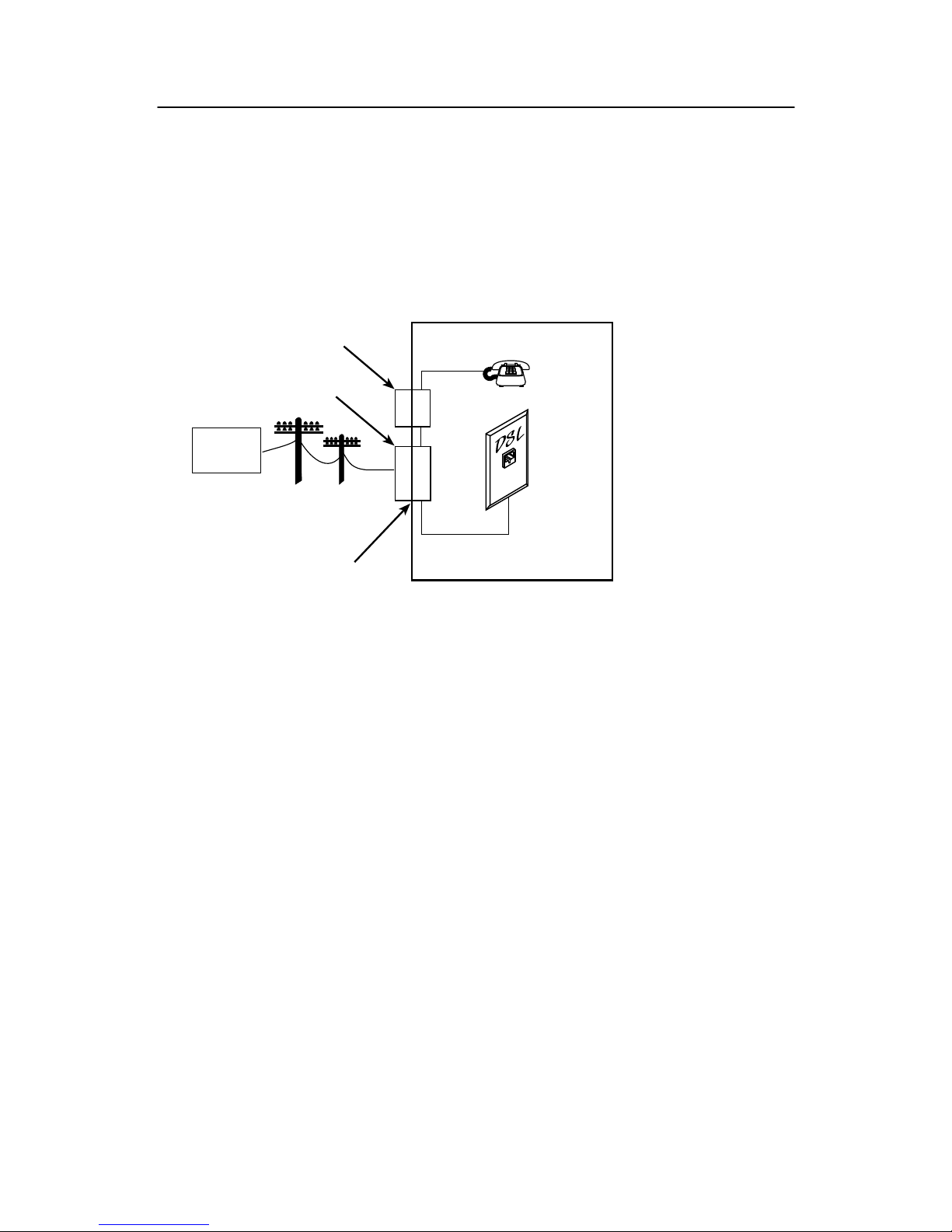

Punchdown

Block or NID

DSL

Jack RTU

New Wiring Connections Existing Wiring (POTS)

Customer Premises (CP)

DSL

Ethernet

Crossover

Cable Ethernet

Cable

Central

Office

(CO)

Demarcation

Point

Local Loop

HUB

POTS

Splitter

DSL - Digital Subscriber Line POTS - Plain Old Telephone Service

NID - Network Interface Device RTU - Remote Termination Unit

POTS

End-user

Systems

Network

Service

Provider

(NSP)

97-15247

POTS Splitter Housing

Mounting the POTS Splitter Housing

The POTS splitter can be placed:

HOn the outside of the structure near the NID or punchdown block, or

HInside the building.

When mounted outside, the POTS splitter must be installed at or above the height of

the NID, and should be a minimum of three feet above ground.

At the front of the housing, align the housing to open from the right with the rubber

grommet for cable access facing downward. Place the housing upright as shown. Use a

Phillips-head or combination Phillips/slotted-head screwdriver and the screws included

in the package.

If mounting to:

HCement or cinder block: use a drill and

and 3/16″masonry drill bit to install the

two plastic anchors first. Then, install the

two 8–15 x 1″Type A screws.

HWood: install only the two 8–15 x 1″

Type A screws and discard the

plastic anchors.

97-15437-01

Lever

Closure

Screw

Preparing the POTS Splitter

"Procedure

1. Unscrew the closure screw and open

the housing by pressing on the lever

on the right above the closure screw.

2. Remove the rubber grommet at the base

of the POTS splitter.

3. Make a small diagonal cut in the rubber

grommet to feed the wiring through.

4. Replace the rubber grommet at the

base of the POTS splitter.

P1 P2 P3 P4

97-15256

Rubber

Grommet

Base of

POTS Splitter

Installing the POTS Splitter Wiring

The local loop ends at the punchdown block or NID. Wiring must be connected from the

customer premises (CP) side of the punchdown block or NID to the DSL jack. Typically,

the punchdown block is installed in commercial locations and the NID is installed in

residential locations.

The following is an example of a punchdown block.

ABCD

DSL/POTS

From Local

Loop

Wiring to

DSL Jack

Bridge Clip

Punchdown Block

97-15349

Jumper

Wiring to

POTS Splitter

for POTS

Demarcation Point

Customer Premises

"Procedure

1. Access the punchdown block or NID.

2. Disconnect the POTS access wiring from the local loop.

!WARNING:

Do not continue unless the DSL access line from the local loop has been

disconnected at the NID or punchdown block. Refer to

Important Safety

Instructions,

page 10.

Green (T1) and Red (R1) are the standard pair wiring colors used in the next two

NID illustrations for Tip (T1) and Ring (R1). Your wiring may differ.

DSL/POTS

From Local

Loop

Telephone Network Interface Device (NID)

Ground

Tip

(Green)

Ring

(Red)

97-15502

Existing POTS

Wiring to

Telephone

Demarcation Point

Customer Premises

3. Disconnect the POTS wiring to the telephone from the T1/R1 connectors on the

customer premises side.

4. Feed the disconnected POTS wiring through the POTS splitter rubber grommet

access opening created at the base of the POTS splitter. Connect the wiring to the

right side labeled PHONE. Attach green to P3 and red to P4. Tighten both terminal

screws with a flat-blade screwdriver.

97-15257a

P1 P2 P3 P4

LINE PHONE

Red

Green

Telephone

POTS Splitter

Reconnecting to the Local Loop

"Procedure

1. Feed new jumper wiring through the POTS splitter rubber grommet. Remove the

insulation at the end of the wiring.

2. On the left side labeled LINE, attach red to terminal screw P1 and green to terminal

screw P2. Tighten both terminal screws with a flat-blade screwdriver.

97-15257-01

P1 P2 P3 P4

LINE PHONE

Red Red

Green

New Wiring from

Punchdown

Block or NID

Telephone

POTS Splitter

97-15251

Lever

Closure

Screw

3. Locate the T1/R1 connectors on the customer premises side of the punchdown

block or NID where the existing POTS wiring was removed in Step 3 on page 6.

Attach the jumper pair from P1/P2 labeled LINE in the POTS splitter to the T1/R1

connectors.

DSL/POTS

From Local

Loop

Wiring to

DSL Jack

Telephone Network Interface Device (NID)

Ground

Tip

(Green)

97-15341

Jumper Wiring to

POTS Splitter

for POTS

Demarcation PointCustomer Premises

Ring

(Red)

4. Snap the lever shut to

close the POTS splitter.

5. Use the 3/8″nut driver

on the closure screw to

securely close the housing.

DSL Access Wiring

"Procedure

1. Attach new wiring to the T1/R1 connectors that will go to the DSL jack from the

punchdown block or NID.

2. Tighten the T1/R1 terminal screws with a flat-blade screwdriver.

97-15485

DSL

RJ11

Jack

Central

Office

Punchdown

Block or NID

Customer Premises

POTS/DSL

Local Loop

Demarcation Point

Twisted

Pair Wiring

POTS Splitter

You are now ready to run the specified wiring to the RTU location and install a DSL wall

jack. To install an RTU, refer to the

HotWire 5446 Remote Termination Unit (RTU)

Customer Premises Installation Instructions.

If the RTU is not being installed at this time, reconnect the local loop wiring at the

demarcation point.

5030 POTS Splitter Technical Specifications

Item Specification*

Height x Width x Depth 6.65″x 5.44″x 2.25″(16.89 cm x 13.82 cm x 5.72 cm)

Weight 10.2 ounces (289.2 grams)

Approvals

FCC Part 68

Safety Certifications

Refer to the equipment’s label for Registration Number.

Refer to the equipment’s label for approvals on product.

Physical Environment

Operating temperature

Storage temperature

Relative humidity

Shock and vibration

–40°F to 140°F (–40°C to 60°C)

–40°F to 158°F (–40°C to 70°C)

5% to 95% (noncondensing)

Withstands normal shipping and handling

Interface Connectors Four terminal screws

*Technical Specifications subject to change without notification.
