Paradyne 7510 DSU Installationshandbuch

7510-A2-GN10-30 January 1999

Model 7510 DSU

Startup Instructions

Document Number 7510-A2-GN10-30

January 1999

Product Documentation on the World Wide Web

We provide complete product documentation online. This lets you search the

documentation for specific topics and print only what you need, reducing the

waste of surplus printing. It also helps us maintain competitive prices for our

products.

Complete documentation for this product is available at www.paradyne.com.

Select

Service & Support

→

Technical Manuals

→

Subrate Digital Access

Devices.

Select the following document:

7510-A2-GB20

Model 7510 DSU User’s Guide

To request a paper copy of a Paradyne document:

Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396)

Outside the U.S.A., call 1-727-530-8623

Cables You May Need to Order

The following table describes typical equipment. Identify the connectors required

for your equipment before you contact your sales or service representative to

order cables. For cable details, refer to Appendix C,

Cables and Pin

Assignments

, in the User’s Guide.

If connecting . . . Order a . . .

A VT100-compatible terminal

to the Terminal port Standard straight-through EIA-232 cable with DB25

plug connectors on both ends.

A PC to the Terminal port Standard straight-through EIA-232 cable with a DB25

plug connector on one end and a DB9 or DB25 socket

connector, as required, on the other end.

An External Modem to the

Terminal port Standard crossover EIA-232 cable with DB25 plug

connectors on both ends.

A DTE with a V.35 connector

to the DTE port V.35 cable with an MS34 plug connector on one end

and an MS34 socket connector on the other end.

2 7510-A2-GN10-30

January 1999

Package Checklist

Verify that your package contains the following:

-A Model 7510 DSU

-Power cord with power transformer

-RJ48S modular cable for U.S. network access (14)

No DTE cables are provided. Additional cables may need to be ordered; see

Cables You May Need to Order

on page 1.

Preparation

Make sure you have:

-A dedicated, grounded ac outlet that is protected by a circuit breaker within

6 feet of the access unit.

-A clean, well-lit, and ventilated site that is free from environmental extremes.

-An operable network connection.

-A VT100-compatible asynchronous terminal or PC (personal computer)

running terminal emulation software.

Before installing your DSU, read the

Important Safety Instructions

on page 7.

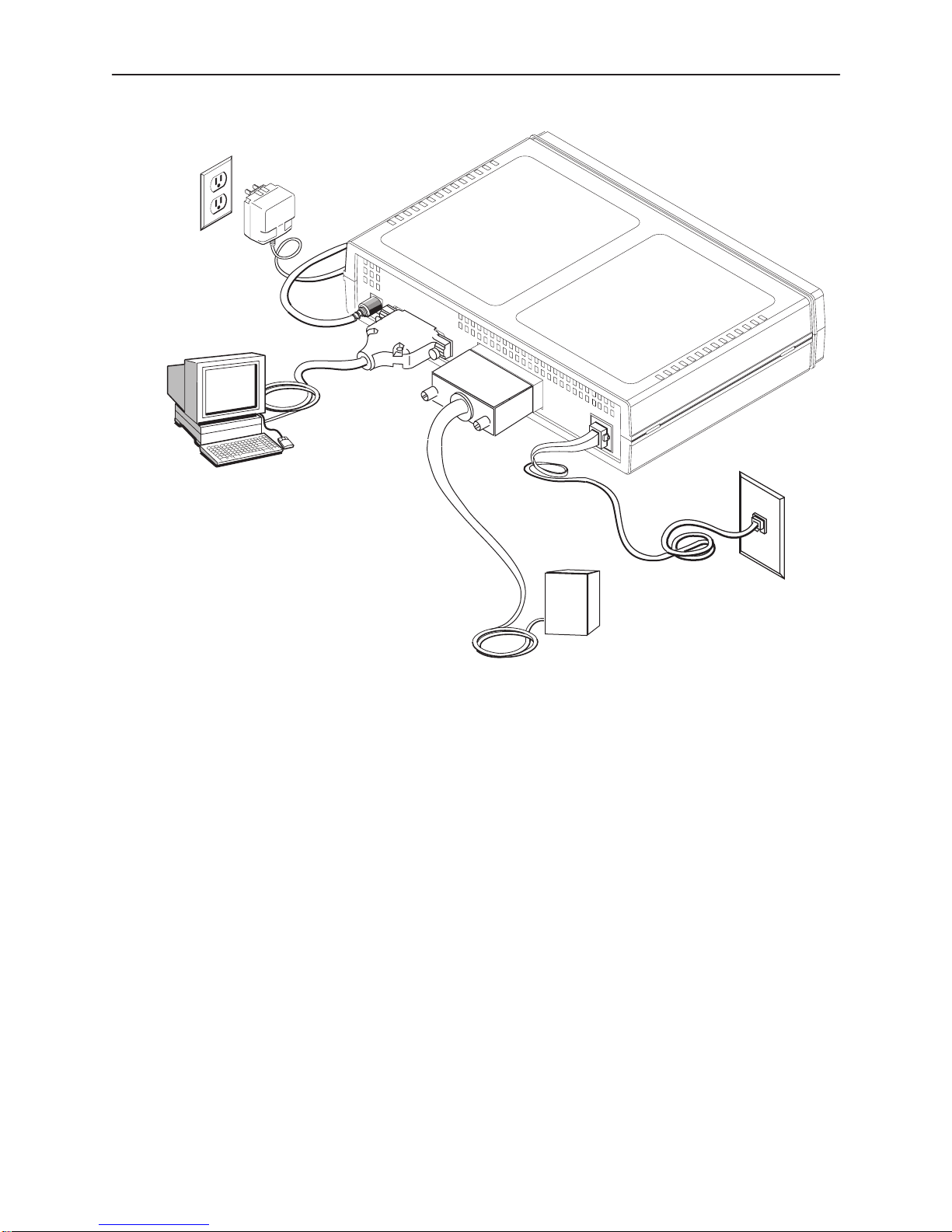

Installing the DSU

"Procedure

To install the DSU:

1. Plug the end of the power cord into the POWER jack on the DSU. Plug the

power transformer into an ac outlet.

CAUTION:

Use no power supply except the one provided with the DSU. Using the

wrong power supply can destroy the DSU.

2. Plug the 8-pin connector on the RJ48S network cable into the NETWORK

connector on the DSU. Plug the other end of the cable into the RJ48S

modular jack.

3. Plug one end of the 34-pin V.35 cable into the DTE port of the DSU. Plug the

other end of the V.35 cable into the DTE connector.

4. Plug the 25-pin end of an EIA-232 cable into the TERMINAL port of the DSU.

Plug the other end of the cable into the VT100-compatible user interface

connector.

7510-A2-GN10-30 January 1999

497-15240

RJ48S

Jack

NETWORK

TERMINAL

POWER

DTE

Terminal

Connection

Power

Connection

Network

Connection

DTE

Connection

NOTES:

Your terminal or PC software must be set to communicate at a rate of

9.6 kbps, using characters of 8 bits, one stop bit, and no parity.

If you connect an external modem instead of an asynchronous terminal or

PC:

— Use an EIA-232 crossover cable as described in Appendix C,

Cables and

Pin Assignments,

in the User’s Guide.

— If possible, configure your modem to use standard RS232 detection and

control for CTS, DSR, DTR, LSD, and RTS.

— If possible, disable AT commands on your modem.

4 7510-A2-GN10-30

January 1999

Hardware Verification

-Verify that the OK LED lights up.

-Verify that the ALARM LED is off.

ALARM

TEST

OOS

OOF

TXD (103)

RXD (104)

RTS (105)

CTS (106)

DTR (108)

System Network Port

497-15245

7510 DSU

56/64K

-Verify that the User Interface Idle screen is displayed on the terminal or PC.

Press the Enter key. Verify that the Main Menu appears.

main

Device Name: Model: 7510

MAIN MENU

Status

Test

Configuration

Control

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Ctrl-a to access these functions Exit

ÎÎ

If the DSU fails to respond as described, refer to Chapter 6,

Messages and

Troubleshooting

in the User’s Guide.

7510-A2-GN10-30 January 1999

Menu Tree

Entry to all of the DSU’s tasks begins at the Main Menu screen, which has four

menus or branches.

Select . . . To . . .

Status View results of diagnostic tests, network status of interfaces, statistics,

LEDs, and DSU identity information.

Test Select and cancel tests for the DSU’s interfaces.

Configuration Display and edit the configuration options.

Control Establish identification for the DSU and system, or to initiate a power-up

reset of the DSU.

Configuration

Edit/Display

•

System

• Network

• Data Port

• Terminal Port

Status

•

System and Test Status

• Network Interface Status

• Network Performance

Statistics

• Display LEDs

• Identity

Test

•

Network Tests

• Data Port Tests

• Lamp Test

• AbortAll Tests

Control

• Device Name

• Reset Device

MAIN MENU

Status

Test

Configuration

Control

497-15238

Load

Configuration

From...

6 7510-A2-GN10-30

January 1999

Configuration Options

The following tables list the configuration options of the Model 7510 DSU.

System

Configuration Option Settings

Default in [Bold]

Operating Mode [DDS], LADS

DDS Line Rate (Kbps) 56, 64CC, [Autobaud]

LADS Timing [Internal], External, Receive

LADS Line Rate (Kbps) 56, [64]

Test Timeout [Enable], Disable

Test Duration (min) 1–120, [10]

Network Interface

Configuration Option Settings

Default in [Bold]

Network-initiated DSU Loopback (64K CC) [Enable], Disable

Data Scrambling (64K CC) Enable, [Disable]

V.54 Initiated DSU Loopback Enable, [Disable]

Data Port

Configuration Option Settings

Default in [Bold]

Invert Transmit Clock Enable, [Disable]

Port (DTE) Initiated Loopbacks [Disable], Local, Remote, Both

Bilateral Loopback Enable, [Disable]

Carrier Control by RTS [Constant], Switched

CTS Control [Standard], Follow RTS, Forced On,

Circuit Assurance

RLSD Control [Standard], Forced On

DSR Control [Standard], Forced On, On During Test

Monitor DTR [Enable], Disable

Terminal Port

Configuration Option Settings

Default in [Bold]

Monitor DTR [Enable], Disable

Inactivity Timeout Enable, [Disable]

Disconnect Time(minutes) range 1 – 60 [5]

7510-A2-GN10-30 January 1999

Important Safety Instructions

1. Read and follow all warning notices and instructions marked on the product

or included in the manual.

2. Slots and openings in the cabinet are provided for ventilation. To ensure

reliable operation of the product and to protect it from overheating, these

slots and openings must not be blocked or covered.

3. Do not allow anything to rest on the power cord and do not locate the product

where persons will walk on the power cord.

4. Do not attempt to service this product yourself, as opening or removing

covers may expose you to dangerous high voltage points or other risks. Refer

all servicing to qualified service personnel.

5. General purpose cables are provided with this product. Special cables, which

may be required by the regulatory inspection authority for the installation site,

are the responsibility of the customer.

6. When installed in the final configuration, the product must comply with the

applicable Safety Standards and regulatory requirements of the country in

which it is installed. If necessary, consult with the appropriate regulatory

agencies and inspection authorities to ensure compliance.

7. Input power to this product must be provided by one of the following: (1) a UL

Listed/CSA certified power source with a Class 2 or Limited Power Source

(LPS) output for use in North America, or (2) a certified power source with a

Safety Extra Low Voltage (SELV) output for use in the country of installation.

8. A rare phenomenon can create a voltage potential between the earth

grounds of two or more buildings. If products installed in separate buildings

are interconnected, the voltage potential may cause a hazardous condition.

Consult a qualified electrical consultant to determine whether or not this

phenomenon exists and, if necessary, implement corrective action prior to

interconnecting the products.

9. In addition, if the equipment is to be used with telecommunications circuits,

take the following precautions:

— Never install telephone wiring during a lightning storm.

— Never install telephone jacks in wet locations unless the jack is

specifically designed for wet locations.

— Never touch uninsulated telephone wires or terminals unless the

telephone line has been disconnected at the network interface.

— Use caution when installing or modifying telephone lines.

— Avoid using a telephone (other than a cordless type) during an electrical

storm. There may be a remote risk of electric shock from lightning.

— Do not use the telephone to report a gas leak in the vicinity of the leak.

8 7510-A2-GN10-30

January 1999

Notices

!WARNING:

This equipment has been tested and found to comply with the limits for

a Class A digital device, pursuant to Part 15 of the FCC rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

The authority to operate this equipment is conditioned by the

requirements that no modifications will be made to the equipment

unless the changes or modifications are expressly approved by

Paradyne Corporation.

!WARNING:

To Users of Digital Apparatus in Canada:

This Class A digital apparatus meets all requirements of the Canadian

interference-causing equipment regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du

règlement sur le matérial brouilleur du Canada.

Government Requirements

Certain governments require that instructions pertaining to connection to the

telephone network be included in the installation and operation manual. Specific

instructions are listed in the following sections.

Notice to Users of the United States Telephone Network

This equipment complies with Part 68 of the FCC rules. On the bottom of the

equipment is a label that contains, among other information, the FCC registration

number for this equipment. If requested, please provide this information to your

telephone company.

If your DSU causes harm to the telephone network, the telephone company may

discontinue your service temporarily. If possible, they will notify you in advance.

But if advance notice is not practical, you will be notified as soon as possible. You

will be advised of your right to file a complaint with the FCC.

Your telephone company may make changes in facilities, equipment, operations,

or procedures that could affect the proper operation of your equipment. If so, you

will be given advance notice so as to give you an opportunity to maintain

uninterrupted service.

No repairs may be performed by the user. Should you experience difficulty with

this equipment, refer to

Warranty, Sales, and Service Information

on page 10.

7510-A2-GN10-30 January 1999

For Digital Data Service (DDS) installations, inform the local telephone company

of the appropriate facility interface code for the service you desire.

DDS Facility

Interface Code Data Rate

04DU5-56 56 Kbps

04DU5-64 64 Kbps

The DDS Service Order Number is 6.0Y. The jack configuration required is

RJ48S. Refer to Appendix D,

Technical Specifications

, in the User’s Guide.

After the telephone company has installed the requested service and jack, you

can connect the DSU with the cable provided. An FCC-compliant telephone cord

and modular plug are provided with this equipment. This equipment is designed

to be connected to the telephone network or premises wiring using a compatible

modular jack that is Part 68 compliant.

Notice to Users of the Canadian Telephone Network

The Industry Canada label identifies certified equipment. This certification means

that the equipment meets telecommunications network protective, operational

and safety requirements as prescribed in the appropriate Terminal Equipment

Technical Requirements document(s). The Department does not guarantee the

equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be

connected to the facilities of the local telecommunications company. The

equipment must also be installed using an acceptable method of connection. The

customer should be aware that compliance with the above conditions may not

prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative

designated by the supplier. Any repairs or alterations made by the user to this

equipment, or equipment malfunctions, may give the telecommunications

company cause to request to disconnect the equipment.

Users should ensure for their own protection that the electrical ground

connections of the power utility, telephone lines and internal metallic water pipe

system, if present, are connected together. This precaution may be particularly

important in rural areas.

CAUTION:

Users should not attempt to make such connections themselves, but

should contact the appropriate electric inspection authority, or

electrician, as appropriate.

The Ringer Equivalence Number (REN) assigned to each terminal device

provides an indication of the maximum number of terminals allowed to be

connected to a telephone interface. The termination on an interface may consist

of any combination of devices subject only to the requirement that the sum of the

Ringer Equivalence Numbers of all the devices does not exceed 5.

If your equipment is in need of repair, refer to the procedures described in the

next section.

10 7510-A2-GN10-30

January 1999

Warranty, Sales, and Service Information

Contact your local sales representative, service representative, or distributor

directly for any help needed. For additional information concerning warranty,

sales, service, repair, installation, documentation, training, distributor locations, or

Paradyne worldwide office locations, use one of the following methods:

HVia the Internet:

Visit the Paradyne World Wide Web site at

http://www.paradyne.com

HVia Telephone:

Call our automated call system to receive current

information via fax or to speak with a company representative.

— Within the U.S.A., call 1-800-870-2221

— Outside the U.S.A., call 1-727-530-2340



*7510–A2–GN10–30*

Inhaltsverzeichnis

Andere Paradyne Netzwerk-Hardware Handbücher

Paradyne

Paradyne 7915-A1 E1 SDSL Bedienungsanleitung

Paradyne

Paradyne T1 Access Mux 916x Gebrauchs- und Pflegehandbuch

Paradyne

Paradyne Hotwire 6210 Bedienungsanleitung

Paradyne

Paradyne Hotwire 5100 Bedienungsanleitung

Paradyne

Paradyne ACCULINK 3160 Handbuch

Paradyne

Paradyne COMSPHERE 3800 Series Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3610 Bedienungsanleitung

Paradyne

Paradyne 3172 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 6700 Series Bedienungsanleitung

Paradyne

Paradyne Fan Tray 8820-S2-900 Bedienungsanleitung

Paradyne

Paradyne Hotwire 5620 Bedienungsanleitung

Paradyne

Paradyne Hotwire 5216 Bedienungsanleitung

Paradyne

Paradyne Application Module 9109 OCU-DP Bedienungsanleitung

Paradyne

Paradyne ACCULINK 3151 CSU Bedienungsanleitung

Paradyne

Paradyne Hotwire 8779 Bedienungsanleitung

Paradyne

Paradyne Hotwire 8784 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3550 Series Bedienungsanleitung

Paradyne

Paradyne M/HDSL Standalone Termination Unit HOTWIRE... Bedienungsanleitung

Paradyne

Paradyne Hotwire 6210 Original Betriebsanleitung

Paradyne

Paradyne 7112 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3550 Series Bedienungsanleitung

Paradyne

Paradyne Jetstream CPX-1000 Bedienungsanleitung

Paradyne

Paradyne Hotwire 7995 Bedienungsanleitung

Paradyne

Paradyne HotWire 8800 DSLAM Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
