650 Series Frequency Inverter

available from Parker.InverterDrive.com

This guide is intended to compliment the user manual provided by the manufacturer.

It is provided as a basic introduction to the product for Inverter Drive Supermarket customers.

It should not be used as a replacement for the manual issued by the manufacturer.

v1.0

20110321

This product is not a safety device. All safety considerations including but not

limited to Emergency Stop provision should be assessed separately and are

outside the scope of this guide.

Parker SSD Drives 650 Series Inverter

Easy Start Guide

Page 1

This guide has been produced by The Inverter Drive Supermarket Ltd.

All content, including but not limited to graphics, text and procedures copyright The Inverter

Drive Supermarket and must not be reproduced or altered without prior written permission.

Page 1

Page 2

Page 3

Page 4

Page 5

Page 6

Page 8

Page 10

Page 11

Page 12

Page 13

Page 14

Page 15

Contents

Power and Motor Connections (Single Phase)

Power and Motor Connections (Three Phase)

Motor Connections - Star and Delta

Parameters - Overview

Parameters to set before use

How to set “Boost” - Parameter P13

How to Operate the Inverter (Local mode)

How to switch from Local (keypad) control to

Remote (terminal) control and back

How to connect and configure a Potentiometer

for remote speed control

How to connect and configure a Run/Stop switch

How to Reset the Inverter to Factory Defaults

How to set a Parameter value

How to connect and configure a Fwd/Rev switch

Contents

Easy Start Guide

1. Power and Motor Connections (Single Phase)

Page 2

This guide has been produced by The Inverter Drive Supermarket Ltd.

All content, including but not limited to graphics, text and procedures copyright The Inverter

Drive Supermarket and must not be reproduced or altered without prior written permission.

Notes:

The illustration above is based on frame size 1

models (0.25kW - 0.75kW). The terminal

layout for sizes 2 and 3 (1.1kW - 2.2kW) is

slightly different.

The order of the three phases determines the

direction the motor turns.

Important:

Use screened SY cable between the Inverter

and Motor to minimise electromagnetic

interference.

Ensure the motor cable screen is earthed at

the motor end.

Before commencing, confirm that the Inverter and

all cables are completely isolated from the power

supply, have been isolated for at least 5 minutes

and that the motor is not turning.

Parker SSD Drives 650 Series Inverter

M3/W

M2/V

M1/U

L2/N

TH1B

TH1A

RL1A

RL1B

Motor Power

Live

Earth

Neutral

Phase

Earth

Phase

Phase Fit the cable clamp to

the power cable and

attach motor cable to

power cable securely.

TH1B

TH1A

Connect TH1A and

TH1B terminals to the

motor thermistor if

available.

If the motor does not

have thermistor

protection, short TH1A

and TH1B as shown.

The Inverter will not

operate if TH1A and

TH1B are not

connected.

Motor

I/O Terminal Block

Easy Start Guide

2. Power and Motor Connections (Three Phase)

Page 3

This guide has been produced by The Inverter Drive Supermarket Ltd.

All content, including but not limited to graphics, text and procedures copyright The Inverter

Drive Supermarket and must not be reproduced or altered without prior written permission.

Notes:

The illustration above is based on frame size 2

models (0.37kW - 2.2kW). The terminal layout

for size 3 (3kW - 7.5kW) is slightly different.

The order of the three motor phases

determines the direction the motor turns.

The order of the three power phases is

unimportant.

Important:

Use screened SY cable between the Inverter

and Motor to minimise electromagnetic

interference.

Ensure the motor cable screen is earthed at

the motor end.

Before commencing, confirm that the Inverter and

all cables are completely isolated from the power

supply, have been isolated for at least 5 minutes

and that the motor is not turning.

Parker SSD Drives 650 Series Inverter

M3/W

M2/V

M1/U

L2/N

TH1B

TH1A

RL1A

RL1B

DBR

DC+

TH1B

TH1A

Connect TH1A and

TH1B terminals to the

motor thermistor if

available.

If the motor does not

have thermistor

protection, short TH1A

and TH1B as shown.

The Inverter will not

operate if TH1A and

TH1B are not

connected.

Motor

Fit the cable clamp to

the power cable and

attach motor cable to

power cable securely.

Motor Power

Phase

Earth

Phase

Earth

Motor

Power

I/O Terminal Block

Easy Start Guide

3. Motor Connections - Star and Delta

Page 4

This guide has been produced by The Inverter Drive Supermarket Ltd.

All content, including but not limited to graphics, text and procedures copyright The Inverter

Drive Supermarket and must not be reproduced or altered without prior written permission.

3.2 Motor connected in DELTA:

The link configuration is shown in the

illustration opposite and is sometimes referred

to a “three-a-breast”.

The order of the three phases determines the

direction the motor turns.

Note that the cable screen and earth are

connected together at the earth terminal.

Phase

Earth

Screen

3.1 Motor connected in STAR (or Wye):

For safety purposes, Star (shown opposite) is

the default configuration for new motors and is

sometimes known as “two at one side”.

Only two links are required for Star. Double-up

the links if changing from Delta to allow the

motor to be changed to back in future.

The order of the three phases determines the

direction the motor turns.

Note that the cable screen and earth are

connected together at the earth terminal.

Phase

Earth

Screen

Dual voltage induction motors typically include

terminal boxes with six points. The points can

be connected together with links in one of two

ways to suit one of the two rated voltages.

The two ways of connecting the links are

shown below. These are known as “Star” (the

higher voltage) or “Delta” (the lower voltage).

Link

The selection of Star or Delta is not optional

and must match the supply voltage.

Dual voltage motor nameplates include

symbols to represent voltage and full load

current in each configuration.

Delta is represented by a triangle and star by a

Y (Wye).

DELTA

STAR

Link

Parker SSD Drives 650 Series Inverter

Easy Start Guide

Page 5

This guide has been produced by The Inverter Drive Supermarket Ltd.

All content, including but not limited to graphics, text and procedures copyright The Inverter

Drive Supermarket and must not be reproduced or altered without prior written permission.

4. Parameters - overview

Parameter

Description

How to set

Maximum Speed in Hz

Default is 50 or 60 depending on region. Set at for 50Hz motor.50

Minimum Speed as % of P2

Default is 0. Set to for most applications.0

Motor Current in Amps

Set to match motor nameplate - eg. 4.7

Base Frequency in Hz

Default is 50. Change to 60 for 60Hz motor only - otherwise set at .50

P13

Fixed Boost (%)

See section 6 for details of how to correctly set this value.

The Inverter contains a number of settings

which can be changed to tailor it for use in a

wide range of applications. These settings are

known as parameters.

Parameters are typically referred to by code or

number (eg. P6 = Motor Full Load Current)

with a description available in the manual.

The parameters contain critical information

essential to the correct operation of the

Inverter. Therefore, they should at least be

checked by the user before it is operated for

the first time.

The parameters listed in section 5 are intended

to provide a starting point to allow for basic

operation of the 650 Inverter.

5. Parameters to set before use

See section 7 to learn how to set a parameter value.

Set the following parameters to allow the 650

to run in standard mode with Run, Stop and

Speed Control from the keypad.

If any of the parameters have been changed

previously, follow the procedure in section 13

to reset the Inverter to Factory Defaults.

5.1 Parameters to check and values to set

Parker SSD Drives 650 Series Inverter

Easy Start Guide

6. How to set “Boost” - Parameter P13

This guide has been produced by The Inverter Drive Supermarket Ltd.

All content, including but not limited to graphics, text and procedures copyright The Inverter

Drive Supermarket and must not be reproduced or altered without prior written permission.

Boost is an important parameter to set to get

the best possible motor performance.

Correctly set, it significantly improves torque at

lower speeds. However, it is not relevant for

Fan and Centrifugal Pump applications.

The procedure involves running the motor off-

load at it’s rated speed and making a note of

output current. The motor is then run at 10%

speed and P13 adjusted to ensure that the

output current is the same in both cases.

6.1 How to determine “Motor no-load current” by operating the 650.

Page 6

Parker SSD Drives 650 Series Inverter

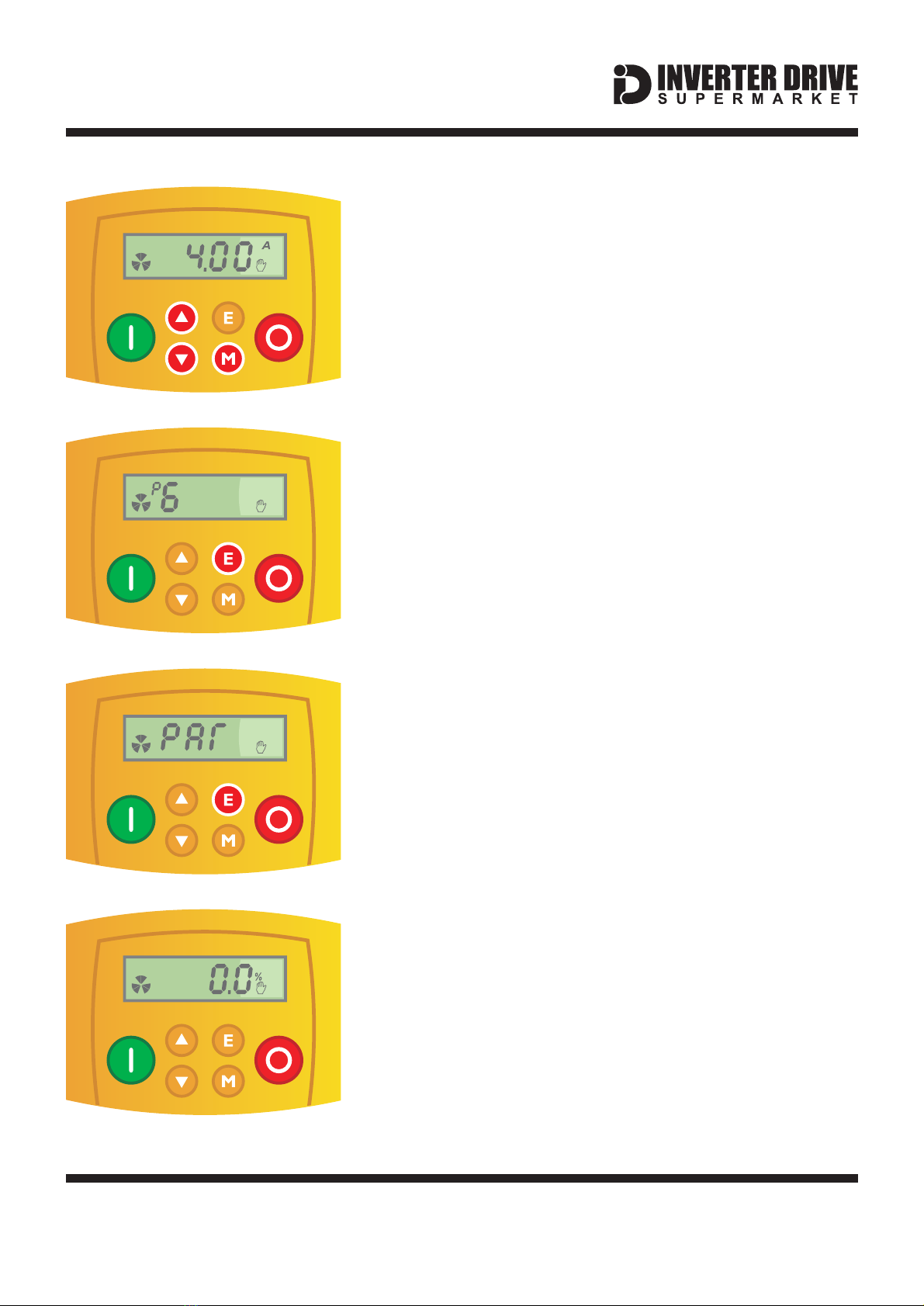

6.1.2 Press “M” to open the menu.

Press and hold the “M” button until the display shows “diag”

as illustrated.

Press “M” again to open the diagnostics (diag) menu.

6.1.3 Use the up and down keys to locate output

current.

Make a note of this value. It is “Motor no-load current”

in Amps.

Output current can be identified by the letter “A” on the top

right as shown.

Leave the motor running and continue to the next step

overleaf.

6.1.1 Set speed to 100% and start the motor.

Use the up key to increase speed to 100% (50Hz or 60Hz

depending on motor) and press the green button to start the

motor. Once the motor is running at 100%, proceed to the

next step.

Motor no-load current can only be determined with the

motor running off-load. Decouple the motor from the

machine before beginning!

Easy Start Guide

Parker SSD Drives 650 Series Inverter

This guide has been produced by The Inverter Drive Supermarket Ltd.

All content, including but not limited to graphics, text and procedures copyright The Inverter

Drive Supermarket and must not be reproduced or altered without prior written permission.

©Page 7

6.2.1 Reduce motor speed to 10%.

Press the “E” (escape) key twice to return to the speed

display. Then press and hold the down key to reduce the

speed from 100% to 10%.

Once the motor is running at 10%, proceed to the next step.

6.2.3 Locate parameter P13 and change as required.

From the output current display in the previous step, press

“E” to return to “diag” then up and down to locate “par” as

shown.

Press “M” to open the parameter list then up and down to

locate P13. Press “M” again to edit it.

6.2.4 Change P13, save and check output current.

Use the up and down keys to increase or decrease the

value of P13 as necessary. Press “E” to save and “E” to

return to “par”, then “E” again to return to the speed display.

Repeat step 6.2.2 to check output current. If it matches

motor no-load current Boost is set correctly and the motor

can be stopped using the red button.

If the output current does not match, repeat steps 6.2.3 and

6.2.4 until it does.

6.2.2 Use the diagnostics menu to find output current.

Press and hold the “M” button until the display shows “diag”

as before. Press “M” again to open the diagnostics menu.

Use the up and down keys to locate output current as

before.

If the current value shown is more than motor no-load

current, the Boost value in P13 will need to be reduced. If it

is less, P13 will need to be increased.

6.2 How to use “Motor no-load current” to set Boost correctly.

Easy Start Guide

7. How to set a Parameter value

Page 8

This guide has been produced by The Inverter Drive Supermarket Ltd.

All content, including but not limited to graphics, text and procedures copyright The Inverter

Drive Supermarket and must not be reproduced or altered without prior written permission.

Parker SSD Drives 650 Series Inverter

7.1 Press and hold the “M” (Menu) key for 1 second.

This example demonstrates the steps required to set

parameter 6 (P6) which is motor full-load current.

From the speed reference screen (shown in the

illustration opposite), press and hold the Menu key for

approximately 1 second to access the menu.

7.2 Press the up key to move from Diagnostics to

Parameters.

The display shows “diag” to indicate that the currently

selected menu option is “diagnostics”.

Press the up key to select the parameter menu. The

display will show “par” to indicate that this has been

selected.

7.3 Press the Menu key to access the parameter list.

When the display shows “par”, press the Menu key to

access the parameter list.

7.4 The Parameter List

The display shows P1 to indicate that Parameter 1 is

currently selected.

Use the up and down keys to navigate through the list of

available parameters.

For this example, select P6 (motor full-load current).

Press the Menu key to modify the parameter value.

Page 9

This guide has been produced by The Inverter Drive Supermarket Ltd.

All content, including but not limited to graphics, text and procedures copyright The Inverter

Drive Supermarket and must not be reproduced or altered without prior written permission.

Easy Start Guide

Parker SSD Drives 650 Series Inverter

7.5 Use the Menu, up and down keys to change the

value.

Press the Menu key to select the first digit. The selected

digit will flash to indicate that it can be changed.

Use the up and down keys to increase or decrease the

value.

Press the Menu key again to move through each digit

from right to left. Continue to press Menu to cycle back to

the first digit.

7.6 Press the “E” (Escape) key to return to the

Parameter List.

Press the Escape key to return to the parameter list. The

previously selected parameter number is shown.

Use the up and down arrows to select a different

parameter and press the Menu key to modify as before.

Press the Escape key again to return to the Parameter

menu as shown in 7.3.

7.7 Press the Escape key to return to the speed

reference screen.

When the display shows “par”, press the Escape key to

return to the initial screen.

7.8 The initial screen

The drive is now back at the speed reference screen.

Andere Handbücher für 650 Series

Inhaltsverzeichnis

Andere Parker Gleichstromantrieb Handbücher

Parker

Parker PSD04 Bedienungsanleitung

Parker

Parker 690+ series Installations- und Betriebshandbuch

Parker

Parker HAS Series Bedienungsanleitung

Parker

Parker OSPP-Classic Bedienungsanleitung

Parker

Parker XLT50-D Bedienungsanleitung

Parker

Parker LINKnet AC30P Bedienungsanleitung

Parker

Parker PDHX-E Series Bedienungsanleitung

Parker

Parker AC30 series Bedienungsanleitung

Parker

Parker AC10 series Gebrauchsanweisung

Parker

Parker GT6-L8-NK Handbuch

Parker

Parker P Series Bedienungsanleitung

Parker

Parker 638 series Bedienungsanleitung

Parker

Parker ac890 Bedienungsanleitung

Parker

Parker DC590PR Series Bedienungsanleitung

Parker

Parker 890SD Bedienungsanleitung

Parker

Parker AC30 series Installations- und Betriebshandbuch

Parker

Parker E-DC Bedienungsanleitung

Parker

Parker 590+ series Bedienungsanleitung

Parker

Parker Compumotor ZETA6 Series Bedienungsanleitung

Parker

Parker Compax3S Bedienungsanleitung

Parker

Parker E Series Bedienungsanleitung

Parker

Parker LVD1 Bedienungsanleitung

Parker

Parker PDS Series Bedienungsanleitung

Parker

Parker AC30 series Bedienungsanleitung

Beliebte Gleichstromantrieb Handbücher anderer Marken

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Bedienungsanleitung

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Stücklistenhandbuch

Chamberlain Garog

Chamberlain Garog D Series Bedienungsanleitung

Festo

Festo DGC G Series Einrichtungshandbuch

Binks

Binks QS-5012-1-CE Bedienungsanleitung

Danfoss

Danfoss VLT 2800 Series Technisches Datenblatt

ABB

ABB ACQ580-01 Series Installationshandbuch

YASKAWA

YASKAWA CANopen SI-S3 Bedienungsanleitung

GE D20A6 Bedienungsanleitung

Unex

Unex MC-D-250-1000-050W-TW Bedienungsanleitung

Geckodrive

Geckodrive G213V Bedienungsanleitung

ABB

ABB RSYC-01 Bedienungsanleitung

Rockwell Automation

Rockwell Automation PowerFlex 700S Betriebsanleitung

WEG

WEG DeviceNet CFW500 Bedienungsanleitung

Siemens

Siemens SINAMICS G Datenblatt

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Betriebsanleitung

SOMFY

SOMFY JR RU 30 Bedienungsanleitung

Beckhoff

Beckhoff AX8911 Bedienerhandbuch
