16 CHANNEL POWER MULTIPLEXER MODULE 40-650A

pickering

Issue 1.0 March 2019

User Manual

16 Channel Power Multiplexer Module

(Model No. 40-650A)

pickeringtest.com pickering

Page (II) 16 CHANNEL POWER MULTIPLEXER MODULE 40-650A

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

16 CHANNEL POWER MULTIPLEXER MODULE 40-650A

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) 16 CHANNEL POWER MULTIPLEXER MODULE 40-650A

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

16 CHANNEL POWER MULTIPLEXER MODULE 40-650A

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Maximum Frequency of Operations at Full Load ...............2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Modules ............4.1

Module Architecture 40-650A ..............................................4.2

Sub-unit Cross Reference ....................................................4.2

Programming The Module 40-650A ....................................4.3

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting .........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Relay Lookup Tables.............................................................7.1

Component Layout................................................................7.2

CONTENTS

Page (VI) 16 CHANNEL POWER MULTIPLEXER MODULE 40-650A

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

16 CHANNEL POWER MULTIPLEXER MODULE 40-650A

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) 16 CHANNEL POWER MULTIPLEXER MODULE 40-650A

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

16 CHANNEL POWER MULTIPLEXER MODULE 40-650A

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI Power Multiplexer 40-650A

ISSUE 1.0 FEB 2019

• 16-Channel Power Multiplexer

• 2-Pole Switching

• 5A Current Rating With 175W/1250VA

Maximum Power

• Hot Switch to 125VDC/250VAC

• Cold Switch to 400VDC/250VAC

• VISA, IVI & Kernel Drivers Supplied for

Windows

• Supported by PXI or LXI Chassis

• 3 Year Warranty

Com2

Com1

1.1

2.1

16.2

2.2

3.1

3.2

4.1

4.2

16.1

1.2

Schematic for the 40-650A

Power Multiplexer Module

The 40-650A is part of a range of PXI power switching modules

including relay, matrix or multiplexer congurations.

The module is a 16-channel power multiplexer, suitable for

switching inductive/capacitive loads up to 5A at 125VDC/250VAC.

Connections are made via a front panel 37-pin D-type male

connector.

The 40-650A can be operated as a conventional multiplexer

with break-before-make action when a new channel is selected.

Alternatively, product variants can be supplied that allow multiple

channels to be simultaneously selected.

The 40-650A channel selection congurations have been revised

from the 40-650. The 40-650A defaults to single channel selection

with multiple channel selection variants dened by use of a sufx.

Power multiplexer modules are suitable for switching heavy AC or

DC loads or for slave switching large external relays, contactors

and solenoids.

Page 1.2 16 CHANNEL POWER MULTIPLEXER MODULE 40-650A

pickering

SECTION 1 - TECHNICAL SPECIFICATION

Power Multiplexer – 40-650A

pickeringtest.com

Speciﬁcations

Switching Speciﬁcation

Contact Type: Gold ash over silver alloy

Cold Switching Capacity

Maximum Current:

Maximum Voltage:

400VDC/250VAC*

Hot Switching Capacity

Maximum Current:

Maximum Voltage:

Maximum Power:

Min. Switching Capacity:

125VDC/250VAC*

175W/1250VA†

10mA, 5VDC

Max Standoff Voltage:

Initial Path Resistance, On:

Path Resistance, Off:

400VDC

<250mΩ

>109Ω

Bandwidth: >20MHz

Typical Operate Time: 21ms typical,

10.5ms for multichannel mode

Expected Life (operations)

- resistive load

Mechanical Life:

At Max. Switch Capacity:

>5x107

>1x105

* For full voltage rating, signal sources to be switched must be fully

isolated from mains supply and safety earth.

† For variation of maximum hot switching capacity of voltage with

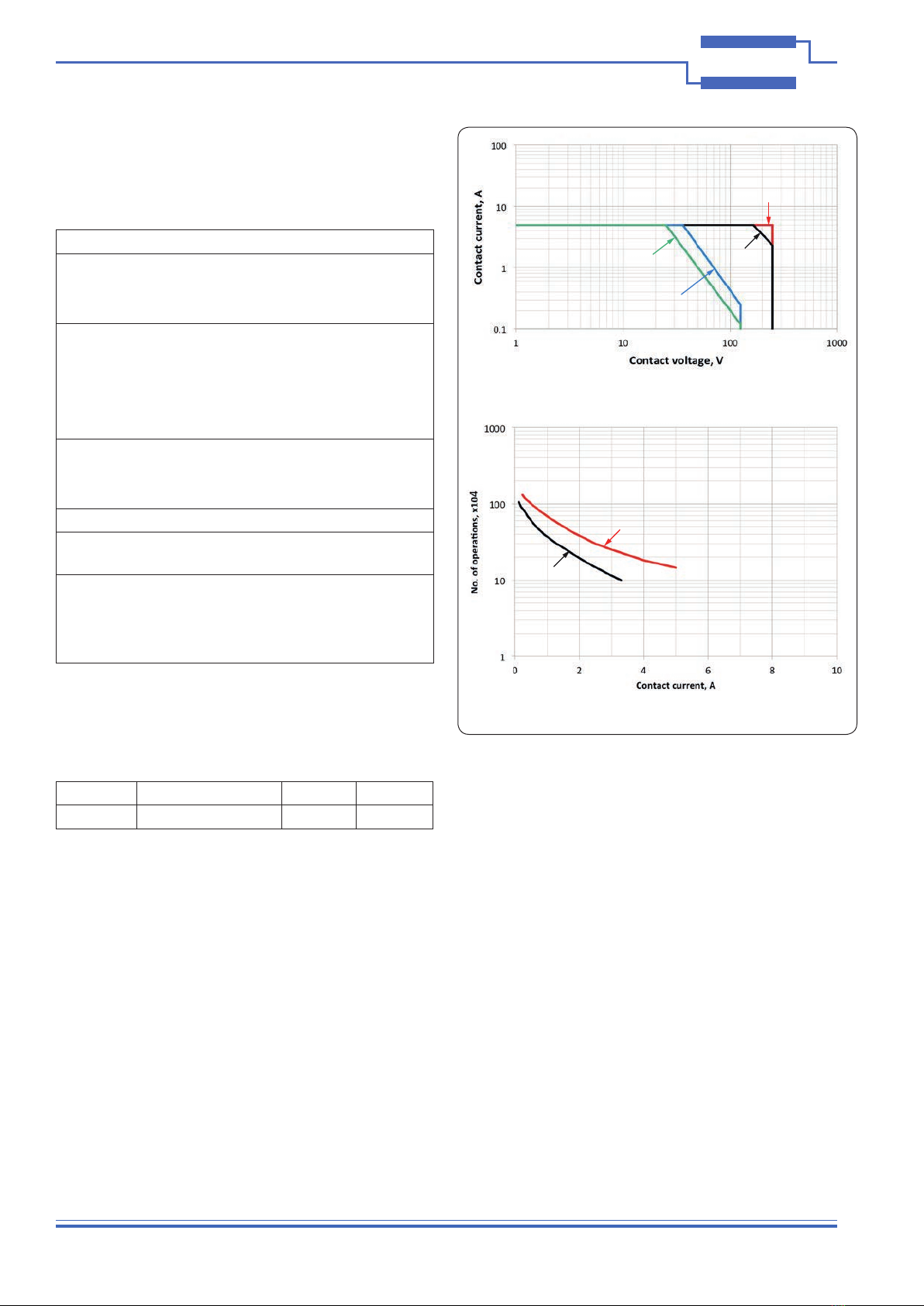

current refer to plot.

Power Requirements

+3.3V +5V +12V -12V

0 360mA (typ 280mA) 0 0

Operating/Storage Conditions

Operating Conditions

Operating Temperature:

Humidity:

Altitude:

0°C to +55°C

Up to 90% non-condensing

5000m

Storage and Transport Conditions

Storage Temperature:

Humidity:

Altitude:

-20°C to +75°C

Up to 90% non-condensing

15000m

PXI & CompactPCI Compliance

The module is compliant with the PXI Specication 2.2. Local Bus,

Trigger Bus and Star Trigger are not implemented.

Uses a 33MHz 32-bit backplane interface.

Safety & CE Compliance

All modules are fully CE compliant and meet applicable EU

directives: Low-voltage safety EN61010-1:2010, EMC Immunity

EN61326-1:2013, Emissions EN55011:2009+A1:2010.

Mechanical Characteristics

Single slot 3U PXI (CompactPCI card).

3D models for all versions in a variety of popular le formats are

available on request.

Connectors

PXI bus via 32-bit P1/J1 backplane connector.

Signals via front panel 37-pin male D-type connector, for pin outs

please refer to the operating manual.

Relay Type

The 40-650A is electro-mechanical power relays, gold-ash over

silver alloy. A Spare Relay is built onto the circuit board to facilitate

easy maintenance with minimum downtime. AC Resisve

AC Inducve

DC Resisve

DC Inducve

30VDC / 250VAC Resisve

30VDC / 250VAC

Inducve

40-650A Current/Operating Life Curve

40-650A Current/Voltage Curve

Inhaltsverzeichnis

Andere Pickering Steuereinheit Handbücher

Pickering

Pickering PXI BRIC 40-595A Bedienungsanleitung

Pickering

Pickering Module Bedienungsanleitung

Pickering

Pickering 40-518A Bedienungsanleitung

Pickering

Pickering Pxi 41-660 Bedienungsanleitung

Pickering

Pickering 40-592A Bedienungsanleitung

Pickering

Pickering PXI 40-710 Bedienungsanleitung

Pickering

Pickering PXi 41-720 Bedienungsanleitung

Pickering

Pickering PXI 40-535 Bedienungsanleitung

Pickering

Pickering PXI 40-145 Bedienungsanleitung

Pickering

Pickering 40-587B Bedienungsanleitung

Pickering

Pickering PXI 30 A Bedienungsanleitung

Pickering

Pickering 40-534 Bedienungsanleitung

Pickering

Pickering 40-884 Bedienungsanleitung

Pickering

Pickering 40-519B Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 40-331 Bedienungsanleitung

Pickering

Pickering PXI BRIC 40-569B Bedienungsanleitung

Pickering

Pickering 43-182B Bedienungsanleitung

Pickering

Pickering 41-735 Bedienungsanleitung

Pickering

Pickering 40-567A Bedienungsanleitung

Pickering

Pickering 40-265 Bedienungsanleitung

Pickering

Pickering Pxi 41-750 Bedienungsanleitung

Pickering

Pickering 40-220A Bedienungsanleitung

Pickering

Pickering 45-541 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
