Issue 11.1 May 2023

40-670A User Manual

PXI Very High Density Multiplexer Module

Page (II) VERY HIGH DENSITY MULTIPLEXER MODULE 40-670A

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

VERY HIGH DENSITY MULTIPLEXER MODULE 40-670A

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) VERY HIGH DENSITY MULTIPLEXER MODULE 40-670A

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

VERY HIGH DENSITY MULTIPLEXER MODULE 40-670A

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Mechanical Description ........................................................2.1

Functional Description..........................................................2.2

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Modules ............4.1

Programming The Module ....................................................4.2

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting .........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Switching System Test Tools ...............................................7.1

Relay Lookup Tables.............................................................7.1

CONTENTS

Page (VI) VERY HIGH DENSITY MULTIPLEXER MODULE 40-670A

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

VERY HIGH DENSITY MULTIPLEXER MODULE 40-670A

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

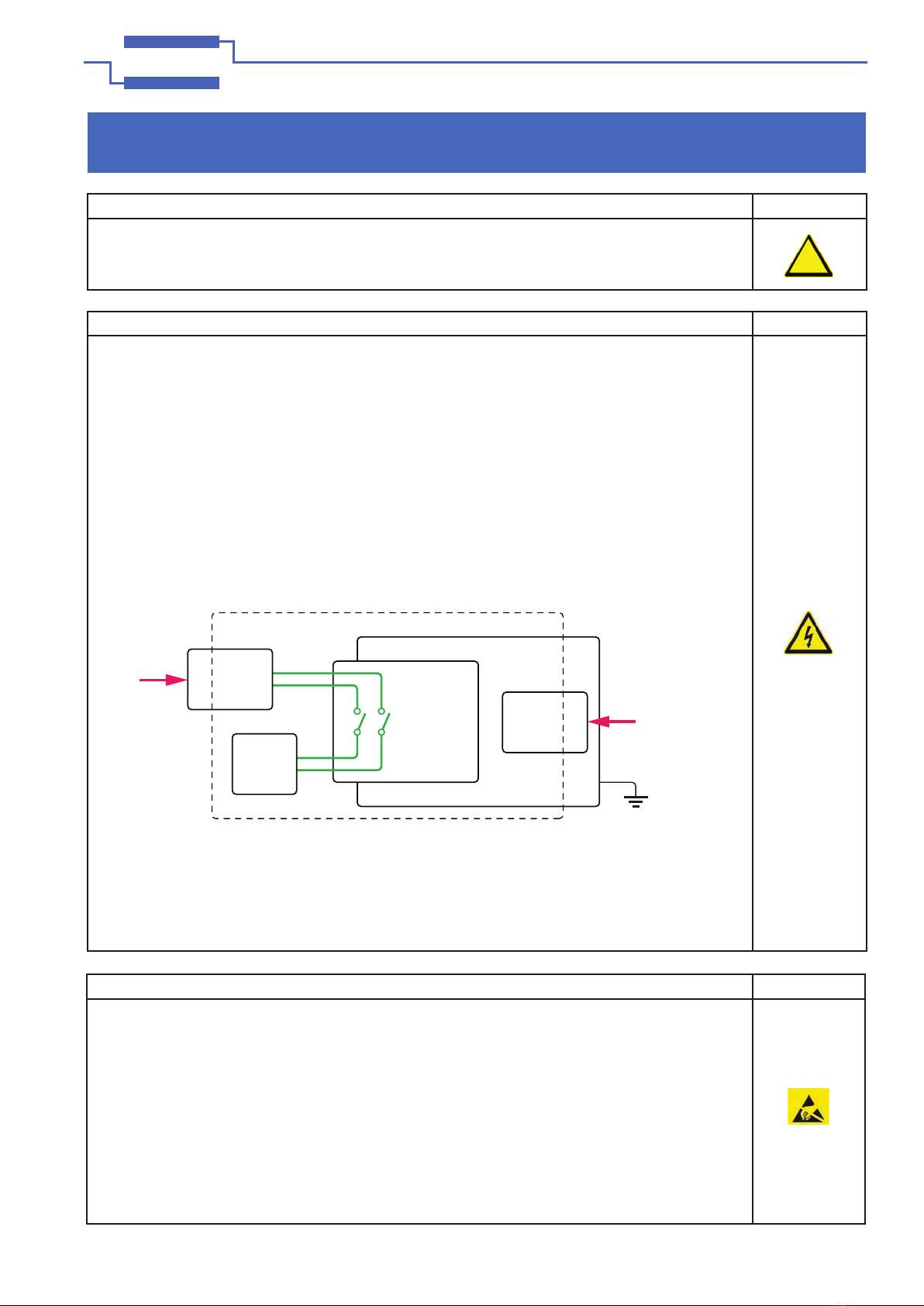

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) VERY HIGH DENSITY MULTIPLEXER MODULE 40-670A

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

VERY HIGH DENSITY MULTIPLEXER MODULE 40-670A

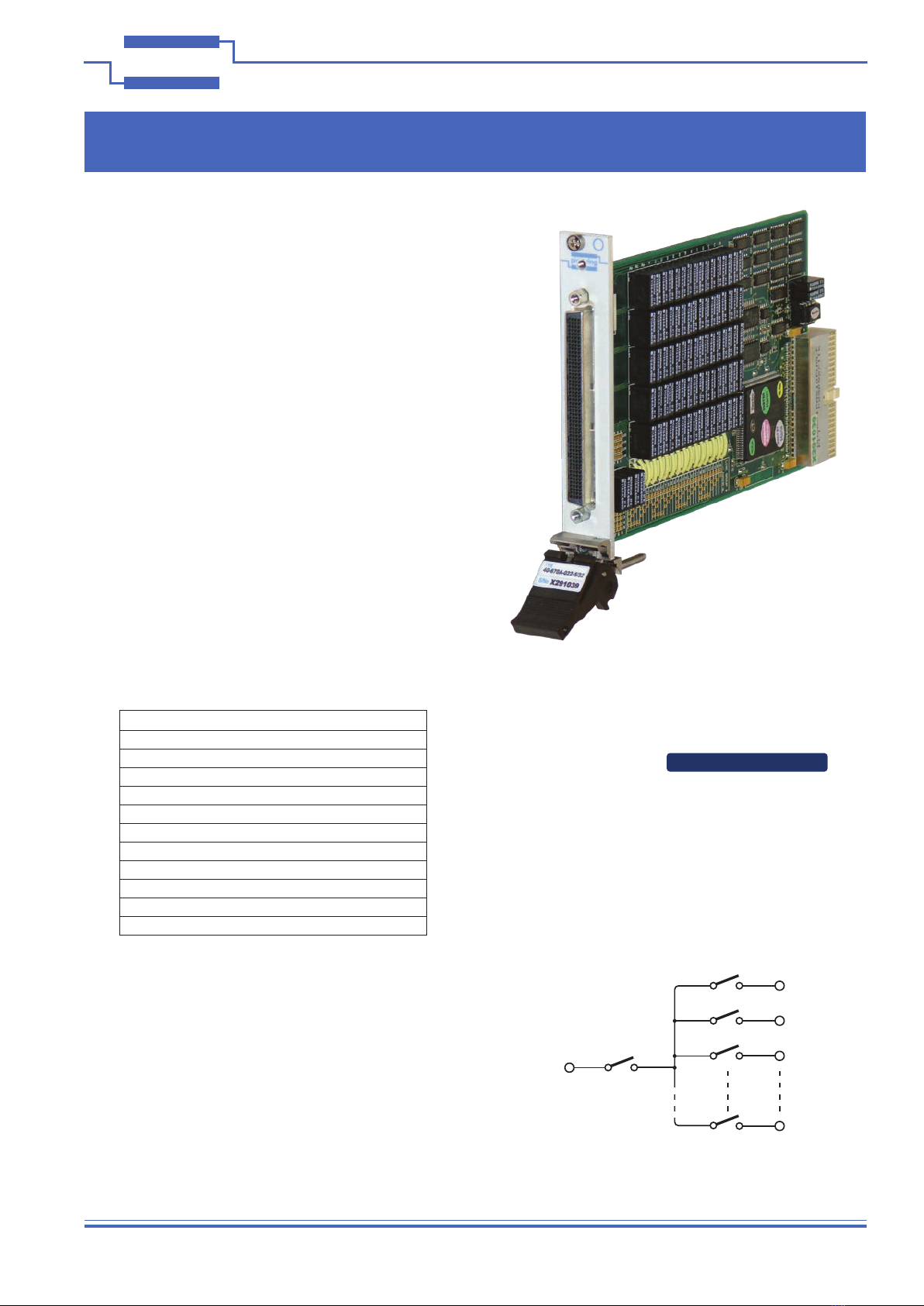

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI Very High Density Multiplexer Module 40-670A

ISSUE 11.1 APR 2023

Supported by

eBIRST

These test tools simplify fault-ﬁnding by quickly testing the

system and graphically identifying the faulty relay.

For more information go to: pickeringtest.com/ebirst

yVery High Density Multiplexer

yUp to 198 Switch Pins Available with 1, 2, 4, 8, 16

or 32-Pole Switching Formats

yAll Versions Use High Reliability Pickering

Reed Relays

yFast Operating Speed 500µs Typical per Relay

ySwitch up to 150 VDC/100 VAC, 0.5 A with

10 W Max Power

yAutomatic Isolation Switches Reduce Capacitive

Loading in Large Systems

yDrivers Supplied for Windows & Linux,

Plus Support for Real-time Systems

ySupported by PXI or LXI Chassis

ySupported by

eBIRST

™

y3 Year Warranty

Com

Isolation

Switch

198

40-670A-022 198-Channel 1-Pole Multiplexer

The 40-670A module features a wide range of multiplexer

conﬁgurations based on high performance ruthenium reed

relays. Typical applications include signal routing in ATE

and data acquisition systems. User connections are via a

front panel 200-pin socket.

40-670A Very High Density Multiplexer Range:

198-Channel, 1-Pole (with isolation switching)

99-Channel, 2-Pole (with isolation switching)

99-Channel, 1-Pole (with isolation switching)

49-Channel, 4-Pole (with isolation switching)

49-Channel, 2-Pole (with isolation switching)

24-Channel, 8-Pole (with isolation switching)

24-Channel, 4-Pole (with isolation switching)

10-Channel, 16-Pole (no isolation switching)

10-Channel, 8-Pole (no isolation switching)

5-Channel, 32-Pole (no isolation switching)

5-Channel, 16-Pole (no isolation switching)

The majority of 40-670A models (see order codes)

allow multiple channels to be simultaneously selected.

Alternatively, product variants can be supplied that operate

as a conventional multiplexer with break-before-make

action when a new channel is selected.

Note: The multiple channel selection option is not available

for the 40-670A-022-198/1 multiplexer.

Versions with automatic isolation switching (see range

table above) connect only the active multiplexer bank to

the common terminal, thereby keeping capacitive loading

and leakage currents in large multiplexer systems to a

minimum. Larger multiplexers may be constructed by

daisy chaining the common signals from multiple modules.

(Multiple channel selection not available for this version)

Front Panel Connector

This product is based on the obsolete Molex LFH series

connector that has been superseded by a Pickering

commissioned form, ﬁt, function equivalent. The new

connector series is 100% compatible with the Molex

connectors allowing either gender of Pickering connector

to mate with the corresponding Molex part without issue.

Page 1.2 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670A

pickering

SECTION 1 - TECHNICAL SPECIFICATION

Very High Density Multiplexer, 40-670A

pickeringtest.com

Overview

40-670A-022 99-Channel 2-Pole Multiplexer

1.1

2.1

Com 1

49.1

Isolation

Switch

1.2

2.2

Com 2

49.2

1.3

2.3

Com 3

49.3

1.4

2.4

Com 4

49.4

40-670A-022 49-Channel 4-Pole Multiplexer

1.1

2.1

Com 1

99.1

Isolation

Switch

1.2

2.2

Com 2

99.2

1.1

1.25

Com 1

5.1

1.2

1.26

Com 2

5.2

1.3

1.27

Com 3

5.3

1.4

1.28

Com 4

5.4

1.5

1.29

Com 5

5.5

1.6

1.30

Com 6

5.6

1.7

1.31

Com 7

5.7

1.8

1.32

Com 8

5.8

Com 25

Com 26

Com 27

Com 28

Com 29

Com 30

Com 31

Com 32

5.25

5.26

5.27

5.28

5.29

5.30

5.31

5.32

CHANNEL 1CHANNEL 5

40-670A-022 5-Channel 32-Pole Multiplexer40-670A-022 10-Channel 16-Pole Multiplexer

1.1

1.9

Com 1

10.1

1.2

1.10

Com 2

10.2

1.3

1.11

Com 3

10.3

1.4

1.12

Com 4

10.4

1.5

1.13

Com 5

10.5

1.6

1.14

Com 6

10.6

1.7

1.15

Com 7

10.7

1.8

1.16

Com 8

10.8

Com 9

Com 10

Com 11

Com 12

Com 13

Com 14

Com 15

Com 16

10.9

10.10

10.11

10.12

10.13

10.14

10.15

10.16

CHANNEL 1CHANNEL 10

Inhaltsverzeichnis

Andere Pickering Steuereinheit Handbücher

Pickering

Pickering 40-650A Bedienungsanleitung

Pickering

Pickering 4 785C Series Bedienungsanleitung

Pickering

Pickering PXI BRIC 40-569 Bedienungsanleitung

Pickering

Pickering 40-651 Bedienungsanleitung

Pickering

Pickering 40-265 Bedienungsanleitung

Pickering

Pickering 40-670 Bedienungsanleitung

Pickering

Pickering 40-884 Bedienungsanleitung

Pickering

Pickering 40-540 Bedienungsanleitung

Pickering

Pickering Module Bedienungsanleitung

Pickering

Pickering 40-519A Bedienungsanleitung

Pickering

Pickering 40-522 Bedienungsanleitung

Pickering

Pickering 40-582A Bedienungsanleitung

Pickering

Pickering PXI 40-787 Bedienungsanleitung

Pickering

Pickering 40-262 Bedienungsanleitung

Pickering

Pickering PXi 41-720 Bedienungsanleitung

Pickering

Pickering 40-521 Bedienungsanleitung

Pickering

Pickering 40-191B Bedienungsanleitung

Pickering

Pickering 40-519B Bedienungsanleitung

Pickering

Pickering PXI BRIC 40-562A Bedienungsanleitung

Pickering

Pickering 4 890 Series Bedienungsanleitung

Pickering

Pickering 41-180 Bedienungsanleitung

Pickering

Pickering 40-587B Bedienungsanleitung

Pickering

Pickering PXI 40-597 Bedienungsanleitung

Pickering

Pickering PXI 40-535 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
