Page 1.1

PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

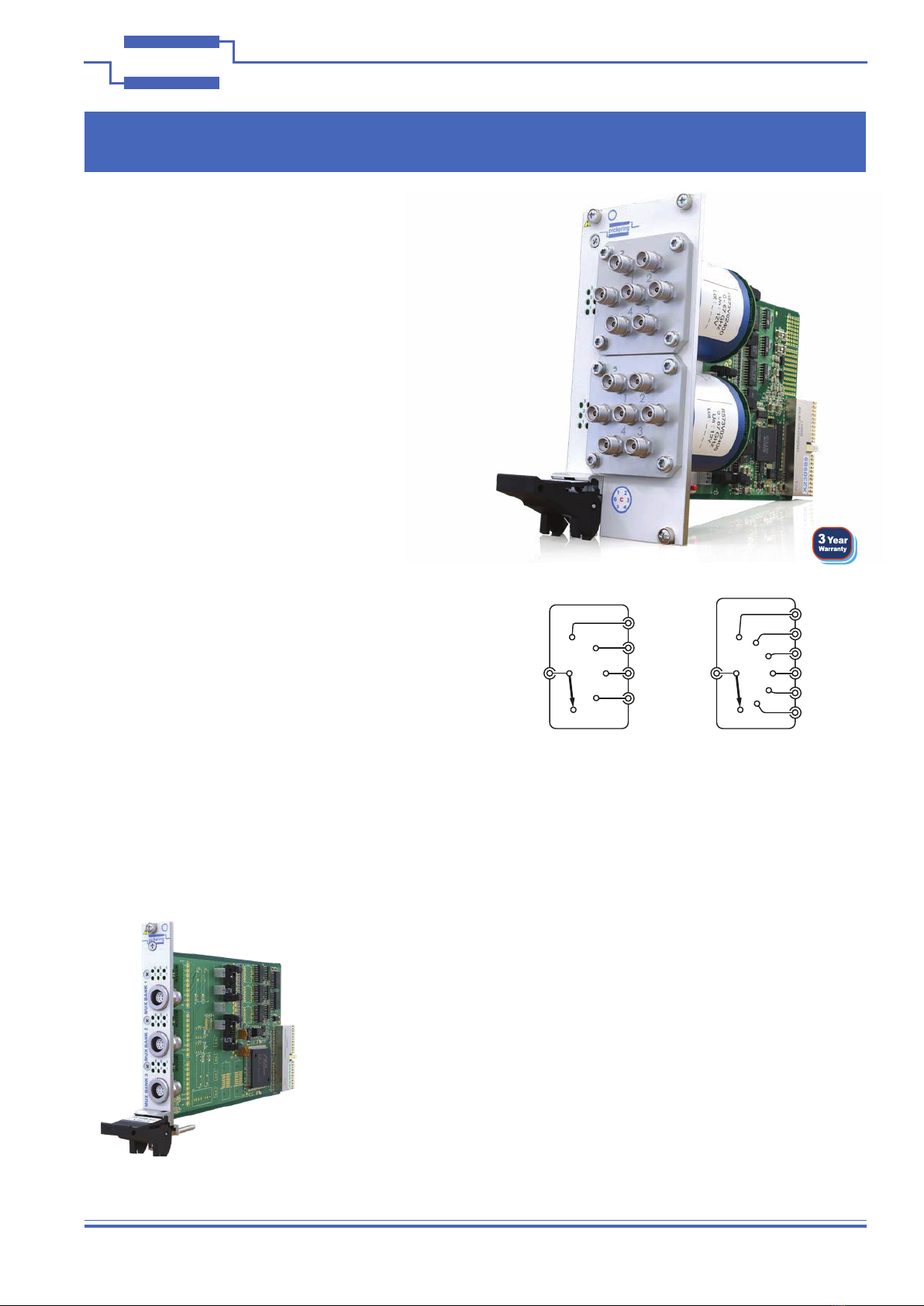

The 40-785C (PXI) and 42-785C (PXIe) range of PXI microwave

multiplexer modules are suitable for switching 50 Ω signals

up to 67 GHz. They are available in single or dual SP4T or

SP6T conﬁgurations with relays mounted on the front panel.

Remote versions are also available which can support up to

three multiplexers in a single slot.

The remote multiplexer versions, as well as occupying less

PXI panel space, allow the microwave relays to be placed

closer to the UUT and RF test equipment. This can shorten

the length of cables and improve system performance.

Remote versions are supplied with a 1.5 m interface cable.

The panel mounted 50 Ω terminated version occupies 3 slots

for the single version or 6 slots for the dual version. A 75 Ω

version is available with a bandwidth of 2.5 GHz and uses

Siemens 1.6/5.6 style connectors.

yAvailable as PXI or PXIe Modules

ySingle or Dual SP4T or SP6T Panel Mounted Multiplexer

yUp To 3 Remote SP4T or SP6T Multiplexers From Single

Slot Version

y50 Ω Versions With 3-67 GHz Bandwidth

y50 Ω Terminated and Unterminated Versions

y75 Ω Version With 2.5 GHz Bandwidth

yFailsafe & Latching Relay Options

yRelay Cycle Counting Included

yLED Indication (Failsafe Versions Only)

yVISA, IVI & Kernel Drivers Supplied for Windows

yPXI Version Supported by PXI or LXI Chassis

y3 Year Warranty

Microwave Multiplexer (Part No. 4x-785C) in

Single Unterminated Format

off

Single Unterminated SP6TSingle Unterminated SP4T

Single slot version

controls 1, 2 or 3

remotely mounted

microwave

multiplexers via

interface cables

The 4x-785C range is suitable for constructing complex

microwave switching networks and includes conﬁgurations

to suit most applications. Connection is by high performance

SMA, SMA 2.9, SMA 2.4, SMA 1.85 or N-type for 50 Ω versions.

These modules give you the highest RF and microwave

performance available within a Pickering switching system.

Although designed for microwave applications, they have

many uses in the RF spectrum where extremely low insertion

loss and ultra high isolation are critical.

Product Compatibility

The 4x-785C range has been introduced as an update to the

existing 40-785B family. These remain orderable but the new

4x-785C is recommended as it provides additional options

such as the PXIe control interface. The RF performance of the

4x-785C is identical to the 40-785B.

pickeringtest.com

4x-785C

PXI/PXIe Microwave Multiplexer

Issue 2.0 May 2022

Page 1.2 PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C

pickering

SECTION 1 - TECHNICAL SPECIFICATION

off

MUX Bank 1

MUX Bank 2

MUX Bank 1

off

MUX Bank 2

off

MUX Bank 1

MUX Bank 2

off

MUX Bank 3

MUX Bank 1

off

MUX Bank 2

off

MUX Bank 3

Dual Unterminated SP6TDual Unterminated SP4T Triple Unterminated SP6TTriple Unterminated SP4T

off

Single Terminated SP6T

off

Single Terminated SP4T

off

Dual Terminated SP6T

off

Dual Terminated SP4T

off

MUX Bank 1

MUX Bank 2

MUX Bank 1

MUX Bank 2

off

Triple Terminated SP6T

off

Triple Terminated SP4T

off

MUX Bank 1

MUX Bank 2

MUX Bank 1

MUX Bank 2

off

MUX Bank 3 MUX Bank 3

4x-785C Terminated Multiplexer Range (triple versions are only available in remote mount format)

Relay Type

To provide maximum ﬂexibility this range is available with either failsafe or

latching relays. For deﬁnition, the contacts of failsafe relays return to the

default state when the system power is removed whereas latching relay

contacts retain their last set state when the power is removed.

Relay Cycle Counting

To aid with module “health”

monitoring all versions are provided

with a relay cycle counting cycle

feature. The number of operations per

contact are stored on the module and

can be used to determine if a relay

is approaching EOL. This information

could allow system connections to

be revised so that signals applied to

heavily used contacts are swapped

with lightly used contacts to prolong

the working life of the relay(s). 4x-785C Unterminated Multiplexer Range (triple versions are only

available in remote mount format)

4x-785C

pickeringtest.com Page 2

PXI/PXIe Microwave Multiplexer

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pickering Steuereinheit Handbücher

Pickering

Pickering 40-220A Bedienungsanleitung

Pickering

Pickering 41-765 Bedienungsanleitung

Pickering

Pickering 40-191B Bedienungsanleitung

Pickering

Pickering PXI 40-785 Bedienungsanleitung

Pickering

Pickering 4x-727A Bedienungsanleitung

Pickering

Pickering 40-519B Bedienungsanleitung

Pickering

Pickering PXI 60-104 Bedienungsanleitung

Pickering

Pickering PXI BRIC 40-569 Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 40-575 Bedienungsanleitung

Pickering

Pickering Module Bedienungsanleitung

Pickering

Pickering 40-561A Bedienungsanleitung

Pickering

Pickering PXI BRIC 40-569B Bedienungsanleitung

Pickering

Pickering 40-529A Bedienungsanleitung

Pickering

Pickering 40-592A Bedienungsanleitung

Pickering

Pickering 42-724 Bedienungsanleitung

Pickering

Pickering 4 785C Series Bedienungsanleitung

Pickering

Pickering 60-553 Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 40-582A Bedienungsanleitung

Pickering

Pickering 40-534 Bedienungsanleitung

Pickering

Pickering PXI 40-710 Bedienungsanleitung

Pickering

Pickering 40-670 Bedienungsanleitung

Pickering

Pickering 40-296 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
