40-555A User Manual

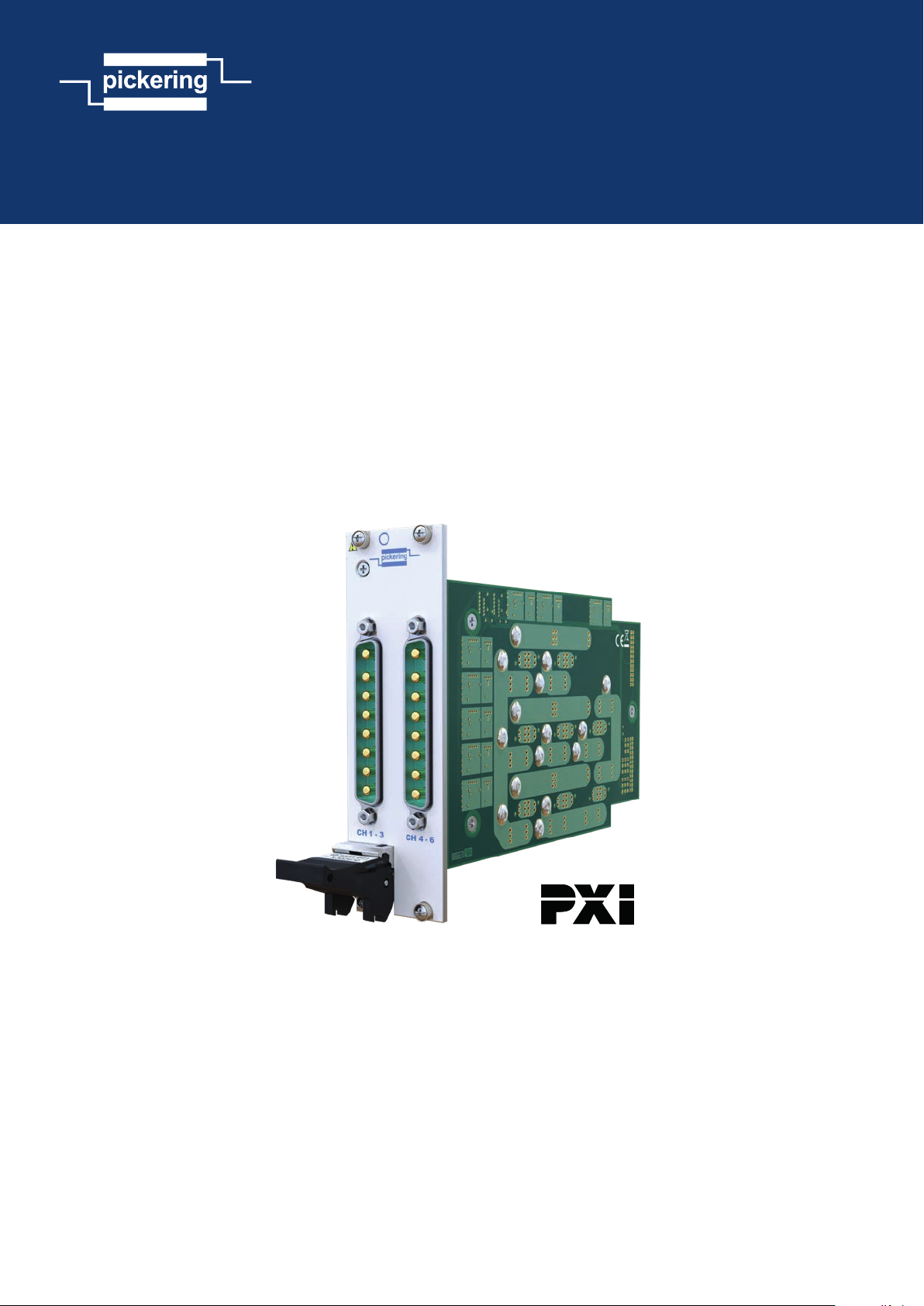

PXI 30 A Solid State Matrix Module

Page (II) 30A SOLID STATE MATRIX 40-555A

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

30A SOLID STATE MATRIX 40-555A

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) 30A SOLID STATE MATRIX 40-555A

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

30A SOLID STATE MATRIX 40-555A

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options for PXI Modules ..............................4.1

Programming The Solid State Matrix...................................4.2

Using IVI Driver, Direct Driver or VISA Driver .....................4.3

Section 5

Connector Information................................................................5.1

Section 6

Troubleshooting ..........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Switching System Test Tools ...............................................7.1

Relay Look-Up Tables ...........................................................7.1

CONTENTS

Page (VI) 30A SOLID STATE MATRIX 40-555A

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

30A SOLID STATE MATRIX 40-555A

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) 30A SOLID STATE MATRIX 40-555A

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

30A SOLID STATE MATRIX 40-555A

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI 30 A Solid State Matrix Module 40-555A

ISSUE 1.1 NOV 2021

Supported by

eBIRST

eBIRST switching system test tools simplify switching

system fault-ﬁnding by quickly testing the system and

graphically identifying the faulty relay.

For more information go to: pickeringtest.com/ebirst

y8x2 Power Matrix

y30 A Rating at 40 V

y40 A Rating For Single Relay Closure

yVery High Hot Switch Capacity

yVery High Inrush Current Rating

yFast Operating Speed

yLong Service Life

yVISA, IVI & Kernel Drivers Supplied for Windows

ySupported by PXI or LXI Chassis

ySupported by

eBIRST

™

y3 Year Warranty

40-555A Solid State 8x2 Matrix Schematic Diagram

The 40-555A is a high current 8x2 matrix occupying two

PXI chassis slots. Matrix crosspoints are isolated solid

state relays which offer fast operation under hot switching

conditions and high inrush current with no operational life

degradation.

Signal paths can carry 30 A of continuous current and

switch up to 40 V. The relays can support 40 A continuous

operation for a single closure, also they can sustain

inrush current in excess of 120 A. AC or DC signals can be

switched since the switch is polarity insensitive.

The 40-555A is particularly well suited to automotive

and aerospace applications where the switching of high

capacity loads is required. The module is supplied with a

comprehensive package of drivers, including support for

selected RT operating systems.

X2 X4X1 X3 X5 X6

Matrix

Crosspoint

X7 X8

Page 1.2 30A SOLID STATE MATRIX 40-555A

pickering

SECTION 1 - TECHNICAL SPECIFICATION

30 A Solid State Matrix, 40-555A

pickeringtest.com

Speciﬁcations

Switching Speciﬁcation

Switch Type: Solid State MOSFET

Max Switch Voltage:

Continuous Crosspoint Current:

Peak Current:

±40 V* (DC or AC peak)†

30 A continuous ‡,

40 A continuous with

single relay per module

closed

120 A for 200 µs

Max Y-Bus Current: 40 A

Path Resistance - On:

Leakage Current (at ±40 V):

6 mΩ at 25 ˚C typical

<1 µA at 25 ˚C and

switch cold, <5 mA

at max temperature

immediately after

switch has carried

maximum current for

>10 minutes.

Rise/Fall Time:

Operate Time:

Max Operating Speed at

nominal load:

8 µs (typical)

250 µs

60 operations/sec

Expected Life (operations): Indeﬁnite when used

within ratings

* For full voltage rating, signal sources to be switched

must be fully isolated from mains supply and safety earth.

† Differential voltage between channels must not exceed

rated voltage, additional caution should be used when

applying AC voltages as multiple asynchronous supplies

can create high differential voltages between channels.

‡ The capacity of the module to carry 30 A on all channels

is chassis dependent and dependent on the number of high

power modules ﬁtted to the chassis. Speciﬁcation reﬂects

test conditions in a Pickering PXI chassis. Refer to supplier

for chassis cooling capacity, restrict average RMS current

over 5 minute period to 25A per channel for chassis

meeting the minimum PXI recommendations.

Power Requirements

+3.3 V +5 V +12 V -12 V

100 mA 1400 mA 0 0

Operating/Storage Conditions

Operating Conditions

Operating Temperature:

Humidity:

Altitude:

0 °C to +55 °C

Up to 90 % non-condensing

5000 m

Storage and Transport Conditions

Storage Temperature:

Humidity:

Altitude:

-20 °C to +75 °C

Up to 90 % non-condensing

15000 m

PXI & CompactPCI Compliance

The module is compliant with the PXI Speciﬁcation 2.2.

Local Bus, Trigger Bus & Star Trigger are not implemented.

Uses a 33 MHz 32-bit backplane interface.

Safety & CE Compliance

All modules are fully CE compliant and meet applicable

EU directives: Low-voltage safety EN61010-1:2010,

EMC Immunity EN61326-1:2013,

Emissions EN55011:2009+A1:2010.

Mechanical Characteristics

Dual slot 3U PXI (CompactPCI card).

3D models for all versions in a variety of popular ﬁle

formats are available on request.

Connectors

PXI bus via 32-bit P1/J1 backplane connector.

Signals via two front panel 8-pin male power D-type

connectors, for pin outs please refer to the operating

manual.

Relay Type

The 40-555A is ﬁtted with solid state MOSFET switches.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pickering Steuereinheit Handbücher

Pickering

Pickering PXI 60-104 Bedienungsanleitung

Pickering

Pickering 40-565A Bedienungsanleitung

Pickering

Pickering 41-735 Bedienungsanleitung

Pickering

Pickering PXI 40-145 Bedienungsanleitung

Pickering

Pickering PXI 40-510 Bedienungsanleitung

Pickering

Pickering 40-618A Bedienungsanleitung

Pickering

Pickering 41-670 Bedienungsanleitung

Pickering

Pickering PXI 40-597 Bedienungsanleitung

Pickering

Pickering 40-567A Bedienungsanleitung

Pickering

Pickering 40-191B Bedienungsanleitung

Pickering

Pickering 4x-585A Bedienungsanleitung

Pickering

Pickering PXI 40-855 Bedienungsanleitung

Pickering

Pickering 40-656A Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 40-584 Bedienungsanleitung

Pickering

Pickering 40-265 Bedienungsanleitung

Pickering

Pickering Module Bedienungsanleitung

Pickering

Pickering 40-297A Bedienungsanleitung

Pickering

Pickering PXI BRIC 40-563A Bedienungsanleitung

Pickering

Pickering PXI BRIC 40-560A Bedienungsanleitung

Pickering

Pickering 40-522 Bedienungsanleitung

Pickering

Pickering 40-574 Bedienungsanleitung

Pickering

Pickering PXI BRIC 40-562A Bedienungsanleitung

Pickering

Pickering 40-559 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
