Pride Mobility CELEBRITY X Bedienungsanleitung

The Ultimate In Style & Performance

Owner’s Manual

Unit 106, Heyford Park Camp Road

Upper Heyford, Oxfordshire OX25 5HA

www.pridemobility.com

SAFETY GUIDELINES

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased.

Thesymbolsbelowareusedthroughoutthisowner'smanualandonthescootertoidentifywarningsandimportant

information.Itisvery importantforyouto readthemandunderstand themcompletely.

WARNING! Indicates a potentially hazardous condition/situation that can cause personal

injury, equipment and/or property damage.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause injury to personnel and/or damage to equipment.

PROHIBITED! These actions are prohibited; do not perform at any time or in any situation.

Performing a prohibited action can cause personal injury and/or equipment damage.

Pleasefilloutthefollowinginformationforquickreference:

PrideMobilityProducts Ltd.

INFMANU3028/RevD/August2006

Pride Dealer______________________________________________________________________

Address:___________________________________________________________________________

PhoneNumber:__________________________

Purchase Date:__________________________ Serial Number:_____________________________

Celebrity X www.pridemobility.com

CONTENTS

I. INTRODUCTION......................................................................................................................... 4

II. SAFETY......................................................................................................................................... 5

III. SPECIFICATIONS ................................................................................................................... 16

IV. YOUR SCOOTER...................................................................................................................... 18

V. BATTERIES AND CHARGING ............................................................................................ 23

VI. OPERATION............................................................................................................................... 28

VII. COMFORT ADJUSTMENTS................................................................................................ 30

VIII.DISASSEMBLY AND ASSEMBLY ..................................................................................... 33

IX. BASIC TROUBLESHOOTING ............................................................................................. 35

X. CARE AND MAINTENANCE ................................................................................................ 37

XI. WARRANTY................................................................................................................................40

4www.pridemobility.com Celebrity X

I. INTRODUCTION

SAFETY

Welcome to PrideMobility Products Ltd.(Pride). The product you havepurchased combines state-of-the-art

componentswith safety,comfortandstyling inmind.Weareconfidentthe designfeatureswill provideyouwith

theconveniences youexpectduring yourdaily activities. Understandinghow tosafelyoperate andcare forthis

productshouldbring youyears oftrouble freeoperations and service.

Readandfollowall instructions,warningsandnotes inthismanualand allotheraccompanyingliterature before

attemptingto operate this productfor the firsttime. In addition, your safety depends upon you,as well as your

dealer, carerorhealthcareprofessional inusinggoodjudgement.

Ifthere is anyinformation inthis manualwhich youdo notunderstandor ifyou requireadditional assistancefor

setupor operation, pleasecontact your authorised PrideDealer.Failuretofollowthe instructions,warnings

andnotesinthismanualandthoselocatedonyourPrideproductcanresultinpersonalinjuryorproduct

damageandwillvoidPride’sproductwarranty.

PURCHASER’S AGREEMENT

Byacceptingdeliveryofthisproduct,youpromisethatyouwillnotchange,alterormodifythisproductorremove

orrenderinoperableor unsafeanyguards, shieldsorothersafety featuresofthisproduct; fail,refuseor neglectto

installany retrofit kitsfrom timeto timeprovided byPride toenhance orpreservethe safeuse ofthis product.

INFORMATION EXCHANGE

We wanttohear yourquestions, commentsand suggestionsabout thismanual.We wouldalso liketo hearabout

thesafetyandreliabilityofyournewscooterandabouttheserviceyoureceivedfromyourauthorisedPrideDealer.

Pleasenotifyusofanychangeofaddress,sowecan keepyouapprisedofimportantinformationaboutsafety,new

productsand newoptions thatcan increaseyour abilityto useand enjoyyour scooter. Please feel free tocontact

usat the addressbelow:

PrideMobilityProducts Ltd.

Unit106, Heyford Park CampRoad

UpperHeyford, OxfordshireOX25 5HA

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Celebrity X www.pridemobility.com

II. SAFETY

PRODUCT SAFETY SYMBOLS

Thesymbols beloware usedon thescooter toidentify warnings,mandatory actionsand prohibitedactions. Itis

veryimportantfor youtoread andunderstandthem completely.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery. Use only AGM or Gel-Cell batteries to

reduce the risk of leakage or explosive conditions.

EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m.

Read and follow the information in the owner’s manual.

Maximum seating weight.

Place unit on level ground and stand behind or to one side when changing from

drive mode to freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Unlocked and in freewheel mode.

Front-to-rear plug orientation.

6www.pridemobility.com Celebrity X

II. SAFETY

Use only AGM or Gel-Cell batteries.

Do not raise or lower the power seat while the scooter is in motion.

Do not remove anti-tip wheels.

Do not use a cell phone, walkie/talkie, laptop or other radio transmitter while

operating.

Avoid exposure to rain, snow, ice, salt or standing water whenever possible. Maintain

and store in a clean and dry condition.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug

access. Failure to heed could result in personal injury and/or property damage.

Prevent personal injury and equipment damage. Do not connect an extension lead

to the AC/DC converter or the battery charger.

Contact with tools can cause electrical shock.

Celebrity X www.pridemobility.com

II. SAFETY

GENERAL

Yourscooter isastate-of-the-artlife-enhancement devicedesignedtoincrease mobility.Pride providesanexten-

sivevarietyof productsto best fitthe individualneedsof thescooter user.Please be awarethat thefinalselection

andpurchasing decision regardingthe type of scooterto be usedis the responsibilityof the scooter userwho is

capableofmakingsuchadecisionandhis/herhealthcareprofessional(i.e.,medicaldoctor,physicaltherapist,etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the

scooterto theuser andhas assistedthe prescribinghealthcare professionaland/or theauthorised PrideDealer in

theinstruction processfor theuse ofthe product.

There are certain situations, including some medical conditions, where the scooter user will need to practice

operatingthescooterinthepresenceof atrainedattendant.Atrained attendantcan bedefinedasafamilymember

orcareprofessionalspeciallytrainedinassistingascooteruserin variousdailylivingactivities.

Asyoubegin usingyourscooter duringdailyactivities, youwillprobably encountersituationsin whichyouwill

needsome practice.Simply takeyour timeand youwill soon bein fulland confidentcontrol asyou manoeuvre

throughdoorways, onand offlifts, upand downramps andover moderateterrain.

Beloware some precautions,tips and othersafety considerations thatwill helpthe user becomeaccustomed to

operatingthescooter safely.

MODIFICATIONS

Pridehas designed and engineered yourscooter to provide maximum mobilityand utility. However,under no

circumstancesshouldyou modify,add,remove ordisable anyfeature,part orfunction ofyourscooter.

WARNING! Do not modify your scooter in any way not authorised by Pride. Unauthorised

modifications may result in personal injury and/or damage to your scooter.

REMOVABLE PARTS

WARNING! Prevent personal injury and/or product damage! Do not attempt to lift or move

your scooter by any of its removable parts, including the armrests, seat, or shroud.

MANDATORY! Do not operate your new scooter for the first time without completely reading

and understanding this owner’s manual.

8www.pridemobility.com Celebrity X

II. SAFETY

PRE-RIDE SAFETY CHECK

Gettoknowthefeelofyourscooter anditscapabilities.Priderecommendsthatyouperforma safetycheckbefore

eachuse tomake sure yourscooter operates smoothlyand safely.

Performthefollowinginspectionspriortousingyourscooter:

!Checkforpropertyre inflation(ifequippedwith pneumatictyres).

!Checkall electricalconnections. Makesure theyare tightand notcorroded.

!Checkall harnessconnections. Make surethey aresecured properly.

!Check the brakes.

!Checkbattery charge.

Ifyou discovera problem,contact yourauthorisedPride Dealerfor assistance.

TYRE INFLATION

Ifyourscooter isequippedwith pneumatictyres, youshouldcheck orhavethe airpressurechecked atleast once

aweek.Properinflation pressureswillprolongthelife ofyourtyresand helpensurethesmooth operationofyour

scooter.

WARNING! It is critically important that 2-2.4 bar (30-35 psi) tyre pressure be maintained

in pneumatic tyres at all times. Do not underinflate or overinflate your tyres. Low pressure

may result in loss of control and overinflated tyres may burst. Failure to maintain 2-2.4 bar

(30-35 psi) tyre pressure in pneumatic tyres at all times may result in tyre and/or wheel

failure, causing serious personal injury and/or damage to your scooter.

WARNING! Inflate your scooter tyres from a regulated air source with an available pressure

gauge. Inflating your tyres from an unregulated air source could overinflate them, resulting

in a burst tyre and/or personal injury.

WEIGHT LIMITATIONS

Yourscooter isratedforamaximum weightcapacity.Refertothespecifications tableforinformation.

WARNING! Exceeding the weight capacity voids your warranty and may result in personal

injury and damage to your scooter. Pride will not be held responsible for injuries and/or

property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers may result in

personal injury and/or property damage.

INCLINE INFORMATION

Moreand more buildings have ramps with specified degrees ofinclination, designed for easy andsafe access.

Somerampsmay haveturning switchbacks(180-degree turns)that requireyouto havegood corneringskills on

yourscooter.

!Proceedwith extremecaution asyou approachthe downgrade ofa rampor otherincline.

!Take wide swings withyour scooter around any tightcorners. If you dothat, the scooter’s rear wheels will

followa widearc, notcut thecorner shortand notbump intoor gethung upon anyrailing corners.

!Whendriving downa ramp,keep the scooter’s speedadjustment setto theslowest speed settingto ensurea

safelycontrolleddescent.

!Avoid suddenstops and starts.

Celebrity X www.pridemobility.com

136-159 kg/

21-25 stone

(300-350 lbs.)

8.7% (5˚)

68 kg/

11 stone

(150 lbs.)

14.1% (8˚)

90 kg/

14 stone

(200 lbs.)

12.3% (7˚)

113 kg/

18 stone

(250 lbs.)

10.5%(6˚)

II. SAFETY

When climbing an incline, try to keep your scooter moving. If you must stop, start up again slowly and then

acceleratecautiously.When driving downan incline, do so bysetting the speed adjustment dialto the slowest

settingand drivingin the forwarddirection only.If yourscooter starts tomove downthe incline fasterthan you

anticipatedor desired, allowit to come toa complete stopby releasing the throttlecontrol lever.Then push the

throttlecontrolleverforward slightlytoensureasafely controlleddescent.

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the

incline. Drive your scooter straight up the incline. This greatly reduces the possibility of a

tip or a fall. Always exercise extreme caution when negotiating an incline.

WARNING! Do not drive your scooter across the side of an incline or diagonally up or down

an incline; do not stop, if possible, while driving up or down an incline.

WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas

covered with snow, ice, cut grass or wet leaves).

WARNING! When on any sort of an incline or decline, never place the scooter in freewheel

mode while seated on it or standing next to it.

WARNING! Even though your scooter is capable of climbing slopes greater than those

illustrated in figures 1 and 1A, do not, under any circumstances, exceed the incline

guidelines or any other specifications presented in this manual. Doing so could cause

instability in your scooter, resulting in personal injury and/or damage to your scooter.

Handicap public access ramps are not subject to government regulation in all countries and therefore do not

necessarilysharethesamestandardpercent ofslope.Otherinclinesmaybe naturalor,ifman-made, notdesigned

specificallyfor scooters.Figures 1and 1Aillustrateyourscooter’sstabilityand itsability toclimb gradesunder

variousweightloadsandundercontrolledtestingconditions.

Thesetests wereconductedwith thescooter’sseat inthe highestposition andadjusted rearwardonthe seatbase

toitsfarthest rearwardposition. Usethisinformation asa guideline.Your scooter’sability totravel upinclinesis

affectedbyyour weight,your scooter’s speed, yourangle ofapproach tothe inclineand your scootersetup.

WARNING! Any attempt to climb or descend a slope steeper than what is shown in figures

1 and 1A may put your scooter in an unstable position and cause it to tip, resulting in

personal injury.

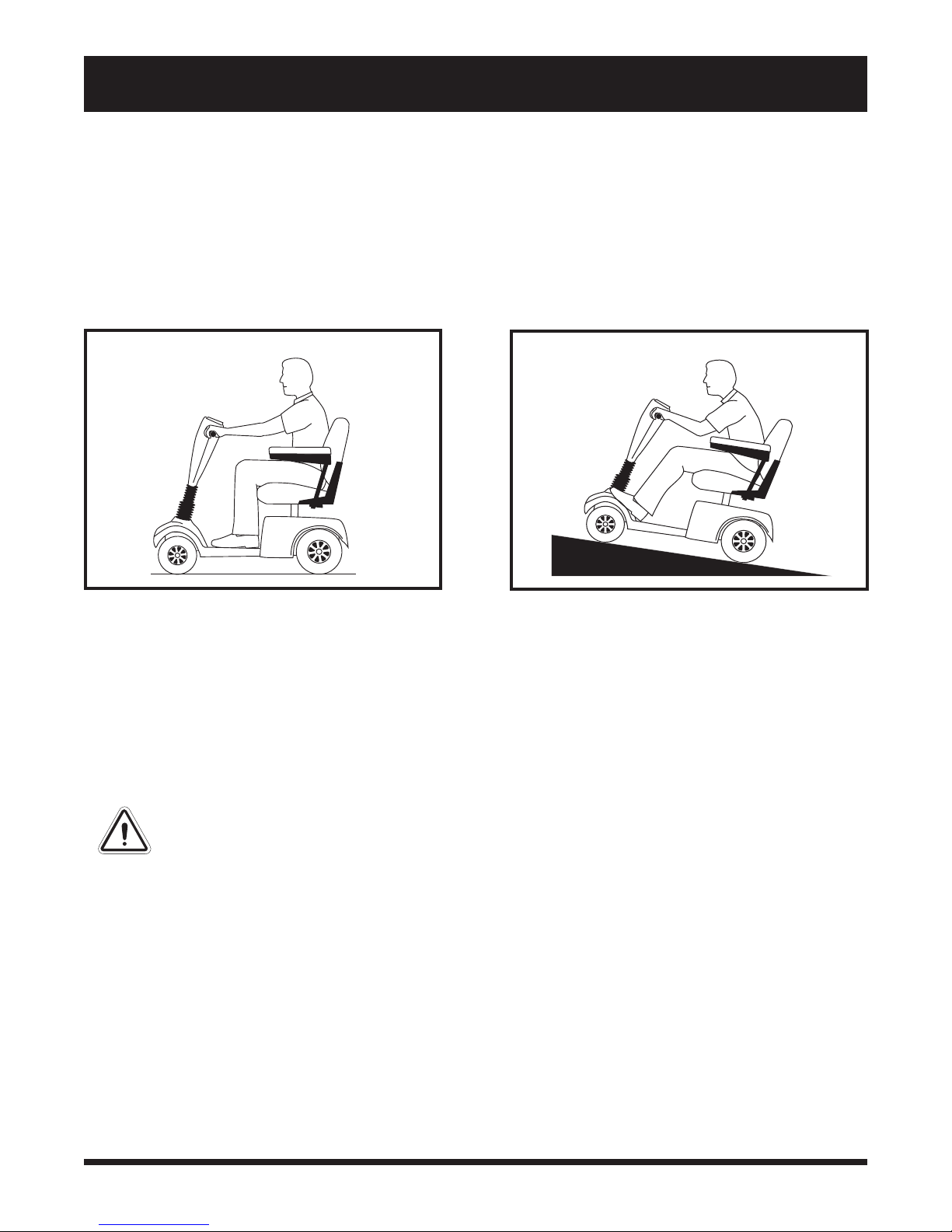

Figure 1. Maximum Recommended Incline

Angles (3-wheel) Figure 1A. Maximum Recommended Incline

Angles (4-wheel)

WARNING! Never carry an oxygen tank weighing more than 6 kg (13 lbs.) Never fill the

front or rear basket with contents exceeding 6 kg (13 lbs.).

68 kg/

11 stone

(150 lbs.)

15.8% (9˚)

90 kg/

14 stone

(200 lbs.)

14.1% (8˚)

113 kg/

18 stone

(250 lbs.)

12.3%(7˚)

136-159 kg/

21-25 stone

(300-350 lbs.)

10.5% (6˚)

10 www.pridemobility.com Celebrity X

II. SAFETY

CORNERING INFORMATION

Excessivelyhigh cornering speeds can createthe possibility of tipping. Factors whichaffect the possibility of

tippinginclude,butarenot limitedto,corneringspeed, steeringangle(howsharplyyou areturning),unevenroad

surfaces,inclinedroadsurfaces,ridingfromanareaoflowtractiontoanareaofhightraction(suchaspassingfrom

a grassy area to a paved area – especially at high speed while turning) and abrupt directional changes. High

cornering speeds are not recommended. If you feel that you may tip over in a corner, reduce your speed and

steeringangle(i.e., lessenthe sharpness ofthe turn)toprevent yourscooter fromtipping.

WARNING!

When cornering sharply, reduce your speed. When using your scooter at higher

speeds, do not corner sharply. This greatly reduces the possibility of a tip or fall. To avoid

personal injury or property damage, always exercise common sense when cornering.

BRAKING INFORMATION

Yourscooteris equippedwiththese powerfulbrake systems:

!Regenerative:Useselectricityto rapidlyslowthe vehicle whenthethrottle controlleverreturnsto thecentre/

stopposition.

!DiscPark Brake:Activates mechanically afterregenerative braking slowsthe vehicle to nearstop or when

poweris removedfrom the systemfor anyreason.

Whenyouapproach anincline,it isbestto leanforward. See figures2 and2A.This shiftsthecentre ofgravityof

youand yourscooter towardthe frontof thescooter forimproved stability.

NOTE: When negotiating ramps, if the throttle control lever is released while moving forward, the

poweredscootermay"rollback" approximately 30.5 cm (1 foot) beforethebrakeengages. If the throttle

control lever is released while moving in reverse, the powered scooter may "rollback" approximately

one meter (3 feet) before the brake engages.

Figure 2A. Increased Stability Driving Position

Figure 2. Normal Driving Position

Andere Handbücher für CELEBRITY X

Inhaltsverzeichnis

Andere Pride Mobility Roller Handbücher

Pride Mobility

Pride Mobility Victory Economy Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Ultra X Bedienungsanleitung

Pride Mobility

Pride Mobility VICTORY SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility TRAVEL SCOOTER Series Bedienungsanleitung

Pride Mobility

Pride Mobility 613 Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY XL Bedienungsanleitung

Pride Mobility

Pride Mobility Destiny Bedienungsanleitung

Pride Mobility

Pride Mobility The Ultimate In Style & Performance Bedienungsanleitung

Pride Mobility

Pride Mobility Apex Sprint Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Series Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Elite traveller Bedienungsanleitung

Pride Mobility

Pride Mobility OUTBACK Bedienungsanleitung

Pride Mobility

Pride Mobility REVO Bedienungsanleitung

Pride Mobility

Pride Mobility Path rider Bedienungsanleitung

Pride Mobility

Pride Mobility VICTORY SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility Travel Pro Bedienungsanleitung

Pride Mobility

Pride Mobility Zero Turn 10 Bedienungsanleitung

Pride Mobility

Pride Mobility Traveller Plus Bedienungsanleitung

Pride Mobility

Pride Mobility Celebirty The Ultimate In Style &... Bedienungsanleitung

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Bedienungsanleitung

Pride Mobility

Pride Mobility Hurricane SCUK4500 Bedienungsanleitung

Pride Mobility

Pride Mobility go-go ES2 Bedienungsanleitung

Pride Mobility

Pride Mobility LEGEND CLASSIC XL-8 Bedienungsanleitung

Pride Mobility

Pride Mobility Go Go ES Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
