Owner’s Manual

The Ultimate In Style & Performance

www.pridemobility.com

ATTENTION:

Read everything

in this manual

before operating

your scooter

Legend Classic 3-Wheel Scooter

Legend Classic 4-Wheel Scooter

SAFETY GUIDELINES

Please read and follow all instructions in this owners manual before attempting to operate your scooter

for the first time. If there is anything in this manual you do not understand, or if you require additional

assistance for set-up, contact your authorised Pride provider.

Using your Pride product safely depends upon your diligence in following the warnings, cautions, and

instructions in this owners manual. Using your Pride product safely also depends upon your own good

judgement and or common sense, as well as that of your provider, caregiver, and or healthcare profes-

sional. Pride is not responsible for injuries and or damage resulting from any persons failure to follow

the warnings, cautions, and instructions in this owners manual. Pride is not responsible for injuries and

or damage resulting from any persons failure to exercise good judgement and or common sense.

The symbols below are used throughout this owners manual to identify warnings and cautions. It is very

important for you to read and understand them completely.

WARNING! Failure to heed the warnings in this owners manual may result in personal injury.

CAU ION! Failure to heed the cautions in this owners manual may result in damage to your

scooter.

Pride Mobility Products Ltd.

INFMANU2012

Legend Classic/Re D/August 03 www.pridemobility.com

CONTENTS

I. INTROD CTION......................................................................................................................... 4

II. SAFETY ......................................................................................................................................... 6

III. SPECIFICATIONS ................................................................................................................... 15

IV. YO R LEGEND CLASSIC..................................................................................................... 17

V. BATTERIES AND CHARGING ............................................................................................ 21

VI. OPERATION ............................................................................................................................... 25

VII. COMFORT ADJ STMENTS................................................................................................ 26

VIII. DISASSEMBLY AND ASSEMBLY ..................................................................................... 29

IX. OPTIONAL ACCESSORIES ................................................................................................. 32

X. BASIC TRO BLESHOOTING ............................................................................................. 33

XI. CARE AND MAINTENANCE ................................................................................................ 34

XII. WARRANTY ................................................................................................................................36

LEGEND CLASSIC 3-WHEEL LEGEND CLASSIC 4-WHEEL

4Legend Classic/Re D/August 03

www.pridemobility.com

I. INTRODUCTION

Welcome to Pride Mobility Products Ltd. (Pride). Congratulations on the purchase of your new Pride Scooter.

Your scooter design combines the most ad anced state-of-the-art components with modern, attracti e styling. We

are certain that the design features and trouble-free operation will add con enience to your daily li ing and ensure

complete satisfaction.

At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before

you attempt to operate your scooter for the first time. These instructions were produced for your benefit.

Your understanding of these instructions is essential for the safe operation of your new Pride Scooter.

Pride is not liable for damage to property or personal injury arising out of the unsafe use of a Pride Scooter. Pride

is also not liable for any property damage or personal injury arising out of the failure of any person and or/user to

following the instructions and recommendations set forth in this manual or any other instructions or recommenda-

tions contained in other scooter related literature issued by Pride or contained on the Pride Scooter itself.

This owners manual is compiled from the latest specifications and product information a ailable at the time of

publication. We reser e the right to make changes as they become necessary. Any changes to our products may

cause slight ariations between the illustrations and explanations in this manual and the product you ha e purchased.

If you experience any problems with your scooter that you are unable to sol e, or if you do not feel capable of safely

following any of the instructions and/or recommendations contained in this manual, please contact your authorised

Pride pro ider for assistance.

Once you understand how to operate and take care of your scooter, we are certain that it will gi e you years of trouble-

free ser ice and enjoyment.

Information Exchange

We want to hear your questions, comments, and suggestions regarding this manual. We would also like to hear about the

safety and reliability of your new Pride Scooter and the ser ice you recei ed from your authorised Pride pro ider.

Please notify us of any change of address so we can keep you apprised of important information regarding safety, new

products, and new options that can increase your ability to use and enjoy your Pride Scooter. Please feel free to write us

at the address below:

Pride Mobility Products Ltd.

Unit 106, Heyford Park Camp Road

Upper Heyford, Oxfordshire, OX25 5HA

Legend Classic/Re D/August 03 www.pridemobility.com

I. INTRODUCTION

My Authorised Pride Provider Is:

Name:_______________________________________________________________________________

Address:_____________________________________________________________________________

Phone Number:________________________________________________________________________

Quick Reference Information:

Scooter Model:________________________________________________________________________

Serial Number:__________________________________________________________________________

Purchase Date:________________________________________________________________________

NOTE: If you ever lose or isplace your product registration card or this owners anual, write or e- ail

us and we will be glad to send you a new one i ediately.

6Legend Classic/Re D/August 03

www.pridemobility.com

II. SAFETY

GENERAL

Your Legend Classic is a state-of-the-art life-enhancement de ice designed to increase mobility. Pride pro ides an

extensi e ariety of products to best fit the indi idual needs of the scooter user. Please be aware that the final

selection and purchasing decision regarding the type of scooter to be used is the responsibility of the scooter user

who is capable of making such a decision and his/her healthcare professional (i.e., medical doctor, physical thera-

pist, etc.).

The contents of this manual are based on the expectation that a mobility de ice expert has properly fitted the

scooter to the user and has assisted the prescribing healthcare professional and/or the authorised Pride pro ider in

the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the scooter user will need to practice

operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a family member

or care professional specially trained in assisting a scooter user in arious daily li ing acti ities.

As you begin using your scooter during daily acti ities, you will probably encounter situations in which you will

need some practice. Simply take your time and you will soon be in full and confident control as you maneu er

through doorways, on and off lifts, up and down ramps, and o er moderate terrain.

Below are some precautions, tips, and other safety considerations that will help the user become accustomed to

operating the Legend Classic safely.

MODIFICATIONS

Pride has designed and engineered your Legend Classic to pro ide maximum mobility and utility. A wide range of

accessories is a ailable from your authorised Pride pro ider to further customize your scooter to better suit your

needs and/or preferences. Howe er, under no circumstances should you modify, add, remo e, or disable any

feature, part, or function of your Legend Classic.

WARNING! Do not modify your scooter in any way not authorised by Pride. Unauthorised modifica-

tions may result in personal injury and/or damage to your scooter.

WARNING! Do not operate your new scooter for the first time without completely reading and

understanding this owners manual.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your scooter by any of its removable parts. Personal injury

and damage to the scooter may result.

Legend Classic/Re D/August 03 www.pridemobility.com

II. SAFETY

PRE-RIDE SAFETY CHECK

Get to know the feel of your Legend Classic and its capabilities. Pride recommends that you perform a safety

check before each use to make sure your scooter operates smoothly and safely. For details on how to perform

these necessary inspections, see XI. Care and Maintenance.

Perform the following inspections prior to using your Legend Classic:

nCheck for proper tyre inflation (if equipped with pneumatic tyres).

nCheck all electrical connections. Make sure they are tight and not corroded.

nCheck all harness connections (battery, front-to-rear). Make sure they are secured properly.

nCheck the brakes.

nCheck battery charge.

If you disco er a problem, contact your authorised Pride pro ider for assistance.

INCLINE INFORMATION

More and more buildings ha e ramps with specified degrees of inclination, designed for easy and safe access.

Some ramps may ha e turning switchbacks (180-degree turns) that require you to ha e good cornering skills on

your scooter.

nProceed with extreme caution as you approach the downgrade of a ramp or other incline.

nTake wide swings with your scooters front wheel(s) around any tight corners. If you do that, the scooters rear

wheels will follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing corners.

nWhen dri ing down a ramp, keep the scooters speed adjustment set to the slowest speed setting to ensure a

safely controlled descent. See IV. Your Legend Classic.

nA oid sudden stops and starts.

WARNING! Exceeding the weight limit voids your warranty and may result in personal injury and

damage to your scooter. Pride will not be held responsible for injuries and/or property damage

resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your Legend Classic. Carrying passengers may result in

personal injury and/or property damage.

WEIGHT LIMITATIONS

Your Legend Classic is rated for a 159 kg, 25 stone (350-lb.) maximum weight limit.

TYRE INFLATION

If your scooter is equipped with pneumatic tyres, you should check or ha e the air pressure checked at least once

a week. Proper inflation pressures will prolong the life of your tyres and help ensure the smooth operation of your

scooter.

WARNING! It is critically important that 30-35 psi (2-2.5 bar) tyre pressure be maintained in pneu-

matic tyres at all times. Failure to maintain 30-35 psi (2-2.5 bar) tyre pressure in pneumatic tyres at

all times may result in catastrophic tyre and/or wheel failure, causing serious personal injury and/or

damage to your scooter.

WARNING! Inflate your scooter drive tyres from a regulated air source with an available pressure

gauge. Maximum air pressure for scooter drive tyres is 30-35 psi (2-2.5 bar). Inflating your tyres from

an unregulated air source could overinflate them, resulting in a burst tyre and/or personal injury.

8Legend Classic/Re D/August 03

www.pridemobility.com

II. SAFETY

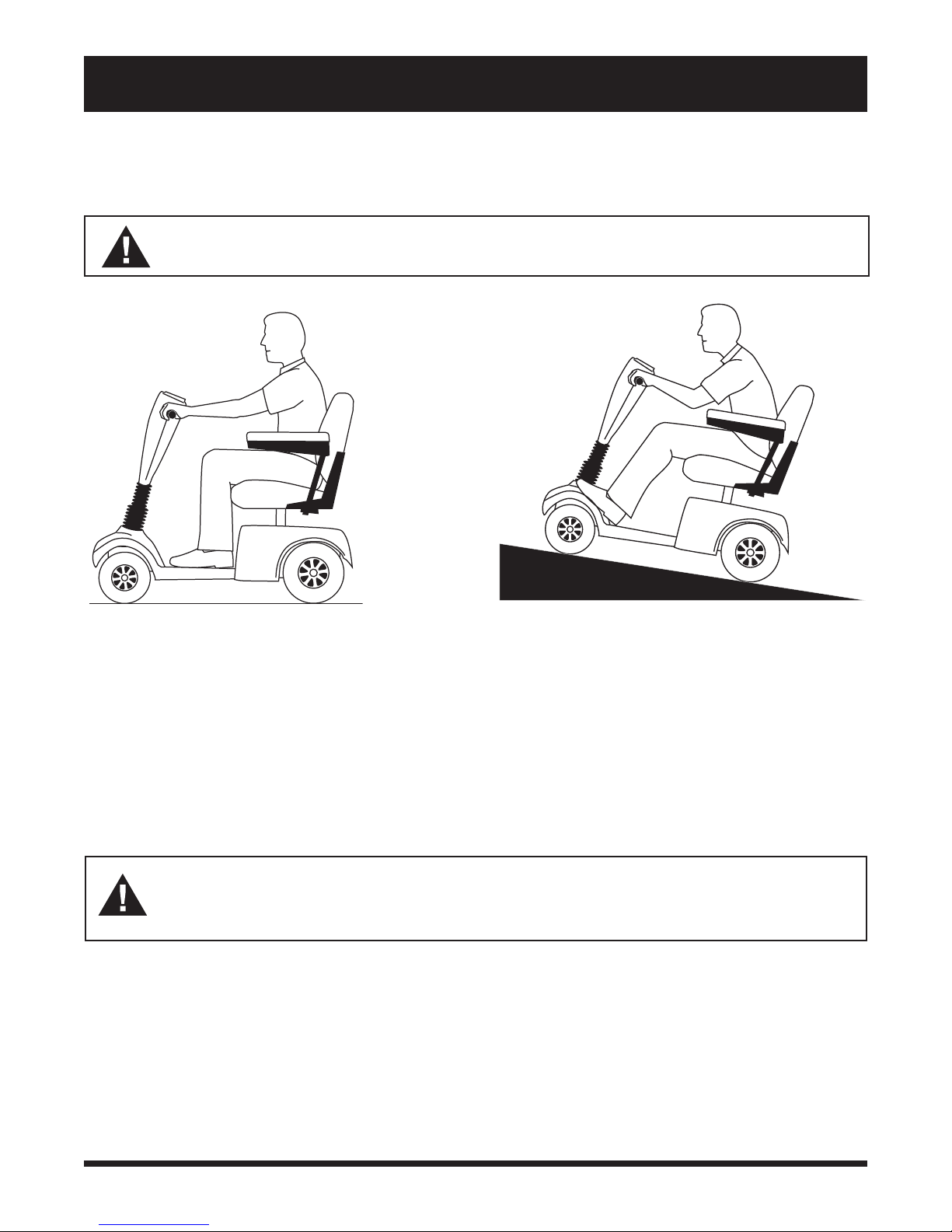

When climbing an incline, try to keep your scooter mo ing. If you must stop, start up again slowly, and then

accelerate cautiously. When dri ing down an incline, do so by setting the speed adjustment dial to the slowest

setting and dri ing in the forward direction only. If your scooter starts to mo e down the incline faster than you

anticipated or desired, allow it to come to a complete stop by releasing the throttle control le er. Then push the

throttle control le er forward slightly to ensure a safely controlled descent.

Other inclines may be natural or, if man-made, not designed specifically for scooters. Figures 1 and 1A illustrate

your scooters stability and its ability to climb grades under arious weight loads and under controlled testing

conditions.

These tests were conducted with the scooters seat in the highest position and adjusted rearward on the seat base

to its farthest rearward position. Use this information as a guideline. Your scooters ability to tra el up inclines is

affected by your weight, your scooters speed, your angle of approach to the incline, and your scooter setup.

WARNING! Any attempt to climb or descend a slope steeper than what is shown in figures 1 and 1A

may put your scooter in an unstable position and cause it to tip, resulting in personal injury.

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the incline.

Drive your scooter straight up the incline. his greatly reduces the possibility of a tip or a fall.

Always exercise extreme caution when negotiating an incline.

WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas covered

with snow, ice, cut grass, or wet leaves).

WARNING! When on any sort of an incline or decline, never place the scooter in freewheel mode

while seated on it or standing next to it.

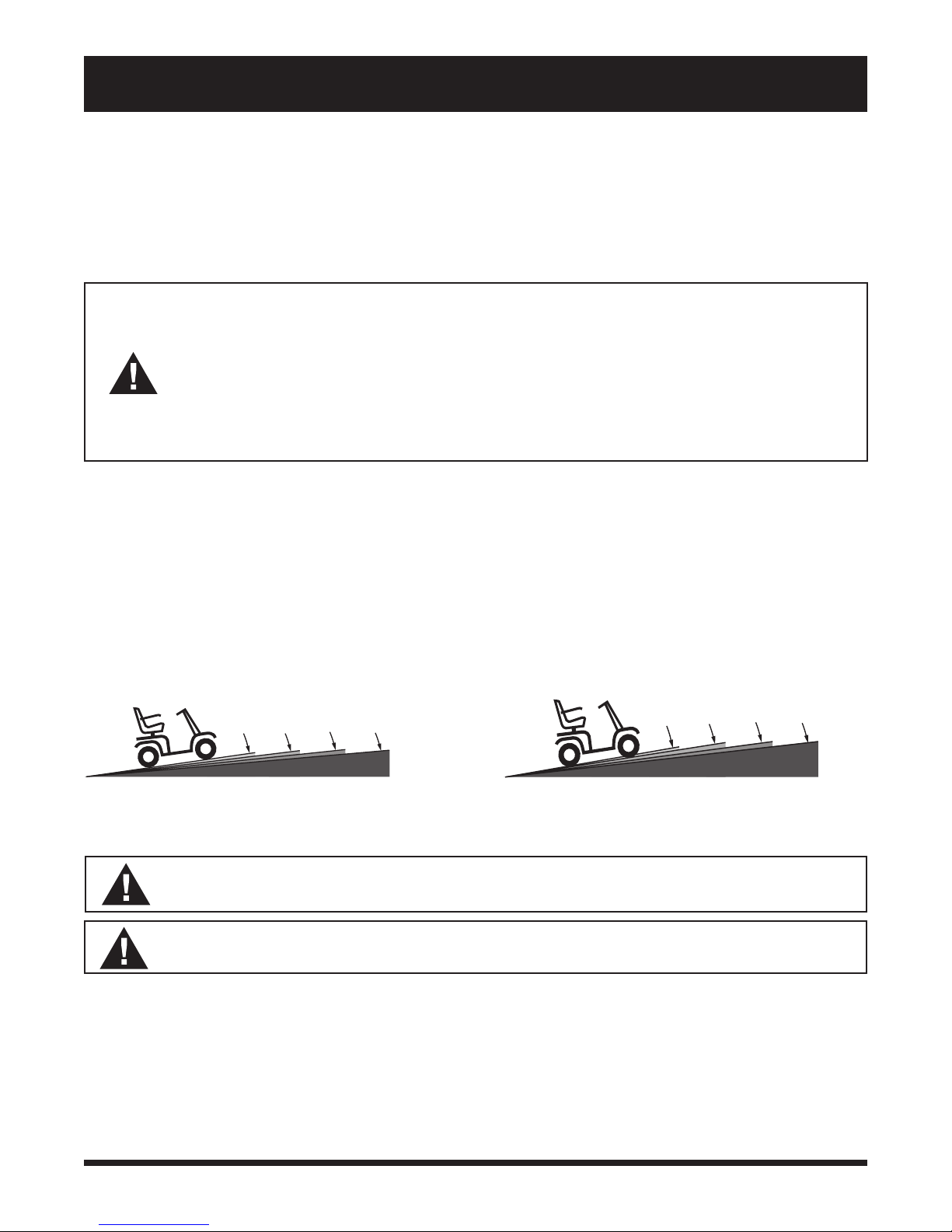

FIGURE 1. MAXIMUM RECOMMENDED INCLINE

ANGLE 3-WHEEL FIGURE 1A. MAXIMUM RECOMMENDED INCLINE

ANGLE 4-WHEEL

WARNING! Never carry an oxygen tank weighing more than 6 kg (13 lbs.) Never fill the rear basket

with contents exceeding 7 kg (15 lbs.).

8.7%

10.5%

12.3%

113 kg

18 stone

(250 lbs.)

136-159 kg

21-25 stone

(300-350 lbs.)

90 kg

14 stone

(200 lbs.)

14.1%

68 kg

11 stone

(150 lbs.)

10.5%

12.3%

14.1%15.8%

68 kg

11 stone

(150 lbs.)

113 kg

18 stone

(250 lbs.)

136-159 kg

21-25 stone

(300-350 lbs.)

90 kg

14 stone

(200 lbs.)

Legend Classic/Re D/August 03 www.pridemobility.com

CORNERING INFORMATION

Excessi ely high cornering speeds can create the possibility of tipping. Factors which affect the possibility of

tipping include, but are not limited to, cornering speed, steering angle (how sharply you are turning), une en road

surfaces, inclined road surfaces, riding from an area of low traction to an area of high traction (such as passing from

a grassy area to a pa ed area  especially at high speed while turning), and abrupt directional changes. High

cornering speeds are not recommended. If you feel that you may tip o er in a corner, reduce your speed and

steering angle (i.e., lessen the sharpness of the turn) to pre ent your scooter from tipping.

WARNING! When cornering sharply, reduce your speed. When using your scooter at higher speeds,

do not corner sharply. his greatly reduces the possibility of a tip or fall. o avoid personal injury or

property damage, always exercise common sense when cornering.

II. SAFETY

FIGURE 2A. INCREASED STABILITY DRIVING POSITION

FIGURE 2. NORMAL DRIVING POSITION

When you approach an incline, it is best to lean forward. See figures 2 and 2A. This shifts the center of gra ity of

you and your scooter toward the front of the scooter for impro ed stability.

WARNING! Do not exceed the incline guidelines or any other specifications presented in this

manual.

BRAKING INFORMATION

Your scooter is equipped with two powerful brake systems:

1. Regenerati e: Uses electricity to rapidly slow the ehicle when the throttle control le er returns to the center/

stop position.

2. Disc Park Brake: Acti ates mechanically after regenerati e braking slows the ehicle to near stop, or when

power is remo ed from the system for any reason.

10 Legend Classic/Re D/August 03

www.pridemobility.com

KERB

II. SAFETY

O TDOOR DRIVING S RFACES

Your Legend Classic is designed to pro ide optimum stability under normal dri ing conditionsdry, le el surfaces

composed of concrete, blacktop, or asphalt. Howe er, Pride recognizes that there will be times when you will

encounter other surface types. For this reason, your scooter is designed to perform admirably on packed soil,

grass, and gra el. Feel free to use your scooter safely on lawns and in park areas.

nReduce your scooters speed when dri ing on une en terrain and/or soft surfaces.

nA oid tall grass that can become tangled in the running gear.

nA oid loosely packed gra el and sand.

nIf you feel unsure about a dri ing surface, a oid that surface.

STATIONARY OBSTACLES (STEPS, KERBS, ETC.)

WARNING! Do not drive near raised surfaces, unprotected ledges, and/or drop-offs (kerbs, porches,

stairs, etc.).

WARNING! Do not attempt to have your scooter climb or descend an obstacle that is inordinately

high. Serious personal injury and/or damage may result.

WARNING! Do not attempt to have your scooter proceed rearward down any step, kerb, or other

obstacle. his may cause the scooter to tip and cause personal injury.

WARNING! Be sure your scooter is traveling perpendicular to any kerb you may be required to

ascend or descend. See figures 3 and 3A.

WARNING! Do not attempt to negotiate a kerb that has a height greater than 5 cm (2 in).

FIGURE 3. CORRECT KERB APPROACH FIGURE 3A. INCORRECT KERB APPROACH

KERB

Andere Handbücher für Legend 3-Wheel Scooter

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pride Mobility Roller Handbücher

Pride Mobility

Pride Mobility CELEBRITY DELUXE Bedienungsanleitung

Pride Mobility

Pride Mobility Sonic Bedienungsanleitung

Pride Mobility

Pride Mobility Legend XL Bedienungsanleitung

Pride Mobility

Pride Mobility Celebrity XL SC4450DX Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY XL Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Bedienungsanleitung

Pride Mobility

Pride Mobility TRAVEL SCOOTER Series Bedienungsanleitung

Pride Mobility

Pride Mobility SPORTRIDER SR-XL3 Bedienungsanleitung

Pride Mobility

Pride Mobility Maxima Scooter SC940 Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Elite Traveller SC40LR Bedienungsanleitung

Pride Mobility

Pride Mobility COLT XL8 Bedienungsanleitung

Pride Mobility

Pride Mobility Quantum Jazzy 1420 Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Series Bedienungsanleitung

Pride Mobility

Pride Mobility Pathrider 130 XL Bedienungsanleitung

Pride Mobility

Pride Mobility VICTORY SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility Maxima Scooter SC940 Bedienungsanleitung

Pride Mobility

Pride Mobility Zero Turn 10 Bedienungsanleitung

Pride Mobility

Pride Mobility REVO Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY DELUXE Bedienungsanleitung

Pride Mobility

Pride Mobility Dash Bedienungsanleitung

Pride Mobility

Pride Mobility Quantum 614 Bedienungsanleitung

Pride Mobility

Pride Mobility Mini Crosser Bedienungsanleitung

Pride Mobility

Pride Mobility Hurricane SCUK4500 Bedienungsanleitung

Pride Mobility

Pride Mobility Victory XL-8 Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
