Pride Mobility Shuttle Bedienungsanleitung

3 & 4 Wheel Scooters

Owners Manual

www.pridemobility.com

Exeter, PA

St. Catharines, ON 1-8 -8 -8586

2Shuttle

INFMANU1026/REV F/JULY 2002

Read and follow all of the instructions in this manual before you attempt to operate your scooter for the first time.

If you are unable to understand any of this information or require additional assistance for set-up, contact your

local Pride Provider or call the Pride Tech Service Department at 1-800-800-8586.

The following symbols are used throughout this Owners Manual to identify warnings and cautions. It is very

important for you to read and understand them completely.

WARNING! Failure to heed the warnings in this owners manual may result in personal

injury.

CAU ION! Failure to heed the cautions in this owners manual may result in damage to

your mobility vehicle.

Please be sure to fill out and return your warranty card. Also, notify us of any change of address so that we can

keep you apprised of important information about safety, new products, and new options that can increase your

ability to use and enjoy your scooter.

Your Shuttle:

Body Color _______________________________ Serial #

Purchase Date _____________________________ Options

Your authorized Pride Mobility Products Corporation provider:

Name___________________________________________________________________________

Address_________________________________________________________________________

Phone___________________________________________________________________________

SAFETY GUIDELINES

3Shuttle

CONTENTS

I. INTRODUCTION ........................................................................................................................ 5

II. SAFETY ......................................................................................................................................... 6

III. EMI/RFI .......................................................................................................................................... 9

IV. SPECIFICATIONS ................................................................................................................... 11

V. DESCRIPTION .......................................................................................................................... 13

VI. BATTERIES AND CHARGING ........................................................................................... 17

VII. OPERATION............................................................................................................................... 21

VIII.COMFORT ADJUSTMENTS................................................................................................ 23

IX. DISASSEMBLY AND ASSEMBLY ..................................................................................... 25

X. OPTIONAL ACCESSORIES ................................................................................................. 27

XI. BASIC TROUBLESHOOTING............................................................................................. 28

XII. CARE AND MAINTENANCE ............................................................................................... 29

XIII. WARRANTY .............................................................................................................................. 31

4Shuttle

Pride cannot be held responsible for any damage or injury incurred due to improper or unsafe use of a

Shuttle Scooter. Nor can Pride be held responsible for any damage or injury incurred during or resulting

from attempts to follow the instructions and recommendations set forth in this owner's manual or in any of

the instructions displayed on or accompanying the product itself. If you do not feel capable of safely fol-

lowing any of the instructions and recommendations pertaining to your Shuttle Scooter, please contact your

authorized Pride provider.

Pride Mobility Products Corp.

5Shuttle

I. INTRODUCTION

Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new

Shuttle Scooter. The Shuttle design combines the most advanced state-of-the-art components with modern,

attractive styling. We are certain that the design features and trouble-free operation of your new Shuttle

Scooter will add convenience to your daily living.

At Pride, your safety is important to us. Please read and follow all of the instructions in this manual

before you attempt to operate your Scooter for the first time. These instructions were produced for your

benefit. Your understanding of these instructions is essential for the safe operation of your new Shuttle.

This owners manual is compiled from the latest specifications and product information available at the

time of publication. We reserve the right to make changes, as they become necessary. Any changes to our

products may cause slight variations between the illustrations and explanations in this manual and the

product you purchased.

As an owner of a Pride product, you are invited to register your products warranty and enroll in the Pride

Owners Club. You may do so by filling out and returning your enclosed registration card or by visiting

Prides web site at www.pridemobility.com. As a registered member, each time you visit our site, you will

have access to the most interactive and honest educational venue available today for people with mobility

needs, their families, and friends.

From the cover page of our site, click on the button that reads Owners Club to enter a page dedicated to

current and potential Pride Mobility Product Owners. You will gain access to interviews, stories, recreation

ideas, daily living tips, product and funding information, and interactive message boards. On these mes-

sage boards you are invited to speak with other Pride customers as well as Pride representatives who are

available to assist you with any questions or concerns you may have. You will receive a free gift simply for

registering with the Pride Owners Club.

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear

about the safety and reliability of your new Shuttle Scooter, as well as about the service you received from

your Pride provider. Also, notify us of any change of address, so we can keep you apprised of important

information about safety, new products, and new options that can increase your ability to use and enjoy

your Shuttle Scooter. Please feel free to write us at the address below:

Pride Mobility Products Corporation

Attn: Technical Service Department

182 Susquehanna Avenue

Exeter, PA 18643-2694

If you experience any problems with your Shuttle that you are not able to solve, or if you do not feel

confident in your ability to perform any of the instructions contained in this manual, please contact your

local Pride provider. Once you understand how to operate and take care of your Scooter, we are certain that

it will give you years of trouble-free service and enjoyment.

The Pride Team

6Shuttle

As you begin to use your Shuttle during your daily activities, you will encounter situations that, at first, may

require some practice to negotiate on your scooter. Simply take your time as you operate your Shuttle and

you will soon be in full and confident control as you maneuver through doorways, on and off of elevators,

up and down ramps, and over moderate terrain.

DOORS

nDetermine if the door opens toward or away from you.

nUse your hand to turn the knob or push the handle or push-bar.

nDrive your Shuttle gently and slowly forward to push the door open; or drive your Shuttle gently and

slowly backwards to pull the door open.

ELEVATORS

Modern elevators have a door-edge safety mechanism that, when pushed, will reopen the elevator door(s).

nIf you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge

or allow the rubber door edge to contact the scooter and the door will reopen.

nUse care that pocketbooks, packages, or Shuttle accessories do not become caught in the elevator

doors.

RAMPS AND OTHER INCLINES

More and more buildings have ramps with specified degrees of inclination. These ramps are designed for

easy and safe scooter access. Some ramps may have turning switchbacks that require good cornering skills

on your Shuttle.

nTake wide swings with your Shuttles front wheel(s) around any tight corners. If you do that, the Shuttles

rear wheels will follow a wide arc and not cut the corner short or bump into or get hung up on any rail-

ing corners.

nWhen driving down a ramp, keep the Shuttles speed adjustment dial (see V. Description) set to the

tortoise (slowest speed setting) to ensure a safely controlled descent.

nNever drive your Shuttle across the side of a hill or diagonally up or down a hill, and do not stop, if

possible, while driving up or down an incline.

nAvoid sudden stops and starts.

Other inclines may be natural or, if man-made, not designed specifically for scooters. Figure 1 and 2

illustrate your Shuttles stability and its ability to climb grades under various weight loads and under con-

trolled testing conditions.

FIGURE 1. MAXIMUM RECOMMENDED INCLINE ANGLE FIGURE 2. MAXIMUM RECOMMENDED INCLINE ANGLE

II. SAFETY

SHUTTLE 3

300 lbs.

250 lbs.

200 lbs.

150 lbs.

SHUTTLE 4

300 lbs.

250 lbs.

200 lbs.

150 lbs.

oooo

7Shuttle

These tests were conducted with the Shuttles seat in the highest position and adjusted backward on the

seat base to its farthest rearward position. Use this information as a guideline. Your Shuttles ability to

travel up inclines is affected by your weight, your scooters speed, your angle of approach to the incline,

and your scooter setup.

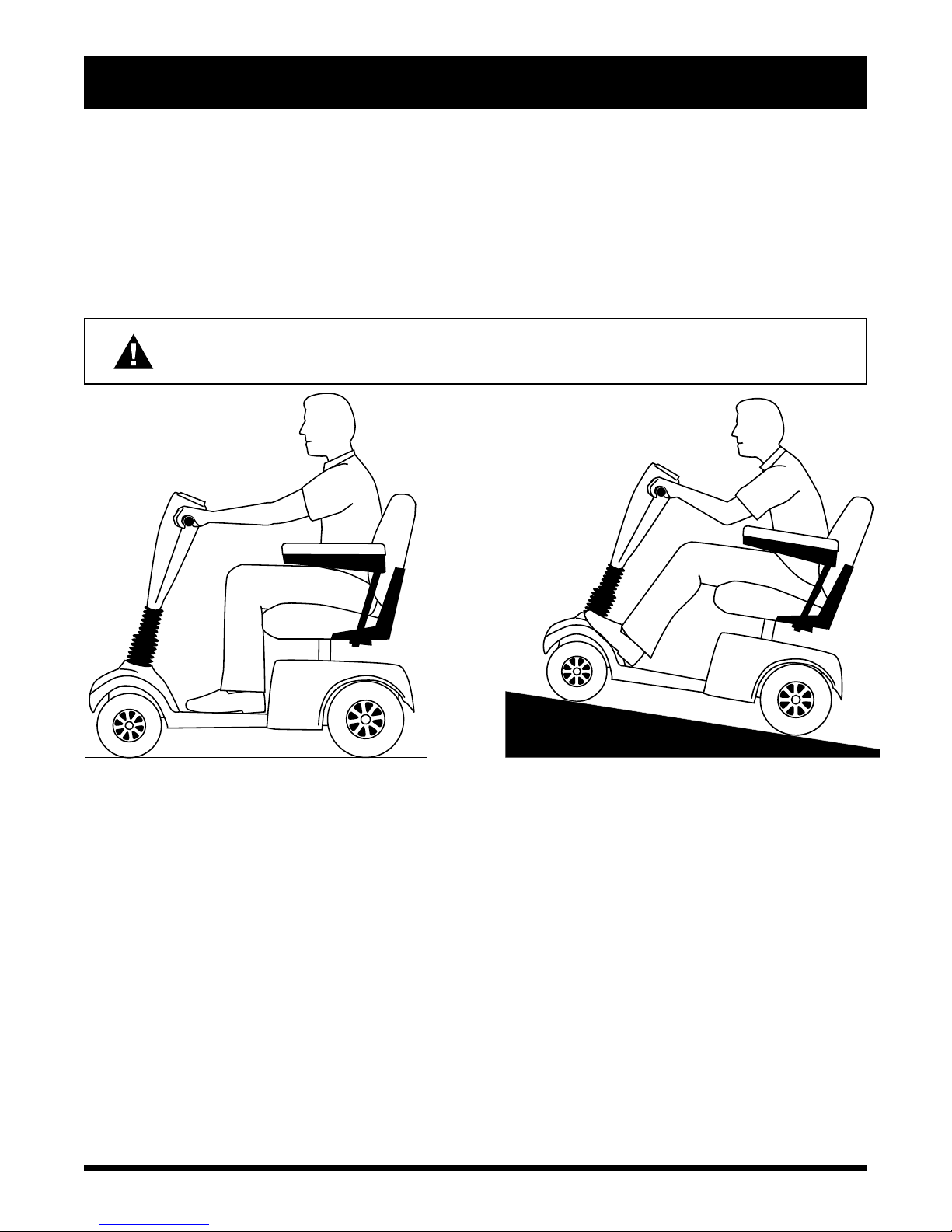

nWhen you approach an incline, it is best to lean forward. See figures 3 and 4. This will shift the

center of gravity of you and your Shuttle towards the front of the scooter for improved stability.

FIGURE 4. INCREASED STABILITY DRIVING POSITION

FIGURE 3. NORMAL DRIVING POSITION

DRIVING SURFACES

Your Shuttle was designed to provide optimum stability under normal driving conditions; dry, level sur-

faces composed of concrete or asphalt. However, Pride recognizes the fact that there will be times when

you will operate your Shuttle on surfaces other than concrete or asphalt. So we have also designed your

Shuttle to perform admirably on packed soil, grass, and gravel.

nFeel free to use your Shuttle safely on lawns and in park areas.

nAvoid tall grass that can entangle the running gear.

nPacked soil and gravel, such as driveways or roads, will present no problem for your Shuttle.

nAvoid loosely packed gravel and sand.

nIf you feel unsure about a driving surface, avoid that surface.

WARNING! Do not exceed the incline guidelines or any other specifications presented in

this manual.

II. SAFETY

8Shuttle

SAFETY PRECAUTIONS

nDo not operate your new Shuttle for the first time without completely reading and understanding this

owners manual.

nDo not carry passengers on your Shuttle.

nDo not leave the key in the switch when your Shuttle is unattended.

nMake certain that the seat is locked into place and that the key is removed from the key switch before

getting on or off of your Shuttle. Make certain that the seat is in a locked position when you are operat-

ing your Shuttle.

nReduce your Shuttles speed when you are operating it on uneven terrain and soft surfaces.

nReduce your Shuttles speed when you are driving it around a corner.

nNever drive your Shuttle across the side of a hill or diagonally up or down a hill, and do not stop, if

possible, while driving up or down an incline.

nProceed with extreme caution as you approach the downgrade of a ramp or other incline and when

driving near a raised surface or unprotected ledges and drop offs (curbs, porches, stairs, etc.).

nNever remove your Shuttles anti-tip wheels or modify the Shuttle in any way that is not authorized by

Pride.

nUse extreme caution when operating your Shuttle on busy streets and in parking lots or shopping malls

and never ride your Shuttle where you cannot safely and legally walk. Consult local municipal or state

agencies with regard to operating your Shuttle on public roadways.

nDo not operate your Shuttle while you are under the influence of alcohol.

nCheck with your physician if you are taking any medications that may affect your ability to operate your

Shuttle safely.

nKeep your hands on the tiller and your feet on the floorboard when you are operating your Shuttle.

nMake certain that the tires are properly inflated (3 psi).

nNever use your scooter as a seat in a moving vehicle.

nMake certain that the Shuttles batteries are properly secured when you are transporting your scooter in

another vehicle.

nDisconnect your Shuttles batteries if you will not be using the scooter for more than 48 hours.

nBattery posts, terminals and related accessories contain lead and lead compounds. Wash hands after

handling.

WARNING! Do not expose the electronics to any type of moisture at any time (rain, snow,

mist, or washing the scooter). Such exposure can damage the electronics. Never attempt

to ride a scooter that has been exposed to moisture until it has dried thoroughly.

WARNING! Do not operate or store the scooter where it may be exposed to inclement

weather conditions such as rain, snow, mist, and below-freezing temperatures (such as

storage on an outside car/van lift). Attempting to operate the scooter in such conditions

can damage the electronics and potentially result in loss of control.

WARNING! Do not operate a scooter in icy or slippery conditions or on salted surfaces (i.e.

, walks or roads). Such use may result in an accident, personal injury, or adversely affect

the performance and/or safety of your scooter.

WARNING! Always protect batteries from freezing temperatures and never charge a fro-

zen battery. his will damage the battery and may cause personal injury. Attempting to

charge a battery in freezing conditions does not prevent a battery from freezing.

II. SAFETY

9Shuttle

III. EMI/RFI

EMI/RFI WARNINGS

Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can

cause unintended motion of electric scooters. Radio waves are a form of electromagnetic energy (EM).

When electromagnetic energy adversely affects the operation of an electrical device, that adverse effect is

called Electromagnetic Interference (EMI) or Radio Frequency Interference (RFI).

EMI/RFI FREQUENTLY ASKED QUESTIONS (FAQS)

The following FAQs summarize what you should know about EMI/RFI. Use this information to minimize

the risk that EMI/RFI will adversely affect your Shuttle.

Where do radio waves come from

Radio waves are emitted from the antennas of cellular phones, mobile two-way radios (such as walkie-

talkies and CBs), radio stations, TV stations, amateur radio (HAM) transmitters, wireless computer links,

microwave sources, and paging transmitters. Radio waves are a form of electromagnetic energy (EM).

Because EM is more intense closer to transmitting antennas (sources of emission), the EM fields from two-

way radios are of special concern to electric scooter users.

If EMI/RFI affects my Shuttle, what kind of motion should I expect

The motion of any electric scooter affected by EMI/RFI can be erratic. The scooter may come to a sudden

stop or move in an uncontrolled manner. Also, it is possible for EMI/RFI to release the brakes of an electric

scooter. Some intense EMI/RFI can even damage the control system components of an electric scooter.

Is there any way to know for certain whether or not radio waves are the cause of any unintended

motion of my Shuttle

Unfortunately, EMI/RFI may be difficult to recognize, since the signals from radio sources are invisible and

may be intermittent. However, the FDA recommends that you report all incidents of unintended motion or

unintended brake release of your electric scooter to the scooters manufacturer and, if possible, determine

whether or not there was a radio wave source nearby at the time of the incident.

One precaution you can take against inadvertent motion of your Shuttle is to make certain that you or

someone else is not the cause of the unintended motion.

nTurn off your Shuttle by removing the key from the key switch when you are getting on or off of your Shuttle.

nNever leave the key in the key switch of an unattended Shuttle.

By following these steps, you greatly reduce the risk of you or anyone else inadvertently bumping the

throttle control levers and causing the Shuttle to move unintentionally.

Are all electric scooters susceptible to EMI/RFI

Each make and model of electric scooter differs in its ability to resist EMI/RFI. That is, each scooter has a

particular level of resistance to EMI/RFI. This resistance is measured in volts per meter (V/m). A higher

resistance level offers greater protection against EMI/RFI. In other words, an electric scooter with a high

resistance level is less likely to be affected by a strong radio source than is an electric scooter with a low

resistance level.

1 Shuttle

III. EMI/RFI

What is the FDA doing about the problem

The FDA has written to the manufacturers of electric scooters and requested that those manufacturers test

their new models of scooters to be certain that they provide a reasonable degree of resistance against EMI/

RFI. The FDA has stated that all newly manufactured models of electric scooters should have a resistance

level of at least 2 V/m. This level of resistance provides a reasonable degree of protection against the

common sources of EMI/RFI.

The FDA has also requested or recommended that:

nElectric scooter manufacturers clearly label new products with that products resistance level or state

that the resistance level is not known.

nThe labeling or informational material supplied with new electric scooters must explain what the re-

sistance level means and warn users about the possibility of EMI/RFI and how to avoid it.

nManufacturers of electric scooters undertake an educational program to inform the users of electric

scooters and the caregivers of those users about the problems associated with EMI/RFI and about the

actions the users and caregivers can take to minimize the risk of EMI/RFI.

nWhile there is no exact way to tell if your scooter is totally safe, an immunity level of 2 V/m (May

1994) is achievable. This product has been tested and passed at an immunity level of 2 V/m. Adding

accessories and components or modifying the unit may change the susceptibility to EMI/RFI.

What can I do to find out if my Shuttle is likely to be affected by EMI/RFI

If you have had your Shuttle for some time and have not experienced any unintended motion, it is not likely

that you will have a problem in the future. However, it is always possible that EMI problems could arise if

you are close to a source of radio waves. Therefore, it is very important for you to be alert to this possibility.

The Shuttle meets or exceeds a resistance level of at least 2 V/m.

What can I do to reduce the risk of my Shuttle being affected by EMI/RFI

Here are some precautions you can take:

nDo not turn on or use hand-held personal communications devices, such as citizens band (CB) radios

and cellular phones, while your Shuttle is turned on.

nBe aware of nearby radio wave transmitters, such as radio or TV stations and hand-held or mobile two-

way radios. Try not to operate your Shuttle too close to those transmitters. For example, if you are on

an electric scooter with a resistance level of at least 2 V/m, you should remain at least three feet from

a hand-held two-way radio and at least ten feet from a mobile two-way radio.

nBe aware that adding accessories and/or components, or modifying your Shuttle in any way may change

its EMI/RFI resistance level and may make it more susceptible to interference from radio wave sources.

What should I do if my Shuttle moves unexpectedly

If unintended motion or unintended brake release occurs, turn off your Shuttle (by removing the key) as

soon as it is safe to do so.

If my Shuttle moves unintentionally, where should I report the incident

Call our headquarters at (57 ) 655-5574 to report the incident.

Inhaltsverzeichnis

Andere Pride Mobility Roller Handbücher

Pride Mobility

Pride Mobility LEGEND CLASSIC XL-8 Bedienungsanleitung

Pride Mobility

Pride Mobility Legend Bedienungsanleitung

Pride Mobility

Pride Mobility GO-GO ELITE TRAVELLER Plus Bedienungsanleitung

Pride Mobility

Pride Mobility Destiny Bedienungsanleitung

Pride Mobility

Pride Mobility Celebrity XL SC4450DX Bedienungsanleitung

Pride Mobility

Pride Mobility Ranger Bedienungsanleitung

Pride Mobility

Pride Mobility Maxima Scooter SC940 Bedienungsanleitung

Pride Mobility

Pride Mobility Maxima Bedienungsanleitung

Pride Mobility

Pride Mobility Sonic Bedienungsanleitung

Pride Mobility

Pride Mobility Sonic Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Elite traveller Bedienungsanleitung

Pride Mobility

Pride Mobility Celebrity XL deluxe Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY XL Bedienungsanleitung

Pride Mobility

Pride Mobility Victotory XL Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY X Bedienungsanleitung

Pride Mobility

Pride Mobility Sonic Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Ultra X SC40X Bedienungsanleitung

Pride Mobility

Pride Mobility Celebrity X Sport Bedienungsanleitung

Pride Mobility

Pride Mobility Colt Twin Bedienungsanleitung

Pride Mobility

Pride Mobility Elite Traveller Series INFINFB2039 Leitfaden

Pride Mobility

Pride Mobility REVO Bedienungsanleitung

Pride Mobility

Pride Mobility Sidekick Bedienungsanleitung

Pride Mobility

Pride Mobility 39 Bedienungsanleitung

Pride Mobility

Pride Mobility Colt Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
