Pro-Form COACHLINK E9.0 Bedienungsanleitung

USER’S MANUAL

Serial Number

Decal

CAUTION

Read all precautions and

instructions in this manual before

using this equipment. Keep this

manual for future reference.

Model No. PFEL59718.0

Serial No.

Write the serial number in the space

above for reference.

proform.com

To register your product and

activate your warranty today,

go to my.proform.com.

For service at any time, go to

proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER CARE

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO USE THE ELLIPTICAL ..............................................................16

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

MAINTENANCE AND TROUBLESHOOTING.....................................................28

EXERCISE GUIDELINES ....................................................................30

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple

Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google LLC. The

BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your elliptical before

using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-

tained by or through the use of this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or persons

with pre-existing health problems.

3. The elliptical is not intended for use by

persons with reduced physical, sensory, or

mental capabilities or lack of experience and

knowledge, unless they are given supervi-

sion or instruction about use of the elliptical

by someone responsible for their safety.

4. Use the elliptical only as described in this

manual.

5. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

6. Keep the elliptical indoors, away from

moisture and dust. Do not put the elliptical in

a garage or covered patio, or near water.

7. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

8. Inspect and properly tighten all parts each

time the elliptical is used. Replace any worn

parts immediately.

9. Keep children under age 13 and pets away

from the elliptical at all times.

10. When connecting the power cord (see page

14), plug the power cord into a grounded

circuit.

11. Do not modify the power cord or use an

adapter to connect the power cord to an

improper receptacle. Keep the power cord

away from heated surfaces. Do not use an

extension cord.

12. Do not operate the elliptical if the power cord

or plug is damaged, or if the elliptical is not

working properly.

13. DANGER: Always unplug the power

cord and switch the power switch to the off

position when the elliptical is not in use and

before cleaning the elliptical. Servicing other

than the procedures in this manual should

be performed by an authorized service repre-

sentative only.

14. The elliptical should not be used by persons

weighing more than 375 lbs. (170 kg).

15. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

16. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

17. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

IMPORTANT PRECAUTIONS

SAVE THESE INSTRUCTIONS

1. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

2. Keep your back straight while using the

elliptical; do not arch your back.

3. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

all

STANDARD SERVICE PLANS

Thank you for selecting the revolutionary PROFORM®

COACHLINK E9.0 elliptical. The COACHLINK E9.0

elliptical provides an impressive selection of features

designed to make your workouts at home more effec-

tive and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Heart Rate Monitor

Accessory Tray

Handlebar

Upper Body Arm

Pedal

Roller

Handle

Ramp

Console

Tablet Holder

BEFORE YOU BEGIN

Wheel

Leveling Foot

Length: 5 ft. 9 in. (175 cm)

Width: 2 ft. 5 in. (74 cm)

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

M8 Locknut

(102)–4 M8 x 28mm

Washer (97)–2

M4 x 16mm

Screw (101)–22

M8 x 13mm

Screw (82)–4

M8 x 45mm Bolt

(96)–4

M8 x 20mm Flat

Head Screw (120)–2

Tablet Holder

Screw (133)–4

M8 x 20mm

Screw (95)–2

M8 x 22mm

Washer (129)–2

M10 x 114mm Screw

(104)–4

M10 x 25mm

Screw (92)–2

2. With the help of a second person, place some of

the packing materials (not shown) under the rear

of the Frame (1). Have the second person hold

the Frame to prevent it from tipping while you

complete this step.

If there are shipping supports attached to the

rear of the Frame (1), remove the screws from

the shipping supports, and discard the screws

and the shipping supports.

Attach the Rear Stabilizer (2) to the Frame (1)

with two M10 x 114mm Screws (104).

Then, remove the packing materials from under

the rear of the Frame (1).

104

• To hire an authorized service technician to

assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 7.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

two adjustable wrenches

one rubber mallet

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

1. Go to my.proform.com on your computer and

• documents your ownership

• activates your warranty

• ensures priority customer support if assistance

is ever needed

Note: If you do not have internet access, call

Customer Care (see the front cover of this

manual) and register your product.

3. With the help of a second person, place some

of the packing materials (not shown) under the

front of the Frame (1). Have the second per-

son hold the Frame to prevent it from tipping

while you complete this step.

If there are shipping supports attached to the

front of the Frame (1), remove the screws from

the shipping supports, and discard the screws

and the shipping supports.

Attach the Front Stabilizer (6) to the Frame (1)

with two M10 x 114mm Screws (104).

Then, remove the packing materials from under

the front of the Frame (1).

104

4. Using a plastic bag to keep your fingers clean,

apply some of the included grease to the right

Crank Arm (20).

Next, identify the Right Roller Arm (59), orient

it as shown, and slide it onto the right Crank

Arm (20).

Attach the Right Roller Arm (59) with an

M8 x 20mm Screw (95) and a Crank Cover (77).

Repeat this step for the Left Roller Arm (45).

20 Grease

6. Locate the wire tie (A) in the lower end of the

Upright (4). See the inset drawing. Tie the wire

tie to the Upper Wire (110) as shown in the inset

drawing. Then, pull the upper end of the wire

tie until the Upper Wire is routed through the

Upright.

Tip: To prevent the Upper Wire (110) from

falling into the Upright (4), secure the Upper

Wire with the wire tie (A).

110

5. Tip: Avoid pinching the Upper Wire (110).

Have a second person hold the Upright (4) on

the Frame (1).

Tip: Two M10 x 25mm Screws (92) are

preattached to the Frame (1).

Attach the Upright (4) to the Frame (1) with two

additional M10 x 25mm Screws (92); do not

fully tighten the Screws yet.

Avoid pinching the

Upper Wire (110)

110

A110

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pro-Form Ellipsentrainer Handbücher

Pro-Form

Pro-Form PFEL89720-INT.0 Bedienungsanleitung

Pro-Form

Pro-Form PFEL08011.2 Bedienungsanleitung

Pro-Form

Pro-Form 831.283521 Bedienungsanleitung

Pro-Form

Pro-Form 660 Xt Systemhandbuch

Pro-Form

Pro-Form Trainer 7.0 Bedienungsanleitung

Pro-Form

Pro-Form PFEVEL96107.0 Bedienungsanleitung

Pro-Form

Pro-Form PFEL7806.1 Bedienungsanleitung

Pro-Form

Pro-Form PFEX39912 Bedienungsanleitung

Pro-Form

Pro-Form 790 Hr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 650 Cardio Cross Trainer Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 220 Zle Elliptical Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form 400 Zle Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 420 Zle Elliptical Einrichtungshandbuch

Pro-Form

Pro-Form PFEL5105.2 Bedienungsanleitung

Pro-Form

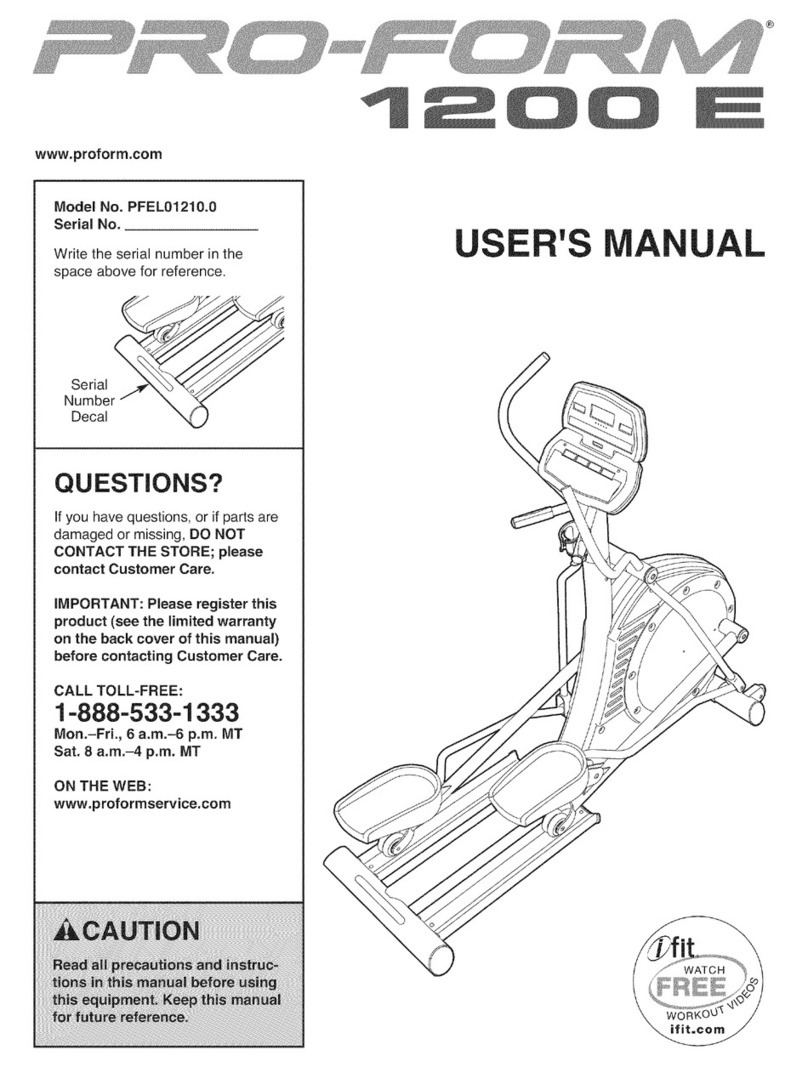

Pro-Form 1200 E Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 590e Elliptical Bedienungsanleitung

Pro-Form

Pro-Form PFEVEL12716.0 Bedienungsanleitung

Pro-Form

Pro-Form ENDURANCE 320 E Bedienungsanleitung

Pro-Form

Pro-Form 550 Hr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form CARBON EX Bedienungsanleitung

Pro-Form

Pro-Form 280 Razor Elliptical Kurzanleitung

Pro-Form

Pro-Form 820 Pr Elliptical Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form PFEVEL75108.0 Bedienungsanleitung

Pro-Form

Pro-Form 300 Zle Elliptical Bedienungs- und Wartungshandbuch

Beliebte Ellipsentrainer Handbücher anderer Marken

Weslo

Weslo Momentum 4.0 Elliptical Bedienungs- und Wartungshandbuch

Progear Fitness

Progear Fitness Air elliptical pro 1307 Bedienungsanleitung

Torque Fitness

Torque Fitness XPLLP Bedienungsanleitung

Octane Fitness

Octane Fitness PRO3700C Bedienungsanleitung

Xterra

Xterra FS5.8e Bedienungsanleitung

Bodyguard

Bodyguard E-40 Bedienungsanleitung

Bonn Germany

Bonn Germany Concept 2.2 Bedienungsanleitung

Precor

Precor Resolute RSL 620 Bedienungsanleitung

NordicTrack

NordicTrack E 9.2 Elliptical Bedienungsanleitung

Vision Fitness

Vision Fitness X6600iNetTV Bedienungsanleitung

Matrix

Matrix MX-A5x Bedienungsanleitung

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Bedienungsanleitung

Sears

Sears FREE SPIRIT C249 30737 0 Bedienungsanleitung

True

True FS-64 Bedienungsanleitung

Sport-thieme

Sport-thieme ST 310 Bedienungsanleitung

VIRTUFIT

VIRTUFIT CTR 1.1 Bedienungsanleitung

Kettler

Kettler GIRO C 1 Bedienungsanleitung

CIRCLE FITNESS

CIRCLE FITNESS E7 Bedienungsanleitung
