CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manu-

al for future reference.

Serial Number

Decal

(beneath frame)

Model No. PFEL75907.0

Serial No.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction.If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MST

Sat. 8 a.m.–5 p.m. MST

ON THE WEB:

www.proformservice.com

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON IP,Inc.

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical exerciser.

1. Read all instructions in this manual and all

warnings on the elliptical exerciser before

using the elliptical exerciser. Use the ellipti-

cal exercise only as described in this

manual.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. The elliptical exerciser is intended for

home use only. Do not use the elliptical

exerciser in a commercial, rental, or institu-

tional setting.

4. Keep the elliptical exerciser indoors, away

from moisture and dust. Place the elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around the elliptical exerciser to mount, dis-

mount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from the elliptical exerciser at all times.

7. The elliptical exerciser should not be used

by persons weighing more than 275 lbs.

(124 kg).

8. Wear appropriate exercise clothes while

using the elliptical exerciser. Always wear

athletic shoes for foot protection while exer-

cising.

9. Hold the handgrip pulse sensor or the han-

dlebars when mounting, dismounting, or

using the elliptical exerciser.

10. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

11. Keep your back straight while using the ellip-

tical exerciser; do not arch your back.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

13. When you stop exercising, allow the pedals

to slowly come to a stop.

14. The decal shown below has been placed on

the elliptical exerciser.If the decal is miss-

ing or illegible, call the toll-free telephone

number on the front cover of this manual

and order a free replacement decal. Apply

the decal in the location shown.

WARNING:Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

246724

246723

210124

2246722

BEFORE YOU BEGIN

Thank you for selecting the revolutionary

PROFORM®CROSSTRAINER 600 elliptical exerciser.

The CROSSTRAINER 600 elliptical exerciser pro-

vides a wide array of features designed to make your

workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, please

note the product model number and serial number

before contacting us. The model number is

PFEL75907.0. The serial number can be found on a

decal attached to the elliptical exerciser (see the front

cover of this manual for the location of the decal).

To avoid a registration fee for any service needed

under warranty, you must register the elliptical

exerciser at www.proformservice.com/registration.

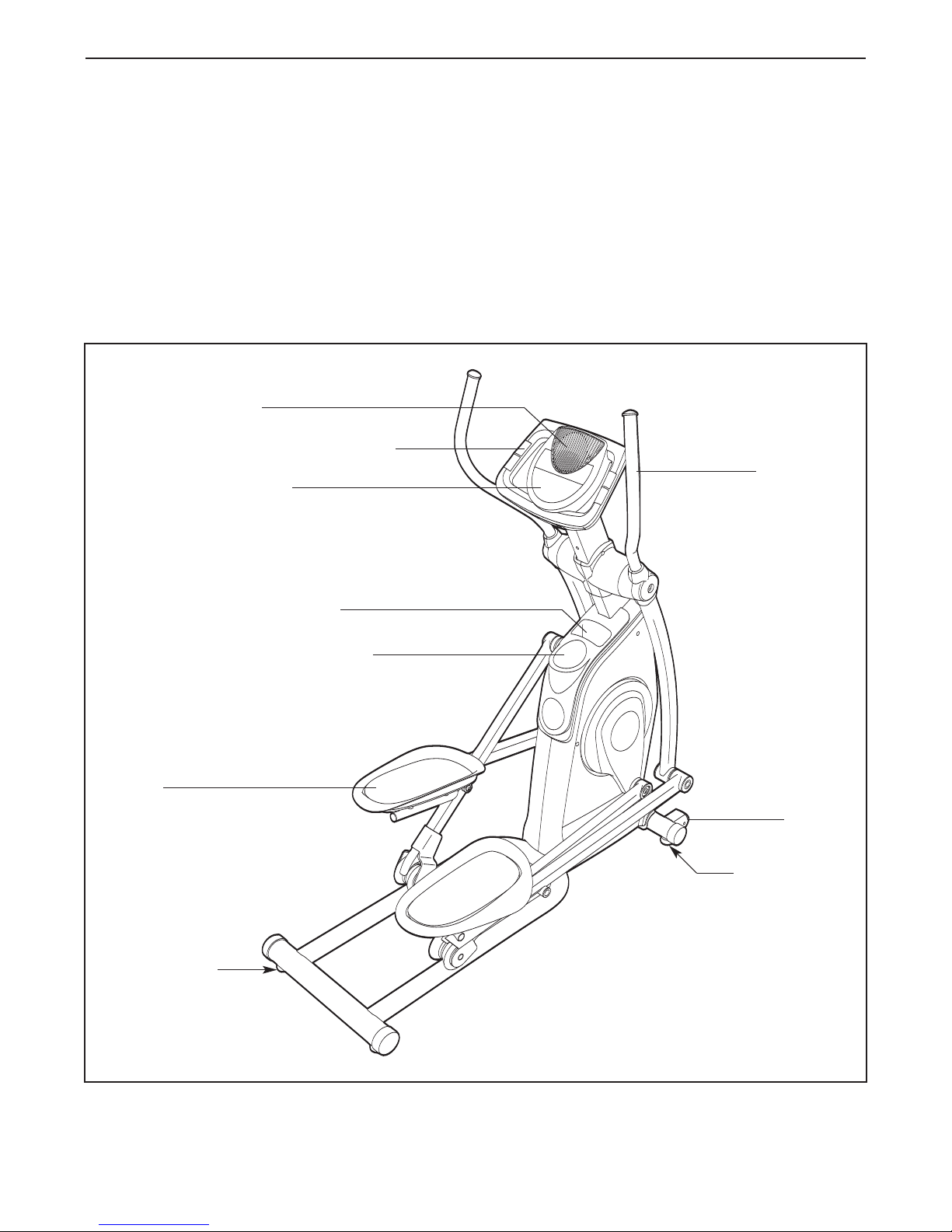

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Handlebar

Wheel

Pedal

Console

Water Bottle Holder*

Accessory Tray

Leveling Foot

Fan

*No water bottle is included

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included hex keys, assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number follow-

ing the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassem-

bled. If a part is not in the parts bag, check to see if it has been preassembled.

M8 Split

Washer (72)–2

M8 x 48mm Button

Screw (78)–2

M4 x 16mm

Self-tapping

Screw (79)–10

M8 x 42mm Bolt

(71)–4

M10 x 20mm x

1mm Washer

(81)–2

M10 x 20mm x

1.5mm Washer

(84)–2

M4 x 16mm

Screw (86)–4

M10 Spacer

(76)–2

M6 x 35mm Phillips

Screw (87)–8

M6 Split

Washer (88)–8

M10 x 23mm Shoulder

Screw (80)–8

M10 x 62mm Bolt (89)–4 M10 x 78mm Button Screw (90)–2

M10 x 20mm Button

Screw (91)–4

M10 x 20mm x

2mm Washer

(92)–4

M4 x 13mm

Washer (93)–2

M10 x 25mm

Washer (94)–4

M8 x 16mm Button

Screw (95)–3

M8 Nylon

Locknut (96)–4 M10 Nylon

Locknut (97)–2

Wave Washer

(98)–8

Star Washer

(100)–3

Orient the the Front Stabilizer (35) as shown.

Attach the two Wheels (25) to the Front Stabilizer

with two M10 x 62mm Bolts (89) and two M10

Nylon Locknuts (97).

Attach two Feet (26) to the underside of the

Front Stabilizer (35).

2. Have a second person tip the Frame (2) back-

ward. Attach the Front Stabilizer (35) to the

Frame with two M10 x 78mm Button Screws (90).

To make assembly easier, read the

information on page 5 before you begin

assembling the elliptical exerciser.

4. Have a second person hold the Upright (6) near

the Frame (2) as shown.

Pull the Wire Harness (48) out of the Frame (2)

and insert it upward through the Upright (6). Do

not let the Wire Harness fall into the Upright; use

apiece of tape or an elastic band to hold the

Wire Harness in place until step 12.

Insert the Upright (6) into the Frame (2). Attach

the Upright with three M8 x 16mm Button Screws

(95) and three Star Washers (100). Avoid pinch-

ing the Wire Harness (48) between the

Upright and the Frame.

100

3. Orient the Base (1) near the Frame (2) as

shown. See the inset drawing. Attach two Feet

(26) to the underside of the Base.

Have a second person tip the Frame (2) forward.

Insert the Base (1) into the Frame. Attach the

Base with two M10 x 62mm Bolts (89), two M10

Spacers (76), two M8 x 48mm Button Screws

(78), and two M8 Split Washers (72).

5. Identify the Left Roller Leg (12), which is marked

with a “Left” sticker. Orient the Left Roller Leg as

shown near the left Crank Arm (36).

Apply a small amount of the included grease to

both sides of a Wave Washer (98). Also, apply

grease to the Roller (22) on the Left Roller Leg

(12); spread the grease evenly around the

Roller.

Slide the Wave Washer (98) onto the left Crank

Arm (36). Next, slide the Left Roller Leg (12)

onto the Crank Arm and set the Roller (22) on

the Base (1). Attach the Left Roller Leg with an

M10 x 23mm Shoulder Screw (80), an M10 x

20mm x 1.5mm Washer (84), and a Crank Axle

Cap (30).

Repeat this step to attach the Right Roller

Leg (21) to the right Crank Arm (not shown).

536

84 30 98

Grease

8012

6. Identify the Left Handlebar (8), which is marked

with a “Left” sticker.Insert the Left Handlebar into

one of the Handlebar Legs (11) as shown.

Attach the Left Handlebar (8) with two M8 x

42mm Bolts (71) and two M8 Nylon Locknuts

(96). Make sure that the Nylon Locknuts are

inside the hexagonal holes.

Assemble the Right Handlebar (not shown)

and the other Handlebar Leg (not shown) in

the same way.11 71

Grease

Hexagonal

Hole

Hexagonal

Hole

7. Position an Inner Handlebar Cover (18) and an

Outer Handlebar Cover (19) around the Left

Handlebar (8) as shown.

Attach the Inner and Outer Handlebar Covers

(18, 19) with three M4 x 16mm Self-tapping

Screws (79) and an M4 x 13mm Washer (93).

Start all three Self-tapping Screws before

tightening them.

Repeat this step for the Right Handlebar (not

shown).

8. Apply a generous amount of grease to the Pivot

Axle (65) and insert it into the Frame (2).

Attach the two Frame Covers (17) to the Frame

(2) with four M4 x 16mm Screws (86) as shown.

886

18 79

Grease

9. Apply a small amount of grease to both sides of

a Wave Washer (98). Slide the Wave Washer

onto the left side of the Pivot Axle (65). Next,

slide the Left Handlebar (8) onto the Pivot Axle

as shown.

Attach the Left Handlebar (8) with an M10 x

23mm Shoulder Screw (80) and an M10 x 20mm

x1mm Washer (81).

Repeat this step to attach the Right

Handlebar (9) to the Pivot Axle (65).

Grease

10.Identify the Left Pedal (13) and the Left Pedal

Leg (14), which are marked with “Left” stickers,

and orient them as shown.

Attach the Left Pedal (13) to the Left Pedal Leg

(14) with four M6 x 35mm Phillips Screws (87)

and four M6 Split Washers (88). Start all four

Phillips Screws before tightening them.

Repeat this step to attach the Right Pedal

(not shown) to the Right Pedal Leg (not

shown).

88 88

11. Apply a generous amount of grease to two Pedal

Leg Axles (32). Insert one Pedal Leg Axle into

the bottom of the left Handlebar Leg (11). Insert

the other Pedal Leg Axle into the Left Roller

Leg (12).

Apply a small amount of grease to both sides of

two Wave Washers (98). Place a Wave Washer

on each Pedal Leg Axle (32).

Orient the Left Pedal Leg (14) as shown, and

slide it onto the Pedal Leg Axles (32). Attach the

Left Pedal Leg to the left Handlebar Leg (11) with

two M10 x 23mm Shoulder Screws (80), two

M10 x 20mm x 2mm Washers (92), and two Axle

Caps (31).

Attach the Left Pedal Leg (14) to the left Roller

Leg (12) with two M10 x 20mm Button Screws

(91) and two M10 x 25mm Washers (94); do not

overtighten the Button Screws. The Legs (11,

14, 21) must be able to pivot freely.

Repeat this step for the Right Pedal Leg (not

shown).

14 94

94 91

92 32

Grease

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pro-Form Ellipsentrainer Handbücher

Pro-Form

Pro-Form 1200 Pro Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 831.28645.0 Bedienungsanleitung

Pro-Form

Pro-Form 900 CardioCrossTrainer Bedienungsanleitung

Pro-Form

Pro-Form Crosstrainer 970 Bedienungsanleitung

Pro-Form

Pro-Form PFEL5905.1 Bedienungsanleitung

Pro-Form

Pro-Form 690 Hr Elliptical Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form REBEL Bedienungsanleitung

Pro-Form

Pro-Form 485 E Eng/french Bedienungsanleitung

Pro-Form

Pro-Form PFEL55916.1 Bedienungsanleitung

Pro-Form

Pro-Form 550 Hr Elliptical Benutzerhandbuch

Pro-Form

Pro-Form Razor 831.23743.0 Bedienungsanleitung

Pro-Form

Pro-Form 500 Ekg Elliptical Kurzanleitung

Pro-Form

Pro-Form 696 Elliptical Benutzerhandbuch

Pro-Form

Pro-Form VX Bedienungsanleitung

Pro-Form

Pro-Form CardioCross Trainer PFEL2605.0 Bedienungsanleitung

Pro-Form

Pro-Form Hybrid Trainer PFEL03812.2 Bedienungsanleitung

Pro-Form

Pro-Form 105 CSE Bedienungsanleitung

Pro-Form

Pro-Form 12.5 QM PETL62020 Bedienungsanleitung

Pro-Form

Pro-Form PFCCEL05900 Bedienungsanleitung

Pro-Form

Pro-Form 660 Xt Systemhandbuch

Pro-Form

Pro-Form 831.283521 Bedienungsanleitung

Pro-Form

Pro-Form 615 Hr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 750 Rx Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form Pro 16.9 Bedienungsanleitung

Beliebte Ellipsentrainer Handbücher anderer Marken

Weslo

Weslo Momentum 4.0 Elliptical Bedienungs- und Wartungshandbuch

Progear Fitness

Progear Fitness Air elliptical pro 1307 Bedienungsanleitung

Torque Fitness

Torque Fitness XPLLP Bedienungsanleitung

Octane Fitness

Octane Fitness PRO3700C Bedienungsanleitung

Xterra

Xterra FS5.8e Bedienungsanleitung

Bodyguard

Bodyguard E-40 Bedienungsanleitung

Bonn Germany

Bonn Germany Concept 2.2 Bedienungsanleitung

Precor

Precor Resolute RSL 620 Bedienungsanleitung

NordicTrack

NordicTrack E 9.2 Elliptical Bedienungsanleitung

Vision Fitness

Vision Fitness X6600iNetTV Bedienungsanleitung

Matrix

Matrix MX-A5x Bedienungsanleitung

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Bedienungsanleitung

Sears

Sears FREE SPIRIT C249 30737 0 Bedienungsanleitung

True

True FS-64 Bedienungsanleitung

Sport-thieme

Sport-thieme ST 310 Bedienungsanleitung

VIRTUFIT

VIRTUFIT CTR 1.1 Bedienungsanleitung

Kettler

Kettler GIRO C 1 Bedienungsanleitung

CIRCLE FITNESS

CIRCLE FITNESS E7 Bedienungsanleitung
