Pro-Form REBEL Bedienungsanleitung

Model No. PFEX37080

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial

Number

Decal

USER’S MANUAL

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts, we

will guarantee complete satisfac-

tion through direct assistance

from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our customer hot line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Patent Pending

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE PROFORM®REBEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the PROFORM®REBEL Recumbent Bike and Elliptical Crosstrainer.

1. Read all instructions in this manual before

using the REBEL.

2. It is the responsibility of the owner to

ensure that all users of the REBEL are ade-

quately informed of all precautions.

3. Place the REBEL on a level surface, with a

mat beneath it to protect the floor or

carpet. Keep the REBEL indoors, away from

moisture and dust.

4. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

5. Keep children under the age of 12 and pets

away from the REBEL at all times.

6. The REBEL should not be used by

persons weighing more than 250 pounds.

7. Wear appropriate exercise clothing when

using the REBEL. Always wear athletic

shoes for foot protection.

8. Always hold the handlebars when mounting,

dismounting and using the REBEL. Step

onto and off the pedal that is in the lowest

position when mounting and dismounting.

9. When you stop exercising, allow the pedals

to slowly come to a stop.

10. Keep your back straight when using the

REBEL. Do not arch your back.

11. If you feel pain or dizziness while exercis-

ing, stop immediately and begin cooling

down.

12. The REBEL is intended for in-home use

only. Do not use it in any commercial, rental

or institutional setting.

13. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

WARNING:Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health

problems. Read all instructions before using. ICON assumes no responsibility for personal injury

or property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the revolutionary PRO-

FORM®REBEL Recumbent Bike and Elliptical

Crosstrainer. The REBEL is an incredibly smooth

exerciser that moves your feet in a natural elliptical

path, minimizing the impact on your knees and ankles.

The unique REBEL can easily be converted from an

elliptical crosstrainer to a recumbent bike, giving you

two machines in one. Welcome to a whole new world

of natural, elliptical-motion exercise from PROFORM.

For your benefit, read this manual carefully before

you use the REBEL. If you have additional ques-

tions, please call our Customer Service Department

toll-free at 1-800-999-3756, Monday through Friday, 6

a.m. until 6 p.m. Mountain Time (excluding holidays).

To help us assist you, please note the product model

number and serial number before calling. The model

number is PFEX37080. The serial number can be

found on a decal attached to the REBEL (see the

front cover of this manual).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Resistance Knob Upright

FRONT

BACK RIGHT SIDE

Pedal

Handlebar

Lock Knob

(on back)

Side Shield

Pedal Leg

Base

Console

Book Holder

and Seat

Backrest

Toe Pedal

The decal shown below has been placed on the

REBEL. If the decal is missing or illegible, please

call our toll-free HELPLINE at 1-800-736-6879 to

order a free replacement decal. Apply the decal

in the location shown.

PART IDENTIFICATION CHART

Use the chart below to identify the small parts used in

assembly. The number in parenthesis below each part

is the key number of the part, from the PART LIST on

page 14. The number after the dash indicates the

quantity needed for assembly. Note: Some small

parts may have been pre-attached for shipping. If

a part is not in the parts bag, check to see if it has

been pre-attached.

M10 Nylon Locknut (54)—6 1/2" Nylon Locknut (9)—2

Pedal Bolt (8)—2

M10 x 68mm Bolt (67)–4

Pedal Arm Spacer (42)—2

M10 x 25mm Button Head Bolt (85)–2

M10 Washer (71)—6

Handlebar Screw (51)–4

M4 x 38mm Screw (4)—2

Console Mount Screw (69)–1

M16 Flat Washer (84)—2

Plastic Sleeve (53)—2

Metal Handlebar Spacer (83)–2

M10 x 75mm Bolt (66)–2

M4 x 16mm Tapping Screw (30)—8

M6 x 16mm Seat Screw (28)–8

1. Hold the Stabilizer (68) against the saddle on the rear

of the Base (1). Attach the Stabilizer with two M10 x

75mm Bolts (66) and two M10 Nylon Locknuts (54).

2. Slide the “U”-channel on the Rail Stabilizer (37) into

the Base (1). Make sure that the Reed Switch Wire

(48) is extending from the hole formed where the

two parts meet; be careful not to damage the Reed

Switch Wire.

Insert two M10 x 68mm Bolts (67) with two M10

Washers (71) up through the Base (1) and the Rail

Stabilizer (37). Note: It may be easier to insert the

Bolts if the unit is tipped on its side.

Insert two M10 x 68mm Bolts (67) with two M10

Washers (71) up through the Rail Stabilizer (37).

ASSEMBLY

Assembly requires two persons. Place all parts of the PROFORM®REBEL in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires a phillips screwdriver , two adjustable wrenches and a

rubber mallet (none of these is included).

“U”-channel

3. While one person holds the Upright (2), connect the

Extension Wire (49) to the Reed Switch Wire (48)

extending from the Base (1). Insert any excess wire

into the Upright or the Base.

Slide the Upright (2) onto the four M10 x 68mm Bolts

(67). Make sure that the wires do not get pinched

as you slide the Upright into place.

Hand tighten an M10 Nylon Locknut (54) onto each

M10 x 68mm Bolt (67). Tip the unit on its side and use

two wrenches to tighten the Nylon Locknuts fully.

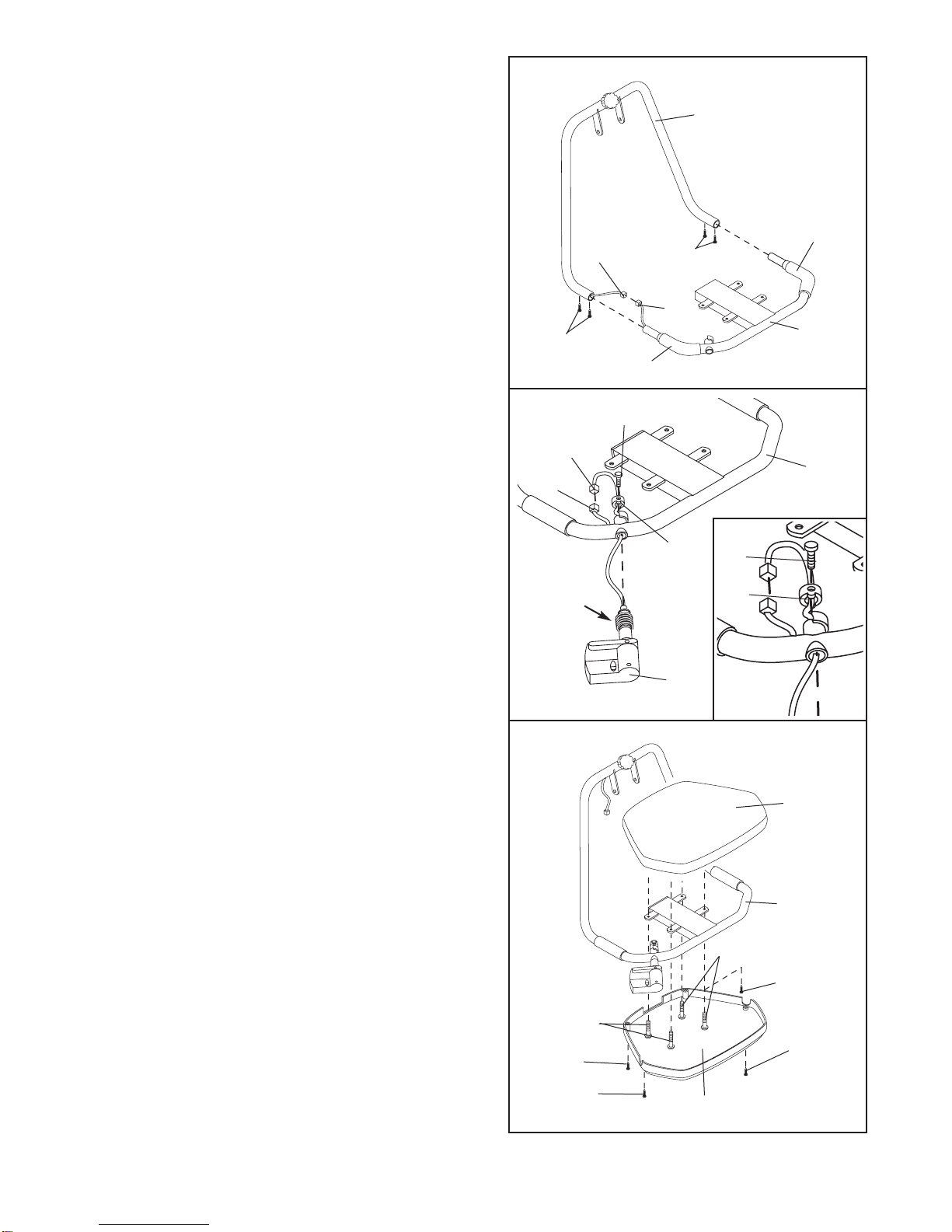

6. Attach the Seat (43) to the indicated brackets on the

Seat Bar (6) with four M6 x 16mm Seat Screws (28).

Attach the Seat Cover (35) to the Seat (43) with two

M4 x 38mm Screws (4) along the rear edge and an M4

x 16mm Tapping Screw (30) in each side.

5. Remove the Console Mount Screw (69) and slide the

Detent Ring (73) off the shaft of the Console (5).

Insert the console wire through the indicated hole in

the Seat Bar (6).

Using the included grease pack, lubricate the shaft of

the Console (5). Insert the shaft into the indicated hole

in the Seat Bar (6).

Slide the Detent Ring (73) onto the shaft of the

Console (5) and line up the hole in the Detent Ring

with the hole in the shaft. Secure the Console with the

Console Mount Screw (69) (see the inset drawing).

Plug the console wire into the Seat Bar Wire (88).

Console

Wire

Lubricate

4. Connect the Seat Bar Wire (88) to the Handlebar Wire

(87).

Slide the Handlebar (7) onto the Seat Bar (6). Attach

the Handlebar with the four Handlebar Screws (51).

Make sure that the Handlebar Screws do not damage

the wires.

Pull both Grips (72) towards the Handlebar (7) until

they cover the Handlebar Screws (51).

88 6

9. Identify the Left Pedal Leg (3) by looking at the

Lock Pin (90) on the pre-assembled Toe Pedal (36).

The Lock Pin must be on the outside when the

Pedal Leg is mounted.

Attach a Pedal (29) to the Left Pedal Leg (3) with three

M4 x 16mm Tapping Screws (30).

Using the included grease pack, lubricate a Pedal Bolt

(8). Insert the Pedal Bolt through the two indicated

Bushings (39). Next, slide a Plastic Pedal Spacer (42)

onto the Pedal Bolt and insert the Pedal Bolt into the

hole in the left Crank Arm (10). Tighten a 1/2” Nylon

Locknut (9) onto the Pedal Bolt.

Repeat this procedure for the Right Pedal Leg (70, not

shown).

8. Attach the Backrest (40) to the indicated brackets on

the Upright (2) with four M6 x 16mm Seat Screws (28).

39 10

Lubricate

7. Note: The assistance of another person is recom-

mended for this step.

While another person holds the Handlebar (7) in the

position shown, connect the Handlebar Wire (87) to

the Extension Wire (49) extending from the Upright (2).

Next, slide a Plastic Sleeve (53) onto each of the indi-

cated shafts on the Upright (2).

Slide an M10 Washer (71) onto each of the M10 x

25mm Button Head Bolts (85). Next, insert the Bolts

through the brackets on the Handlebar (7) and then

slide an M16 Flat Washer (84) and a Metal Handlebar

Spacer (83) onto each Bolt. Insert the Bolts into the

shafts on the Upright (2) and tighten them with the

included allen wrench. Be careful not to overtighten

the Bolts; the Handlebar must pivot easily.

Shaft

Bracket

HOW TO USE THE PROFORM®REBEL

HOW TO SWITCH BETWEEN RECUMBENT BIKE

AND ELLIPTICAL CROSSTRAINER

To switch from recumbent bike to elliptical crosstrain-

er, lift the Seat (43) as far as it will go. Tighten the

Lock Knob (81, not visible) into the Upright (2). Note:

Tighten the Lock Knob fully. Push the Console (5)

to disengage the lock, and then turn it so the display

is visible when you are standing on the pedals.

To switch from elliptical crosstrainer to recumbent

bike, loosen the Lock Knob (81, not visible). Fold the

Seat (43) down and turn the Console (5) so it is visi-

ble when you are sitting on the Seat.

HOW TO EXERCISE ON THE REBEL WHEN IT IS

SET UP AS AN ELLIPTICAL CROSSTRAINER

To mount the REBEL in the crosstrainer mode, hold

the handlebars and step onto the pedal that is in the

lowest position. Next, step onto the other pedal. Push

the pedals until they begin to move with a continuous

motion. Note: The crank can turn in either direc-

tion. To get the full impact of the elliptical motion,

it is recommended that you turn the crank in the

direction shown by the arrow below; however, to

give variety to your exercise, you may choose to

turn the crank in the opposite direction.

Pedal

Crank

10.The Console (5) requires two “AA” batteries (not

included). Alkaline batteries are recommended.

To install batteries, first slide up the battery cover and

carefully remove the battery clip from the Console (5).

Insert two batteries into the battery clip as shown.

Make sure that the negative ends of the batteries

(marked “–”) are touching the springs in the

battery clip. Replace the battery clip and close the

battery cover. 5

Battery

Clip

Battery

Cover

11. Make sure that all parts of the REBEL are properly tightened. To protect the floor or carpet from damage,

place a mat under the REBEL.

Lock Knob

To dismount the REBEL, allow the pedals to slowly

come to a stop. Important: The REBEL does not

have a freewheel; the pedals will continue to

move until the flywheel stops. When the pedals are

stationary, step off the highest pedal first. Then, step

off the lowest pedal.

HOW TO ADJUST THE TOE PEDALS

To adjust the Right Toe Pedal (89), pull out the Lock

Pin (90). Slide the Toe Pedal forward or backward to

the desired position. Push the Lock Pin through the

holes in the Toe Pedal and the adjustment holes in

the Pedal Leg (70). Adjust the Left Toe Pedal (36, not

shown) in the same manner.

HOW TO ADJUST THE RESISTANCE OF THE

PEDALS

As you exercise,

you can adjust the

resistance of the

pedals with the

resistance knob.

To increase the

resistance, turn the

knob clockwise; to

decrease the resis-

tance, turn the

knob counterclock-

wise.

DESCRIPTION OF THE CONSOLE

The console is designed to help you get the most

from your workouts. As you exercise, you can watch

your progress as the display provides continuous

exercise feedback. You can even measure your heart

rate using the built-in pulse sensor. Note: Before the

console can be operated, two “AA” batteries must

be installed (see assembly step 10 on page 8).

Speed—This mode displays your pedaling speed, in

miles per hour.

Time—This mode displays the elapsed time. Note:

When you stop exercising, the time mode will pause.

Distance—This mode displays the total distance you

have pedaled, in miles.

Fat Calorie—This mode displays the approximate

number of fat calories you have burned (see BURN-

ING FAT on page 12).

Calorie—This mode displays the approximate number

of Calories you have burned.

Scan—This mode displays the speed, time, distance,

fat calorie, and calorie modes, for 5 seconds each, in

a repeating cycle.

Pulse—This mode displays your heart rate when the

pulse sensor is used.

HOW TO OPERATE THE CONSOLE

If there is a thin sheet of clear plastic on the face of

the console, remove it.

1. To turn on the power, press the on/reset button or

simply begin pedaling. When the power is turned

on, the entire display will appear for two seconds.

The console will then be ready for operation.

2. Select one of the modes:

Scan mode—When the power is turned on, the

scan mode will automatically be selected. One

mode indicator will show that the scan mode is

selected, and a flashing mode indicator will show

Resistance Knob

Thumb

Pulse

Sensor

LCD

Display

MAINTENANCE

CONSOLE TROUBLE-SHOOTING

If the console does not function properly, the batteries

should be replaced. To replace the batteries, see

assembly step 10 on page 8. In addition, make sure

that the console wire is connected to the seat bar

wire. See assembly step 5 on page 6.

HOW TO REMOVE THE SIDE SHIELDS

For all of the following steps, one or both Side

Shields (11 and 27) must be removed.

To remove the Left Side Shield (11), unscrew the 1/2”

Nylon Locknut (9) and remove the Pedal Bolt (8) and

the Plastic Pedal Spacer (42) from the Left Pedal Leg

(3). Unscrew the seven M4 x 38mm Screws (4) from

the Left Side Shield. Gently pull the Left Side Shield

out and to the side, so the Crank Arm (10) fits

through the hole in the Side Shield.

To remove the Right Side Shield (27), first remove the

Left Side Shield (11) as described above. Then

unscrew the three M4 x 38mm Screws (4) from the

lower edge of the Right Side Shield. Remove the 1/2”

Nylon Locknut (9), Pedal Bolt (8) and Plastic pedal

Spacer (42) from the Right Pedal Leg (70, not shown).

Gently pull the Right Side Shield over the Crank Arm.

which mode is

currently dis-

played. Note: If

a different

mode is select-

ed, you can

select the scan

mode again by

repeatedly

pressing the mode button.

Speed, time, distance, fat calorie or calorie

mode—To select one of these modes for continu-

ous display, press the mode button repeatedly. The

mode indicators will show which mode is selected.

(Make sure that the scan mode is not selected.)

3. To measure your pulse, stop pedaling and place

your thumb on the pulse sensor as shown. The

pulse sensor is pressure-activated—fully press

down the pulse sensor. Do not press too hard, or

the circulation in your thumb will be restricted,

and your pulse will not be detected. Next, slightly

raise your thumb until the heart-shaped indicator in

the LCD display flashes steadily. Hold your thumb

at this level. After 5 to 10 seconds, three dashes

will appear in the display

and your pulse will be

shown. Hold your thumb

on the sensor for another

15 seconds for the most

accurate reading. If the

displayed pulse appears

to be too high or too low,

or if your pulse is not dis-

played, lift your thumb off

the sensor and allow the

display to reset. Press

down again on the sensor as described above.

Make sure that your thumb is positioned as shown,

and that you are applying the proper amount of

pressure to the pulse sensor. Try the sensor several

times until you become familiar with it.

4. To reset the display, press the on/reset button.

5. The console has an “auto-off” feature. If the

pedals are not moved and the console buttons

are not pressed for four minutes, the power will

turn off automatically to conserve the batteries.

Mode Indicators

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pro-Form Ellipsentrainer Handbücher

Pro-Form

Pro-Form PFEL79907.1 Bedienungsanleitung

Pro-Form

Pro-Form PFCCEL3906.0 Bedienungsanleitung

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 510 EX Bedienungsanleitung

Pro-Form

Pro-Form 1200 E Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 990 CSE Bedienungsanleitung

Pro-Form

Pro-Form 500 Le Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 485 P Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 831.297470 Bedienungsanleitung

Pro-Form

Pro-Form PFCCEL1305.0 Bedienungsanleitung

Pro-Form

Pro-Form 565 Ekg Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 545 Ekg Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 696 Elliptical Bedienungsanleitung

Pro-Form

Pro-Form PFEL5055 Bedienungsanleitung

Pro-Form

Pro-Form PFIVEL85712.0 Bedienungsanleitung

Pro-Form

Pro-Form 615 Hr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 690 Hr Elliptical Handbuch

Pro-Form

Pro-Form 7.0 Re Elliptical Bedienungsanleitung

Pro-Form

Pro-Form CROSSWALK 8.0 Bedienungsanleitung

Pro-Form

Pro-Form PFHK99900 Bedienungsanleitung

Pro-Form

Pro-Form 700tr Elliptical Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form PFEL54931 Bedienungsanleitung

Pro-Form

Pro-Form 505 Zle Elliptical Bedienungsanleitung

Pro-Form

Pro-Form PFEL08011.2 Bedienungsanleitung

Beliebte Ellipsentrainer Handbücher anderer Marken

Weslo

Weslo Momentum 4.0 Elliptical Bedienungs- und Wartungshandbuch

Progear Fitness

Progear Fitness Air elliptical pro 1307 Bedienungsanleitung

Torque Fitness

Torque Fitness XPLLP Bedienungsanleitung

Octane Fitness

Octane Fitness PRO3700C Bedienungsanleitung

Xterra

Xterra FS5.8e Bedienungsanleitung

Bodyguard

Bodyguard E-40 Bedienungsanleitung

Bonn Germany

Bonn Germany Concept 2.2 Bedienungsanleitung

Precor

Precor Resolute RSL 620 Bedienungsanleitung

NordicTrack

NordicTrack E 9.2 Elliptical Bedienungsanleitung

Vision Fitness

Vision Fitness X6600iNetTV Bedienungsanleitung

Matrix

Matrix MX-A5x Bedienungsanleitung

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Bedienungsanleitung

Sears

Sears FREE SPIRIT C249 30737 0 Bedienungsanleitung

True

True FS-64 Bedienungsanleitung

Sport-thieme

Sport-thieme ST 310 Bedienungsanleitung

VIRTUFIT

VIRTUFIT CTR 1.1 Bedienungsanleitung

Kettler

Kettler GIRO C 1 Bedienungsanleitung

CIRCLE FITNESS

CIRCLE FITNESS E7 Bedienungsanleitung
