Pro-Form PFEVEL80717.0 Bedienungsanleitung

USER’S MANUAL

Model No. PFEVEL80717.0

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and

instructions in this manual before

using this equipment. Keep this

manual for future reference.

CUSTOMER SERVICE

UNITED KINGDOM

Call: 0330 123 1045

From Ireland: 053 92 36102

Website: iconsupport.eu

E-mail: [email protected]

Write:

ICON Health & Fitness, Ltd.

Unit 4, Westgate Court

Silkwood Park

OSSETT

WF5 9TT

UNITED KINGDOM

AUSTRALIA

Call: 1800 993 770

E-mail: [email protected]

Write:

ICON Health & Fitness

PO Box 635

WINSTON HILLS NSW 2153

AUSTRALIA

iconeurope.com

Serial

Number

Decal

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE ELLIPTICAL ...............................................................9

MAINTENANCE AND TROUBLESHOOTING.....................................................22

EXERCISE GUIDELINES ....................................................................25

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

RECYCLING INFORMATION ......................................................... Back Cover

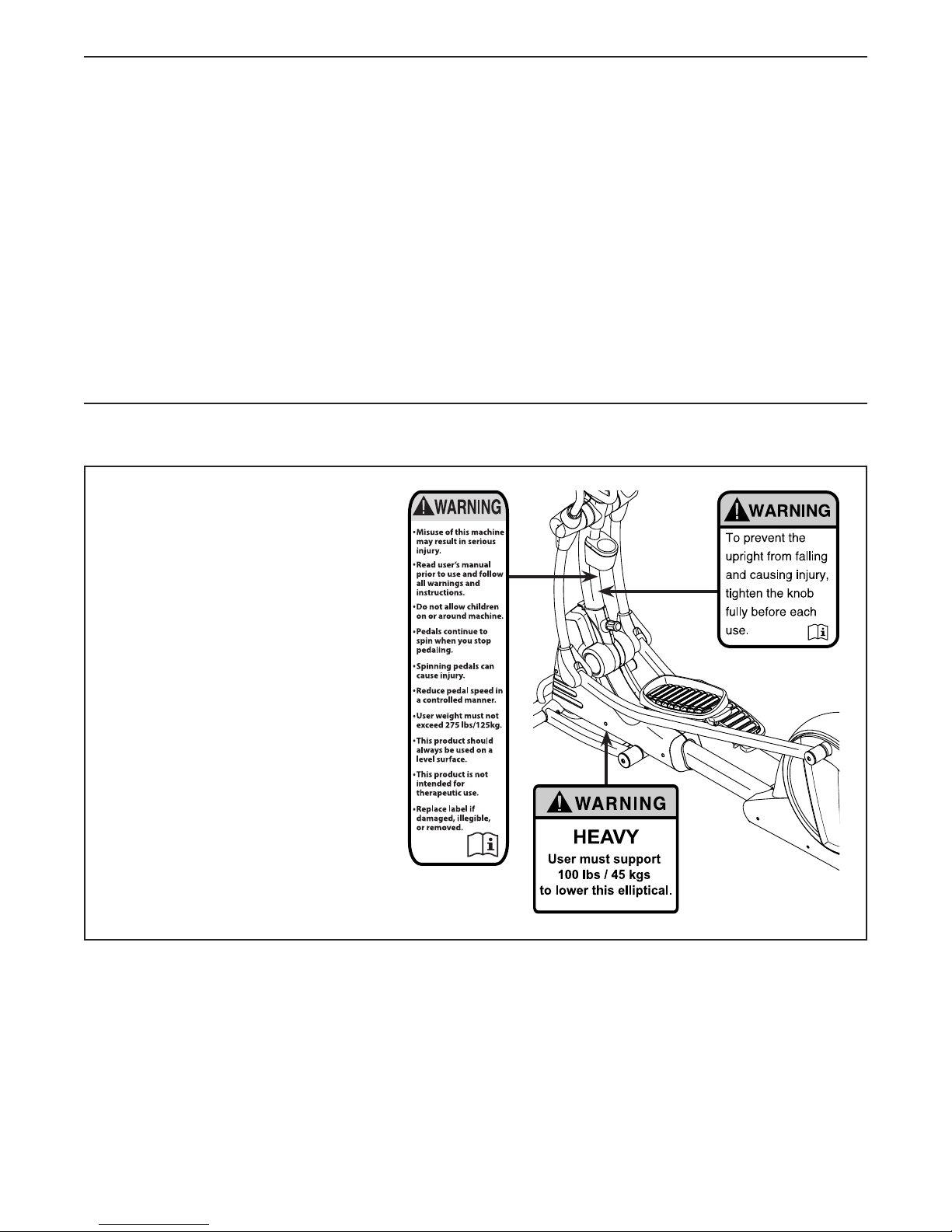

WARNING DECAL PLACEMENT

This drawing shows the location(s)

of the warning decal(s). If a decal is

missing or illegible, see the front

cover of this manual and request

a free replacement decal. Apply

the decal in the location shown.

Note: The decal(s) may not be

shown at actual size.

TABLE OF CONTENTS

PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple

Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The

BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your elliptical before

using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-

tained by or through the use of this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. The elliptical is not intended for use by

persons with reduced physical, sensory, or

mental capabilities or lack of experience and

knowledge, unless they are given supervi-

sion or instruction about use of the elliptical

by someone responsible for their safety.

4. Use the elliptical only as described in this

manual.

5. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

6. Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or covered patio, or near water.

7. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

8. Inspect and properly tighten all parts each

time the elliptical is used. Replace any worn

parts immediately.

9. Keep children under age 13 and pets away

from the elliptical at all times.

10. When connecting the power cord (see

page 9), plug the power cord into a

grounded circuit.

11. Do not modify the power cord or use an

adapter to connect the power cord to an

improper receptacle. Keep the power cord

away from heated surfaces. Do not use an

extension cord.

12. Do not operate the elliptical if the power cord

or plug is damaged, or if the elliptical is not

working properly.

13. DANGER: Always unplug the power

cord and switch the power switch to the off

position when the elliptical is not in use and

before cleaning the elliptical. Servicing other

than the procedures in this manual should

be performed by an authorized service repre-

sentative only.

14. Do not attempt to place the elliptical in the

storage position until it is properly assem-

bled and the upright is folded. You must

be able to safely support 100 lbs. (45 kg) to

place the elliptical in the storage position.

15. The elliptical should not be used by persons

weighing more than 275 lbs. (125 kg).

16. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

17. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

IMPORTANT PRECAUTIONS

SAVE THESE INSTRUCTIONS

18. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

19. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

20. Keep your back straight while using the

elliptical; do not arch your back.

21. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

BEFORE YOU BEGIN

Heart Rate Monitor

Handlebar

Small Storage Foot

Large Storage Foot

Wheel

Pedal

Pedal Handle

Accessory Tray

Upright Knob

Console

Upper Body Arm

Handle

Leveling Foot

Thank you for selecting the revolutionary PROFORM®

SMART STRIDER 695 CSE elliptical. The SMART

STRIDER 695 CSE elliptical provides an impressive

selection of features designed to make your workouts

at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Latch

Incline Frame

Length: 6 ft. 8 in. (203 cm)

Width: 2 ft. 8 in. (81 cm)

Weight: 198 lbs. (90 kg)

Tablet Holder

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• In addition to the included tool(s), assembly

requires the following tool(s):

one Phillips screwdriver

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

2. With the help of another person, place some

sturdy packing materials under the rear of the

Frame (1) so that the Frame is lifted off the floor.

Have the other person hold the elliptical to

prevent it from tipping.

If there are shipping supports attached to the

rear of the Frame (1), remove the screws attach-

ing the shipping supports. Discard the screws

and the shipping supports.

Attach the Rear Stabilizer (70) to the Frame (1)

with two M10 x 120mm Screws (84).

Then, remove the packing materials and lower

the elliptical.

1. To register your product and activate your

warranty in the UK, go to iconsupport.eu. If

you do not have internet access, call Customer

Service (see the front cover of this manual).

To register your product and activate your

warranty in Australia, email or post the

following information to the email address or

postal address on the front cover of this manual.

• your receipt (make sure to keep a copy)

• your name, address, and telephone number

• the model number, serial number, and name

of your product (see the front cover of this

manual)

3. With the help of another person, place some

sturdy packing materials under the front of the

Frame (1). Have the other person hold the

elliptical to prevent it from tipping.

If there are shipping supports attached to the

front of the Frame (1), remove the screws attach-

ing the shipping supports. Discard the screws

and the shipping supports.

Attach the Front Stabilizer (73) to the Frame (1)

with two M10 x 120mm Screws (84).

Then, remove the packing materials and lower

the elliptical.

4. With the help of a second person, raise the

Upright (2) to the vertical position.

See the inset drawing. Tighten the Upright

Knob (85).

5. Rotate the Right Upper Body Arm (9) to the

position shown.

Attach the Right Upper Body Arm (9) to the

Right Upper Body Leg (6) with an M10 x 50mm

Screw (95).

IMPORTANT: Tighten the indicated

M10 x 45mm Hex Screw (78).

Press the Upper Body Arm Cover (20) downward

and turn it so that it is flush with the Right Leg

Front and Rear Covers (11, 15).

Repeat this step on the other side of the

elliptical.

7. Make sure that all parts of the elliptical are properly tightened. Extra parts may be included. Place a mat

beneath the elliptical to protect the floor.

11, 15

131

110

6. Attach the Tablet Holder (131) to the Console (4)

with four Tablet Holder Screws (110); start all

the Screws, and then tighten them.

HOW TO USE THE ELLIPTICAL

HOW TO PLUG IN THE POWER CORD

This product must be earthed. If it should

malfunction or break down, earthing provides a path of

least resistance for electric current to reduce the risk

of electric shock. This product’s power cord has an

equipment-earthing conductor and an earthing plug.

IMPORTANT: If the power cord is damaged, it must

be replaced with a manufacturer-recommended

power cord.

Follow the steps below to plug in the power cord.

1. Plug the indicated end of the power cord into the

socket on the frame.

2. Plug the power cord into an appropriate outlet that

is properly installed and earthed in accordance with

all local codes and ordinances.

DANGER: Improper connection of

the equipment-earthing conductor can result

in an increased risk of electric shock. Check

with a qualified electrician or serviceman if

you are in doubt as to whether the product

is properly earthed. Do not modify the plug

provided with the product—if it will not fit

the outlet, have a proper outlet installed by a

qualified electrician

FR/SP

AUS

Socket on Frame

FR/SP

AUS

FR/SP

AUS

Outlet

UK Australia

Outlet

Power Cord

HOW TO MOVE THE ELLIPTICAL

Due to the size and weight of the elliptical, moving

it requires two persons.

First, loosen the

upright knob (A).

Next, pull the

upright knob, pull

the upright (B)

backward until the

latch stops the

upright, and then

release the upright

knob.

Next, pull the

upright (B)forward

slightly, lift the

latch (C), and then

lower the upright

to the folded posi-

tion. Hold the

upright in one

of the indicated

locations (D)

while you lower

the upright; do

not hold the

upper body arms.

Next, hold the handle (E) on the front stabilizer and lift

the elliptical until it will roll on the wheels (not shown)

on the rear stabilizer. Then, carefully move the elliptical

to the desired location, and lower it to the floor.

When you are finished moving the elliptical, lift the

upright to the vertical position and tighten the upright

knob.

HOW TO ADJUST THE POSITIONS OF THE

PEDALS

Each pedal can

be adjusted to

several positions.

To adjust each

pedal, simply pull

the pedal handle

(F) outward, move

the pedal to the

desired position,

and then release

the pedal handle

into an adjustment

hole beneath the

pedal. Make sure to adjust both pedals to the same

position.

Inhaltsverzeichnis

Andere Pro-Form Ellipsentrainer Handbücher

Pro-Form

Pro-Form 280 Razor Elliptical Einrichtungshandbuch

Pro-Form

Pro-Form 220 Zle Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical Einrichtungshandbuch

Pro-Form

Pro-Form Trainer 7.0 Bedienungsanleitung

Pro-Form

Pro-Form PFEL89720-INT.0 Bedienungsanleitung

Pro-Form

Pro-Form 475 E Bedienungsanleitung

Pro-Form

Pro-Form 450 Hr Elliptical Systemhandbuch

Pro-Form

Pro-Form 400 Zle Elliptical Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form 650 Hr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 650 Cardio Cross Trainer Elliptical Benutzerhandbuch

Pro-Form

Pro-Form PFEL29221 Bedienungsanleitung

Pro-Form

Pro-Form 1150 Rxw Bedienungsanleitung

Pro-Form

Pro-Form 640s Kurzanleitung

Pro-Form

Pro-Form PFEL91030 Bedienungsanleitung

Pro-Form

Pro-Form 420 Zle Elliptical Bedienungsanleitung

Pro-Form

Pro-Form PFEL87073 Bedienungsanleitung

Pro-Form

Pro-Form 420 Zle Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 485 E Elliptical Benutzerhandbuch

Pro-Form

Pro-Form 10.0 Ce Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 725 Pr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 510 Es Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 595 HR Benutzerhandbuch

Pro-Form

Pro-Form 1150 Rxw Benutzerhandbuch

Pro-Form

Pro-Form PFES80040 Bedienungsanleitung

Beliebte Ellipsentrainer Handbücher anderer Marken

Weslo

Weslo Momentum 4.0 Elliptical Bedienungs- und Wartungshandbuch

Progear Fitness

Progear Fitness Air elliptical pro 1307 Bedienungsanleitung

Torque Fitness

Torque Fitness XPLLP Bedienungsanleitung

Octane Fitness

Octane Fitness PRO3700C Bedienungsanleitung

Xterra

Xterra FS5.8e Bedienungsanleitung

Bodyguard

Bodyguard E-40 Bedienungsanleitung

Bonn Germany

Bonn Germany Concept 2.2 Bedienungsanleitung

Precor

Precor Resolute RSL 620 Bedienungsanleitung

NordicTrack

NordicTrack E 9.2 Elliptical Bedienungsanleitung

Vision Fitness

Vision Fitness X6600iNetTV Bedienungsanleitung

Matrix

Matrix MX-A5x Bedienungsanleitung

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Bedienungsanleitung

Sears

Sears FREE SPIRIT C249 30737 0 Bedienungsanleitung

True

True FS-64 Bedienungsanleitung

Sport-thieme

Sport-thieme ST 310 Bedienungsanleitung

VIRTUFIT

VIRTUFIT CTR 1.1 Bedienungsanleitung

Kettler

Kettler GIRO C 1 Bedienungsanleitung

CIRCLE FITNESS

CIRCLE FITNESS E7 Bedienungsanleitung
