QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction, tf you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1°877°994-4999

Mon.-Fri., 6 a.m.-6 p.m. MST

ON THE WEB:

www.reebokservice.com

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this man-

ual for future reference.

ur website aT

wccw,reebokhomefitness,com

new products, prizes,

fitness tips, and much more!

I C::ItCJ

IMPORTANT PRECAUTIONS ................................................................. 3

BEFORE YOU BEGIN ....................................................................... 4

ASSEMBLY ............................................................................... 5

HOW TO USE THE CHEST PULSE SENSOR ................................................... 10

ELLIPTICAL EXERCISER OPERATION ........................................................ 12

MAINTENANCE AND TROUBLESHOOTING .................................................... 19

EXERCISE GUIDELINES ................................................................... 20

PART LIST ............................................................................... 24

EXPLODED DRAWING ..................................................................... 25

ORDERING REPLACEMENT PARTS ................................................ BACK COVER

LIMITED WARRANTY ............................................................ BACK COVER

REEBOK and the Vector Logo _--__"_are registered trademarks and service marks of Reebok, This product is

manufactured and distributed under license from Reebok International,

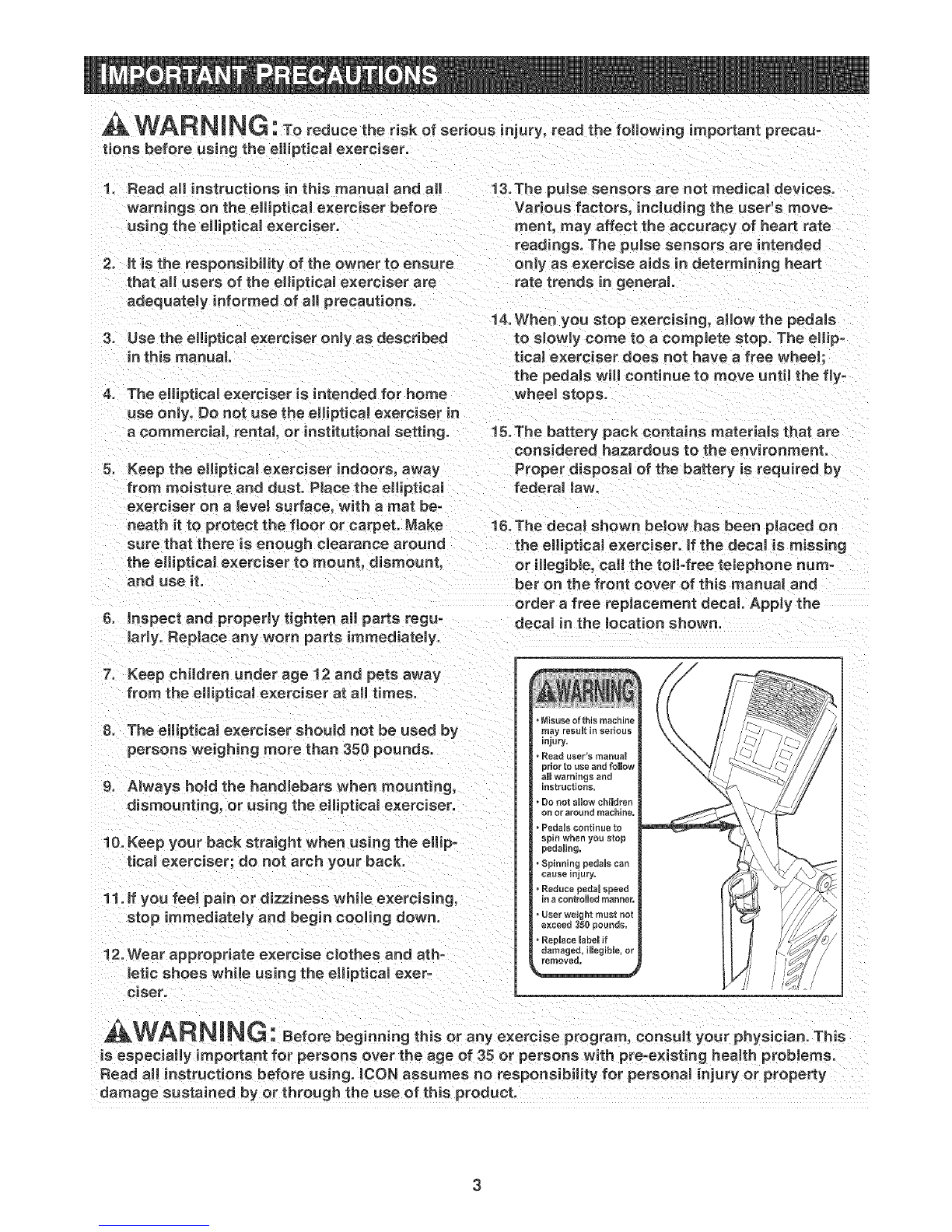

A WAR N mNG: Toreducetheris.ofaerious_.jury,readthefo,owi.gimportantpreoau-

tions before using the elliptical exerciser.

1. Read all instructions in this manuaJ and all

3. Use the elliptical exerciser only as described

in this manual

4. The elliptical exerciser is intended for home

use oniyo Do not use the elliptical exerciser in

a commercial, rental, or institutional setting.

13oThe pulse sensors are not medical devices.

warnings on the ell iptieal exerciser before Vari ous factors, including the user's move°

using the eHiptieaJ exerciser, merit, may affect the accuracy of heart rate

readings. The pulse sensors are intended

it is the responsibiJity of the owner to ensure only as exercise aids in determining heart

that all users of the eHipticaJ exerciser are rate trends in general

adequately informed of aH precautions. 14. When you stop exercising, allow the pedals

to sJowiy come to a complete step. The ellip-

tical e×erciser does not have a free whee};

the pedals will continue to move until the fly-

wheeJ stops.

15.The battery pack contains materials that are

considered hazardous to the environment.

5. Keep the eHipticaJ exerciser indoors, away })roper disposal of the battery is required by

from moisture and dust. Place the elliptical

exerciser on a level surface, with a mat be-

neath it to protect the floor or carpet. Make

sure that there is enough clearance around

the elliptical exerciser to mount, dismount.

and use it.

6. Inspect and property tighten aH parts regu=

larly. Replace any worn parts immediately.

federal law°

16oThe decal shown below has been placed on

the eJliptieal exerciser, if the decal is missing

or illegible, call the toil-free telephone num-

ber on the front cover of this manual and

order a free replacement decal Apply the

decal in the location shown.

7. Keep children under age 12 and pets away

from the eHiptieaJ exerciser at all times.

8. The ellipticalexercisershouJd not be used by

persons weighing more than 350 pounds.

9. Always hold the handlebars when mounting,

dismounting, or using the eHiptieaJ exerciser.

10. Keep your back straight when using the ellip-

tical exerciser: do not arch your back.

11. if you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

12. Wear appropriate exercise clothes and ath-

letic shoes while using the eHiptieaJ exer=

eiser.

_WARN_NG: _eforobeg_n._ogth_soran_e,erc_seprogram,consu,yourphys_c_ao.This

is especially important for persons over the age of 35 or persons with pre-existing hea_th problems.

Read aH _nstruetions before using, iCON assumes no responsibility for persona_ injury or property

damage sustained by or through the use of this product.

Congratulations for selecting the new REEBOK _'RL

1500 elliptical exerciser. The RL 1500 elliptical exer-

ciser is an incredibly smooth exerciser that moves your

feet in a natural elliptical path, minimizing the impact

on your knees and ankles. And the RL 1500 elliptical

exerciser offers an array of features designed to help

you achieve your fitness goals in the convenience and

privacy of your home.

For your benefit, read this manuaJ carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, please

note the product model number and sedal number be-

fore contacting us. The model number is RBEL4255.0.

The serial number can be found on a decal attached to

the elliptical exerciser (see the front cover of this man-

ual for the location of the decal).

To avoid a registration fee for any service needed

under warranty, you must register the elliptical e×-

erciser at www.reebokservice.com/registration.

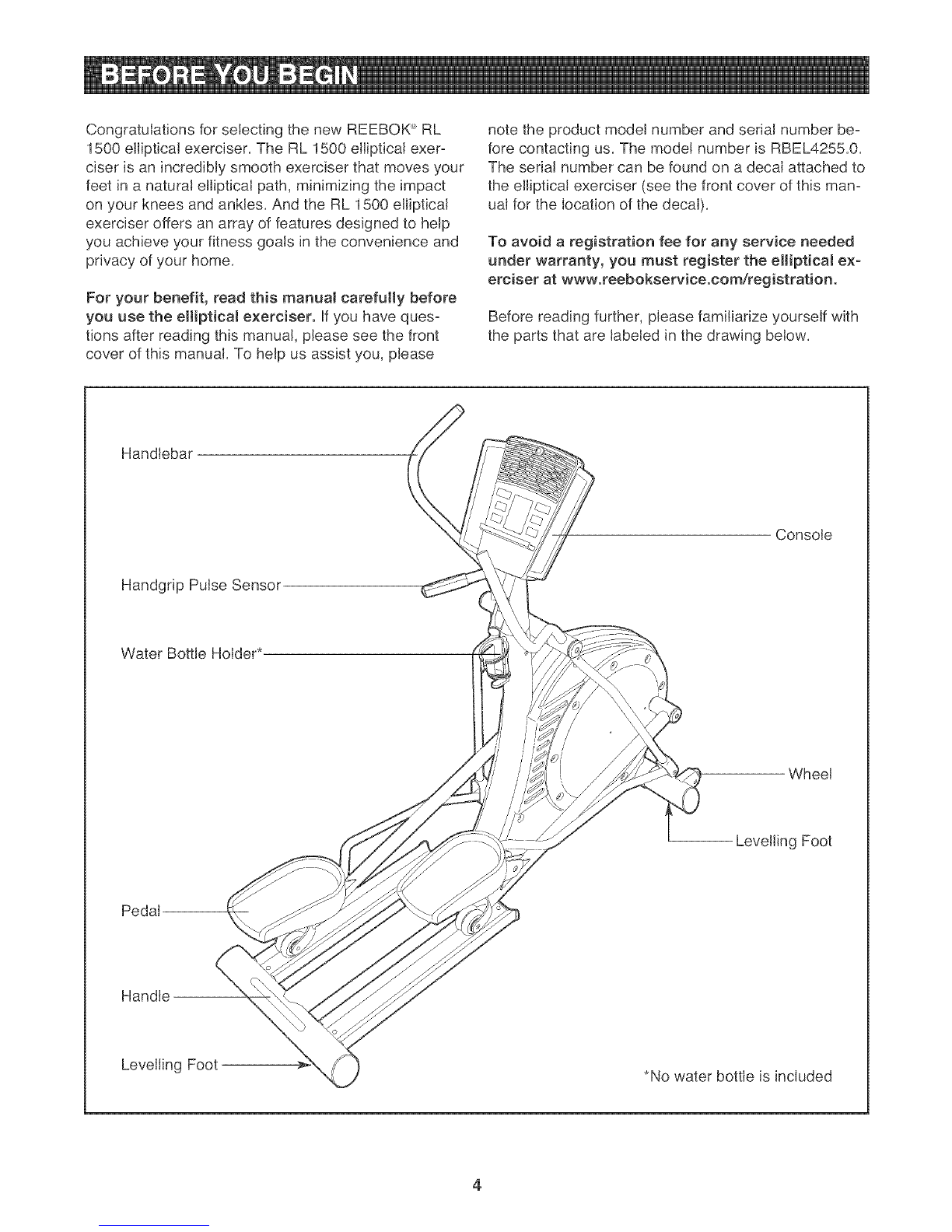

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handlebar

Console

Handgrip Pulse Sensor

Water Bottle Holder*

Wheel

Levelling Foot

Pedal

Handle

Levelling Foot *No water bottle is included

To hire an authorized service technician to assembte the elliptical exerciser, call toll°free 1=800-445°2480o

Assembly requires two persons. Set the elliptical exerciser in a cleared area and remove all packing materials.

Do not dispose of the packing materials until assembly is completed. Assembly can be completed using the in-

cluded hex keys and your own adjustable wrench _.

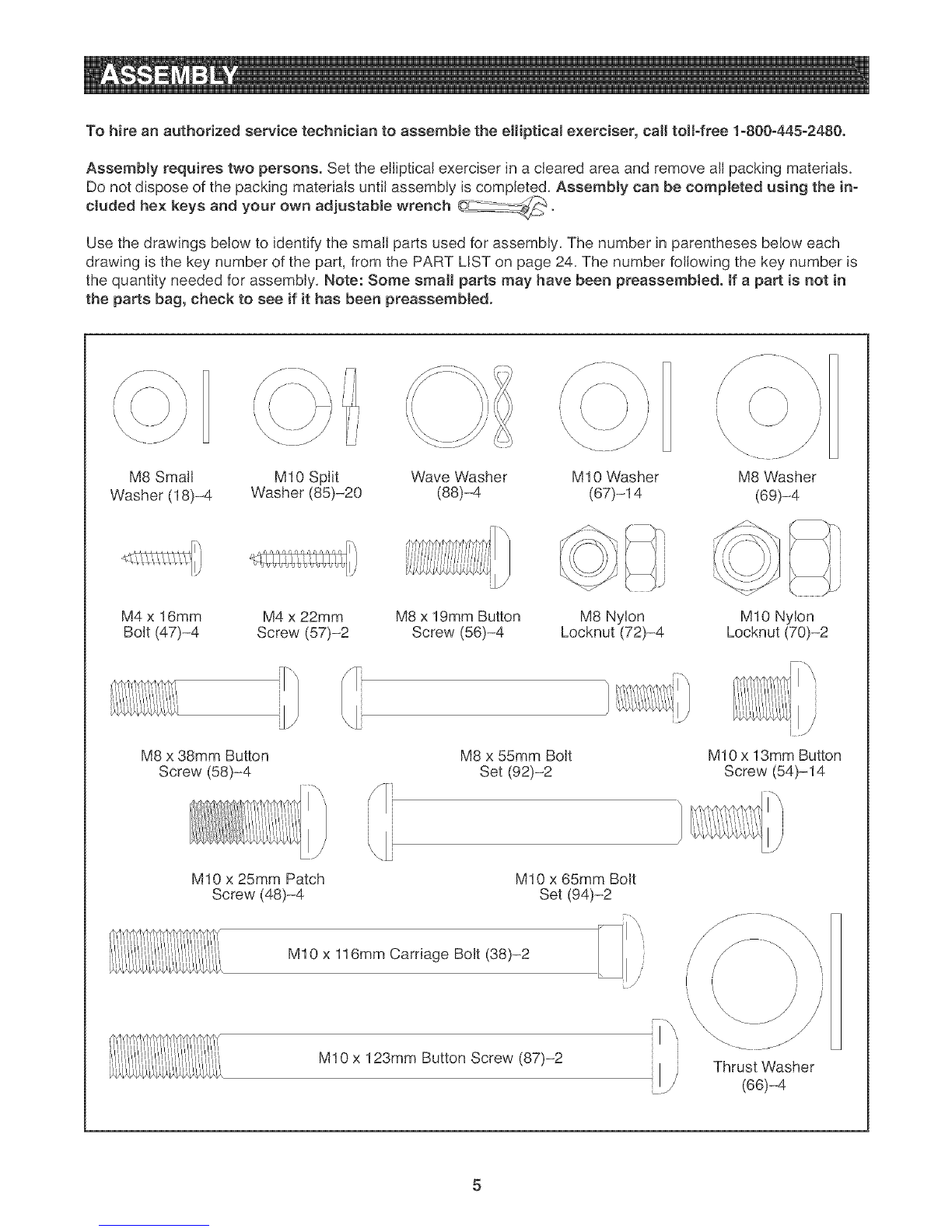

Use the drawings below to identify the small parts used for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST on page 24. The number following the key number is

the quantity needed for assembly. Note: Some small parts may have been preassembted, tf a part is not in

the parts bag, check to see if it has been preassembted.

M10 Washer

(67)-14

M8 Small M10 Split Wave Washer M8 Washer

Washer (18)-4 Washer (85)-20 (88)-4 (69)-4

M4 x 16mm M4 x 22mm M8 x 19mm Button M8 Nylon M10 Nylon

Bolt (47)-4 Screw (57)-2 Screw (56)-4 Locknut (72)-4 Locknut (70)-2

M8 x 38mm Button

Screw (58)-4 M8 x 55mm Bolt

Set (92)-2 M10 x 13mm Button

Screw (54)-14

M10 x 25mm Patch M10 x 65mm Bolt

Screw (48)-4 Set (94)-2

M10 x 116mm ( Bolt /

/"\\

Thrust Washer

(66)-4

1. 1

Attach the Stabilizer (8) to the Frame (1) with two

M10 x 116mm Carriage Bolts (38) and two M10

Nylon Locknuts (70).

Have another person hold the Upright (2) in the po-

sition shown. Connect the Upper Wire Harness (77)

to the Lower Wire Harness (78).

Attach the Upright (2) to the Frame (1) with four

M10 x 25mm Patch Screws (48) and four M10 Split

Washers (85). Make sure that no wires are

pinched between the Upright and the Frame.

Attach the Track Frame (4) to the Frame (1) with

two M10 x 123mm Button Screws (87) and two

M10 Split Washers (85). Finger tighten a Button

Screw into the lower hole first, and then finger

tighten a Button Screw into the upper hole. Then,

tighten both Button Screws. Note: This step may be

easier if you raise the Frame a few inches in the lo-

cation shown by the arrow at the right while you at-

tach the Track Frame.

38 8\

,1 85 87

Apply a small amount of the included grease to the

sides of two Wave Washers (88) and two Thrust

Washers (66),

Slide a Weld Spacer (89) onto the Left Crank Arm

(83), Next, identify the Left Track Arm (12), which

is marked with an "L," Orient the Left Track Arm as

shown, and slide it onto the Left Crank Arm, Then,

slide a Wave Washer (88) on the end of the Left

Crank Arm,

Slide an M8 Small Washer (18) and an Axle Cap

(41) onto an M8 x 19mm Button Screw (56), Next,

slide a Thrust Washer (66) onto the shoulder of

the Axle Cap, Then, tighten the Button Screw into

the end of the Left Crank Arm (83), Make sure

that the Thrust Washer remains on the shouJ-

der of the AxJe Cap, and that the Wave Washer

(88) remains on the end of the Left Crank Arm.

Repeat this step to attach the Right Track Arm

(11) to the right side of the elliptical exerciser,

Attach a Pedal (21) to the Left Pedal Leg (14) with

seven M10 x 13mm Button Screws (54), seven

M10 Split Washers (85), and seven M10 Washers

(67),

Attach the other Pedal (not shown) to the Right

Pedal Leg (not shown) in the same way,

Apply a thin film of grease to the barrel of an M10 x

65mm Bolt Set (94), Next, fit the bracket on the

Left Pedal Leg (14) onto the bracket on the Left

Track Arm (12). Attach the Left Pedal Leg to the

Left Track Arm with the Bolt Set,

Attach the Right Pedal Leg (not shown) to the

Right Track Arm (not shown) in the same way,

Grease

83\

7. 7

Identify the Left Handlebar (19), which is marked

with an "L." Insert the Left HandJebar into one of

the HandJebar Legs (17). Next, turn the Left

HandJebar and the Handlebar Leg so that the

wide side of the pivot tube on the Left

Handlebar is above the hexagonal hoJes in the

Handlebar Leg. Attach the Left Handlebar with two

M8 x 38mm Button Bolts (58) and two M8 Nylon

Locknuts (72). Make sure that the NyJon

Locknuts are inside of the hexagonaJ hoJes. Do

not tighten the Button BoJts yet.

Assemble the Right Handlebar (20) and the other

Handlebar Leg (17) in the same way.

Apply a small amount of grease to the sides of two

Wave Washers (88) and two Thrust Washers (66).

Slide the Left Handlebar (19) onto the Handlebar

Axle (16) as shown. Next, slide a Wave Washer

(88) onto the end of the Handlebar Axle.

Slide an M8 Small Washer (18) and an Axle Cap

(41) onto an M8 x 19mm Button Screw (56). Next,

slide a Thrust Washer (66) onto the shoulder of

the Axle Cap. Then, tighten the Button Screw into

the end of the Handlebar Axle (16). Make sure

that the Thrust Washer remains on the shoul-

der of the Axle Cap, and that the Wave Washer

(88) remains on the end of the Handlebar AxJe.

Assemble the Right Handlebar (20) in the same

way. Then, tighten both M8 x 19mm Button Screws

(56) at the same time.

..... 19

Wide side of

pivot tube

58 ::

17-.

Hexagonal

Holes

/17

16 J

Grease

9. Apply a film of grease to the barrel of an M8 x 55mm

Bolt Set (92) and to a 7ram Spacer (55). Slide an

M8 Washer (69) and the Spacer onto the barrel.

While another person holds the front end of the

Left Pedal Leg (14) inside of the bracket on the left

Handlebar Leg (17), insert the barrel of the Bolt

Set (92) through both parts. Next, slide a 7mm

Spacer (55) and an M8 Washer (69) onto the end

of the barrel of the Bolt Set. Then, turn the screw

of the Bolt Set a few turns into the barrel. Do not

ove_ighten the Bolt Set; the Jeft Handlebar Leg

must be able to pivot freely.

Attach the right Handlebar Leg (not shown) to the

Right Pedal Leg (not shown) in the same way.

See step 7. Tighten the four M8 x 38mm Button

Bolts (58).

10. While another person holds the Console (74) near

the Upright (2), connect the Pulse Jumper Wire

(76) to the console pulse wire, and connect the

Upper Wire Harness (77) to the console wire har-

ness. insert the excess wires into the Upright.

Hold the Console (74) against the Upright (2).

Make sure that no wires are pinched. Attach the

Console with four M4 x 16mm Screws (47).

11. Attach the Water Bottle Holder (26) to the Frame

(1) with two M4 x 22ram Screws (57).

Grease 55

i_ 55

12. Make sure that aH parts of the elliptical exerciser are properly tightened. Cover the floor beneath the el=

lipfical exerciser to protect the floor from damage. Note: Some extra hardware may be left over.

To get the best performance from the chest pulse sen-

sor, please read the instructions below.

HOW TO PUT ON THE CHEST PULSE SENSOR

The chest pulse sensor consists of two components:

the chest strap and the sensor unit. Follow the steps

below to put on the chest pulse sensor.

Chest Strap

-- Tab .

Sensor Unit Sensor Buckle

Unit

See the inset drawing above. Insert the tab on one end

of the chest strap through the hole in one end of the

sensor unit as shown. Make sure that the tab is flush

with the sensor unit.

Wrap the chest

pulse sensor /

around your

chest. Attach the

free end of the

chest strap to

the sensor unit

as described

above. Adjust the length of the chest strap, if neces-

sary. The chest pulse sensor should be under your

clothing, against your skin, and as high under the pec-

toral muscles or breasts as is comfortable. Make sure

that the logo is facing forward and is right-side-up.

Pull the sensor

unit away from

your body a few

inches and lo-

cate the two

electrode areas

on the inner

Electrode Areas

side. Using a saline solution such as saliva or contact

lens solution, wet both electrode areas. Then, return

the sensor unit to a position against your chest.

CHEST PULSE SENSOR TROUBLESHOOTING

tf the chest pulse sensor does not function prop=

edy, or if the displayed heart rate is excessively

high or low, try the steps beJowo

Make sure that the chest pulse sensor is worn ex-

actly as described at the left. If the chest pulse sen-

sor does not function when positioned as described,

move it slightly lower or higher on your chest.

Each time you use the chest pulse sensor, use

saline solution such as saliva or contact lens solution

to wet the two electrode areas on the sensor unit. If

heart rate readings do not appear until you begin

perspiring, re-wet the electrode areas.

Make sure that you are within arm's length of the

console. For the console to display heart rate

readings, the user must be within arm's length of

the consoJe.

The chest pulse sensor is designed to work with

people who have normal heart rhythms. Heart rate

reading problems may be caused by medical condi-

tions such as premature ventdcular contractions

(pvcs), tachycardia bursts, and arrhythmia.

The operation of the chest pulse sensor can be af-

fected by magnetic interference caused by high

power lines or other sources. If it is suspected that

magnetic interference may be causing a problem,

try relocating your exercise equipment.

•If the chest pulse sensor still does not function prop-

erly, test the chest pulse sensor in the following way:

Hold the chest

pulse sensor

and place your

thumbs over

the electrode

areas as

shown.

Electrode Areas

Andere Handbücher für Rl 1500 Elliptical

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Reebok Ellipsentrainer Handbücher

Reebok

Reebok 1000 Zx Elliptical Bedienungsanleitung

Reebok

Reebok RBEL73580 Bedienungsanleitung

Reebok

Reebok Elliptical Exerciser/rel2i Benutzerhandbuch

Reebok

Reebok 1000 ZX elliptical exerciser RBEL9906.1 Bedienungsanleitung

Reebok

Reebok T7.90 Elliptical Bedienungsanleitung

Reebok

Reebok SL8.0 Bedienungsanleitung

Reebok

Reebok Crosstrainer C 5.8e Bedienungsanleitung

Reebok

Reebok RBE0995.1 Bedienungsanleitung

Reebok

Reebok RL 900 RBE09950 Bedienungsanleitung

Reebok

Reebok R 5.10 Elliptical Bedienungsanleitung

Reebok

Reebok DMT C 7.5e Bedienungsanleitung

Reebok

Reebok Rl525 Elliptical Bedienungsanleitung

Reebok

Reebok JET 300 Bedienungsanleitung

Reebok

Reebok i-Trainer.SE Bedienungsanleitung

Reebok

Reebok C5.1e Bedienungsanleitung

Reebok

Reebok 710 Elliptical Bedienungsanleitung

Reebok

Reebok R 6.90 Treadmill Bedienungsanleitung

Reebok

Reebok Elliptical Exerciser/rel2i Bedienungs- und Wartungshandbuch

Reebok

Reebok 1000 ZX RBEL9906.3 Bedienungsanleitung

Reebok

Reebok RL 525 RBCCEL79020 Bedienungsanleitung

Reebok

Reebok C5.1e Bedienungsanleitung

Reebok

Reebok ASTRORIDE A4.0 Treadmill Bedienungsanleitung

Reebok

Reebok Elliptical Exerciser/rel2i Bedienungsanleitung

Reebok

Reebok RL 645 RBEL79740 Bedienungsanleitung

Beliebte Ellipsentrainer Handbücher anderer Marken

Weslo

Weslo Momentum 4.0 Elliptical Bedienungs- und Wartungshandbuch

Progear Fitness

Progear Fitness Air elliptical pro 1307 Bedienungsanleitung

Torque Fitness

Torque Fitness XPLLP Bedienungsanleitung

Octane Fitness

Octane Fitness PRO3700C Bedienungsanleitung

Xterra

Xterra FS5.8e Bedienungsanleitung

Bodyguard

Bodyguard E-40 Bedienungsanleitung

Bonn Germany

Bonn Germany Concept 2.2 Bedienungsanleitung

Precor

Precor Resolute RSL 620 Bedienungsanleitung

NordicTrack

NordicTrack E 9.2 Elliptical Bedienungsanleitung

Vision Fitness

Vision Fitness X6600iNetTV Bedienungsanleitung

Matrix

Matrix MX-A5x Bedienungsanleitung

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Bedienungsanleitung

Sears

Sears FREE SPIRIT C249 30737 0 Bedienungsanleitung

True

True FS-64 Bedienungsanleitung

Sport-thieme

Sport-thieme ST 310 Bedienungsanleitung

VIRTUFIT

VIRTUFIT CTR 1.1 Bedienungsanleitung

Kettler

Kettler GIRO C 1 Bedienungsanleitung

CIRCLE FITNESS

CIRCLE FITNESS E7 Bedienungsanleitung
