ROSE DISPLAYS ANOQUICK SQUARE WITH CABLE CLIP AND CABLE AND... Bedienungsanleitung

35 Congress Street, Salem, MA 01970

Tel# 1-800-631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Parts

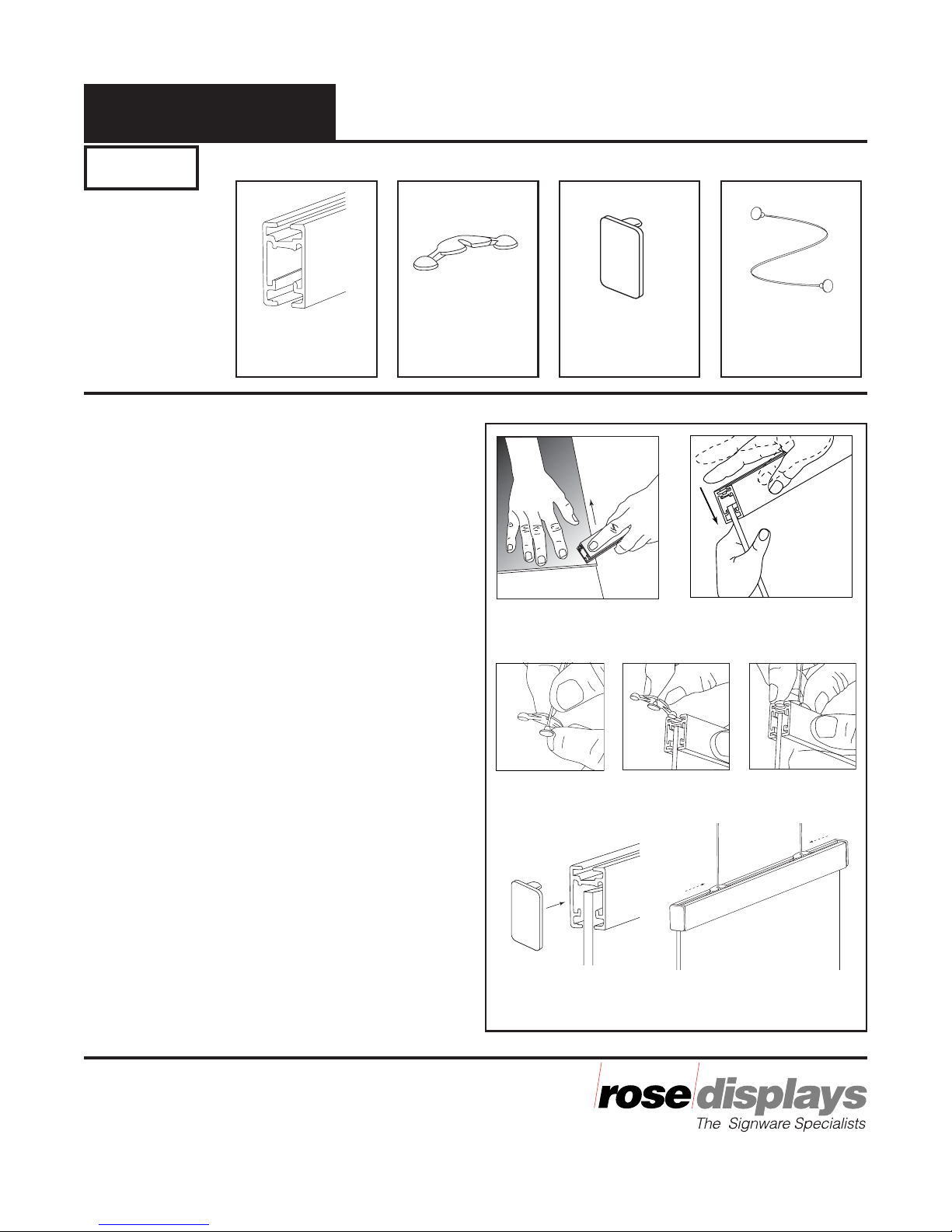

Square Profile Instruction Sheet

Step 1

Prepare edges of graphic. Place the graphic on

tabletop with one edge at the table edge. Using

the AnoQuick holder, run it across the graphic

edge, crushing it slightly. Fig. 1

Step 2

Starting at one corner, push the holder onto the

graphic. Work your way down the holder tapping

it down firmly to seat the graphic fully. Fig. 2

Step 3

Place cable onto inner channel of Cable Clip. The

cable should snap into place. Fig. 3

Step 4

Align one end of the Cable Clip with the top

channel of the aluminum holder. Then insert one

round end, then press down on the other round

end and slide Cable Clip into rail. Fig. 4

Step 5

Push end caps into place. Fig. 5

Step 6

Suspend poster. Fig. 6

Important note:

Please save and reuse the AnoQuick, Cable Clips,

End Caps and MultiClips for future projects.

Note: Use only

with graphics

mounted on 3/16”

foamboard or other

similar thickness.

Can also use a

folded edge thinner

substrate.

AnoQuick™

Instructions For Hanging

Incept-9.27.02

Figure 2

The AnoQuick is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSAnoQuickSQCableClipSaucer

Figure 6

Figure 5

Figure 1

Figure 3 Figure 4

End Caps

06-5545

AnoQuick

12A300SQ

Cable Clips

06-5050

Cable and

Saucer

16-0018SS

35 Congress Street, Salem, MA 01970

Tel# 1-800-631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Parts

Note: Use only

with graphics

mounted on 3/16”

foamboard or other

similar thickness.

Can also use a

folded edge thinner

substrate.

Instructions For Hanging

Step 1

Prepare edges of graphic. Place the graphic on

tabletop with one edge at the table edge. Using

the AnoQuick holder, run it across the graphic

edge, crushing it slightly. Fig. 1

Step 2

Starting at one corner, push the holder onto the

graphic. Work your way down the holder tapping

it down firmly to seat the graphic fully. Fig. 2

Step 3

Place cable onto inner channel of Cable Clip. The

cable should snap into place. Fig. 3

Step 4

Align one end of the Cable Clip with the top

channel of the aluminum holder. Then insert one

round end, then press down on the other round

end and slide Cable Clip into rail. Fig. 4

Note: For OneUp applications, the AnoQuick

holder is conveniently marked in the center.

Slide the Cable Clip to the mark.

Step 5

Push end caps into place. Fig. 5

Step 6

Suspend poster. Fig. 6

Important note:

Please save and reuse the AnoQuick, Cable Clips,

End Caps and MultiClip for future projects.

Incept-9.27.02

The AnoQuick is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSAnoQuickSQCableClipSaucer

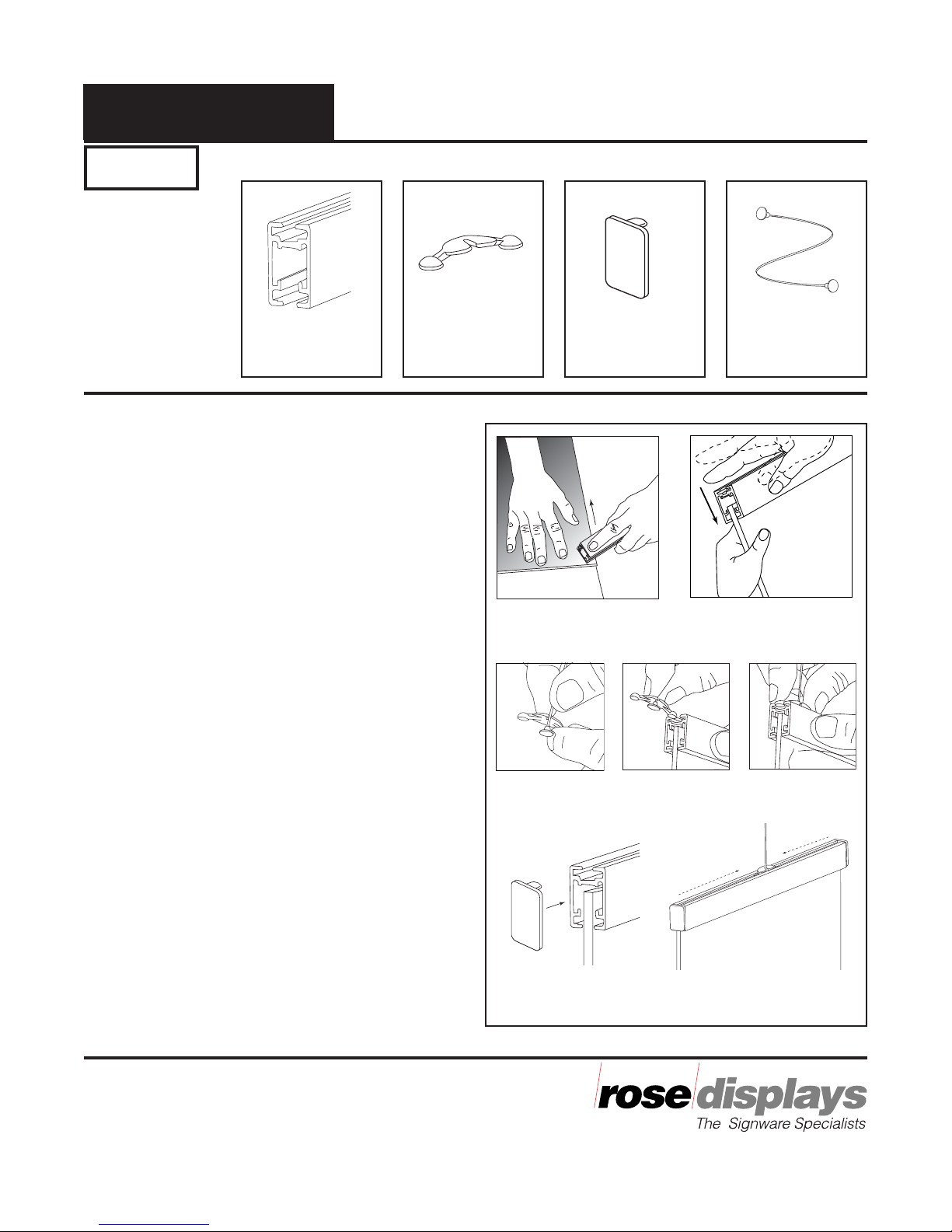

Square Profile OneUp

Instruction Sheet

AnoQuick™

Figure 2

Figure 6

Figure 5

Figure 1

Figure 3 Figure 4

End Caps

06-5545

AnoQuick

12A300SQ

Cable Clip

06-5050

Cable and

Saucer

16-0018SS

Parts

Note: Use only

with graphics

mounted on 3/16”

foamboard or other

similar thickness.

Can also use a

folded edge thinner

substrate.

Instructions For Hanging

Incept-9.27.02

The AnoQuick is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSAnoQuickSQCableClipSaucer

Step 1

Prepare edges of graphic. Place the graphic on

tabletop with one edge at the table edge. Using

the AnoQuick holder, run it across the graphic

edge, crushing it slightly. Fig. 1

Step 2

Starting at one corner, push the holder onto the

graphic. Work your way down the holder tapping

it down firmly to seat the graphic fully. Fig. 2

Step 3

Place cable onto inner channel of Cable Clip. The

cable should snap into place. Fig. 3

Step 4

Align one end of the Cable Clip with the top

channel of the aluminum holder. Then insert one

round end, then press down on the other round

end and slide Cable Clip into rail. Fig. 4

Step 5

Push end caps into place. Fig. 5

Step 6

Suspend poster. Fig. 6

Important note:

Please save and reuse the AnoQuick, Cable Clips,

End Caps and MultiClips for future projects.

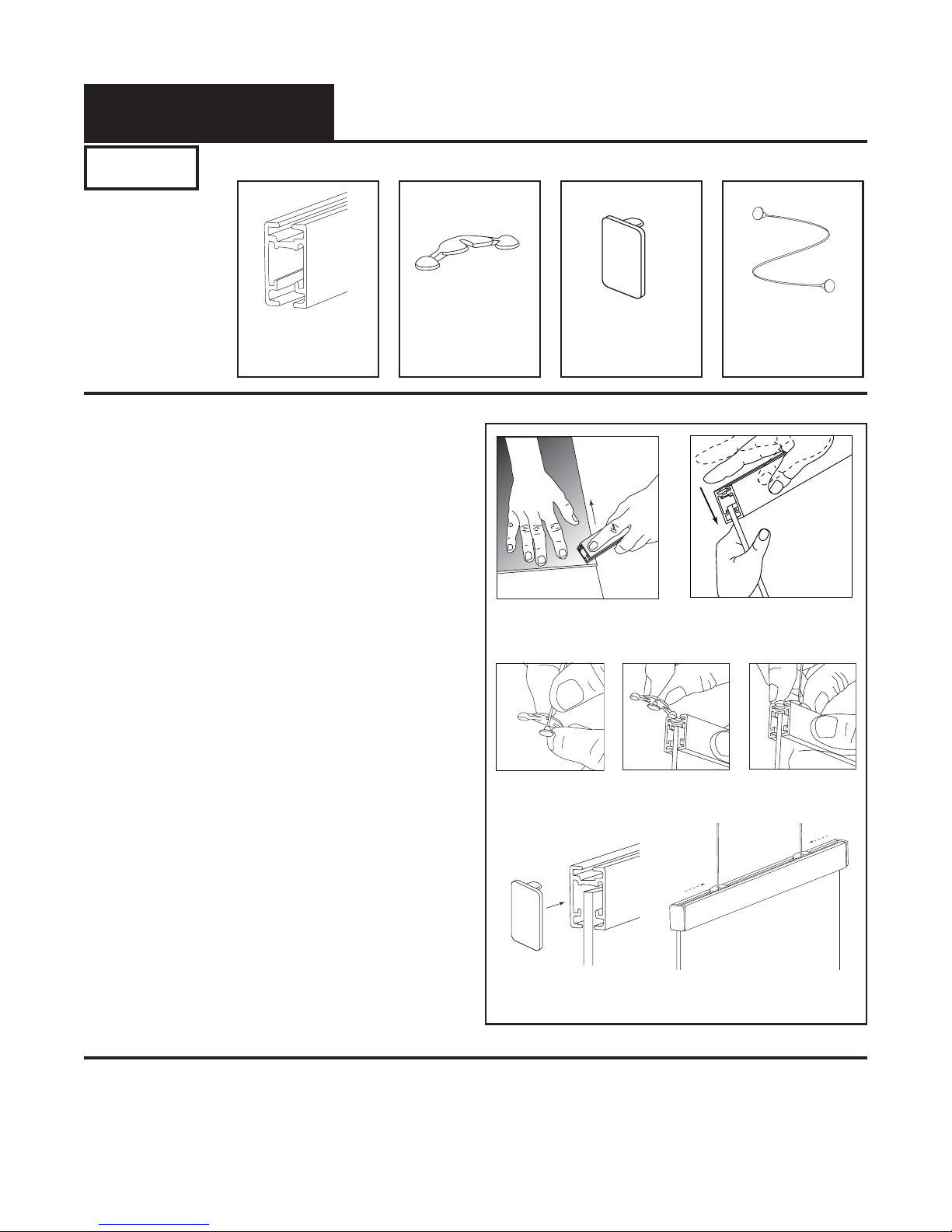

Square Profile Instruction Sheet

AnoQuick™

Figure 2

Figure 6

Figure 5

Figure 1

Figure 3 Figure 4

End Caps

06-5545

AnoQuick

12A300SQ

Cable Clips

06-5050

Cable and

Saucer

16-0018SS

Parts

Note: Use only

with graphics

mounted on 3/16”

foamboard or other

similar thickness.

Can also use a

folded edge thinner

substrate.

Instructions For Hanging

Incept-9.27.02

End Caps

06-5545

AnoQuick

12A300SQ

The AnoQuick is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSAnoQuickSQCableClipSaucer

Cable Clip

06-5050

Step 1

Prepare edges of graphic. Place the graphic on

tabletop with one edge at the table edge. Using

the AnoQuick holder, run it across the graphic

edge, crushing it slightly. Fig. 1

Step 2

Starting at one corner, push the holder onto the

graphic. Work your way down the holder tapping

it down firmly to seat the graphic fully. Fig. 2

Step 3

Place cable onto inner channel of Cable Clip. The

cable should snap into place. Fig. 3

Step 4

Align one end of the Cable Clip with the top

channel of the aluminum holder. Then insert one

round end, then press down on the other round

end and slide Cable Clip into rail. Fig. 4

Note: For OneUp applications, the AnoQuick

holder is conveniently marked in the center.

Slide the Cable Clip to the mark.

Step 5

Push end caps into place. Fig. 5

Step 6

Suspend poster. Fig. 6

Important note:

Please save and reuse the AnoQuick, Cable Clips,

End Caps and MultiClip for future projects.

Square Profile OneUp

Instruction Sheet

AnoQuick™

Figure 2

Figure 6Figure 5

Figure 1

Figure 3 Figure 4

Cable and

Saucer

16-0018SS
