Rose electronics CrystalView Rack CRV-12SLP Betriebsanleitung

CrystalView Rack

10707 Stancliff Road Phone: (281) 933-7673

Houston, Texas 77099 WWW.ROSE.COM

Installation and Operations

Manual Supplement

PC-Single 6-port

Model CRV-6SLP

PC-Single Serial/Audio

Model CRV-6SLP/AUD

PC-Dual 6-port

Model CRV-6DLP

PC Dual Serial/Audio

Model CRV-6DLP/AUD

PC-Single 12-port

Model CRV-12SLP

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or

any means, electronic or mechanical, including photocopying and recording, without the prior written

permission of Rose Electronics.

Rose Electronics Part # MAN-SUPP-CRV 2.5

Printed In the United States of America - Revision 2.5

Features

Extend six or twelve KVM stations from the CPUs using a single

CAT-5 twisted pair, solid core cable. (Up to 1,000 feet)

Available in PC single and dual models with optional Serial/Audio

Package contents

The package contents consist of the following:

The CrystalView Local Rackmount Unit

The Installation and operations manual is included

with Remote unit shipments only. Additional manuals

are available on our web site at www.rose.com

Installation supplement

Optional power adapter (Auto-switching transformer)

A remote CrystalView unit is needed for each local CrystalView used.

Cables are usually ordered separately. If the package contents are not

correct, contact Rose Electronics or your reseller, so the problem can

be quickly resolved.

About this supplement

This supplement covers the installation of the CrystalView PC, Multi-

unit Rackmount model. Refer to the CrystalView installation and

operations manual for additional information and the warranty

statement.

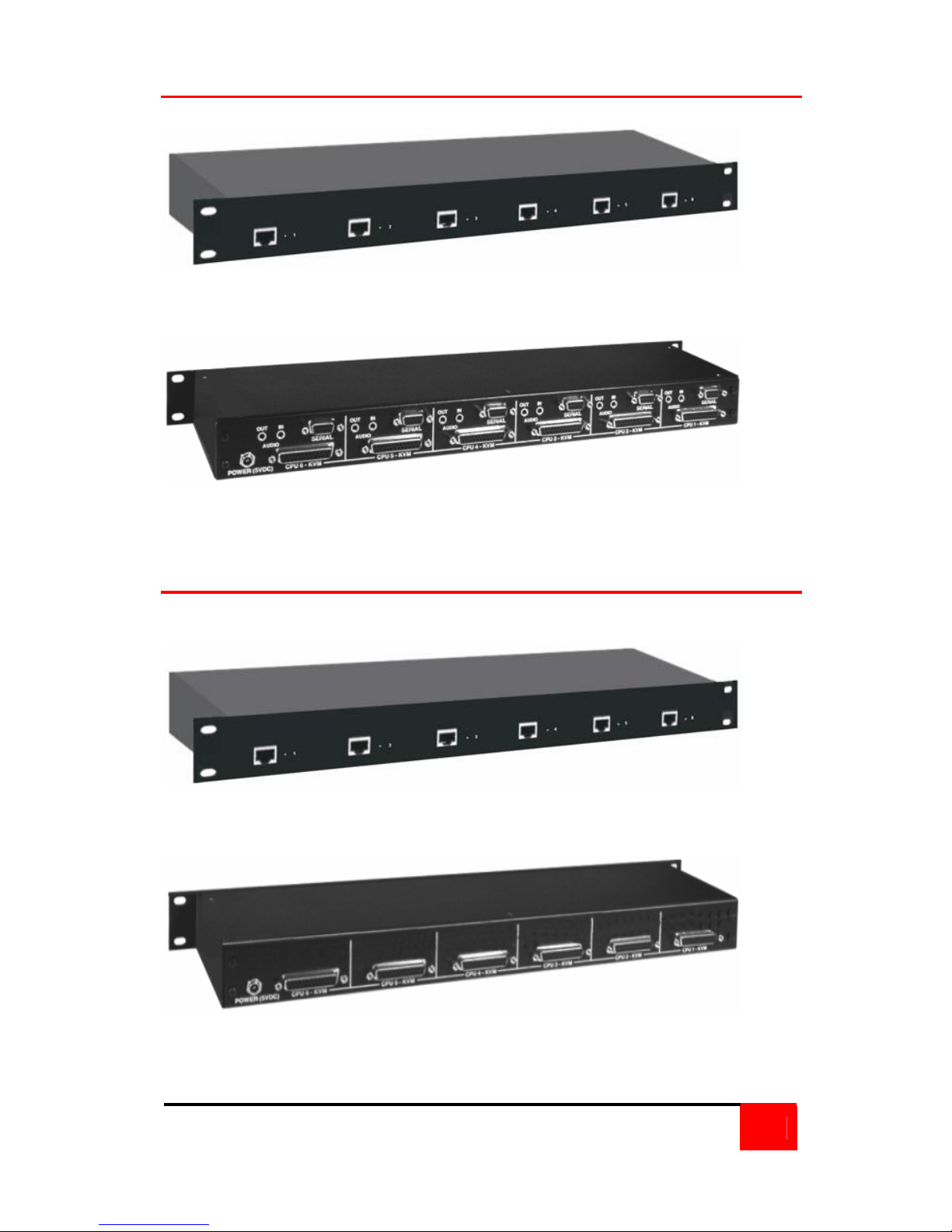

PC - 6 Unit model (Serial/Audio)

Front Panel

6-RJ45 – CAT-5 cable connection

Rear Panel

6-DB25F – CPU / KVM connections

12-3.5mm stereo audio jacks (Audio in/out)

6-DB9F Serial cable connections

PC - 6 Unit model

Front Panel

6-RJ45 – CAT-5 cable connection

Rear Panel

6-DB25F – CPU / KVM connections

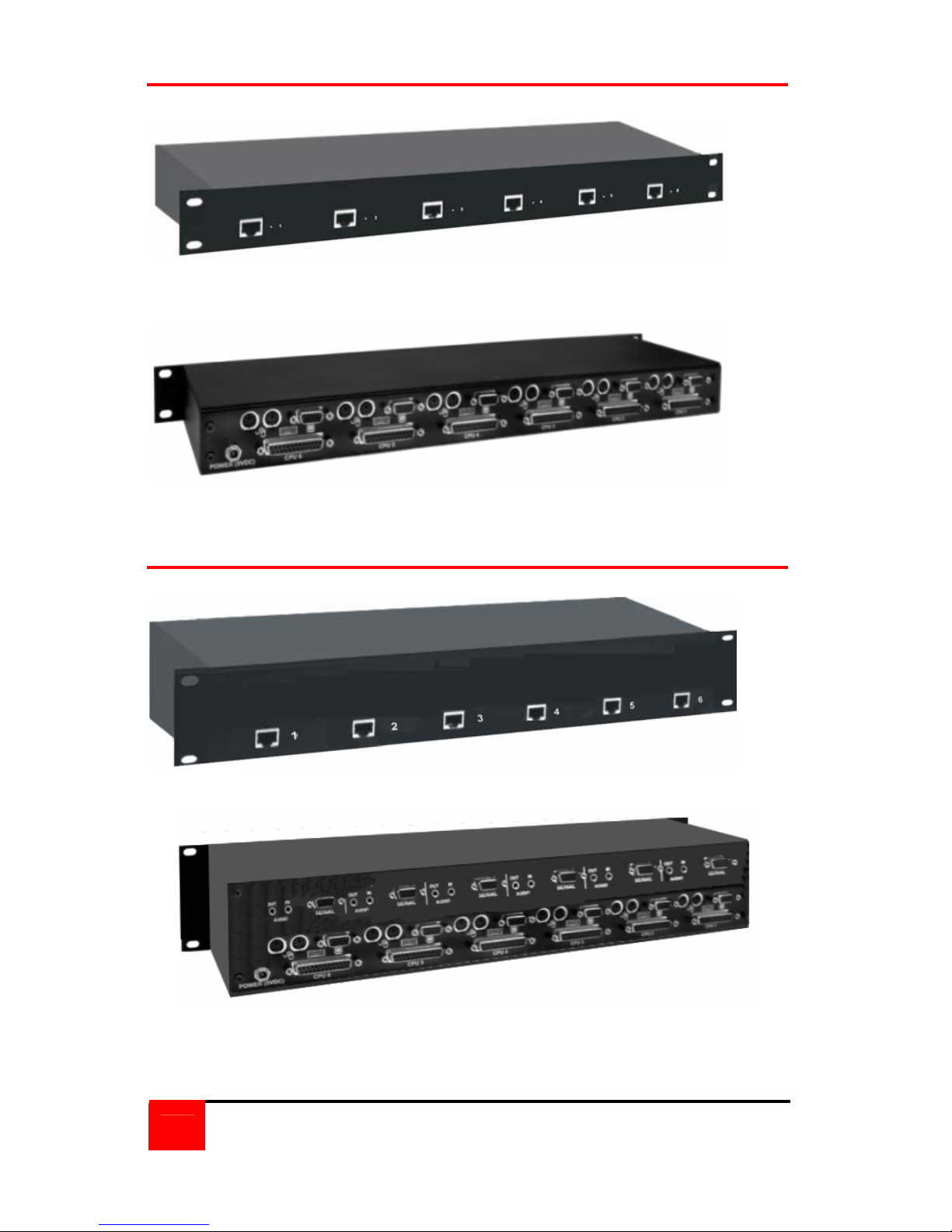

PC - 6 Unit Dual model

PC - 6 Unit Dual model with serial/ / audio

Front panel

6-RJ45 – CAT-5 cable connection

Rear panel

6-DB25 – CPU/KVM connections 6-DB9 serial connectors

12-MiniDin6 KBD/Mouse 12-3.5mm audio in/out

6-HD15 monitor

Front Panel

6-RJ45 – CAT-5 cable connection

Rear panel

6-DB25F – CPU / KVM connections 12-MiniDin6 KBD/Mouse

6-HD15 Monitor

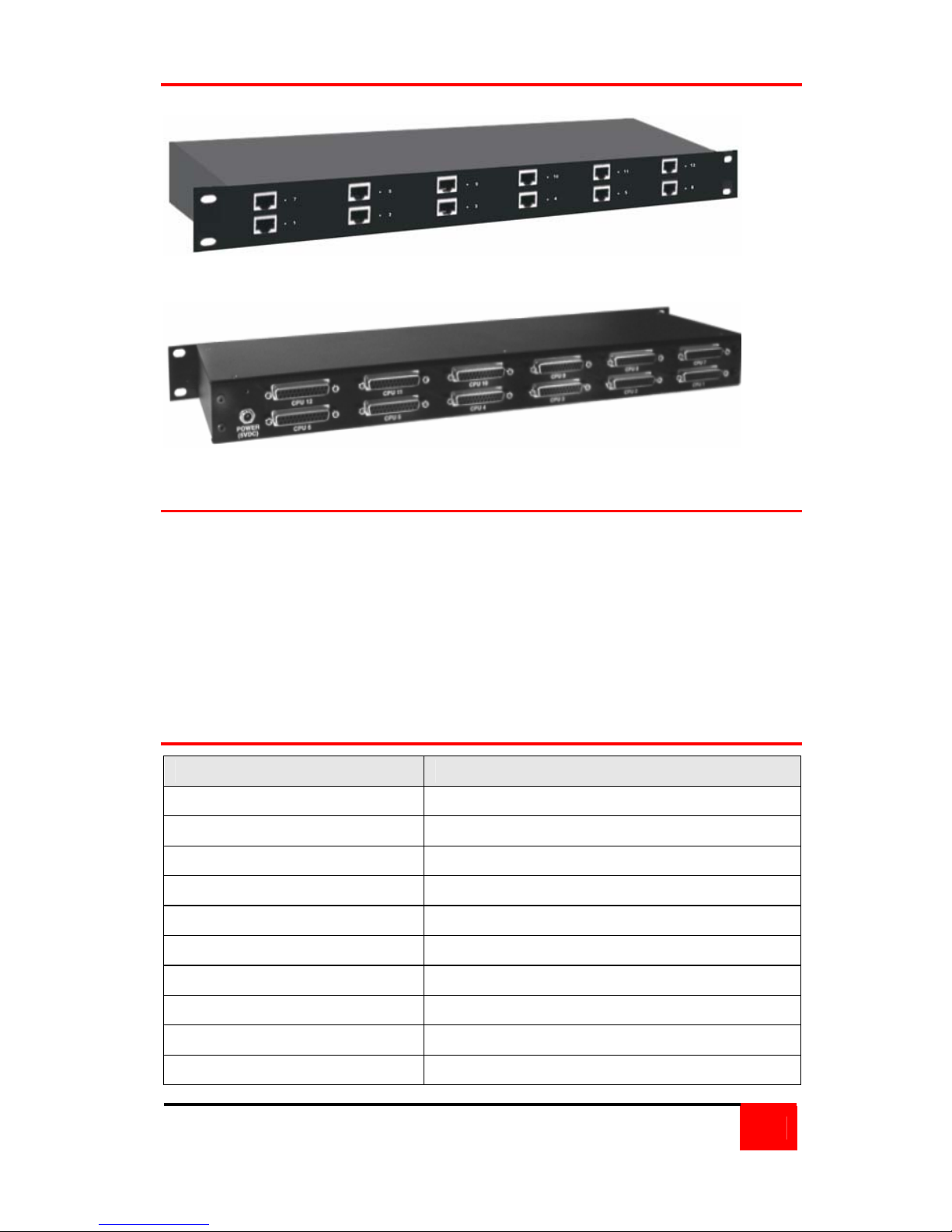

PC - 12 Unit model

Front Panel

12-RJ45 – CAT-5 cable connection

Rear Panel

12-DB25F – CPU / KVM connections

Installation

Please refer to the installation procedures in the CrystalView manual

for your model. A detailed installation procedure for your model is

outlined in the CrystalView manual.

A remote unit is needed for each module used. The cable length

jumpers on the remote unit must be set for each unit according to the

jumper-setting table in the manual. For CAT5 cable distances less

than 150 feet, the CrystalView MINI remote unit can be used.

Part number and description table

Part Number Description

CRV-6SLP/AUD 6-Single Local CrystalViews w/audio

CRV-6SLP 6-Single Local CrystalViews

CRV-6DLP 6-Dual Local CrystalViews

CRV-6DLP/AUD 6-Dual local CrystalViews w/audio

CRV-12SLP 12-Single Local CrystalViews

CAB-08UTPnnn* CAT-5 UTP cable

CAB-CXV66MMnnn* Local to CPU cable

CAB-SPMMnnn* 3.5mm stereo audio cable

CAB-D9MFnnn* CPU to Local serial input cable

TFR-05D400FSUP Optional external power supply

* nnn = cable length in feet

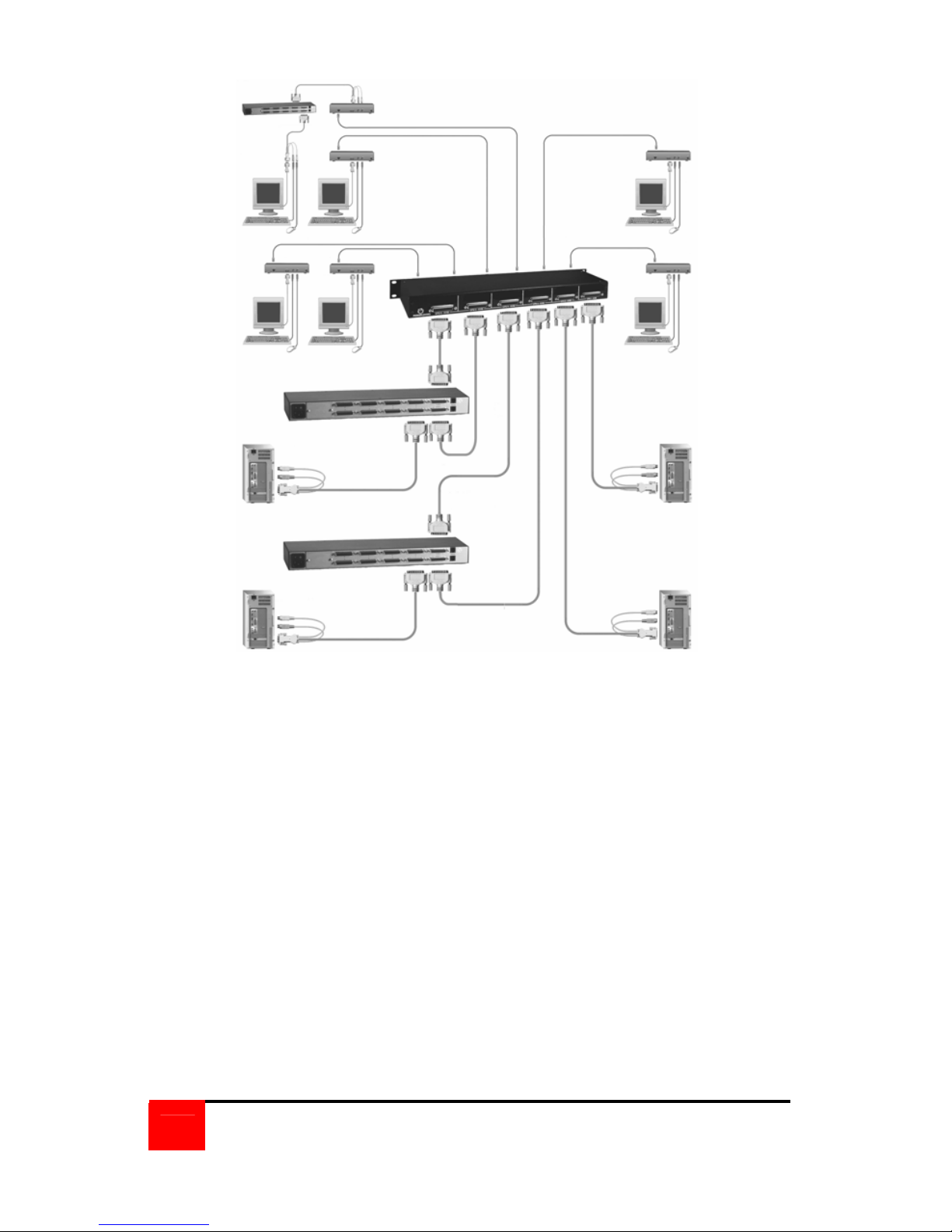

The above diagram shows the versatility of the CrystalView Cat5 rack.

The CrystalView Cat5 Rack can connect to standalone computers or

KVM switches using the appropriate cables. KVM stations connected

to a CrystalView remote unit can be up to 1000 feet (150 feet using a

CrystalView MINI remote unit) from the CrystalView Cat5 rack. A

remote CrystalView unit is needed for each module used in the

CrystalView Cat5 rack.

Any of the CrystalView Cat5 rack models can use the same type of

connections shown above. The serial/audio model can take advantage

of routing the remote CPUs serial and audio data to the local KVM

station.

Remote

Units

KVM

Stations

Local

KVM

Switch

1 of 8

CPUs

Remote

KVM

Switch

KVM

Stations

Local

KVM

Switch

1 of 8

CPUs

Remote

Units

KVM

Station

Remote

Units

KVM

Station

Standalone

CPU

Standalone

CPU

Rack mount instructions

To rack mount your CrystalView, attach the two rack mounting brackets

on your Unit to the rack using the appropriate size bolts, nuts and lock

washers.

The following guidelines should be observed when installing.

a). Do not exceed the operating temperature of 0οC to 45οC.

b). Do not block power supply vents or restrict airflow.

c). Mechanical loading of the rack should be considered to prevent

instability and possible tipping over.

d). Tighten all connectors securely and provide adequate strain relief

for all cables.

e). Provide a grounded power source to all Units. Pay special

attention to overall branch circuit load ratings before connecting

equipment to this source. Overloaded circuits are potential fire

hazards and can cause equipment failures or poor performance.

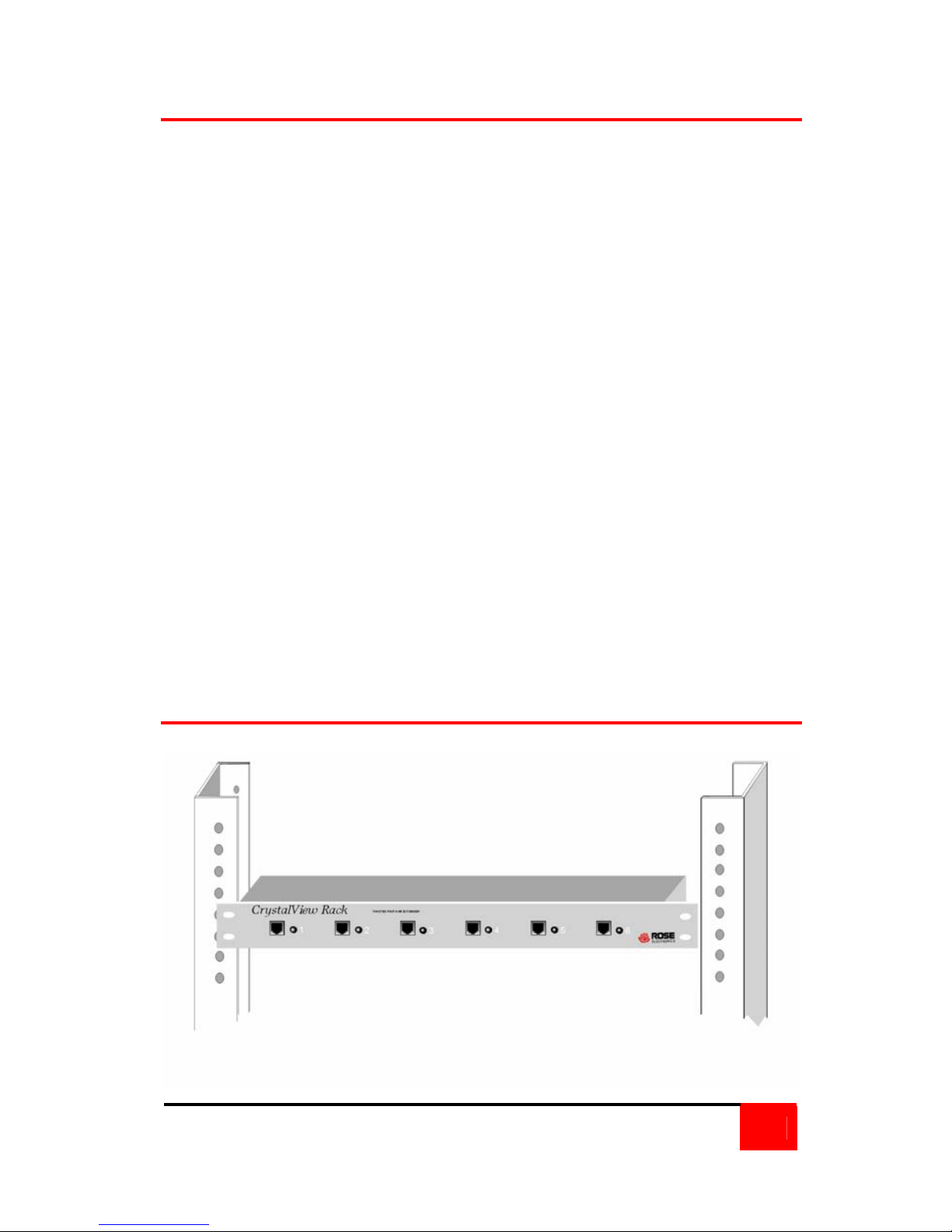

Rack mount illustration

10707 Stancliff Road Phone: (281) 933-7673

Houston, Texas 77099 WWW.ROSE.COM
