CrystalView Plus

WWW.ROSE.COM

CAT5/CAT6 KVM extender

Extends keyboard, video, mouse, audio and serial

up to 1,000' over CAT5/6 cable

Video resolutions up to 1600 x 1200

Supports PC, serial, and audio

Video tuning is made easy with simple

keyboard commands

Skew compensation to support CAT5, CAT5e,

and Cat6 cable

Available in single, dual or quad video

Features and Benefits

JSingle, dual, or quad video models available

JVideo resolutions up to:1600 x 1200 @ 60Hz (650’)

1280 x 1024 @ 75Hz (1000’)

JIntegrated skew adjustments for compensating

different CATx cable types

JIndependent low and high frequency equalization

adjustments

JAll control and video adjustments are easily made

with simple keyboard commands

JAudio options:

JFull stereo audio can be transmitted either

direction across the link (simultaneously)

JDigital CD quality audio

JSupports stereo speakers and microphone

JSerial option:

JSupports serial baud rates up to 19.2 baud

JSupports Transmit, Receive, and two

hardware handshaking lines

JFull keyboard and mouse emulation

JCompatible with Rose Electronics KVM switches

JCompatible with Windows, UNIX, Linux,

and other operating systems

JAll settings stored in flash memory

JRackmount kits available in 19”, 23”, or 24” sizes

The CrystalViewTM Plus Advantage .

The CrystalView Plus series of enhanced KVM

extenders allow you to position your KVM station up

to 1,000 feet (300 meters) away from your computer

using a single CATx cable. If your computer supports

dual or quad video, the CrystalView Plus dual or quad

model can fully support it.

The CrystalView Plus has gone one step further and

eliminated adjustment knobs and jumper switch

settings. Integrated controls that adjust for skew, low

and high frequency equalization, and RGB delay for

each channel have been made easy by simple

keyboard commands.

Each channel (single, dual, or quad) can be adjusted

independently or global settings can be applied for all.

These adjustments make for a crystal clear image

using CAT5, CAT5e, or CAT6 cabling.

The stereo audio option produces low-noise CD

quality sound. Speakers, headphones, or a powered

or un-powered microphone can be connected to the

remote unit. It’s perfect for call centers, trader’s

desks, kiosks, TV stations, and other applications

where multiple video sources are used and need to be

extended from the computer.

The bi-directional serial option allows you to connect a

touchscreen, digital tablet, serial printer or other

supported serial device to the remote location. No

set-up is needed; just connect the serial

device to the serial port and it’s ready to

use.

View single, dual, and quad video

1,000 feet away

Phone: 281-933-7673 E-mail: [email protected] 

10707 Stancliff Rd. Houston, TX 77099

Rose Electronics – Europe: +49 (0)2454 969442 Rose Electronics – Asia: +65 6324 2322

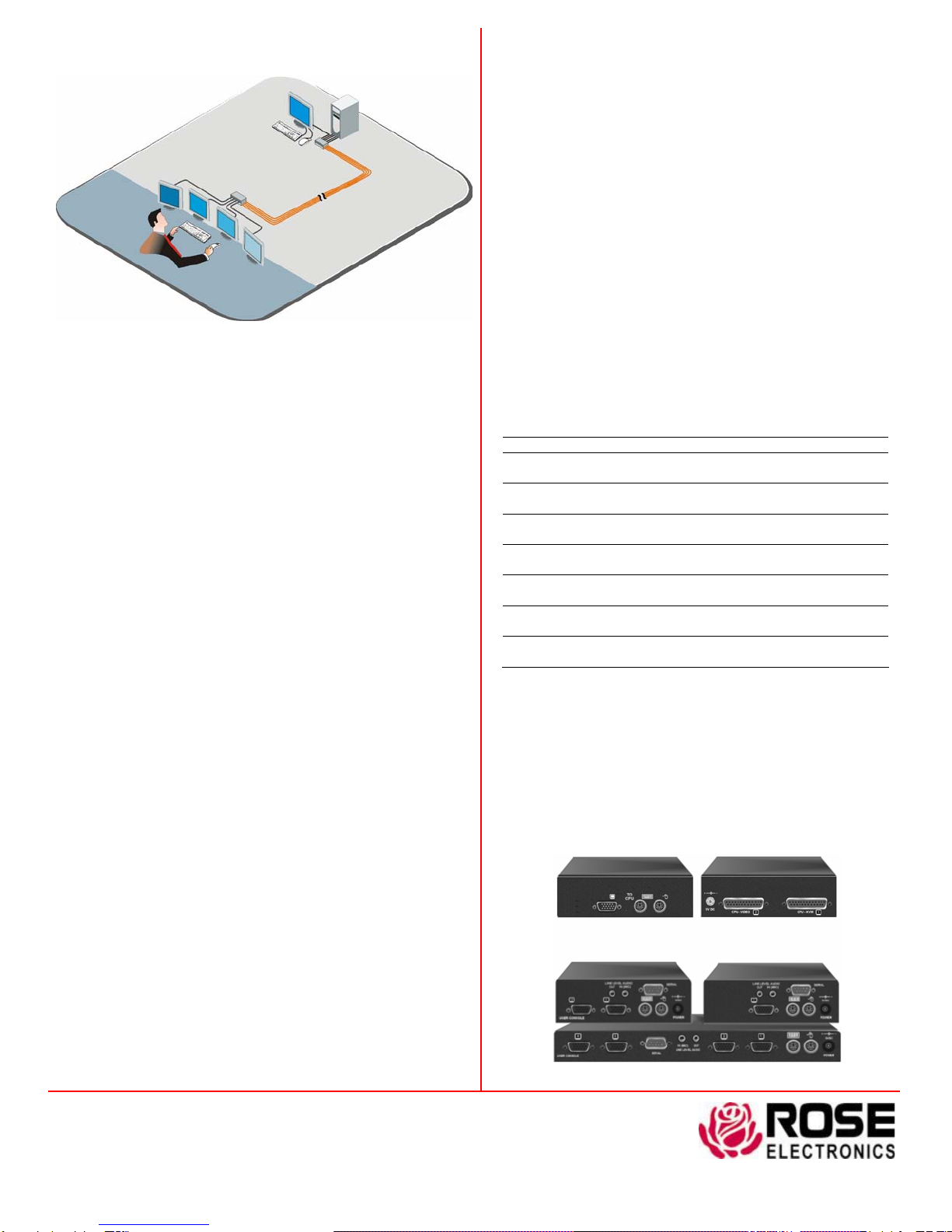

Typical Application

View 4 video sources

Overview The CrystalView Plus series CATx KVM extenders are

usually sold in pairs, a local unit and a remote unit. The local unit

connects to your computer or KVM switch and the remote unit

connects to a keyboard, monitor, and mouse. The Local and remote

unit are connected together with standard CAT5, CAT5e, or CAT6

cable. To compensate for these different cable types, the CrystalView

Plus has a built-in RGB compensator that can incrementally adjust the

red, green, and blue color delay in 2.8ns increments. This and the

skew compensation provide for a crystal clear image using any CATx

type cable. All configuration and video tuning is performed using

simple keyboard commands from the remote unit.

Installation Installing the CrystalView Plus is as simple as

connecting the computer or KVM switch to the local unit, a KVM

station to the remote unit and connecting the local and remote units

together with CATx cable. Using standard CAT5 cable, no

compensation, or very little is needed. If you’re using other than CAT5

cable or several patch panels, some compensation may be needed.

This is easily done using simple keyboard commands.

Extending to a Rose switch In addition to extending a KVM

station from a computer, you can also connect the local unit to a KVM

switch providing access up to 1,000 computers.

Local access features The single and dual video models offer

an additional KVM station on the local unit providing both local and

remote unit access.

Part Numbers

CRK-1P1V PS/2 KVM Extender kit, Single video

CRK-1P2V PS/2 KVM Extender kit, Dual video

CRK-2P1V Single video, local/remote access

CRV-SL1 Single video, local KVM extender

CRV-DL1 Single video, Dual local KVM extender

CRV-SL2 Dual video, local KVM extender

CRV-R1V Single video, remote KVM extender

CRV-R2V Dual video, remote KVM extender

CRV-R4V Quad video, remote KVM extender

/AUD suffix Audio & Serial option

RM-BR1 Rack Mount brackets for:

CRV-SL1, CRV-SL1/AUD

CRV-DL1, CRV-DL1/AUD

RM-BR3 Rack Mount shelf for:

CRV-R1V, CRV-R1V/AUD

CRV-R2V, CRV-R2V/AUD

CRV-R4V, CRV-R4V/AUD

CRV-SL2, CRV-SL2/AUD

Note: CRK part numbers consist of a local unit and a

remote unit

Specifications

Dimensions Width Depth Height Weight

CRK-1P1V/2P1V (in)

(mm) 7.76

197 3.94

100 1..38

35 2.20 lbs

1.0 kg

CRK-1P1V/2P1V (in)

with audio (mm) 7.76

197 3.94

100 1.73

44 2.87 lbs

1.3 kg

CRK-1P2V (in)

(mm) 4.33

110 5.75

146 1.14

29 1.76 lbs

0.8 kg

CRK-1P2V (in)

with audio (mm) 4.33

110 5.75

146 1.73

44 2.65 lbs

1.2 kg

CRV-R1V/R2V (in)

(mm) 5.51

140 5.71

145 1.14

29 2.65 lbs

1.2 kg

CRV-R1V/R2V (in)

with audio (mm) 5.51

140 5.71

145 1.73

44 2.87 lbs

1.3 kg

CRV-R4V (in)

W /wo audio (mm) 10.8

275 5.71

145 1.14

29 3.75 lbs

1.7 kg

Resolution 1600 x 1200 (60Hz) @ 650’

1280 x 1024 (75Hz) @ 1,000’

Skew 2.8ns steps / 42ns max/color

Connectors Keyboard / Mouse – PS/2 – miniDin6

Video – HD15M/F

Interconnect – RJ45

Serial – DB9M/F

Audio – 3.5mm stereo jack

Power Remote – 9.0VDC adapter

Local – Supplied from CPUs

Approvals FCC-A, CE

Rear view Remote units (Single / Dual / Quad)

Up to 1,000 ft

Computer with 4

video cards

Local KVM

Remote KVM

Rear view Local units (Single / Dual)
