User Guide

Ruckus Wireless

ZoneFlex 2925/2942 Access Point

Legal Information

Trademarks

Ruckus Wireless ZoneFlex™ 2825/2925/2942 Access Points,

BeamFlex™, MediaFlex™, MediaFlex 2900 Multimedia Access

Point, MediaFlex 2501 Multimedia Wireless Adapter, 2825 Wire-

less Multimedia Router, 2111 Wireless Multimedia Adapter, and

MM2211/MM2225 Metro Broadband Gateways are trademarks of

Ruckus Wireless Web Interface

All other brands and product names are registered trademarks of

their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function,

and/or reliability, Ruckus Wireless, Inc. reserves the right to make

changes to the products described in this document without

notice.

Ruckus Wireless, Inc. does not assume any liability that may

occur due to the use or application of the product(s) or circuit lay-

out(s) described herein.

Federal Communications Commission (FCC) Compliance Notice:

Radio Frequency Notice

The device has met the FCC 15.247 requirement. In order to com-

ply with the FCC RF exposure requirement, the user must keep

20cm away from the antenna.

This device has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

device generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. How-

ever, there is no guarantee that interference will not occur in a par-

ticular installation. If this device does cause harmful interference

to radio or television reception, which can be determined by turn-

ing the equipment off and on, the user is encouraged to try to cor-

rect the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to oper-

ate the equipment.

Information to the user

The user’s manual or instruction manual for an intentional or unin-

tentional radiator shall caution the user that changes or modifica-

tions not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equip-

ment. In cases where the manual is provided only in a form other

than paper, such as on a computer disk or over the Internet, the

information required by this section may be included in the manual

in that alternative form, provided the user can reasonably be

expected to have the capability to access information in that form.

EN 55 022 Declaration of Conformance

This is to certify that the ZoneFlex 2925 and 2942 Access Points

are shielded against the generation of radio interference in accor-

dance with the application of Council Directive 89/336/EEC, Arti-

cle 4a. Conformity is declared by the application of EN 55 022

Class B (CISPR 22).(Other agency certifications go here)

Part number: USM-ZF2925-RKS1-081307-01

EDITION: August 13, 2007 -- vA

Contact Information

Headquarters — United States

Telephone

U.S.: +1 408-111-2345

Support

http://www.ruckuswireless.com

Web/email

www.ruckuswireless.com

iii

Contents

Chapter 1: Are You a Wi-Fi Hotspot Operator?. . . . . . . . . . . . . . . . . . . . . . 1

Where exactly should you place the Access Point? . . . . . . . . . . . . . . . . . . . . 3

What’s next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2: Installation, Setup, and Placement of the AP . . . . . . . . . . . . . . 4

What’s in the Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Features of the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Preparing the Access Point for Network Use . . . . . . . . . . . . . . . . . . . . . . . 10

Troubleshooting the Initial Setup Connection . . . . . . . . . . . . . . . . . . . . . . 16

What’s Next?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chapter 3: After the Installation (Post-Installation Setup) . . . . . . . . . . . 18

Opening the Web User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the Administrator Login Settings . . . . . . . . . . . . . . . . . . . . . . . . 21

Activating other Administrator Access Options . . . . . . . . . . . . . . . . . . . . . 22

Changing the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Customizing Common Wireless Configuration . . . . . . . . . . . . . . . . . . . . . . 25

Customizing Wireless Hotspot Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Customizing Wireless WEP Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Customizing Wireless WPA Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Customizing 802.1x (Settings) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Reviewing Current VLAN IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Chapter 4: Managing the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Maintaining your HotSpot AP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Rate Limiting HotSpots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Access Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

VLANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Renewing or Releasing DHCP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Upgrading the AP Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Rebooting the AP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Restoring the AP to Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . 57

Chapter 5: Monitoring Activity in the Access Point. . . . . . . . . . . . . . . . . . 58

Monitoring WLAN Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Monitoring Local Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Activating the AP Log and Sending the Log to a

Syslog Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Reviewing the Latest Log File Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Sending a Copy of the Log File to Support Staff. . . . . . . . . . . . . . . . . . . . . 61

Running Diagnostics on Network Connections . . . . . . . . . . . . . . . . . . . . . . 63

CHAPTER 1

Are You a Wi-Fi

Hotspot Operator?

Then you’ll appreciate learning about your new Ruckus Wireless hotspot access point,

before you get started.

What can a Hotspot Access Point do for you?

You’re occupying a large space, with lots of users, and you’d like to make it a Wi-Fi hotzone.

Let’s make it easy for you; there’s an active Internet connection from a local ISP (DSL, cable

or other), and you’ve got a modem—as shown here.

FIGURE 1-1

Ruckus Wireless ZoneFlex 2925/2942 User Guide | Are You a Wi-Fi Hotspot Operator?

Is there a switch connected to the modem? If not, you’ll need to hook one up to your

modem—as shown below.

After preparing the Ruckus Wireless AP for network use, you can place it (as shown below)

where it can broadcast the strongest signal to as many users as possible.

As the picture suggests, you should mount it high on the wall or on the ceiling.

After you mount the AP, then connect it to the switch and power it up, your hotspot/hot-

zone is ready for use—as shown below.

FIGURE 1-2

FIGURE 1-3

FIGURE 1-4

Ruckus Wireless ZoneFlex 2925/2942 User Guide | Are You a Wi-Fi Hotspot Operator?

Where exactly should you place the

Access Point?

After you’ve prepared the AP for network hotspot connections, you should place it in the

most strategic place in your work/business site. That means two things:

• You want the AP as “visible” as possible to as many potential users, and

• You don’t want it near anything that would impede the signal

Helpful recommendations are listed in “Placing the AP in your site” on page 15.

What you should know before starting

To install, set up and customize a new AP you must use the following:

• A desktop or laptop computer, running Microsoft Windows 2000 or XP.

You must also use one of the following Web browsers for setup:

• Internet Explorer version 6.0 and later

• Netscape version 8.1 and later

• Firefox version 1.5.0.6 and later

What’s next?

Now you can get started configuring your new Ruckus Wireless AP for use, as described in

the next chapter.

CHAPTER 2

Installation, Setup, and

Placement of the AP

This chapter describes how to set up a Ruckus Wireless Hotspot access point for use in a

Wi-Fi hotzone. This includes an important preliminary task: reconfiguring your PC/laptop to

connect to the Ruckus AP through the Web User Interface. At the conclusion of setup, this

chapter will guide you in resetting your PC for normal use, then guide you in placing and

connecting your Wireless Hotspot AP for use.

Chapter Contents

•“What’s in the Package”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

•“Features of the Access Point” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

•“Preparing the Access Point for Network Use” . . . . . . . . . . . . . . . . . . . . . . 10

•“Troubleshooting the Initial Setup Connection” . . . . . . . . . . . . . . . . . . . . . 16

•“What’s Next?” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

NOTE This chapter repeats the same information that you may already have read in the companion

publication Quick Setup Guide (QSG). But this chapter adds a few more technical details,

and is included for the benefit of any readers who don’t have a copy of the QSG and who

want to prepare their hotspot AP for use.

Ruckus Wireless ZoneFlex 2925/2942 User Guide | Installation, Setup, and Placement of the AP

What’s in the Package

When you first open the package, you should find one of each of the following:

• A Ruckus Wireless ZoneFlex 2925 or 2942 Access Point

• A 3-foot (0.9 meter) Cat5 Ethernet cable

• A power supply adapter

• A wall mounting kit, plus printed instructions

Before proceeding, review the following section to familiarize yourself with the physical

features of the access point (AP).

Features of the Access Point

ZF2925 Features

The following illustration shows the front view of a ZF2925 AP, highlighting the four LED

indicators that can be used to assess both device and network status.

FIGURE 2-1: Front view

[1] Power

[2] WAN Connectivity

[3] Wireless Device Association

[4] Signal Quality

For more information on what each LED’s

lights may indicate, see the “LED” table on

the next page.

Ruckus Wireless ZoneFlex 2925/2942 User Guide | Installation, Setup, and Placement of the AP

The following illustration shows the rear view of the ZF2925 AP and its major features.

LED If you see this... This is happening...

• If this LED is dark

• If green

• No power is available, or the AP is not connected to a power source.

• Power is available.

• If this LED is dark

• If steady yellow

• If flashing yellow

• If steady green

• If flashing green

• No link activity is detected

• A 10Mbps-capable device has been detected.

• Data is being exchanged through the WAN port at 10Mbps.

• A 100Mbps-capable device has been detected.

• Data is being exchanged through the WAN port at 100Mbps.

• If this LED is dark

• If amber

• If green

• No WLAN is enabled.

• One of the WLANs is enabled, but no wireless client has associated.

• At least one wireless client has associated.

• If this LED is dark

• If red

• If blinking red/green alternately

• If flashing green

• If steady green

• There is no network activity; no station detected at the WLAN port

• There is a hardware problem affecting the WLAN port.

• A signal is being detected at the WLAN port, but at the lowest level.

• A moderate signal is being detected at the WLAN port.

• A strong signal is being detected at the WLAN port.

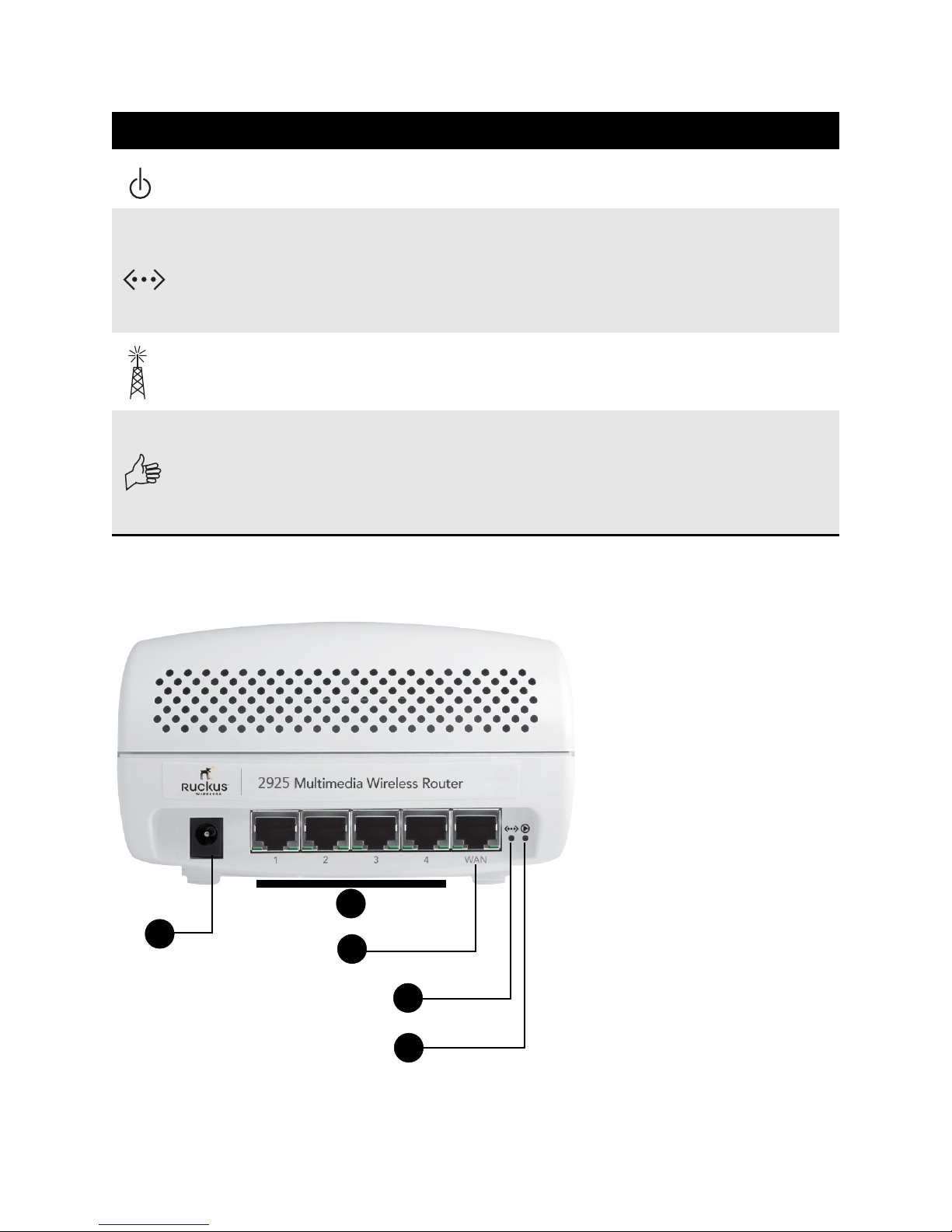

FIGURE 2-2: Rear view

[1] Power Adapter plug

Connect the power adapter to

this socket. (Input 12V 1.0A DC or

5V 2.0A DC)

[2] LAN ports

Four RJ-45 ports, supporting 10/100

Mbps connections

[3] WAN Network port

One RJ-45 port, dedicated to ISP/

broadband source connection

[4] “OTA” (Over the air) button

Not active in this model at this time

[5] Reset button

[-IF NEEDED-] Use to reset AP to

“factory default” state

Andere Handbücher für ZoneFlex 2925

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Ruckus Wireless Drahtloser Zugangspunkt Handbücher

Ruckus Wireless

Ruckus Wireless ZoneFlex 7782 Installationsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 2942 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless Unleashed R600 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 7762-S Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 2925 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless H510 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless T710s Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex R710 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZF7762-AC Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless T610 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless R720 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex series Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 7343 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless R350 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 2741 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless Q910 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 7762 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless T710s Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 7352 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless Xclaim Xi-2 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex 2741 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless T310d Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex R500 Bedienungsanleitung

Ruckus Wireless

Ruckus Wireless ZoneFlex R510 Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung
