Samson Go Mic Direct Bedienungsanleitung

Congratulations on your purchase of the Samson Go Mic Direct portable USB

microphone. The Go Mic Direct represents the culmination of Samson’s history

of building world-class microphones, and is a product of Samson’s position on

the leading edge of digital microphone technology.

Go Mic Direct offers convenient plug-and-play operation, as it’s ultra-compact

design plugs directly into your computer’s USB port. In addition, Go Mic Direct

is compatible with iPads and iPhones (4S and later) using Apple’s Lightning

USB Camera Adapter or Camera Connection Kit (30-pin), making it a great tool

for mobile podcasts, popular speech to text software and ﬁeld recording.

The Go Mic Direct is the ideal computer-based solution for capturing stunning

audio on-the-go. Perfect for podcasting, recording music and sound for

YouTube videos, Go Mic Direct’s range of functionality also compliments Skype,

FaceTime and voice recognition software applications.

Samson’s Sound Deck audio software (available as a free download from

www.samsontech.com) expands the functionality of the Go Mic

Direct by enabling digital noise reduction which eliminates

unwanted background noise such as an air conditioner or

computer fan buzz. This paves the way for high quality VoIP

communication.

Whether you’re staying in touch with your family, recording

a podcast, or your latest song idea, the Go Mic Direct is the

simplest and most comprehensive solution for high-quality

recording. Just plug it in and start creating!

Introduction

Microphone Call Outs

USB Connector

Retractable USB connector for inter-

facing with your PC or Mac.

Slide and Lock Mechanism

Push then slide to extend or retract

the USB connector. The USB

connector safely locks away when

it’s not in use.

Status Light

Two-color LED illuminates blue to

indicate power and ﬂashes red when

the input signal is clipping.

Microphones

Two studio quality microphone

capsules, one facing each direction,

for 360° audio capture.

• Ultra-compact design connects directly via USB and won’t block surround-

ing ports

• Dual microphone capsules allow the microphone to pick up sounds

plugged into to either side of a computer keyboard

• Compatible with most any Mac and PC based Digital Audio Workstation.

• Unique design with integral USB connector makes the microphone ex-

tremely portable and ideal for most recording solutions, especially mobile

laptop recording.

• Samson’s free Sound Deck noise reduction software enhances the micro-

phones performance for clear audio reproduction making it ideal for voice

recordings, conferences, or VoIP.

• Computer controlled Input Gain with Peak LED makes it easy to set the

proper level and get a clean signal.

• The on-board, high quality AD converters with 16 Bit, 48K sampling rate

provide high quality recording.

• Ideal for Skype, FaceTime, voice recognition software, podcasting, sound

for YouTube videos, and recording music

• On the road, in the ofﬁce or in a ﬁxed installation, the solid construction

make the microphone a reliable audio tool, day in and day out

• Carry case included

Features

Quick Start

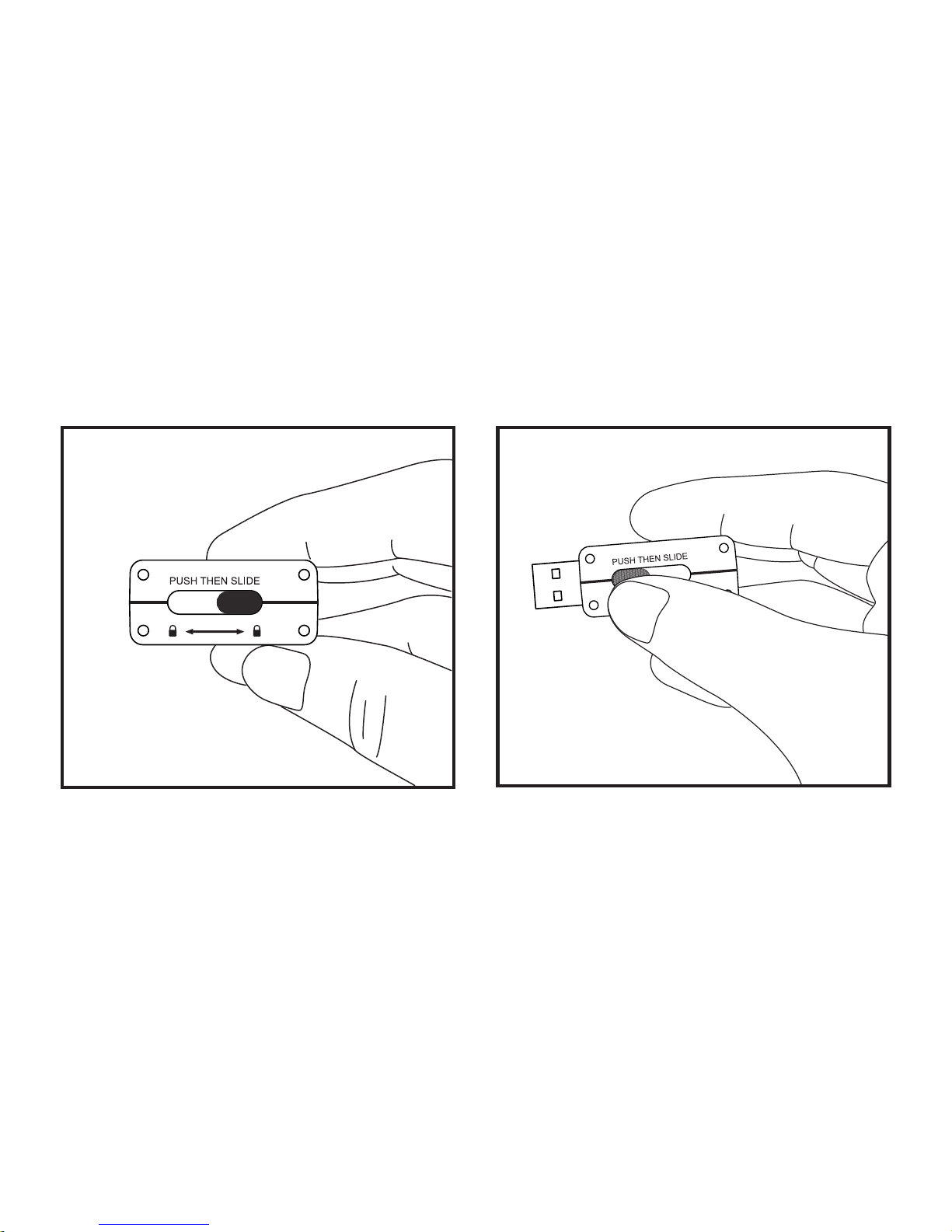

Press and slide the button on the bottom of the Go Mic Direct to extend the USB

connector. The USB connector will lock in place when fully extended.

Quick Start

Plug the microphone into an available

USB port on your computer. The Go

Mic Direct is designed to work with

USB ports on the left or right side of

the keyboard.

For optimal performance, rotate the

microphone so that it faces the sound

source.

Samson Sound Deck Software

Samson’s Sound Deck computer software expands the operation of the Go Mic

Direct by providing proprietary digital noise reduction algorithms. Sound Deck

software works with Windows and Mac OSX operating systems and can be down-

loaded at www.samsontech.com/gomicdirect.

The Digital Noise Reduction algorithm enhances speech applications by reducing

ambient noise in your environment such as computer fans and air conditioners.

Continuous and repetitive noise is effectively removed from the microphone in-

put, providing cleaner audio for speech recognition, videoconferencing, gaming,

and voice over internet communication.

Installing the Go Mic Direct is a simple procedure that takes just a few minutes.

Simply connect the included USB cable and begin recording. The following

sections of this manual provide detailed instructions on setting up your Go Mic

Direct in Windows or MAC OS.

Windows

1. The ﬁrst time you plug the Go Mic Direct into a USB port, Windows will

install the universal USB drivers for that port.

2. To set the Go Mic Direct as your default input/recording device, or to

change its settings, open the Control Panel, Hardware & Sound settings,

then click SOUND. Under Recording tab, you can select the Samson Go

Mic Direct from the list of devices and press the Set Default button to set

it as the default audio input device.

3. To set the gain of the microphone, click the Properties button, and then

select the Levels tab. Slide the control until the desired level is reached. If

you ﬁnd that the microphone red clip LED is lighting frequently, turn this

control down until the LED no longer ﬂashes red.

4. Download and install the Samson Sound Deck software from www.samson-

tech.com/gomicdirect

Computer Setup

5. Launch the Sound Deck software (found in the

Windows task bar) to turn on the noise reduction

ﬁlters.

Apple MAC OSX

1. To start using the Samson Go Mic Direct, simply

plug it in. The LED will illuminate to indicate it is receiving USB power.

The MAC will recognize the USB audio device and automatically install a

universal driver.

2. To select the Go Mic Direct as the computer’s audio input, open System

Preferences from the dock or the main Apple Menu.

3. Next, open the Sound preferences, choose the Input tab and select Go Mic

Direct. To set the gain of the microphone, adjust the Input volume slider at

the bottom of the Sound dialog box. The Input Level meter will show the

recording level.

4. Download and install the Samson Sound Deck software

from www.samsontech.com/gomicdirect

5. In the Control Panel, click on the Samson Sound Deck

icon to launch the software and turn on the noise

reduction ﬁlters.

Computer Setup

Polar Pattern. . . . . . . . .Omni-directional

Capsule . . . . . . . . . . . Two, 10mm condenser capsule

Frequency Response . . . . . 20Hz - 20kHz

Software Filter Algorithm . . . Digital Noise Reduction

Sample Rate . . . . . . . . .44.1/48kHz

Bit Rate . . . . . . . . . . . 16bit

Power Requirements . . . . . 5V 50mA

Dimensions . . . . . . . . . 1.7” x 0.74” x 1.7 (42mm x 19mm x 42mm)

Weight. . . . . . . . . . . .1.03oz (29.3g)

Specications

At Samson, we are continually improving our products, therefore

specifications and images are subject to change without notice.
