SATO KEIRYOKI 7720-00 Bedienungsanleitung

INSTRUCTION MANUAL

No. 7720-00

Hand-Held Anemometer

1

Thank you for purchasing the Hand-Held Anemometer.

- This product is designed to measure instantaneous wind speed.

Do not use it for other purposes.

- Please read this manual thoroughly before using the instrument

and keep the manual in a safe place for your future reference.

Overview

The wind speed is measured by 3-cup anemometer which drives the

AC generator inside. The rotation of the cups is transferred to the AC

generator which produces a voltage proportional to the wind speed.

Cautions

Do not drop or knock the instrument to avoid any deformation or

malfunctions.

Hold the indicator to level to your eyes for correct readings.

Do not use the instrument out of its measuring range.

The instrument can be used in rain, but do not tilt it more than 45º.

Be careful not to bend or pull the cable to avoid short circuit.

Do not use or store the instrument near extreme heat.

Never disassemble or alter the instrument.

Make sure to grab the bulged area under the cups when

dismounting the anemometer.

Do not push the acryl cover on the indicator meter too hard.

2

Names of Components

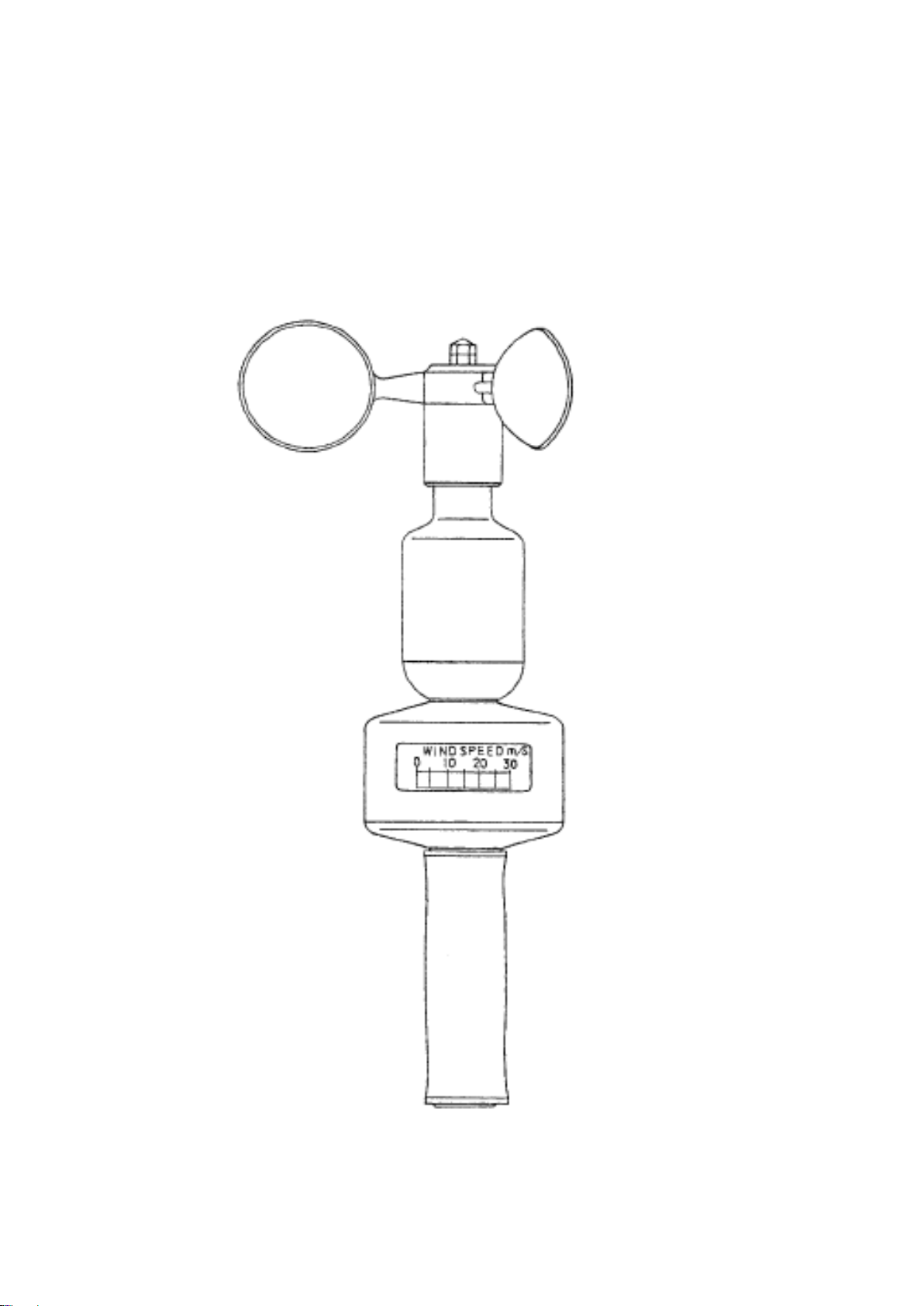

①3-cup type wind speed sensor (anemometer)

②Wind speed indicator

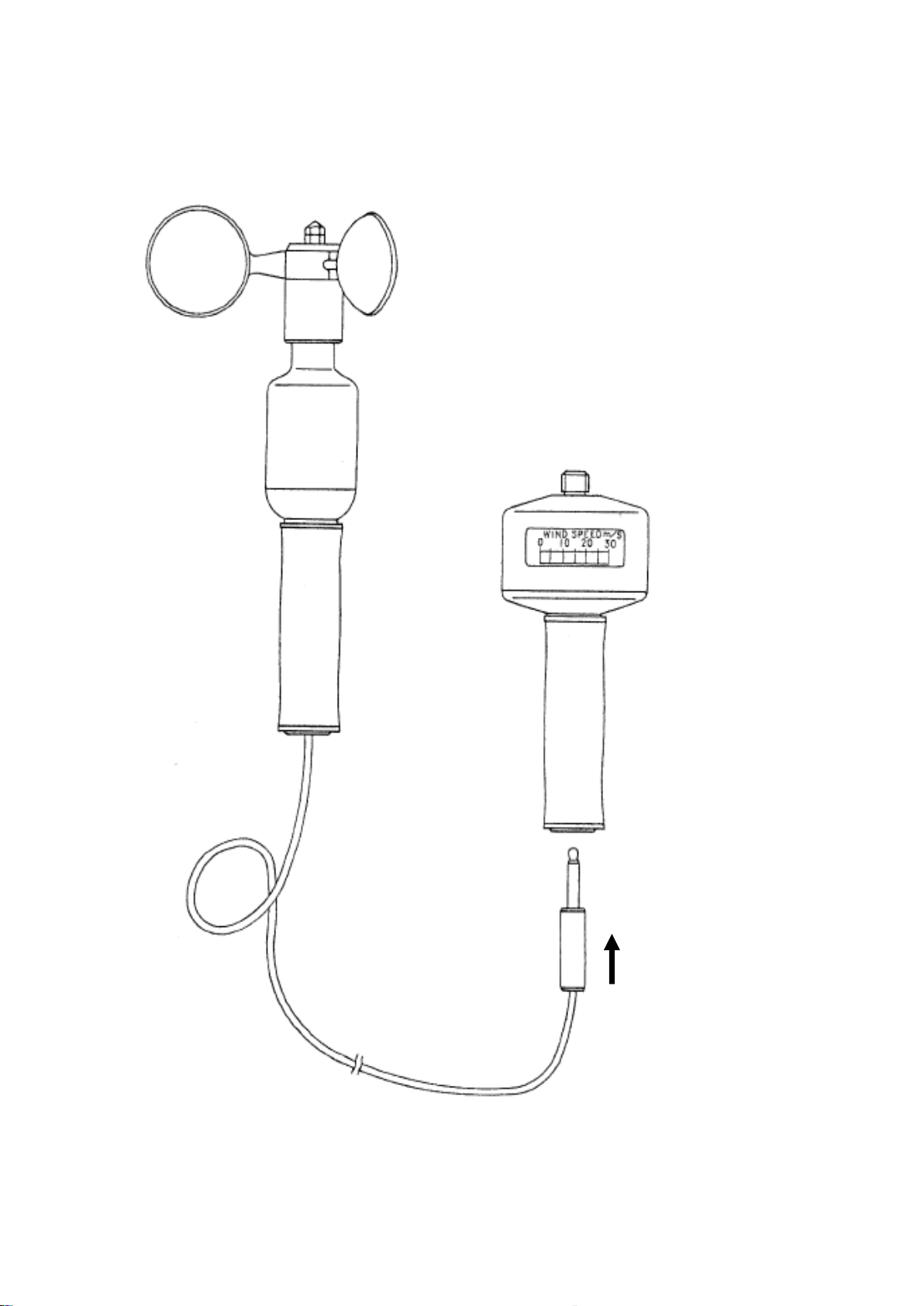

③Grip for remote measurement (with 2 m cable)

(The cable can be order-made up to 1,000 m in length.)

①

②

3

①

③

Insert the plug

②

4

How to Operate

A Direct measurement for wind speed

①Find a measurement spot and measurement elevation.

②Hold the anemometer by its grip at the measurement spot.

③Hold the anemometer vertically.

④Wait for 1 to 2 minutes for the instrument to adapt to the

measuring ambient.

⑤Read the scale.

B Remote measurement for wind speed

①Hold the bulged area under the cups and turn it

counterclockwise to loosen the screw to separate the

indicator and the anemometer.

②Install the anemometer vertically at the measurement spot.

③Place the indicator in place for remote operation within the

length of the cable.

④Wait for 1 to 2 minutes for the anemometer to adapt to the

measuring ambient.

⑤Read the scale.

5

Specifications

Name : No. 7720-00 Hand Held Anemometer

System : Cup-generation type

Measuring range : 2 to 30 m/s

Accuracy : within ±1 m/s at less than 10 m/s

within ±10 % at more than 10 m/s

Min. graduation : 1 m/s

Starting speed : Less than 1.5 m/sec.

Materials : Main body & cups :Polycarbonates resin

Dimensions : Main body :ø32 × 351 mm

Cup :ø49 mm

Weight : about 700 g

3-4, Kanda-kajicho, Chiyoda-ku, Tokyo 101-0045 Japan

URL: http://www.sksato.co.jp/english/
