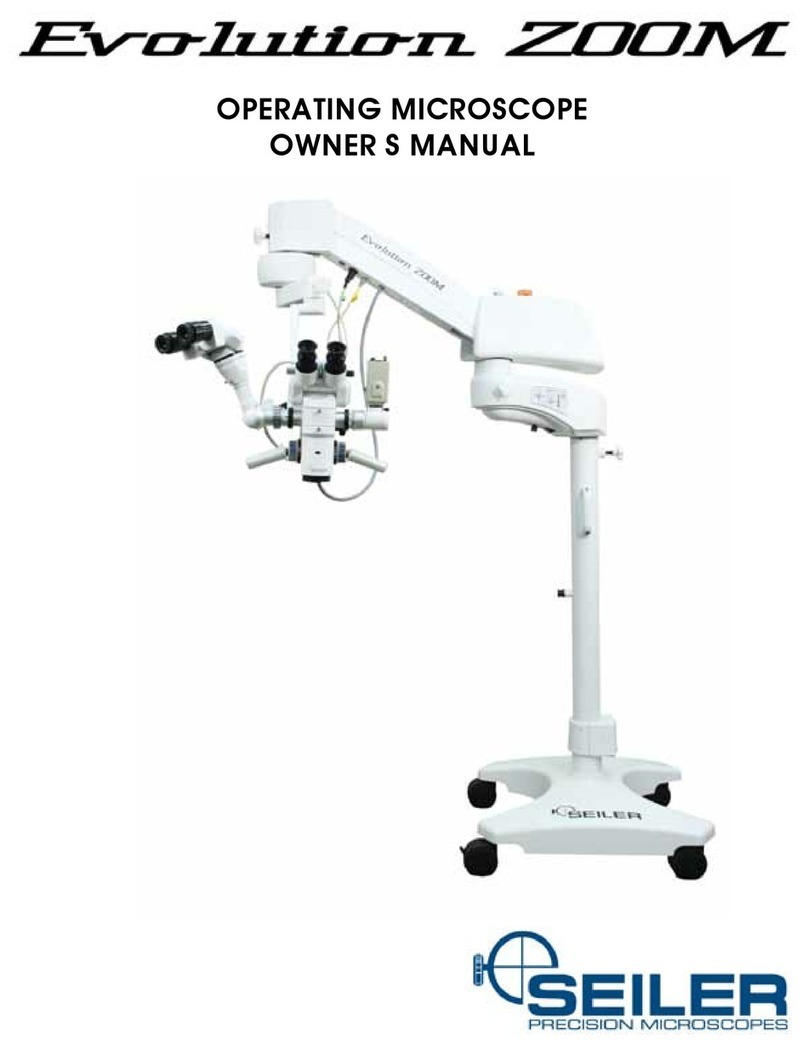

Evolution Zoom

Opthalmology Operating Microscope

User’s Manual

INTRODUCTION.................................................................................................................................................4

INTENDED USE..................................................................................................................................................5

PARTS AND COMPONENTS .............................................................................................................................5

INSTALLING THE EQUIPMENT.........................................................................................................................9

Unpacking .......................................................................................................................................................9

Installing the Base.........................................................................................................................................10

Installation Location ......................................................................................................................................11

Using Transformers.......................................................................................................................................11

Electric Connections .....................................................................................................................................11

USING THE MICROSCOPE .............................................................................................................................13

Moving the Unit .............................................................................................................................................13

Switching On The Unit ..................................................................................................................................15

Adjusting Diopter...........................................................................................................................................16

Adjusting Interpupillary Distance...................................................................................................................16

Adjusting Magnication .................................................................................................................................16

Adjusting Focus.............................................................................................................................................16

Adjusting Light Level.....................................................................................................................................17

Using The Xy System (Optional)...................................................................................................................17

Using The Inclinable Binocular Head............................................................................................................17

Ultraviolet (UV) Filter.....................................................................................................................................17

MAINTENANCE AND HYGIENE ......................................................................................................................18

Switching Bulbs During Use (Only For Units With Halogen Bulb) ................................................................18

Replacing A Burnt Out Bulb (Only For Units With Halogen Bulb) .................................................................18

Led Reliability And Lifetime (Only For Units With Led Source).....................................................................19

Replacing A Blown Fuse ...............................................................................................................................19

Repairing The Equipment .............................................................................................................................19

CLEANING........................................................................................................................................................20

ACCESSORIES ................................................................................................................................................21

Image Splitter................................................................................................................................................21

Video Camera ...............................................................................................................................................21

Video Camera Adapter..................................................................................................................................21

Digital Photographic Camera Adapter...........................................................................................................21

Second Observer Accessory.........................................................................................................................21

Image Inverter...............................................................................................................................................21

Multifunction Pedal........................................................................................................................................22

Fixed Binocular Head (45º) ...........................................................................................................................22

Zoom System................................................................................................................................................22

Filters ............................................................................................................................................................22

MECHANICAL DATA........................................................................................................................................22

Mechanical Data ..........................................................................................................................................22

Electrical Data...............................................................................................................................................23

Optical Data ..................................................................................................................................................23

TRANSPORTATION, STORAGE AND ENVIRONMENTAL CONDITIONS ....................................................24

DISCARD ..........................................................................................................................................................24

TROUBLESHOOTING......................................................................................................................................25

SYMBOLS.........................................................................................................................................................26

Table of Contents

WARNING .........................................................................................................................................................27

TERM OF WARRANTY.....................................................................................................................................27

CONTACT INFORMATION ...............................................................................................................................27

OWNERS RECORD..........................................................................................................................................28

NOTES ..............................................................................................................................................................28

WARRANTIES ............................................................................................................................................ 29-30

CERTIFICATES OF COMPLIANCE ........................................................................................................... 31-32

DECLARATION OF CONFORMITY ........................................................................................................... 33-34

Manufacturing Geospatial Medical Planetarium

The divisions of Seiler Instrument

Design Solutions

High tech. High touch.

Introduction

To Our Valued Professionals,

On behalf of the Seiler Medical Division, I would like to thank you for your recent purchase. We stand by our

products and are thrilled that when choosing one of the most important aspects of your practice, you chose us.

We are proud to say that, as a company, we have over 70 years’ experience in the optical eld. We have the

expertise to provide you with modern, reliable devices that incorporate some of the most advanced optical design

tools on the market. This product’s intent is to amplify an image while providing the user with an exceptional level

of comfort, improved visual acuity, and provide awless maneuverability for any ofce or hospital.

All of our products are manufactured according to strict medical and ISO standards. We also ensure all optical

components have undergone an anti-reective, multi-layer treatment; guaranteeing the efciency of the system

and enhancing the longevity of all of our products. Along with strict manufacturing standards and rigorous

testing, we also stand behind all of our products by offering a lifetime warranty on all optics and mechanics for

microscopes purchased in the United States, as well as a 3-year warranty on all international purchases.

Every Seiler Medical Division team member is here to provide you with outstanding service, quality, and

knowledge. Our number one priority is, and always will be, providing 100% customer satisfaction to every one of

our customers. If you need any further information about the equipment or just have a question, please contact us

using the information below.

Thank you again for your purchase and we look forward to serving all of your optical needs for years to come.

Sincerely,

Dane Carlson

Medical Division Manager

Seiler Medical Division

Toll Free: (800) 489-2282

Local: (314) 968-2282

Email: [email protected]

Web: www.seilerinst.com

Intended for use

An operating or surgical microscope is an optical instrument that provides the surgeon with a stereoscopic, high

quality magnied and illuminated image of the small structures in the surgical area.

Parts and Components

The Seiler Evolution Zoom Microscope is divided into modules (Figure 1).

Figure 1: Modules of the Seiler Evolution Zoom Microscope

Atlantico Systems Ltd.

34 Oldeld

Kingston, Galway

Ireland

www.atlanticosystems.com

Phone: +35391443609

Seiler Instrument & Mfg. Co, Inc.

3433 Tree Court Industrial Blvd.

St. Louis, Missouri 63122

USA

Toll Free: (800) 489-2282

Local: (314) 968-2282

Email: [email protected]

www.seilerinst.com

MODULE FUNCTIONS AND FEATURES

Column The column provides mechanical support to the equipment.

Control Box The control box contains the electronic circuits for the microfocusing, illumination

brightness control, zoom and XY system functions of the microscope.

Illumination Box Light is generated by the illumination box.

For microscopes with halogen bulb source, the light is supplied to the working area by

means of an optical ber cable to the microscope’s optical module.

The equipment is also available with LED source.

Pantographic

Arm

The pantographic arm is the structural module between the illumination box and the

optical module.

Optical Module The optical module comprises the objective lens, continuous magnication system

(zoom), and the binocular head.

A joystick is used for adjusting zoom, light level and focus multifunctional pedal.

Multifunctional

Pedal

The multifunctional pedal controls microfocus, on-off illumination, illumination

brightness, XY system and zoom (if applicable).

PLEASE NOTE: To make comprehensible the operating characteristics of each conguration of Seiler Evolution

Zoom Microscope, the following symbol is used:

(*1) – for microscopes with the continuous magnication system (zoom).

(*2) – for microscopes with the XY positioning system.

ATTENTION: Avoid overly tightening the knobs.

Figure 2: Main elements of the Seiler Evolution Zoom Microscope

Figure 3: Optical module with binocular head

Figure 4: Multifunctional pedal

Figure 5: Control panel

Figure 6: Joystick for adjusting zoom, light level and focus

PLEASE NOTE: Take care when handling the Fiber optic cable (only applicable to the conguration with

halogen bulb source). It is made up of extremely ne, very sensitive bers. Improper use, repeated stretching

and bending movements can cause damages that affect the performance or even rendering it useless.

PLEASE NOTE: The optical module is assembled in a sealed block. Maintenance activities shall only be

performed by the AUTHORIZED TECHNICAL ASSISTANCE.

PLEASE NOTE: The control box, the illumination box and the pantographic arm must be handled carefully,

because the external surfaces of these modules can be easily damaged. A sharp impact on these surfaces may

result in scratches or other damages.

The optical module is the most delicate part. Take care during use, transportation or handling. It is tted to a

specic support (Figure 3).

Installing the Equipment

PLEASE NOTE: Before any attempt to assemble or install the Seiler Evolution Zoom Microscope, please read

carefully and thoroughly the present User’s Guide.

The assembly and install activities shall only be performed by authorized technicians.

Seiler Instrument shall NOT be liable for any other type of procedure NOT set forth herein used to install or

assemble this product, nor shall be liable for any misuse of tools.

Unpacking

The Seiler Evolution Zoom Microscope is placed into plywood boxes and foams to protect the equipment during

transportation and storage.

Check the boxes for damage or signs of violation: please contact Seiler Instrument immediately in the event of

any irregularity. The Seiler Evolution Zoom Microscope should ideally be transported into its original packaging,

which shall be kept for further use.

Please check whether the box contains the items set out below:

• This User’s Guide

• Base

• Column

• Control box, illumination box and pantographic arm, already assembled

• Screw to fasten the base to the column

• Accessories, if applicable

• AC Multi-voltage cable 90-240V~

• Protective cover for the optical module

• 1 spare halogen bulb (only for Seiler Evolution Zoom Microscope with halogen bulb)

• 2 5A fuses

• Fixing pin for optical module support / XY system (*2), optical ber (for the microscope with halogen bulb

source) and electric cables already installed

• Optical module (discrete or zoom) already connected to its support system

• 1 pair of knobs of the optical module

• 1 pair of autoclave protectors knobs of the optical module

• Multifunctional pedal (*1) and/or (*2)

Assembling the base

When assembling the base:

1. Place two boxes around 5” thick under the base to support it when it is sitting on the neck.

2. Remove the two countersunk screws with a 7/32” hex wrench.

3. Place the two spacers between the plate and the stabilizer bar with the white pads facing you and bolt it on with

the two bolts supplied with the spacers.

4. Add outer bolt to leg without the spacer. Start a few threads.

5. Add spacer to the inner bolt hole, insert bolt. Tighten both.

6: Make sure leg attachments protrude outward as shown in photo 6.

Andere Handbücher für Evolution Zoom

Inhaltsverzeichnis

Andere Seiler Mikroskop Handbücher

Seiler

Seiler Evolution Zoom Bedienungsanleitung

Seiler

Seiler Evolution xR6 Bedienungsanleitung

Seiler

Seiler Westlab III Bedienungsanleitung

Seiler

Seiler Microlux IV Bedienungsanleitung

Beliebte Mikroskop Handbücher anderer Marken

Thermo Scientific

Thermo Scientific Nicolet iN10 Leitfaden

National

National DC3-163 Bedienungsanleitung

KERN Optics

KERN Optics OPE-1 Bedienungsanleitung

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Bedienungsanleitung

Prior

Prior Lux POL Bedienungsanleitung

Opitec

Opitec Smartscoop 115615 Bedienungsanleitung

KERN

KERN OPO-1 Bedienungsanleitung

Topcon

Topcon SP-1P Bedienungsanleitung

Motic

Motic PA43 Bedienungsanleitung

Leica

Leica DVM5000 Benutzerhandbuch

MshOt

MshOt MZ62 Bedienungsanleitung

KERN Optics

KERN Optics OZR-5 Bedienungsanleitung

VWR

VWR VisiScope 384 Series Bedienungsanleitung

Nikon

Nikon ECLIPSE E200 POL Bedienungsanleitung

Leica

Leica DI C800 Handbuch

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Bedienungsanleitung

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Bedienungsanleitung

Olympus

Olympus SZ61 Bedienungsanleitung
