Quick-Start Instructions

HINTS:

Prepare the area by creating a grid pattern

prior to testing.

Perform all Scans on like-surfaced areas

such as asphalt, concrete, rock, grass.

Do not test on expansion joints or cracks in

the surface.

Be sure rubber pads on actuator and

accelerometers are in place.

Patterns in the markings indicate likely pipe

location.

A minimum of 5 slices must be taken and 3

rows must be scanned to indicate a pattern.

TERMS:

Slice – individual test point

Scan – A series of slices along a single line

Plot – the results of a single scan

CAUTION:

Always setup a grid at a 90-degree angle

from the suspected path of the target line.

The APL must be scanned in a perpendicular

direction to the target line.

Consult instruction manual for product

specications regarding pipe detection

limits.

This is not a substitute for the

instruction manual. It is for

reference only.

Read and understand the

instruction manual before use.

MADE IN THE USA

WITH GLOBALLY SOURCED COMPONENTS

Distributed by:

851 Transport Drive

Valparaiso, IN 46383-8432

Phone: 219 465 2700

Web: www.gasleaksensors.com

Innovative Detection Solutions

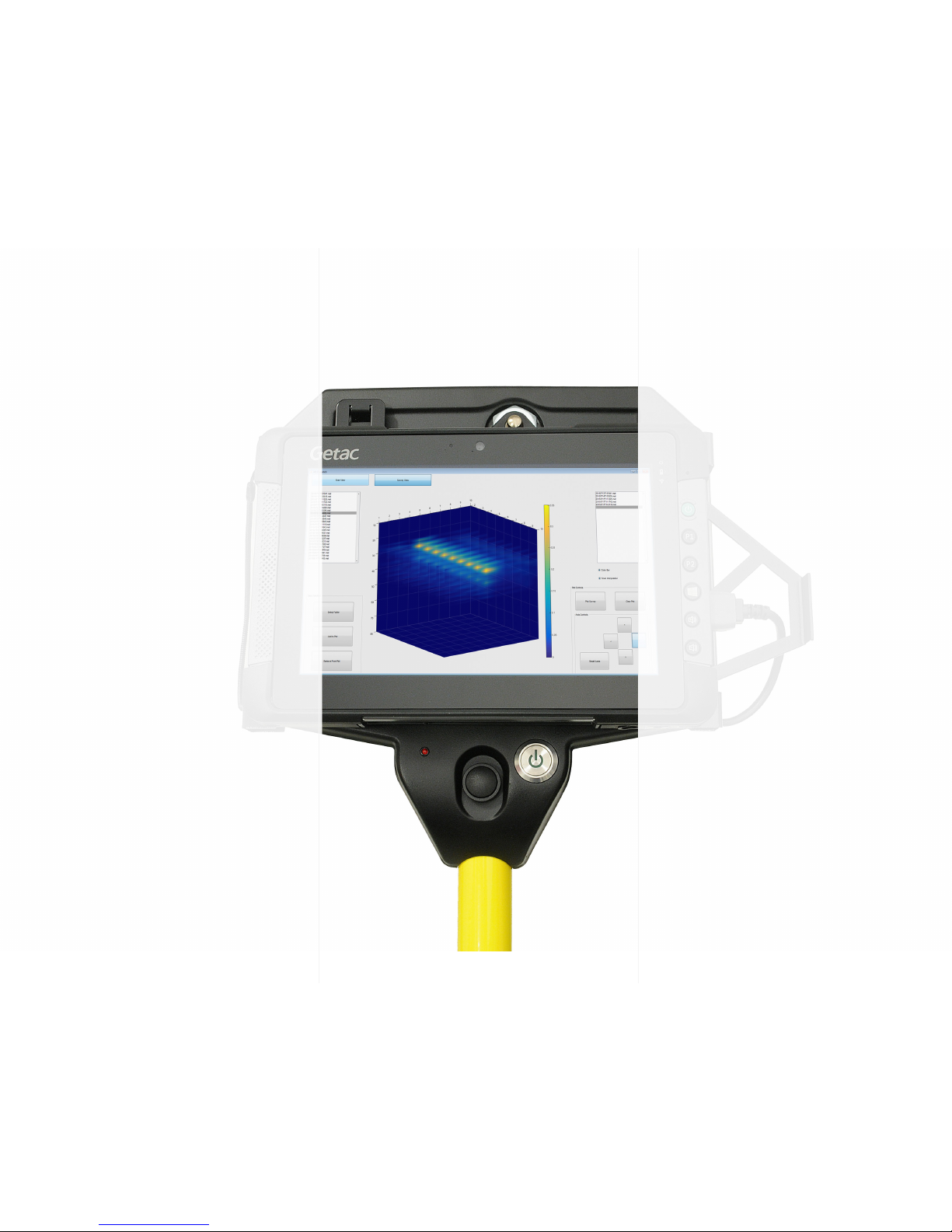

1. Press and Hold the APL power button until the

light begins to ash. Once initialized, the APL

power button will glow solid green.

2. Power on the tablet by pressing the tablet power

button.

3. The APL application will automatically start.

When loading, the SENSIT logo will be

displayed.

4. Click the grey “Connect to APL” button. Once

connected, the button will turn green.

5. On the bottom right hand corner of the screen,

select job settings based on site conditions.

6. Select surface type; Hard or Soft. Site conditions

will determine the proper setting. If unsure,

consult the manual.

7. Select the suspected depth of the target line,

based on system knowledge. If between 12”

and 5’ deep, select Normal mode. If the line is

suspected to be greater than 5’ in depth, select

Deep.

8. Select scan direction. If stepping to the left, click

the left arrow. If stepping to the right, click the

right arrow.

9. Select step distance; either 6” or 12”. If no

known surface structures are present, select 12”.

If scanning at a surface structure, select 6” for

a high resolution scan. (6” interval is used for a

higher resolution scan and is recommended for

most applications.)

10. When the menu displays “Ready for reading,”

the APL is ready to collect data. User settings

will be displayed at the top of the screen. The

APL is now ready to begin a scan.

1. Place measuring device in desired test area. For

best results limit the test length (scan) to 10ft.

2. Place instrument on ground adjacent to the rst

mark on your measuring device.

3. Place foot on footpad and ensure good coupling.

4. Push the handle rmly forward.

5. Press and release the large black scan button

at the top of the handle (just below the control

box). Remain stationary and continue to

maintain good ground coupling until the APL

beeps, indicating data has been collected.

6. Move to the next test location (slice) adjacent

to the next 6 or 12 inch mark on the measuring

device.

7. Repeat steps 2-6 until scan distance has been

completed.

8. Press the “Plot” button to review scan results.

9. Mark the locations on the ground adjacent to the

measuring device as shown on the APL.

10. Move measuring device forward or backward

5-15 ft away from current location. Repeat steps

2-9.

11. Repeat scan process as needed to mark location.

Press the “New” button to begin a new scan.

Press the “Yes” button to use the same settings.

Press the “No” button to create new settings.

The “Back” button returns to the previous screen.

12. Review marks to determine utility line location.

ULTRA-TRAC®APL

QUICK-START INSTRUCTIONS

STARTING UP THE APL PERFORMING A LOCATE
