SICK WSO26 A0 Series Bedienungsanleitung

OPERATING INSTRUCTIONS

WSE26

OPERATING INSTRUCTIONS

WSE26

Described product

W26

WSE26

Manufacturer

SICK AG

Erwin-Sick-Str. 1

79183 Waldkirch

Germany

Legal information

This work is protected by copyright. Any rights derived from the copyright shall be

reserved for SICK AG. Reproduction of this document or parts of this document is

only permissible within the limits of the legal determination of Copyright Law. Any modi‐

fication, abridgment or translation of this document is prohibited without the express

written permission of SICK AG.

The trademarks stated in this document are the property of their respective owner.

Original document

This document is an original document of SICK AG.

2006/42/EC

SAFETY

28020358.19RH / 15.01.2021 | SICK

Subject to change without notice

Contents

1 Safety information............................................................................ 4

1.1 General safety notes................................................................................ 4

1.2 Notes on UL approval............................................................................... 4

2 Intended use...................................................................................... 4

3 Operating and status indicators...................................................... 4

4 Mounting............................................................................................. 5

5 Electrical installation........................................................................ 5

6 Additional functions.......................................................................... 8

7 Commissioning.................................................................................. 9

7.1 Alignment.................................................................................................. 9

7.2 Check the application conditions............................................................ 10

7.3 Time function setting................................................................................ 11

7.4 Setting light/dark switching..................................................................... 12

8 Process data structure..................................................................... 12

9 Troubleshooting................................................................................. 12

10 Disassembly and disposal............................................................... 13

11 Maintenance...................................................................................... 13

12 Technical data.................................................................................... 14

12.1 Dimensional drawings.............................................................................. 14

CONTENTS

8020358.19RH / 15.01.2021 | SICK

Subject to change without notice 3

1 Safety information

1.1 General safety notes

■Read the operating instructions before commissioning.

■

Connection, mounting, and configuration may only be performed by trained

specialists.

■

2006/42/EC

SAFETY

Not a safety component in accordance with the EU Machinery Directive.

■

Do not install the sensor at locations that are exposed to direct sunlight

or other weather influences, unless this is expressly permitted in the operating

instructions.

■These operating instructions contain information required during the life cycle of

the sensor.

1.2 Notes on UL approval

The device shall be supplied from an isolating transformer having a secondary overcur‐

rent protective device that complies with UL 248 to be installed in the field rated either:

a) max 5 amps for voltages 0 ~ 20 V (0 ~ 28.3 V peak), or

b) 100 / Vp for voltages of 20 ~ 30 V (28.3 ~ 42.4 V peak).

Alternatively, they can be supplied from a Class 2 power supply.

UL Environmental Rating: Enclosure type 1

2 Intended use

The WSE26 is an opto-electronic through-beam photoelectric sensor (referred to as

“sensor” in the following) for the optical, non-contact detection of objects, animals, and

persons. A sender (WS) and a receiver (WE) are required for operation. If the product is

used for any other purpose or modified in any way, any warranty claim against SICK AG

shall become void.

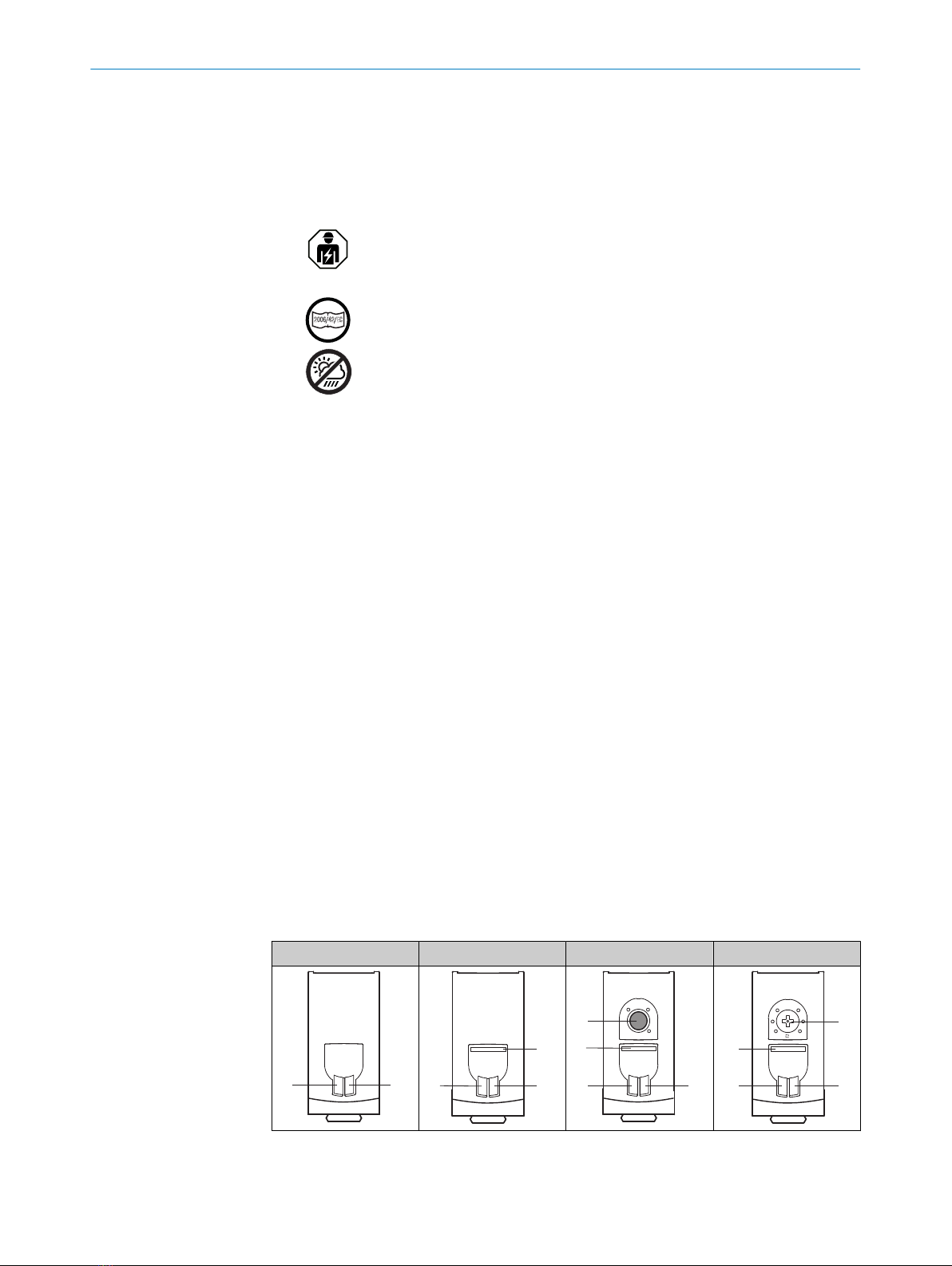

3 Operating and status indicators

WSO26 x-xxxxxxA0 WEO26 x-xxxxxx00 WEO26 x-xxxxxx01 WEO26 x-xxxxxx02

3 2

1 SAFETY INFORMATION

48020358.19RH / 15.01.2021 | SICK

Subject to change without notice

WEO26x-xxxxxx30 WEO26x-xxxxxx31 WEO26x-xxxxxx32

3 2

1BluePilot blue: alignment aid

2LED indicator yellow: status of received light beam

3LED indicator green: supply voltage active

4Press-turn element: time function adjustment

5Teach pushbutton: adjustment of light/dark switching

6Teach-Button: adjusting the sensitivity

4 Mounting

Mount sensors (sender and receiver) using suitable mounting brackets (see the SICK

range of accessories). Align the sender and receiver with each other.

NOTE

When mounting multiple through-beam photoelectric sensors next each other, swap

the arrangement of the sender (WS26) and receiver (WE26) for every second pair.

Also maintain a sufficiently large distance between the pairs based on the light spot

diameter of the sender (WS26), see figure 1.

Receiver (WE)

Sender (WS)

Receiver (WE)

Figure 1: Arrangement of multiple through-beam photoelectric sensors

Note the sensor’s maximum permissible tightening torque of < 1,3 Nm.

5 Electrical installation

The sensors must be connected in a voltage-free state. The following information must

be observed, depending on the connection type:

– Male connector connection: Note pin assignment

– Cable: wire color

Only supply/switch on the voltage once all electrical connections have been estab‐

lished.

MOUNTING 4

8020358.19RH / 15.01.2021 | SICK

Subject to change without notice 5

Explanations of the connection diagram (following tables):

Alarm = alarm output

Health = alarm output

MF (pin 2 configuration) = external input, teach-in, switching signal

QL1/C = switching output, IO-Link communication

Test = test input

UB: 10 ... 30 V DC

Table 1: Connections

Wxx26x- x4 xH x5 xI

1 = BN

2 = WH

3 = BU

4 = BK

5= GY

4 3

0.14 mm2

AWG26

4 3

0.14 mm2

AWG26

Wxx26x- x9 xB

1 = BN

2 = BU

3 = not connected

4 = BK

5= WH

6 = GY

7 = not connected

3 4

2 5

IN = 4 A

IN = 6 A

Table 2: DC, sender

WSO26x- xxXZZxZZZ

xx1ZZ xx2ZZ xx3ZZ xx6ZZ xx7ZZ

BN + (L+)

WH -

BU - (M)

BK - Test → L+ Test → M - -

GY - - - Test → L+ Test → M

5 ELECTRICAL INSTALLATION

68020358.19RH / 15.01.2021 | SICK

Subject to change without notice

Table 3: DC, receiver

WEO26x- xxX6XxxxA00 xxX6XxxxA

01-A99

Push-pull xx162 xx161 xx163 xx165 xx16A xx16N xx16x

PNP xx862 xx861 xx863 xx865 xx86A xx86N xx86x

1 = BN + (L+)

2 = WH MF

3 = BU - (M)

4 = BK QL1/C

Default: MF QQ Alarm Alarm no func‐

tion

no func‐

tion

www.sick.c

om/

8022709

Default:

QL1/C

QQ Q QQQ www.sick.c

om/

8022709

Table 4: DC, receiver

WEO26x- xxXXXxxZZZ

Push-pull xx111 xx112 xx114 xx116

PNP xx811 xx812 xx814 xx816

BN + (L+)

WH QQHealth Health

BU - (M)

BK QQQQ

GY - - - -

ELECTRICAL INSTALLATION 5

8020358.19RH / 15.01.2021 | SICK

Subject to change without notice 7

Table 5: Push-pull, PNP, NPN

Push-pull

PNP

NPN

+ (L+)

Q ≤ 100 mA

‒ (M)

Push-pull

PNP

NPN

+ (L+)

Q ≤ 100 mA

‒ (M)

Push-pull

PNP

NPN

+ (L+)

Q≤ 100 mA

‒ (M)

Push-pull

PNP

NPN

+ (L+)

Q≤ 100 mA

‒ (M)

6 Additional functions

Alarm

Alarm output: The sensor (WSE26) features a pre-failure notification output (“Alarm”

in the connection diagram [see table 3]), which issues a notification if the sensor is

only ready for operation to a limited extent. The LED flashes in this case. Possible

causes: sensor is contaminated, sensor is out of alignment. In the good state: LOW (0),

if excessively contaminated HIGH (1).

Health

Health output: The sensor (WSE26) features a pre-failure notification output (“Health”

in the connection diagram [see table 3]), which issues a notification if the sensor is

only ready for operation to a limited extent or the cable has been interrupted. Possible

causes: Sensor is contaminated, sensor is out of alignment, cable is damaged. In the

good state: HIGH (1), if excessively contaminated or in the event of cable interruption

LOW (0). The yellow LED indicator flashes in this case.

6 ADDITIONAL FUNCTIONS

88020358.19RH / 15.01.2021 | SICK

Subject to change without notice

Table 6: Alarm

Alarm (≤ 100 mA) Health (≤100 mA)

+ (L+)

Alarm

‒ (M)

+ (L+)

Health

‒ (M)

+ (L+)

Alarm

‒ (M)

+ (L+)

Health

‒ (M)

Test input

Test input: The sensors (WSO26P, WSO26I) feature a test input (“TI” or “Test” on the

connection diagram [see table 2]), which can be used to switch the sender off and,

therefore, check that the sensor is functioning correctly: If female cable connectors with

LED indicators are used, you have to ensure that the TI is assigned accordingly.

It is important that there is no object between the sender and receiver, activate the test

input (see the connection diagram [see table 2]).

The send LED is shut down or the detection of an object is simulated. Refer to table 7

to check the function. If the switching output fails to behave in accordance with the

graphic, check the application conditions, see "Troubleshooting", page 12.

Table 7: Test

Test → M Test → L+

+ (L+)

Test

‒ (M)

+ (L+)

Test

– (M)

+ (L+)

Test

‒ (M)

+ (L+)

Test

– (M)

7 Commissioning

7.1 Alignment

WSO26P: Align the sender with the receiver. Select the position so that the red emitted

light beam hits the receiver. Tip: Use white paper or a reflector as an alignment aid. The

sender must have a clear view of the receiver, with no object in the path of the beam

[see table]. You must ensure that the optical openings (front screen) of the sensors are

completely clear.

ADDITIONAL FUNCTIONS 6

8020358.19RH / 15.01.2021 | SICK

Subject to change without notice 9
