Star Trac 4-UB Bedienungsanleitung
OWNER'S
MANUAL
CORE HEALTH & FITNESS
4-UB Upright Bike
Page 1
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS................................................................................................................2
PRODUCT SPECIFICATIONS ........................................................................................................................4
IMPORTANT LABEL LOCATIONS ........................................................................................................................6
PART IDENTIFICATION ........................................................................................................................8
OPERATIONS ........................................................................................................................9
ADJUSTING THE SEAT ................................................................... 9
OPERATION - LCD CONSOLES ......................................................................................................................10
CONSOLE KEY FUNCTIONS ................................................................. 11
OPERATION - 10IN
TOUCHSCREEN CONSOLES ......................................................................................................................13
SCREEN VIEWS ................................................................. 14
WORKOUT SELECTION KEYS AND PROGRAM DEFINITIONS.................. 16
OPERATION - OPENHUB
TOUCHSCREEN CONSOLES ......................................................................................................................17
SCREEN VIEWS ................................................................. 19
WORKOUT SELECTION KEYS AND PROGRAM DEFINITIONS.................. 21
PROGRAM UPLOAD ................................................................. 22
MENU MAP - BIKE/CROSSTRAINER .......................................................... 24
MAINTENANCE MODE ......................................................................................................................25
LCD CONSOLE ................................................................. 25
MAINTENANCE ......................................................................................................................28
TOOLS ................................................................. 28
MAINTENANCE SCHEDULE ................................................................. 29
SUPPORT & SERVICE ......................................................................................................................31
Page 2
Before using this product, it is essential to read the ENTIRE Owner’s Manual and ALL
installation instructions. The Owner’s Manual describes equipment setup and instructs
members on how to use correctly and safely.
Read all warnings posted on the machine.
Health related injuries may result from incorrect or excessive use of exercise equipment.
Core Health & Fitness strongly recommends you to encourage your members to discuss their
health program or fitness regimen with a health care professional, especially if you or they
have not exercised for several years, are over 35, or have known health conditions.
WARNING!
IMPORTANT SAFETY INSTRUCTIONS
DANGER - to reduce the risk of electrical
shock:
1. Always unplug the machine from the electrical
outlet before cleaning or servicing.
2. This product is factory-equipped with a specific
DC Power Supply to permit connection to the
proper electric circuit. Make sure that the product
is connected to a dedicated power line having an
outlet with the same configuration as that of the
plug.
3. Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman
if you are in doubt as to whether the product
is properly grounded. Do not modify the plug
provided with the product. NO adapter should
be used with this product. If the product must
be reconnected for use on a different type of
electric circuit, the reconnection should be made
by qualified service personnel in order to avoid a
hazard.
4. This machine is not intended to be serviced by
the end user, refer servicing to qualified personnel
only.
5. If the power supply cord is damaged, it must be
replaced by the manufacturer, its service agent,
or similarly qualified persons in order to avoid
hazard.
6. Keep the cord away from heated surfaces.
Unplug power cord when the machine is
unattended and before performing any
preventative maintenance such as cleaning or
replacing a worn part.
7. Do not operate unit in damp or wet locations.
WARNING - to reduce the risk of injury to
person:
24 in (0.6 m)

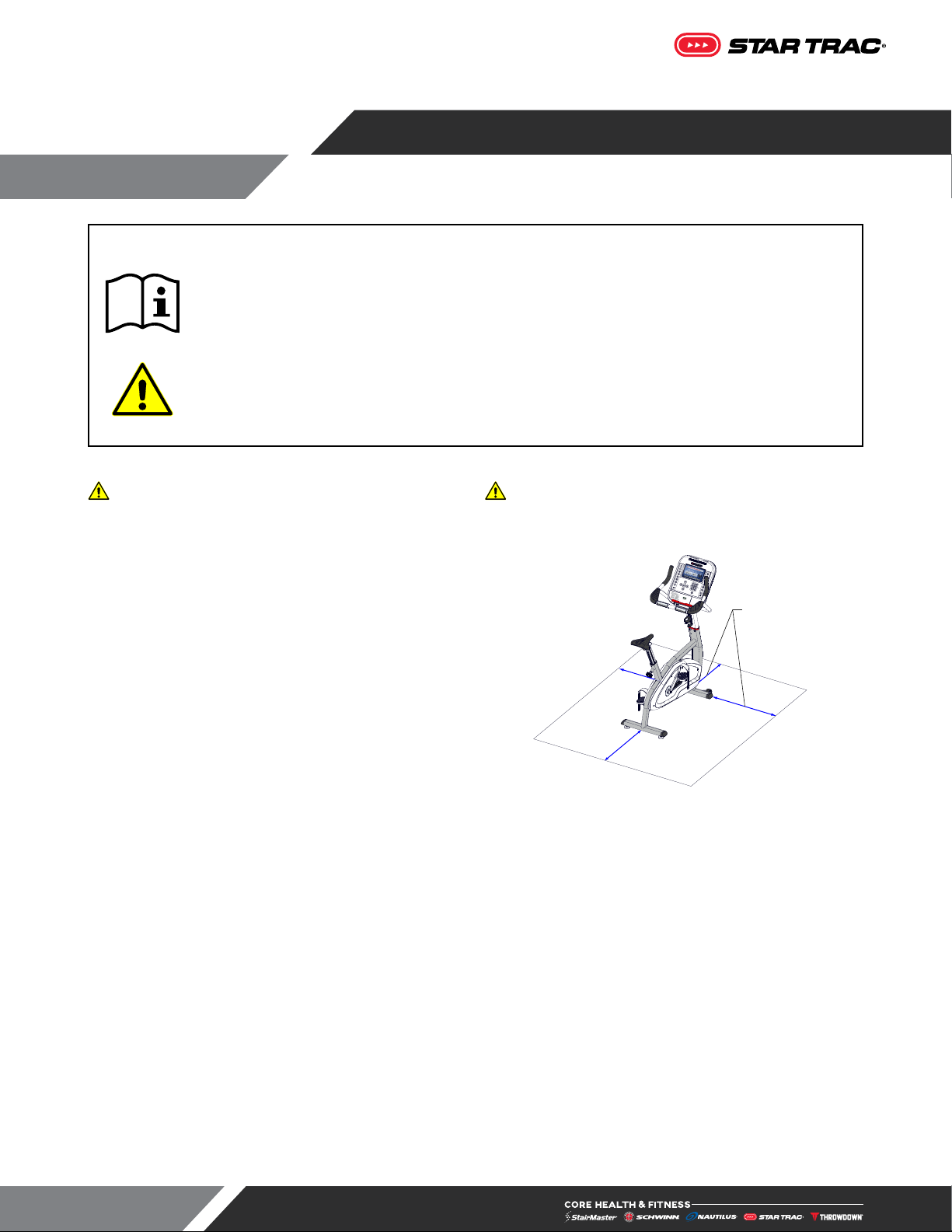

Fig. 1 Required Clearance
1. Assemble and operate the machine on a solid
level surface. Position the machine with a
minimum of 24 inches (0.6 meters) of clearance
on each side to allow for ease of mounting and
dismounting. Allow for 24 inches (0.6 meters) of
clearance behind the machine. Leave a minimum
of 19.7 inches (0.5 meters) between two adjacent
units. These dimensions are the recommended
minimum distances.
The actual area for access and passage shall be
the responsibility of the facility and should take
into account this training envelope, Americans
with Disabilities Act Accessibility Guidelines
(ADAAG) requirements and any required local
codes or regulations (www.access-board.gov/
ada).
Page 3
2. Do not exceed the maximum allowable weight
limit of:
• 4-UB - 450 lbs. / 204 kg.
3. Care should be used when mounting or
dismounting the equipment. Before mounting or
dismounting, move the pedal on the mounting or
dismounting side to its lowest position and bring
the machine to a complete stop.
4. Keep the top surface of the pedals clean and dry.
5. Obtain a medical exam before beginning any
exercise program. If at any time during exercise
you feel faint, dizzy, or experience pain, stop and
consult your physician.
6. Keep children away.
7. Do not wear loose or dangling clothing while
using the machine.
8. Do not operate the machine if the motor shroud
is removed or if the power cord is damaged in
any manner. Keep all air openings free from dirt
or any material that would block the flow of air to
the motor.
9. The safety and integrity of this machine can only
be maintained when the equipment is regularly
examined for damage and wear and repaired.
It is the sole responsibility of the owner of this
equipment to ensure that regular maintenance
is performed. Worn or damaged parts must be
replaced immediately or the equipment removed
from service until the repair is made.
10. WARNING: Heart rate monitoring systems
may be inaccurate. Over-exercising may result
in serious injury or death. If you feel faint stop
exercising immediately.
SAVE THESE INSTRUCTIONS
Page 4
Fig. 2 15” OpenHub Embedded Console Shown
SKU: 9-3180 Desc: 4-UB Upright Bike
Unit Weight Width Length Height
Max User
Weight
132 lbs
60 kg
22.2 in
57 cm
45.9 in
117 cm
57.3 in
146 cm
0-450 lbs
0-204 kg
PRODUCT SPECIFICATIONS
Page 5
Other Consoles
Fig. 3 10” Touchscreen Console
Fig. 4 LCD Console
Page 6
This page shows examples of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that own-
ers maintain the integrity and placement of these stickers. If you find any stickers missing or damaged the replacement numbers are shown on the support site.
See Support and Service to order replacements. For console warnings, refer to console documentation for part replacement. NOTE: STICKERS AND LABELS
ARE NOT SHOWN TO SCALE
Serial Label
050-5664
Console Warning
Fig. 5 10” Non-Touch console shown
IMPORTANT LABEL LOCATIONS
P/N: 050-5456 Rev C
CERTIFICATIONS
PHASE
MAX USER
WEIGHT
WATTS
VOLT
AMPS
CYCLES
DATE
DESIGNED IN THE USA
MADE IN CHINA
Patents: www.corehealthandfitness.com/patents
PRODUCT NAME:
1-888-678-2476
Vancouver, WA 98662 USA
4400 NE 77th Avenue, Suite 300
Core Health & Fitness, LLC
Class SB Fitness Equipment for Commercial use.
Conforms to STD EN ISO 20957-1 & EN957-5.
mm/yyyy
n/a
50/60 Hz
n/a
12VDC/6.35A
9-8120-MUNBP0
UB8120Lyywwxxxx
500 lbs
(227 kg)
8-UB Bike,
Upright
212740
Page 7
050-5664
STICKER,STAR
TRAC,45MMX191MM
050-2215
LABEL, GENERAL WARNING,
E-BTS
Page 8
L
M
C
J
O
K
B
D
N
I
H
EA
F
G

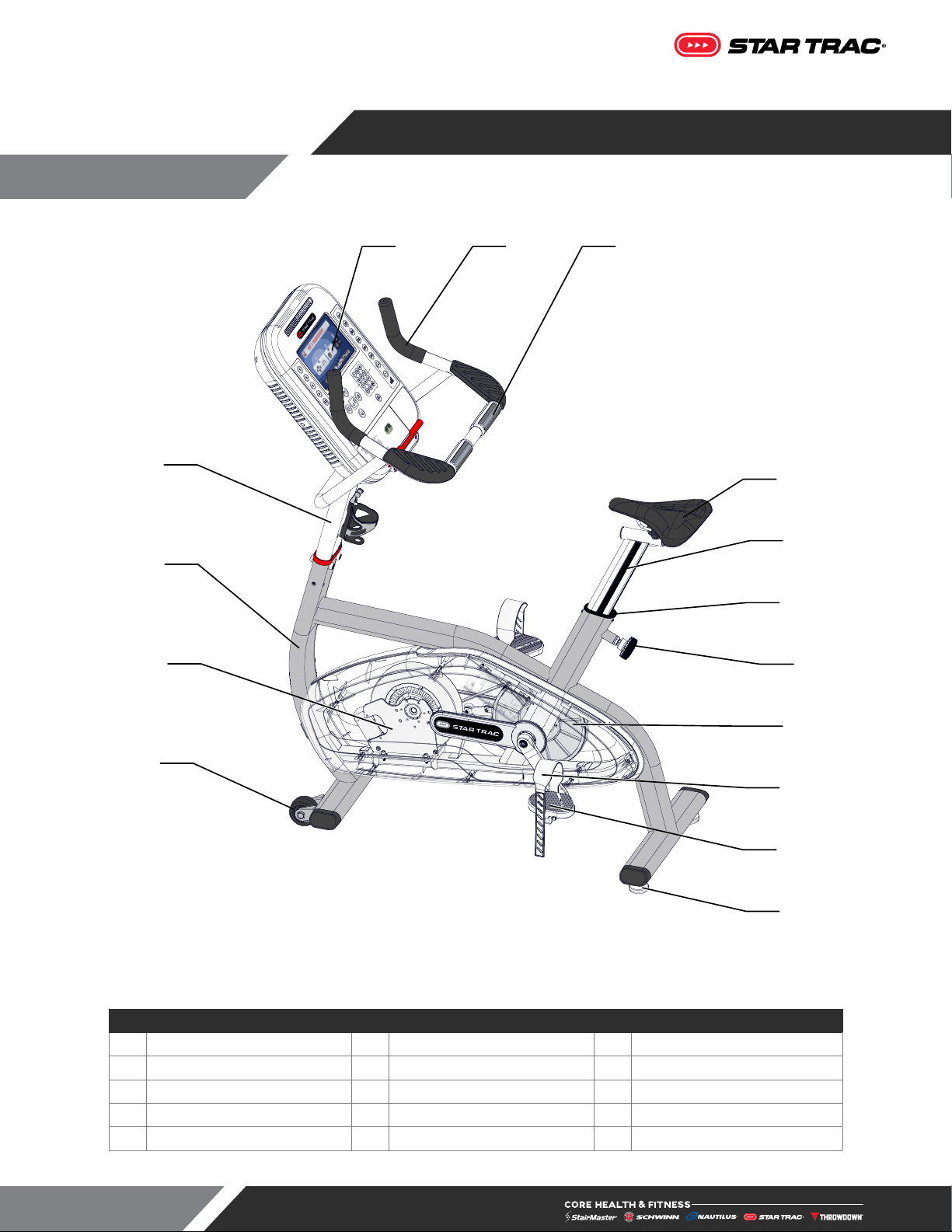

Fig. 6 4UB Features - 10” non-touchscreen shown
PART IDENTIFICATION
# Part # Part # Part
AConsole FSeat Pillar KFoot
BMast GSeat LTransport Wheel
CFrame HSeat Tube MGenerator
DHandlebar ISeat Adjustment NPedal Strap
EHeart Rate Grips JFlywheel OPedal
Page 9
ADJUSTING THE SEAT
MAX MARKMAX MARK
Fig. 7 Seatpost Max Mark
Adjusting the Seat
1. Turn pin counterclockwise and pull to loosen.
2. Adjust height. Do not try to raise post above the max height mark.
3. Release pin and turn clockwise to lock. Tighten knob until snug and
post is secure without wobble.
OPERATIONS
