Starrett IQ Bedienungsanleitung

Electronic Dial Indicator

Instructions

2nd Generation

Table of Contents

Electronic Dial Indicator IQ (2nd Generation)

Features & Icons 3

Functions 4

Electronic Dial Indicator AD (2nd Generation)

Features & Icons 5-6

Primary Button Functions 7-8

2nd Button Functions 9-10

3rd Button Functions 11

Additional Instructions & Information

Single Indicator Software 12

CALC Software 13

Dimensions 14

Specications & Error Codes 15

Compliance 16

DATA Outputs 17-18

Electronic Dial Indicator

• Absolute Sensor – Never lose position (even

when replacing batteries)

• Long Battery Life – Approximate Hours:

Casual Daily Use +10,000 Hours;

Average Daily Use +6,000 Hours;

• No Over-Speed Error – Fast spindle speeds

• Fixed Scale – More robust, reliable, & compact

design than a moving scale

• Incremental Measuring Mode

• Large Display with ½” Tall Numbers

• Off Button

• Rotating Bezel 270 degrees

• + / - Travel Direction Button

• Floating Zero

• Resolution Change Button

• IN mm Button – Change displayed units

• Low Battery Warning Icon

• Data Send Button

• Data Cables USB, MTI (Digimatic), RS232

• Made In USA

Send Measurement

Inch

Millimeter

Resolution

Battery Warning

Cable Connection

Travel Positive

Travel Negative

IQ 2nd Generation

ON Zero Powers indicator ON. Zeros / clears reading

a. To Power Indicator On: Press & Release ON ZERO

b. To Clear / Zero Display: Press & Release ON ZERO

when LCD is On. (Zero on Release of Button)

OFF Powers indicator off

a. To Power Indicator Off: Press & Release OFF

(position & settings are not lost when indicator is off)

DATA Sends Data from indicator with cable or wireless radio

module

a. To Send Data: Press & Release DATA

b. If cable is connected, the indicator reading will be sent

through the data output cable.

c. A computer can also request readings.

IN mm Controls the display units (default is IN / English)

a. To Change From Inch To Millimeter Or Millimeter To Inch: Press & Release IN mm

b. mm for millimeter (metric) or IN for inch (English) will appear on right side of display.

RES Changes display resolution

a. To Change Resolution: Press & Release RES . Repeat until desired resolution is displayed.

b. IN .00005”; .0001”; .0005”; .001” mm .001mm; .002mm; .01mm; .02mm

c. Resolution can only be changed to a coarser resolution than the base indicator purchased.

+ / - Changes spindle / travel direction

a. To Change Travel Direction Of Reading: Press & Release +/- .+ – or – + icons appear on LCD

for 1 second

b. + – will count negative with the inward direction of spindle travel. – + will count positive with

the inward direction of spindle travel.

c. – is displayed for negative readings & no sign is displayed for positive readings.

Note:

Factory reset: Press & Hold ON ZERO & OFF simultaneously until RESET appears on LCD

BUTTON FUNCTIONS

Electronic Dial Indicator

• Absolute Sensor – Never lose position (even

when replacing batteries)

• Long Battery Life – Approximate Hours:

Casual Daily Use +10,000 Hours;

Average Daily Use +6,000 Hours;

Countinuous use with advance features 1,000

Hours

• No Over-Speed Error – Fast spindle speeds

• Fixed Scale – More robust, reliable, & compact

design than a moving scale

• 3 Measuring Modes:

1) INC (Incremental)

2) PRESET (Change Zero Value)

3) TIR (Total Indicator Reading) Scroll through TIR,

Max, and Min Values

• Large Display with ½” Tall Numbers

• Off Button

• Rotating Bezel 270 degrees

• TOL (Tolerance) Program HI / LOW Values

• Red (No G0) & Green (Go) LEDs for TOL (Tolerance)

and DATA

• + / - Travel Direction Changeable

• Floating Zero

• Resolution – Changeable

• Programmable Ratio

• IN mm Button – Change displayed units

• Low Battery Warning Icon

• Programmable Lock

• Data Send Button

• Data Cables USB, MTI (Digimatic), RS232

• 200 Data Measurements Stored in Indicator.

• Made In USA

AD 2nd Generation

AD Icons & Program Functions

Analog Display

CALC Formula or Table Measurement

SET Programming or Setup

- + Travel Positive

+ - Travel Negative

DATA Send or Store Measurement

2ND Secondary Button Functions

RATIO Ratio Measurements

FRZ Holds Freezed Reading

MIN Holds Minimum Reading

MAX Holds Maximum Reading

TIR MODE for Total Indicator Reading

PRESET MODE for Absolute Origin other than

Zero

INC MODE for Incremental

(Standard MODE)

LOW TOL Lowest Tolerance Reading

HI TOL Highest Tolerance Reading

TOL Tolerance

RES Resolution

Programming Functions

(apply, move, change)

apply used to Enter Desired

Program in TOL, RATIO, PRESET, RES, DATA

move used to Move or Position

the Flashing Icon when Programming

in TOL, RATIO, PRESET, DATA

change used to Modify Value

that is Being Programmed.

Lock Functions & Features

Cable Connection

Battery Warning

Go / No Go LEDs

(Green & Red)

➥

Analog Display

CALC Formula or Table Measurement

SET Programming or Setup

- + Travel Positive

+ - Travel Negative

DATA Send or Store Measurement

2ND Secondary Button Functions

RATIO Ratio Measurements

ON Zero Powers indicator ON. Zeros / clears reading

a. To Power Indicator On: Press & Release ON ZERO

b. To Clear / Zero Display: Press & Release ON ZERO

when LCD is On. (Zero on Release of Button)

OFF MODE Powers indicator OFF. Changes MODE from INC, PRESET, & TIR

a. To Power Indicator OFF: Press & Release OFF MODE

(position & settings are not lost when indicator is off)

b. To Change Indicator MODE: Press & Hold OFF MODE The LCD

ICONs will change from INC to PRESET to TIR. Release button when

the desired MODE ashing on LCD. See 2nd (secondary) function .

page for using PRESET or TIR

c. OFF can be used to exit programming functions (Ratio, Tolerance,

Presets, Radio, Lock). Using OFF to exit will not apply changes.

HOLD Toggles HOLD on & off. Changes HOLD from MAX (Maximum

Reading), MIN (Minimum Reading) & FRZ (Freeze Reading)

a. To Toggle HOLD On /Off: Press & Release HOLD

b. To Select Type of HOLD: Press & Hold HOLD . The LCD ICONs scroll

through MAX to MIN to FRZ. Release button when desired HOLD

function is ashing on LCD

IN mm Controls the display units (default is English)

a. To Change From Inch To Millimeter Or Millimeter To Inch:

Press & Release IN mm

b. mm for millimeter (metric) or IN for inch (English) will appear on

right side of display.

2ND Enables 2ND functions ( DATA, + / -, RES) & 3rd functions

(Lock, Stored Readings, Analog Display, Data Output, Ratio)

View Sections on 2nd Button Functions & 3rd Button Functions

Primary BUTTON FUNCTIONS

Press & Release ❍   Press & Hold

O

Primary BUTTON FUNCTIONS

TOL Toggles TOL (Tolerances) On & Off.

a. To Toggle TOL On/Off: Press & Release TOL . If no tolerances are

programmed, a large tol will be displayed & both the LOW & HI

icons will ash.

b. To Program LOW & HI tolerances: Toggle TOL On (step a.).

Press & Hold TOL until HI is ashing & release TOL .

Use move (2ND ), change (TOL), apply (HOLD) to program

HI tolerance. move (2ND) scrolls ashing icon left to right.

change (TOL) toggles value of ashing icon. apply (HOLD)

stores value of HI or LOW.

c. When the value is out of tolerance the numbers will ash and the

LOW or HI will ash. If the LEDs are turned on, the Green or Red

LEDs will ash for 2 seconds when in tolerance and 4 seconds

when out of tolerance. Repeat to program LOW.

d. To Disable / Enable LEDs for TOL: use the following 3 button

sequence.

1.Press & Release 2ND

2. Press & Release ON ZERO

3.Press & Hold INmm until display changes

(All On, Off, DATA, or Off will be displayed).

Use change (TOL) to scroll All On (LEDs will ash when using

the TOL & DATA), oFF (turned off for both TOL & DATA), tol (turned

on for tolerance only), DATA (turned on for Data only).

Use apply (HOLD) to store desired setting

Note:

Factory reset: Press & Hold ON ZERO & OFF simultaneously until

RESET appears on LCD

OFF can be used to exit programming functions (Ratio, Tolerance,

Presets, Lock) Using OFF to exit will not apply changes.

After 60 seconds of inaction, programming will exit and will not

apply changes.

➥

LEDs

RED &GREEN RED & GREEN

➥

Press & Release ❍   Press & Hold

O

DATA Send Data through cable, wireless radio module, or store readings

in indicator.

a. To Send Data or Store Readings:

1) Press and Release 2ND

2) Press & Release DATA (HOLD).

Cable: If cable is connected, the data will be sent through the data

output cable. For 1 second DATA icon will appear.

For 1 second DATA icon will appear.

Stored Reading: With no cable connection & readings will be stored

in indicator. For 1 second DATA icon will appear.

NOTE: A computer can also request readings.

b. To View Stored Readings:

1) Press & Release 2ND

2) Press & Release ON ZERO

3) Press & Release HOLD . DATA icon appears on LCD

4) Press & Release move (2nd)

5) Repeat step 4) to scroll readings. The newest to oldest reading is

displayed.

To Clear (erase) Stored Readings: Press & Hold ON ZERO

To Exit Stored Readings: Press & Release DATA (HOLD)

+ / - Changes spindle / travel direction

a. To Change Travel Direction Of Reading:

1) Press & Release 2ND

2) Press & Release + /- INmm.

For 1 second + – or – + icons appears on LCD.

+ – counts negative with the inward direction of spindle travel.

– + counts positive with the inward direction of spindle travel.

– displays for negative readings & no sign is displayed for positive readings.

RES Changes display resolution

a. To Change Resolution:

1) Press & Release 2ND

2) Press & Release RES (TOL).

SET will ash on LCD. Repeat Step 2 until desired resolution is

displayed.

Press & Release apply (HOLD) to store resolution

Resolutions IN .00005”; .0001”; .0005”; .001”

mm .001mm; .002mm; .01mm; .02mm

Resolution can only be changed to a coarser resolution than the base indicator as purchased.

Note: OFF can be used to exit programming functions (Ratio, Tolerance, Presets, Lock)

Using OFF to exit will not apply changes. After 60 seconds of inaction, programming will exit

and will not apply changes.

2nd BUTTON FUNCTIONS

2 1

Press & Release ❍   Press & Hold

O

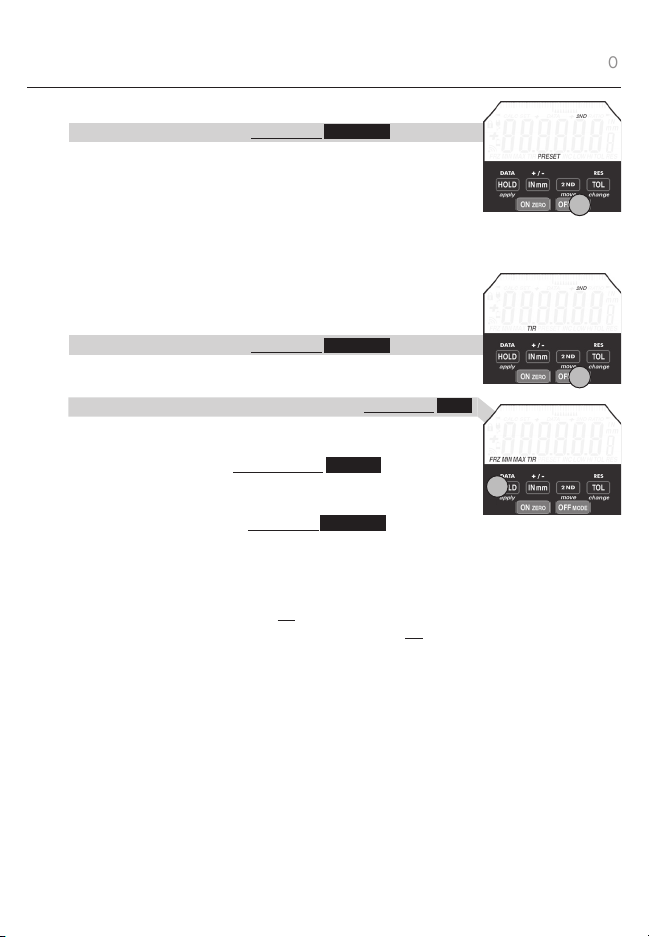

MODE (INC, PRESET, TIR)

PRESET Change MODE from INC, PRESET, & TIR

a. To Change Indicator MODE: Press & Hold OFF MODE The LCD

ICONs will change from INC to PRESET to TIR. Release button when

PRESET ashes on the LCD.

b. To Program Preset Number: Enter PRESET MODE (step a.).

Use the move (2ND), change (TOL), & apply (HOLD) to program /

set the PRESET value.

move scrolls ashing icon left to right. change toggles the value of

the ashing icon. apply stores PRESET value.

TIR (Total Indicator Reading)

Difference between the MAX (peak) & MIN (valley) value

Change MODE from INC, PRESET, & TIR

a. To Change Indicator MODE: Press & Hold OFF MODE .

The LCD ICONs will change from INC to PRESET to TIR.

Release button when the TIR ashes on the LCD.

b. To view the MAX (peak) & the MIN (valley) Value: Press & Hold HOLD

until the desired value is ashing & release button. In TIR MODE,

the freeze (FRZ) is the only function available.

c. To zero (clear) TIR value: Press & Release ON ZERO .

INC (Incremental)

Standard Operating MODE

a. To Change indicator mode: Press & Hold OFF MODE until INC

ashes on LCD

Note:

OFF can be used to exit programming functions (Ratio, Tolerance,

Presets, Lock) Using OFF to exit will not apply changes.

After 60 seconds of inaction, programming will exit and will not

apply changes.

Press & Release ❍   Press & Hold

O

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Starrett Messgerät Handbücher

Starrett

Starrett Electronic IP67 Bedienungsanleitung

Starrett

Starrett 2900 Series Bedienungsanleitung

Starrett

Starrett 749.1 Bedienungsanleitung

Starrett

Starrett 799A Series Bedienungsanleitung

Starrett

Starrett W2900-6ME Bedienungsanleitung

Starrett

Starrett FORM 966 Bedienungsanleitung

Starrett

Starrett 2900 Series Bedienungsanleitung

Starrett

Starrett W2900 Bedienungsanleitung

Starrett

Starrett 798 Series Bedienungsanleitung

Starrett

Starrett 3752 Series Bedienungsanleitung

Starrett

Starrett PKG08806-UMDFG Bedienungsanleitung

Starrett

Starrett 436.1 Bedienungsanleitung

Starrett

Starrett AV300 Bedienungsanleitung

Starrett

Starrett 2900 Series Bedienungsanleitung

Starrett

Starrett 2900-1 Series Bedienungsanleitung

Starrett

Starrett LMXP-100 Bedienungsanleitung

Starrett

Starrett EC799 Bedienungsanleitung

Starrett

Starrett W798 Bedienungsanleitung

Starrett

Starrett 749.1 Bedienungsanleitung

Starrett

Starrett 799A Series Bedienungsanleitung

Starrett

Starrett W733.1 Bedienungsanleitung

Starrett

Starrett 5000B Series Bedienungsanleitung

Starrett

Starrett EC799 Bedienungsanleitung

Starrett

Starrett UM3202 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
