StarTech.com SAT3520UERGB Bedienungsanleitung

SAT3520U2ER

SAT3520UERGB

InfoSafe eSATA/USB 2.0 Dual

3.5” SATA Drive Enclosure

with RAID

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction .................................................................... 1

Features ......................................................................................1

Package Contents .......................................................................1

Hardware Guide............................................................... 2

Front View....................................................................................2

Rear View ....................................................................................2

Installation....................................................................... 3

Installing Drives in the Enclosure ................................................3

Connecting SAT3520U2ER to the Host Computer......................5

Partitioning Installed Drives.........................................................5

Software Operation Guide.............................................. 8

Software Installation Guide..........................................................8

Using the SteelVine Manager......................................................9

Changing the RAID Mode Using the GUI....................................9

RAID Mode Overview ..................................................................11

Speciﬁcations.................................................................. 14

Technical Support........................................................... 15

Warranty Information...................................................... 15

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com InfoSafe eSATA/USB 2.0

Dual 3.5” SATA Hard Drive Enclosure with RAID. This versatile storage

solution allows easy installation of two 3.5” SATA I/II hard drives of up to

2TB capacity (each), for a total capacity of up to 4TB (non-RAID), and

maximizes performance capabilities with support for a broad range of

RAID applications including RAID 0, RAID 1, and Concatenated (BIG

mode).

Features

• Rear panel power and fan on/off switches

• Easy conﬁguration using dip switches or GUI

• Hard drive power and activity LEDs

• Supports data transfer speeds of up to 3Gbps (eSATA) and 480Mbps

(USB 2.0)

• RAID can be used with either eSATA or USB 2.0 connection

• Supports RAID 0 (Striping or Fast), RAID 1 (Mirroring or Safe),

BIG (Spanning or Concatenation), SAFE33/55 and JBOD modes

• Built-in 50mm cooling fan

Package Contents

• 1 x Aluminum Enclosure

• 1 x eSATA Cable

• 1 x Instruction Manual

• 1 x Software and Driver Installation CD

• 1 x Plastic Stand

• 1 x Power Adapter with Power Cord

• 1 x Screw Kit

• 1 x USB Cable

Instruction Manual

Hardware Guide

Front View

1.Power LED

2.HDD-1 LED

3.HDD-2 LED

Rear View

1. Fan

2. eSATA Connector

3. Power Switch

4. Power Adapter Socket

5. Fan Switch

6. USB Connector

Instruction Manual

Installation

Installing Drives in the Enclosure

1. Remove the screws holding the rear panel

in place, then slide the rear panel out from

the enclosure.

2. Place the ﬁrst 3.5” SATA hard drive into

the tray, then slide it forward until the drive

interface is ﬁrmly connected to the SATA

connector on the SAT3520U2ER/

SAT3520UERGB. Repeat this step with

the second 3.5” SATA hard drive, using the

remaining tray.

If connecting the enclosure to a host computer using the eSATA

port, please note that in order to use some of the RAID modes of the

enclosure, the eSATA port on the host computer system must provide

Port Multiplier support. If the eSATA port does not offer Port Multiplier

support, only one of the installed drives will be accessible.

Instruction Manual

3. Secure the drives to the Enclosure tray,

using the provided screws.

4. Select the operating mode for your hard drive using the DIP Switches

shown below. Once you have set the DIP switches according to the

desired RAID mode, press the Reset Button to save changes.

DIP Switches

Reset Button

DIP Switch No.

RAID Mode 1 2 3 4

GUI* (Requires Software Installation)** ON ON ON ON

JBOD* ON OFF OFF ON

BIG ON OFF OFF OFF

RAID 0 (Fast) ON OFF ON OFF

RAID 1 (Safe) ON OFF ON ON

RAID/SAFE33* ON ON OFF OFF

RAID/SAFE55* ON ON OFF ON

*denotes Port Multiplier requirement over eSATA

** Please see pg. 11 for more details on GUI Mode

Instruction Manual

5. Replace the Enclosure tray (with drives

attached) into the Enclosure.

6. Secure the Enclosure tray within the Enclosure, using the screws

removed in step 1.

Connecting SAT3520U2ER to the Host Computer

Once the hard drives have been installed within the Enclosure and the

necessary dipswitch settings have been made:

1. Connect the power adapter (included) to the power adapter socket

on the rear panel of SAT3520U2ER. Connect the remaining end of the

power adapter to an available power outlet.

2. Connect SAT3520U2ER to the host computer using either an eSATA or

USB cable (both included).

NOTE: if using eSATA, the host controller on the computer system needs

to support Port Multiplier technology.

Partitioning Installed Drives

Once the necessary connection (either eSATA or USB) has been made to

the host computer, from the host computer operating system:

1. Right-click on the My Computer icon and select Manage.

Instruction Manual

2. In the left pane of the Computer Management window, select Device

Manager. The installed hard drives will appear as “unallocated”, in the

bottom half of the right pane.

3. Right-click the Disk you wish to use and select Initialize Disk.

4. Click OK to initialize the disk.

Instruction Manual

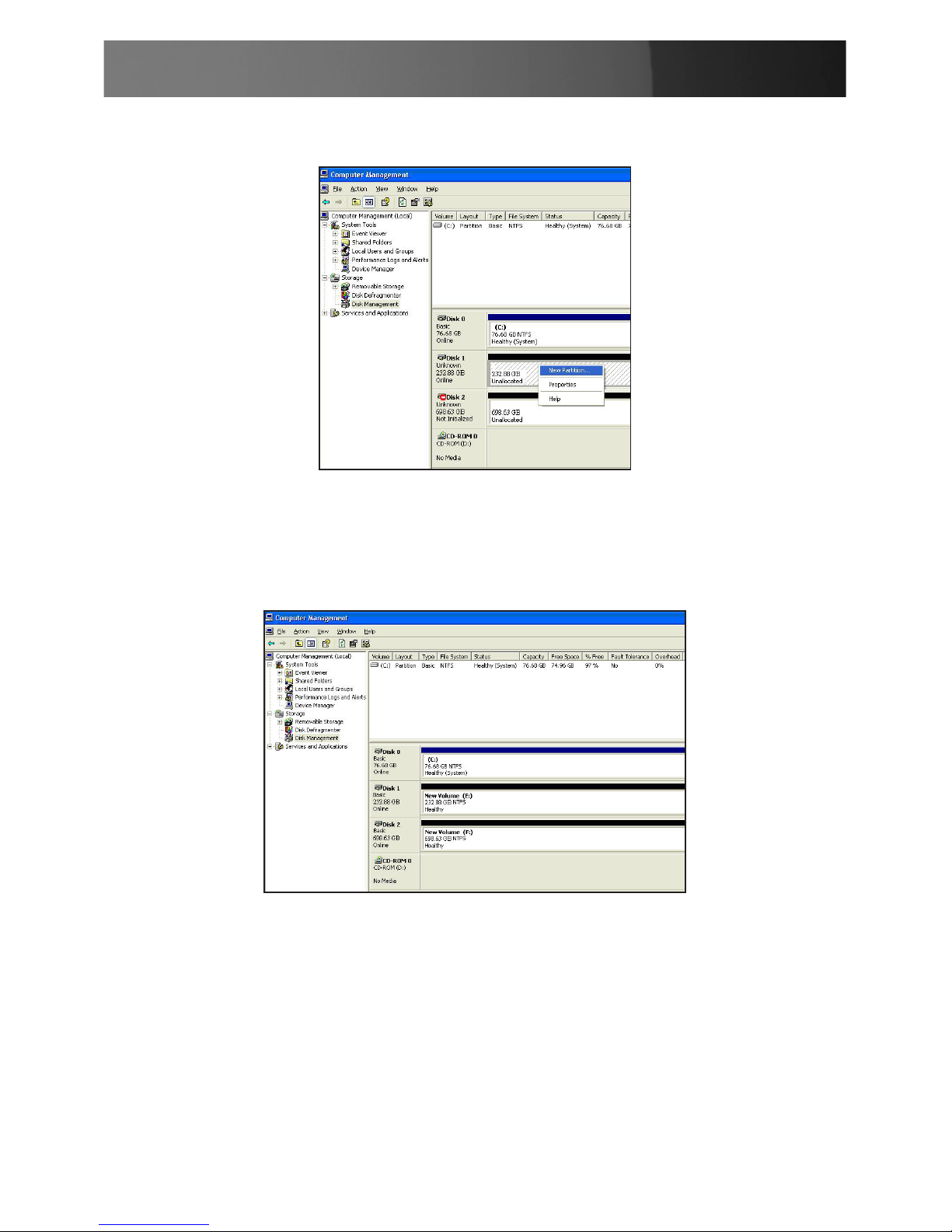

5. The disk should now be shown as “Online.” Right-click on the

unallocated block and select New Partition.

6. The New Partition Wizard will appear. Follow the on-screen

instructions to complete the creation of the new partition. When the

partition has been created, the hard drive should appear as “New

Volume.”

7. Repeat steps 1-6 to partition the second hard drive.
