StarTech.com PEX2S952 Bedienungsanleitung

PEX2S952

PEX1S952

Dual Prole PCI-Express 16C950

UART Serial Card

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital de-

vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com. Where

they occur these references are for illustrative purposes only and do not represent an endorse-

ment of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. Regardless of any direct acknowl-

edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols

contained in this manual and related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction.................................................................................... 1

Features ......................................................................................1

Package Contents .......................................................................1

Conﬁguration................................................................................. 2

Hardware Installation .................................................................... 2

Installing the Software Drivers..................................................... 3

Windows 2000 Driver installation ................................................3

Windows XP Driver Installation ...................................................4

Windows Vista Driver Installation ................................................5

Speciﬁcations ................................................................................ 7

Technical Support ......................................................................... 8

Warranty Information .................................................................... 8

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com PEX1S952/PEX2S952 Dual

Proﬁle PCI Express 16C950 UART Serial Card. This dual proﬁle Serial

card converts a PCI Express slot into two available RS-232 (DB9) serial

connections, while relying on a native, single-chip design for optimal

performance and reliability.

Features

128-byte deep FIFO per transmitter and receiver•

Automated in-band software ﬂow control using programmable Xon/Xoff•

in both directions

Automated out-of-band hardware ﬂow control using Tx/Rx/RTS/CTS/•

DSR/DTR/DCD/RI/GND

Compliant with IEEE1284, SPP/EPP/ECP parallel port•

Compliant with PCI Express base speciﬁcations revision 1.0a•

High Performance Dual Channel Oxford 950 UART•

Native single-Chip, single lane PCI Express•

Selectable power output on pin 9 for the serial port•

Two high speed RS-232 serial ports with data transfer rate up to 460.8•

Kbps

Package Contents

1 X Serial Card•

1 X Driver CD•

1 X Instruction Manual•

1 X Low Proﬁle Bracket•

Instruction Manual

Conguration

The card is specially designed to allow power output from the ninth pin of

the connector to enable power up of the connected devices without power

adapter. The card allows user to set each individual port with 5V, 12V, or

RI (no power). The user may also choose to draw the needed power from

the external system power supply.

Hardware Installation

Turn Off the power to your computer.1.

Unplug the power cord and remove your computer’s cover.2.

Remove the slot bracket from an available PCIe slot.3.3.

To install the card, carefully align the card’s bus connector with the4.

selected PCIe slot on the motherboard. Push the board down ﬁrmly.

Connect the system power source to the board’s power connector.5.

Replace the slot backet’s holding screw to secure the card.6.

Replace the computer cover and reconnect the power cord.7.

Instruction Manual

Installing the Software Drivers

This section provides information regarding the installation of the Super

PCI-E I/O drivers for the following operating systems:

Windows 2000 Driver installation

At the Add New Hardware Wizard window, click “Next”1.

Select the option “Search for the best driver for your devices (Recom-2.

mended)” and click “Next”

Select the option “Specify the location” and type in d:\Uart (CD-ROM)3.

then click “Next”

Click “Next” and then “Finish” respectively.4.

Remove the disc, then select “Yes” to restart the computer for the5.

setup to take effect.

Instruction Manual

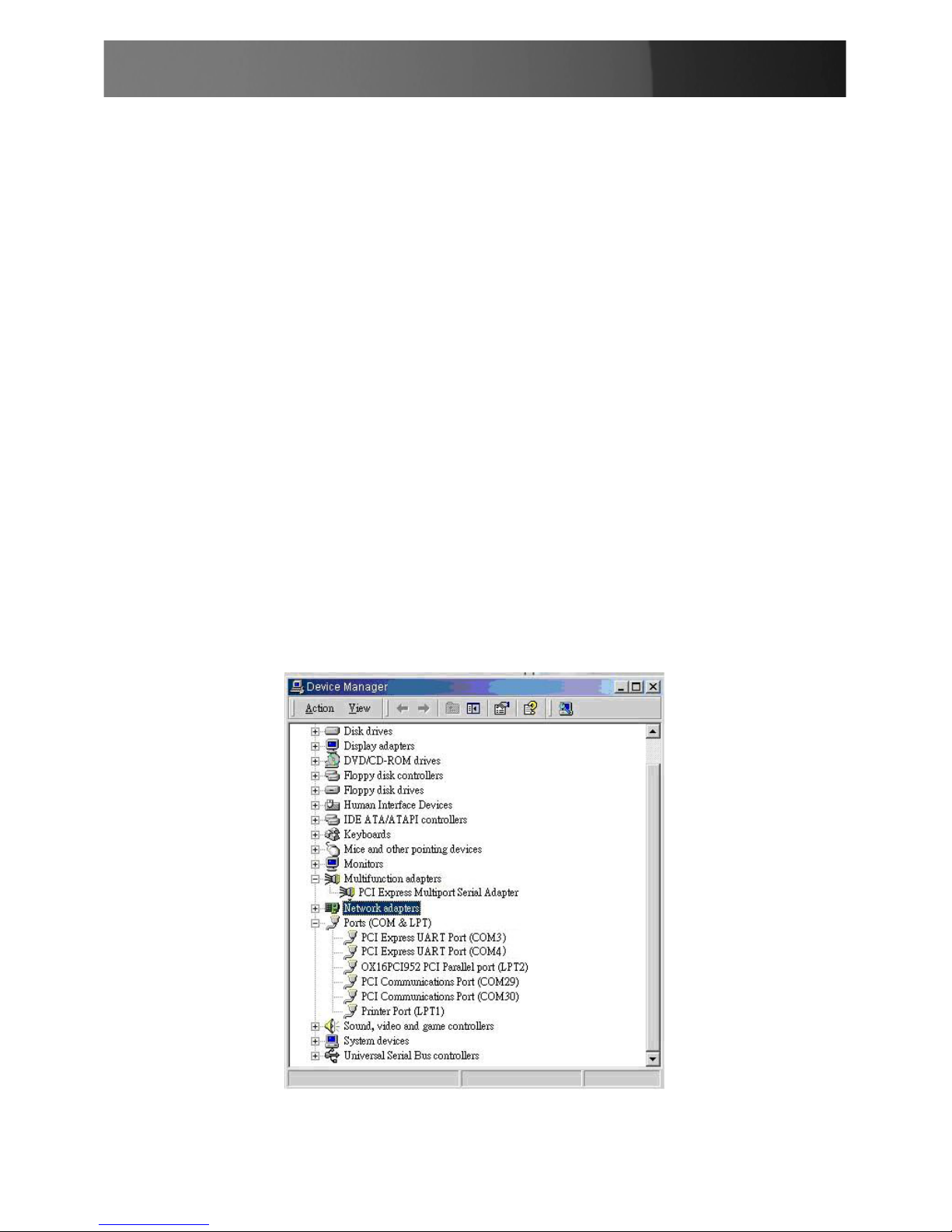

To verify successful installation on Windows 2000:

From the main desktop, double-click on My Computer, then double-1.

click on Control Panel, System, and Device Manager.

Double-click on either Ports (COM & LPT) or Serial port device options.2.

PCI I/O Board should be displayed when successfully installed. The

port is ready to connect new device.

Windows XP Driver Installation

At the Add New Hardware Wizard window, click on “Next.”1.

Select the option “Search for the best driver for your devices (Recom-2.

mended)” and click on “Next.”

Select the option “Specify the location” and type in D:\Uart (Disk3.

D:CD-ROM) then click on “Next.”

Click “Next” and then “Finish” respectively.4.

Remove the disc, then select “Yes” to restart the computer for the5.

setup to take effect.

Instruction Manual

To verify successful installation on Windows XP:

From the main desktop, double-click on My Computer, then double-1.

click on Control Panel, System, and Device Manager.

Double-click on either Ports (COM & LPT) or Serial port device options.2.

PCI I/O Board should be displayed when successfully installed. The

port is ready to connect new device.

Windows Vista Driver Installation

Insert the drivers CD into your CD-ROM.1.

Click on “Locate and install driver software (recommended).”2.

Install the software from the disc included with your PCI Serial Port and3.

then click “Next.”

A notiﬁcation will appear informing you that Windows has encountered4.

a problem installing the driver software for your device. Click “close” to

continue.

Install the software from the disc included with your 16C95x Serial Port5.

and then click “Next.”

Instruction Manual

A notiﬁcation will appear informing you that Windows has encountered6.

a problem installing the driver software for your device. Click “close” to

continue.

Click the “Device Manager” click on “Device Manager” to either Ports7.

(COM & LPT) device options. 16C95x Serial Port should be displayed

when successfully installed. The port is ready to connect new device.

Instruction Manual

Specications

Speciﬁcations PEX2S952

Bus Type PCI Express 3.3V

Maximum Data Transfer Rate 460 Kbps

Chipset Oxford OXPCIe952

OS Support Windows 2000, XP, Vista™

Stop Bits 1, 1.5, 2

Data Bits 4, 5, 6, 7, 8
