USE & CARE GUIDE

Integrated Refrigeration

Important Note

To ensure the safe and efficient use of Sub-Zero equip-

ment, please take note of the following types of highlighted

information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION signals a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

Contents

Integrated Refrigeration .......................... 3

Integrated Features .............................. 4

Integrated Models ............................... 5

Integrated Use & Care ........................... 10

eeping Food at Its Best ........................ 21

Food Storage Recommendations ................. 25

Troubleshooting Guide .......................... 31

Service Information ............................. 34

Sub-Zero Warranty ............................. 35

eatures and specifications are subject to change at any time

without notice. Visit our website, subzero.com for the most

up-to-date information.

Integrated Refrigeration 3

subzero.com

Thank You

Thank you for purchasing your new Sub-Zero integrated

unit. With Sub-Zero, you can rely on a 60-year tradition of

quality and reliability. The integrated line brings together

the latest and finest features in home refrigeration to give

you the freshest food possible.

Your Sub-Zero is protected by a warranty that is one of

the finest in the industry. Take a moment to read the

warranty statement at the end of this guide and refer to

it should service become necessary.

This use & care guide will answer most of your questions

about the features, operation and maintenance of your

integrated unit. If you have questions that are not

addressed here, call Sub-Zero customer care at

800-222-7820 or visit our website, subzero.com.

Integrated Refrigeration

The Sub-Zero integrated line brings you true innovation!

It is the first integrated systems approach to domestic

refrigeration, offering you three significant advantages.

•Integrated refrigeration systems gives you the choice

of refrigerator or freezer options to meet your needs.

The ergonomic division of space increases your access

to storage areas.

•Integrated refrigeration systems gives you the choice

of location of refrigeration units throughout your

kitchen and home. This helps you meet your individual

needs for the way you use refrigeration within your

home.

•Integrated refrigeration systems gives you total

aesthetic integration with cabinets you have chosen.

Refrigeration units, in essence, are refrigeration

cabinets. They literally become a part of the kitchen

furniture.

Integrated eatures 4

Integrated eatures

•Integrated refrigeration systems offer “point-of-use”

refrigeration that integrates with cabinetry anywhere in

the home.

•Integrated combination units, except model 700BC(I),

have the Sub-Zero dual refrigeration system, which

ensures the freshest food and energy efficiency at the

same time. You have precise independent control of

the refrigerator and freezer sections.

•Integrated models meet strict Department of Energy

requirements.

•A microprocessor controls all electronic functions,

including temperature, adaptive defrost, lights, cooling

fan and door/drawer ajar warning. Electronic digital

controls lets you monitor and adjust all temperature

zones in the unit.

•Seamless molding forms the front of each unit’s

interior, giving a sculptured look that is both utilitarian

and elegant.

•lat to the ceiling, superior lighting provides white,

efficient light in the top compartment and drawers.

•A single sculptured molding, with tempered glass

molded into it, forms each sealed, adjustable shelf.

This design feature prevents spills from dripping

throughout the unit.

•The enclosed deli drawer gives you a convenient area

for deli foods or other small items.

•Models IC-27R and 736TCI have a sealed crisper with

removable dividers. It is large and deep, with smooth

sides for easy cleaning.

•A divided dairy compartment is standard on model

IC-27R and tall refrigerator and combination units. This

adjustable compartment is a convenient place for dairy

foods and small items that need a fresh environment.

•All column and tall models have adjustable door

shelves. Column models also feature shallow door

shelves.

•An interchangeable lift-up crisper cover provides for

maximum humidity in the base and tall refrigerator

units and in the upper refrigerator drawer of base

combination units, helping you keep produce at its

best quality, longer. The middle drawer of column

model IC-27R is a sealed crisper.

•or models with an automatic ice maker, the clear

molded ice container is easily removable.

•The dual-action hinge has a built-in 90° door stop.

•Sub-Zero products are covered by a two, five and

twelve year residential warranty (exclusions apply).

See warranty details at the end of this guide.

Drawer models are certified by Star-K to meet

strict religious regulations in conjunction with

specific instructions found on www.star-k.org.

Column and tall models require installation of

a harness kit. or details about the harness

kit, contact your authorized Sub-Zero dealer.

Integrated Models 5

subzero.com

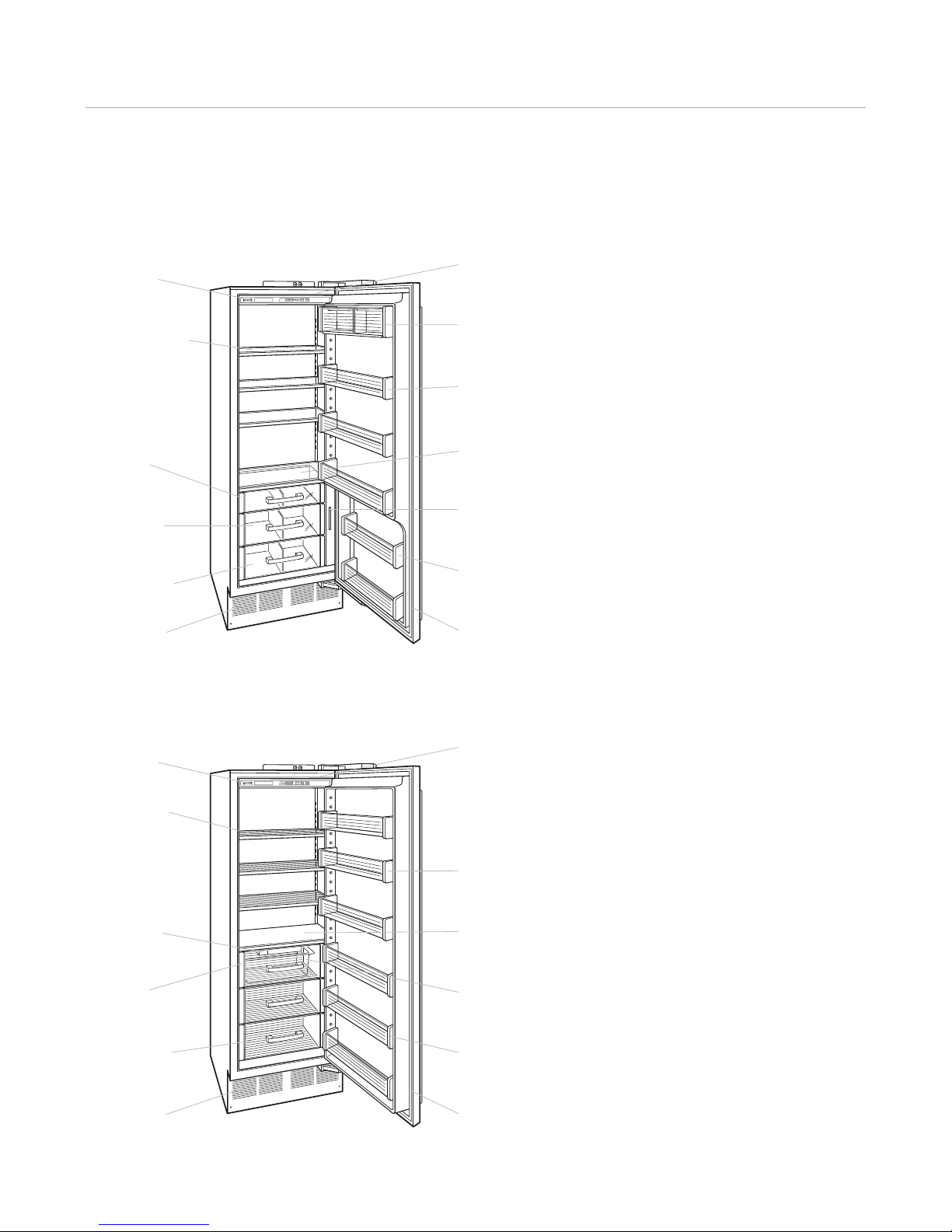

Model IC-27R

ALL REFRIGERATOR COLUMN

User reference

card

Adjustable spill-

proof glass shelves

Electronic digital

control panel

Adjustable dairy

compartment

Seamless

molding

Stationary shelf

Adjustable door

shelves

Magnetic door

gaskets

Shallow door

shelves

Kickplate/grille

Refrigerator

storage drawers

High-humidity

crisper drawer

Location of

rating plate

Model IC-27 I

ALL FREEZER COLUMN

Ice storage

container

Adjustable wire

shelves

Electronic digital

control panel

Seamless

molding

Stationary shelf

Adjustable door

shelves

Magnetic door

gaskets

Adjustable shallow

door shelves

Kickplate/grille

reezer storage

drawers

Location of

rating plate

Automatic ice

maker

Integrated Models 6

Model 700TR

ALL REFRIGERATOR

Removable

crisper cover

Adjustable glass shelf

and deli drawer

Adjustable spill-

proof glass shelves

Electronic digital

control panel

Adjustable dairy

compartment

Seamless

molding

Adjustable door

shelves

Lower refrigerator

storage drawer

Upper refrigerator

storage drawer

Kickplate/grille

Magnetic door

and drawer gaskets

Location of rating

plate

Stationary shelf

Removable

crisper cover

Kickplate/grille

Adjustable glass shelf

and deli drawer

Adjustable spill-

proof glass shelves

Electronic digital

control panel

Adjustable dairy

compartment

Seamless

molding

Magnetic door

and drawer gaskets

Location of rating

plate

Adjustable door

shelves

Stationary shelf

Lower refrigerator

storage drawer

Upper refrigerator

storage drawer

Model 736TR

ALL REFRIGERATOR

Integrated Models 7

subzero.com

Model 700T I

ALL FREEZER

Magnetic door

and drawer gaskets

Kickplate/grille

Adjustable wire

shelves

Electronic digital

control panel

Seamless

molding

Automatic

ice maker

Location of rating

plate

Adjustable door

shelves

Stationary shelf

Lower freezer

storage drawer

Upper freezer

storage drawer

Model 736T I

ALL FREEZER

Magnetic door

and drawer gaskets

Adjustable glass

shelves

Electronic digital

control panel

Seamless

molding

Adjustable door

shelves

Lower freezer

storage drawer

Upper freezer

storage drawer

Kickplate/grille

Automatic

ice maker

Location of rating

plate

Stationary shelf

Integrated Models 8

Model 700TCI

COMBINATION REFRIGERATOR / FREEZER

Model 736TCI

COMBINATION REFRIGERATOR / FREEZER

Magnetic door

and drawer gaskets

Kickplate/grille

Adjustable spill-

proof glass shelves

Electronic digital

control panel

Adjustable dairy

compartment

Seamless

molding

Automatic

ice maker

Location of rating

plate

Adjustable door

shelves

Crisper drawer

Lower freezer

storage drawer

Upper freezer

storage drawer

Magnetic door

and drawer gaskets

Adjustable glass shelf

and deli drawer

Adjustable spill-

proof glass shelves

Electronic digital

control panel

Adjustable dairy

compartment

Seamless

molding

Adjustable door

shelves

Lower freezer

storage drawer

Upper freezer

storage drawer

Kickplate/grille

Automatic

ice maker

Location of rating

plate

Stationary shelf

Integrated Models 9

subzero.com

Lower freezer

storage drawer

Magnetic drawer

gaskets

Location of rating

plate

Seamless molding

Electronic digital

control panel

Removable

crisper cover

Kickplate/grille Automatic ice maker

(model 700BCI)

Upper refrigerator

storage drawer

Lower freezer

storage drawer

Magnetic drawer

gaskets

Location of rating

plate

Seamless molding Electronic digital

control panel

Kickplate/grille

Automatic ice maker

(model 700B I)

Upper freezer

storage drawer

Magnetic drawer

gaskets

Location of rating

plate

Seamless molding

Electronic digital

control panel

Removable

crisper cover

Kickplate/grille Lower refrigerator

storage drawer

Upper refrigerator

storage drawer

Model 700BR

REFRIGERATOR DRAWERS

Model 700B (I)

FREEZER DRAWERS

Model 700BC(I)

REFRIGERATOR / FREEZER DRAWERS

Integrated Use & Care 10

Electronic Control System

The electronic control system of your Sub-Zero integrated

unit provides you with the best control of your refrigerated

foods. By maintaining recommended refrigerator and

freezer temperatures, you can keep food safe and retain

the best quality possible.

A microprocessor accurately controls the temperature of

the cooling zones. It samples the temperature every

second and makes adjustments to maintain the tempera-

ture you have indicated.

The electronic control panel is located on the top of

column and tall models, and in the top drawer of drawer

models. All of the essential controls and information are

displayed in this easy-to-reach-and-see panel. Refer to

the illustrations below for location of the electronic control

panel. Note that for single zone units and units that cannot

support an ice maker, the electronic control panel will be

slightly different.

LCD DISPLAY

The liquid crystal display (LCD) located on the electronic

control panel shows the actual temperature of different

zones in your unit.

If there is a temperature or ice maker problem, you’ll be

alerted by a flashing SERVICE indicator light in the LCD

display.

TEMPERATURE CONTROL

Integrated units are factory preset to maintain refrigerator

zones at 38° (3°C) and freezer zones at 0° (-18°C). The

temperature range for refrigerator zones is 34° (1°C) to

45° (7°C) and the temperature range for freezer zones is

-5° (-21°C) to +5° (-15°C).

or combination models, there are two sets of WARMER

and COLDER key pads on the electronic control panel.

One is for the upper refrigerator zone and the other for the

lower freezer drawers. Models 700TR and 736TR also

have two sets of key pads, one for the upper zone and the

other for the drawers. Column models and single-zone

refrigerator and freezer units have only one set of

WARMER and COLDER key pads.

The COLDER key pad allows you to decrease the temper-

ature of a selected zone in one-degree increments.

Similar to the COLDER key pad, you can raise the temper-

ature in any zone in one-degree increments by pressing

the WARMER key pad.

IMPORTANT NOTE: Always allow 24 hours for the unit to

reach the temperature you set.

POWER

The UNIT ON/O key pad (POWER for column models),

located on the electronic control panel, will turn off all

electrical power to the unit. This key pad can be used for

shutting down the unit for servicing or extended vacations.

Control panel (tall model

shown).

Drawer unit control panel.

COLDER WARMER REFRIGERATOR

FREEZER COLDER WARMER

ICE

ON/OFF ON/OFF

UNIT

ON/OFF

Andere Handbücher für IC-27R

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sub-Zero Kühlschrank Handbücher

Sub-Zero

Sub-Zero UC-24 series Bedienungsanleitung

Sub-Zero

Sub-Zero 700 Series Bedienungsanleitung

Sub-Zero

Sub-Zero ICBIC-18FI Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24BG Bedienungsanleitung

Sub-Zero

Sub-Zero 695 Bedienungsanleitung

Sub-Zero

Sub-Zero 700 Series Bedienungsanleitung

Sub-Zero

Sub-Zero ICBBI-48SD Bedienungsanleitung

Sub-Zero

Sub-Zero 642 Bedienungsanleitung

Sub-Zero

Sub-Zero 700TR Montageanleitung

Sub-Zero

Sub-Zero 424 Bedienungsanleitung

Sub-Zero

Sub-Zero ICBBI Series Service-Handbuch

Sub-Zero

Sub-Zero ICBPRO3650RH Bedienungsanleitung

Sub-Zero

Sub-Zero 600 Series BI-30UG Bedienungsanleitung

Sub-Zero

Sub-Zero BI-36S Montageanleitung

Sub-Zero

Sub-Zero 600 Series BI-36S Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24C Bedienungsanleitung

Sub-Zero

Sub-Zero 700TCI Gebrauchsanweisung

Sub-Zero

Sub-Zero Wolf BI Series Bedienungsanleitung

Sub-Zero

Sub-Zero ICB648PRO Bedienungsanleitung

Sub-Zero

Sub-Zero 700BR Bedienungsanleitung

Sub-Zero

Sub-Zero Classic Series Bedienungsanleitung

Sub-Zero

Sub-Zero 736TCI Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24B Bedienungsanleitung

Sub-Zero

Sub-Zero INTEGRATED REFRIGERATION Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
