Swann SW244-8ML Bedienungsanleitung

QUICK START GUIDE

We’ve included this convenient Quick start guide to show you basic functions and techniques that will help you quickly master DVR.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRICAL SHOCK,

DO NOT REMOVE COVER.

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

SAFETY PRECAUTIONS

The lightning flash with an arrowhead symbol within an

equilateral triangle is intended to alert the user to the pres-

ence of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to presence of important operating

and maintenance (Servicing) instructions in the literature

accompanying the appliance.

FCC COMPLIANCE NOTICE

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR

A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS

ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTER-

FERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY

AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION

MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARM-

FUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE

INTERFERENCE AT THEIR OWN EXPENSE.

WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY

RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE

THE EQUIPMENT.

THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN

INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

TABLE OF CONTENTS

APPENDIX

SETUP

OPERATION

INTRO

5~6P

10P

11P

12~14P

14P

15~16P

17~18P

19~22P

23P

25P

26P

27P

28P

29P

30P

31P

32P

33P

34P

35P

36P

37P

INTRODUCTION

REMOTE CONTROLLER

FRONT PANEL

REAR PANEL

OSD

DISPLAY / SEQUENCE

PRIVACY / MUTE / AUDIO

RECORD

BACKUP

PTZ

RS-232 / ALARM

REMOTE VIEWER

38P

39P

SPECIFICATIONS

TROUBLESHOOTING

MENU DIAGRAM

1. BASIC SETTING

RECORDING SCHEDULE

CAMERA REGISTRATION

AUDIO

HDD

PRE-POST RECORDING

2. INTERNET & NETWORK

NETWORK CONNECTION

SERVICE PORT & DDNS

UPDATE SERVER

3. DISPLAY

ADJUSTMENT

OSD

SEQUENCE

4. SYSTEM

INFORMATION & UPDATE

DATE/TIME

SYSTEM LOG

SHUTDOWN

5. PASSWORD & PARAMETER

PASSWORD

PARAMETER

6. TECHNICAL SETTING

PTZ & RS-485

EVENT

ALARM INPUT

MOTION ALARM OUTPUT

REMOTE CONTROLLER

ETC.

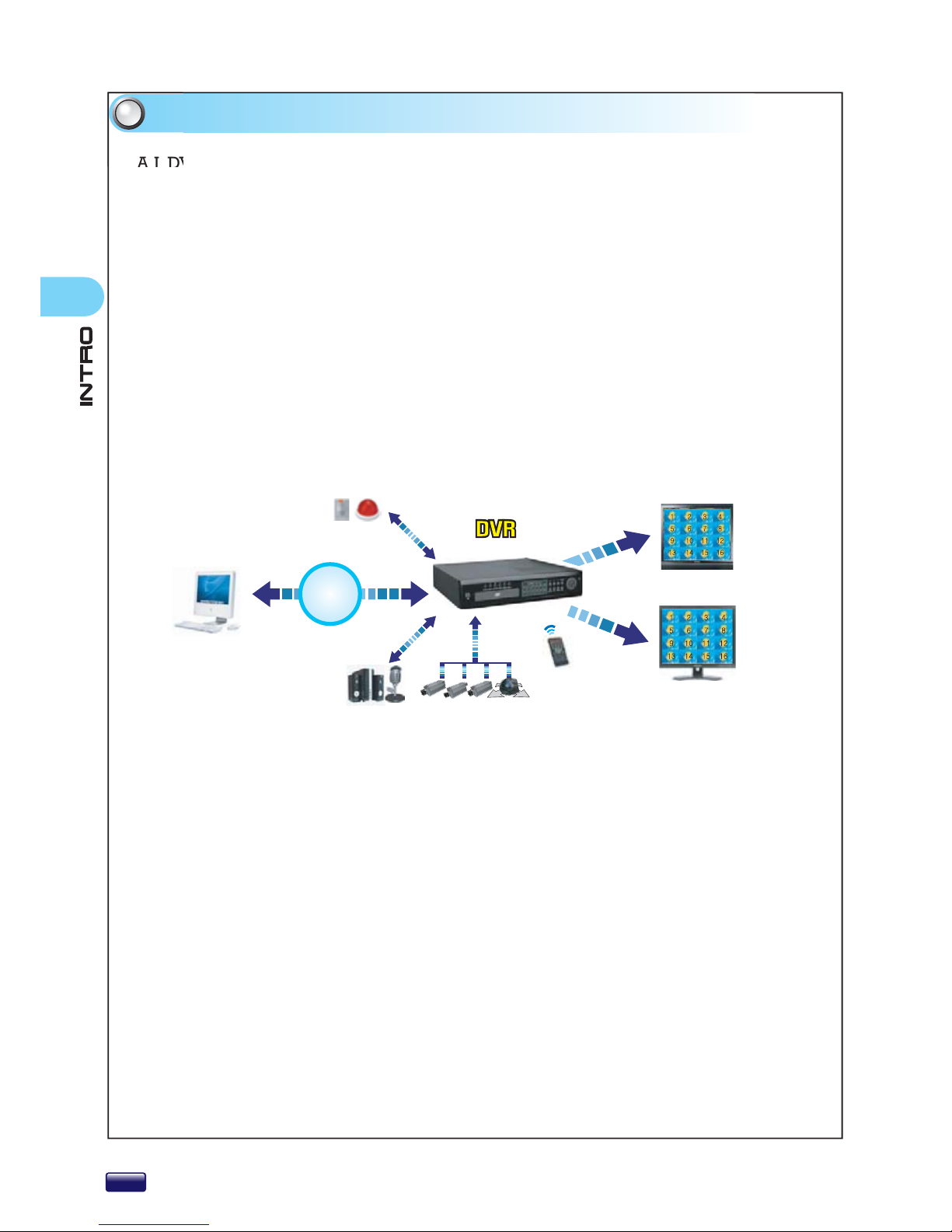

A.I. DVR is an ideal cost-effective CCTV solution for smallscale surveillance systems.

Easy to install and use, the A.I. DVR performs 5 actions simultaneously.

- Monitors 8 or 16 cameras

- Records video in MPEG-4 format with audio

- Control sensor & alarm functions

- Advanced search

- Transmits data over the network

Sophisticated search functions help the user easily find a desirable record.

A.I. DVR can control PTZ cameras through the 485 serial ports.

And A.I. DVR can control sensor & alarm functions through the 232 serial ports.

Remote monitoring and searching with Microsoft® Internet Explorer™ makes it

stand out from the multitude of other DVRs.

AI DV

PRODUCT INTRODUCTION

REMOTE

CONTROLLER

SENSOR & ALARM

TV MONITOR

VGA

NETWORK

CAMERA

AUDIO

(SPEAKER & MIC)

(REMOTE VIEWER)

PACKAGE CONTENTS

REMOTE CONTROLLER

DVR Battery

User’s

Manual Remote

Controller Power Cord

(110V or 220V)

PANIC RECORDING

- Emergency recording

MODE1 - Ch1 Audio On/Off

MODE2 - Ch2 Audio On/Off

ID - Select DVR ID

PLAYBACK CONTROL

- Search videos

LIVE/SEARCH

- Change Live/Search Mode

DISPLAY - Change Screen Mode

SEQUENCE - Sequence On/Off

OSD - OSD On/Off

MUTE - Sound On/Off

FUNCTION - PTZ mode Enter/Exit

MENU - Enter/Exit the system menu

or sub-menu

FOCUS CONTROL - Focus Near/Far

ZOOM CONTROL - Zoom In/Out

ENTER - Confirm selection or Setting

NUMBER BUTTONS

- Input numbers or Channels

DOT - Input dot/Auto Focus

BACKSPACE - Delete character

Enter the camera setup

NOTICE

Make sure that insert the batteries. (‘AAA’ Type × 2ea)

NOTICE

If anything is missing from the package, please notify the shop you purchased DVR from.

DIRECTION BUTTONS

- Move cursor

DVR

Power Cord Battery

User’s Manual Remote Controller

FRONT PANEL

RECORDING - Start / Stop recording manually

DISPLAY - Change screen mode

SEQUENCE - Sequence On/Off

OSD - OSD On/Off

MUTE - Sound On/Off

EJECT - Eject a CD from CD-ROM

LED - Power/HDD/CD-RW/Network

SEARCH MODE CONTROL - Playback recorded data

LIVE/SEARCH - Change Live/Search Mode

MENU - Enter/Exit the setup menu or sub-menu

DIRECTION BUTTONS - Move cursor

ENTER - Confirm selection or Setting

REMOTE CONTROLLER SIGNAL RECEIVER

NUMBER BUTTONS - Input numbers or Channel

FUNCTION/BACKSPACE - Enter/Exit the PTZ mode or Delete character/number

CD-R/RW & DVD-R/RW

USB CONNECTOR - USB mouse & USB Storage device

NOTICE

The specification or design of product is subject to change without notice.

When USB 1.1 device (12 Mbps) is inserted to DVR, beep sounds 1 time.

When USB 2.0 device (480 Mbps) is inserted to DVR, beep sounds 2 times.

REAR PANEL (8 CHAN-

CAMERA × 8

POWER CONNECTION

& POWER SWITCH

ALARM IN & OUT

CAMERA CONNECTION

AUDIO/MIC

VGA MONITOR

NETWORK

RS-485

RS-232

VIDEO OUT

USB MOUSE

RESET

NNECTION

Camera Connection

Audio connection

TV Monitor Connection

VGA Monitor Connection

Network Connection

RS-232 Connection

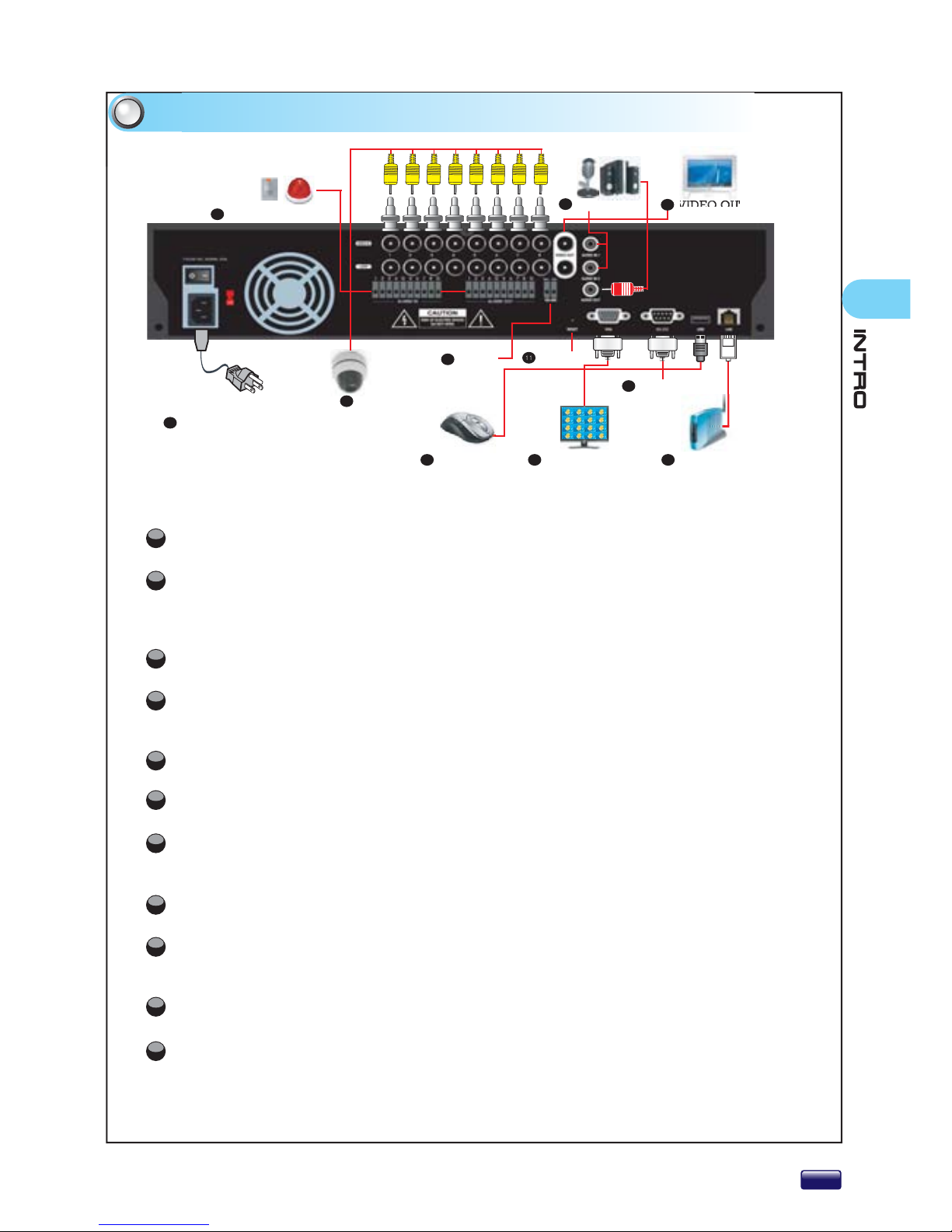

Connect the CCD cameras to VIDEO IN on the rear panel of the DVR.

Connect the USB mouse or USB storage to the USB port on the rear panel of the DVR.

Connect a microphone to AUDIO IN 1 & 2 and speaker to AUDIO OUT on the rear panel

of DVR. Audio input and output should be amplified, since the DVR does not have an

embedded amplifier.

Connect the VGA monitor to the VGA on the rear panel of the DVR.

Connect the sensor and alarm to the Alarm In & OUT on the rear panel of the DVR.

Connect the Normal LAN cable, connected to the network, to the network RJ-45

connector on the rear panel of the DVR.

Connect the cable to RS-232 connector on the rear panel of the DVR.

RS-485 Connection

Connect the cable to RS-485 connector on the rear panel of the DVR.

Power Connection & Power Switch

USB Connection

Connect the power cord to the MAIN POWER connector on the rear panel of the DVR.

The DVR is booted up when Power Switch turns on.

Reset (ID & PW reset)

Alarm In & Alarm Out

RESET button is only used to restore ID & PW to factory defaults. To initialize DVR’s ID &

PW, press the RESET button with a straight clip for about 3 seconds.When it is reset

completely, the ID & PW reset message will displayed on the screen.

If you want to use a TV monitor, connect the TV cable to VIDEO OUT on the rear panel of

the DVR. But you may not see almost OSD on TV monitor.

REAR PANEL (16

Camera Connection

Audio connection

TV Monitor Connection

VGA Monitor Connection

Network Connection

RS-232 Connection

Connect the CCD cameras to VIDEO IN on the rear panel of the DVR.

Connect the USB mouse or USB storage to USB port on the rear panel of the DVR.

Connect a microphone to AUDIO IN 1 & 2 and speaker to AUDIO OUT on the rear panel

of DVR. Audio input and output should be amplified, since the DVR does not have an

embedded amplifier.

Connect the VGA monitor to the VGA on the rear panel of the DVR.

Connect the sensor and alarm to the Alarm In & OUT on the rear panel of the DVR.

Connect the Normal LAN cable, connected to the network, to the network RJ-45

connector on the rear panel of the DVR.

Connect the cable to RS-232 connector on the rear panel of the DVR.

RS-485 Connection

Connect the cable to RS-485 connector on the rear panel of the DVR.

Power Connection & Power Switch

USB Connection

Connect the power cord to the MAIN POWER connector on the rear panel of the DVR.

The DVR is booted up when Power Switch turns on.

Reset (ID & PW reset)

Alarm In & Alarm Out

RESET button is only used to restore ID & PW to factory defaults. To initialize DVR’s ID &

PW, press the RESET button with a straight clip for about 3 seconds.When it is reset

completely, the ID & PW reset message will displayed on screen.

If you want to use a TV monitor, connect the TV cable to VIDEO OUT on the rear panel of

the DVR. But you may not see almost OSD on TV monitor.

CAMERA × 16

POWER CONNECTION

& POWER SWITCH

ALARM IN & OUT

AUDIO/MIC

VGA MONITOR

NETWORK

RS-485

RS-232

VIDEO OUT

USB MOUSE

RESET

CAMERA CONNECTION

Convention used in this

This manual is a setup and maintenance guide that can be used for refer-

ence when setting up the unit and for troubleshooting when a problem

occurs. Only authorized personnel should attempt to repair this unit.

This manual explains about 16 channels DVR.

It differs as several functions and screen comparing with 8 channels DVR.

For example, the number of screen, button and sequence etc.

Manufactory reserves the right to make changes to the product repre-

sented by this manual without notice.

The following text, symbol marks and special messages throughout this

guide:

WARNING

Text set off in this manner indicates that failure to follow

directions could result in bodily harm or loss of life.

CAUTION

Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss

of information.

NOTICE

Text set off in this manner indicates topics of interests

that can help the user understand the product better.

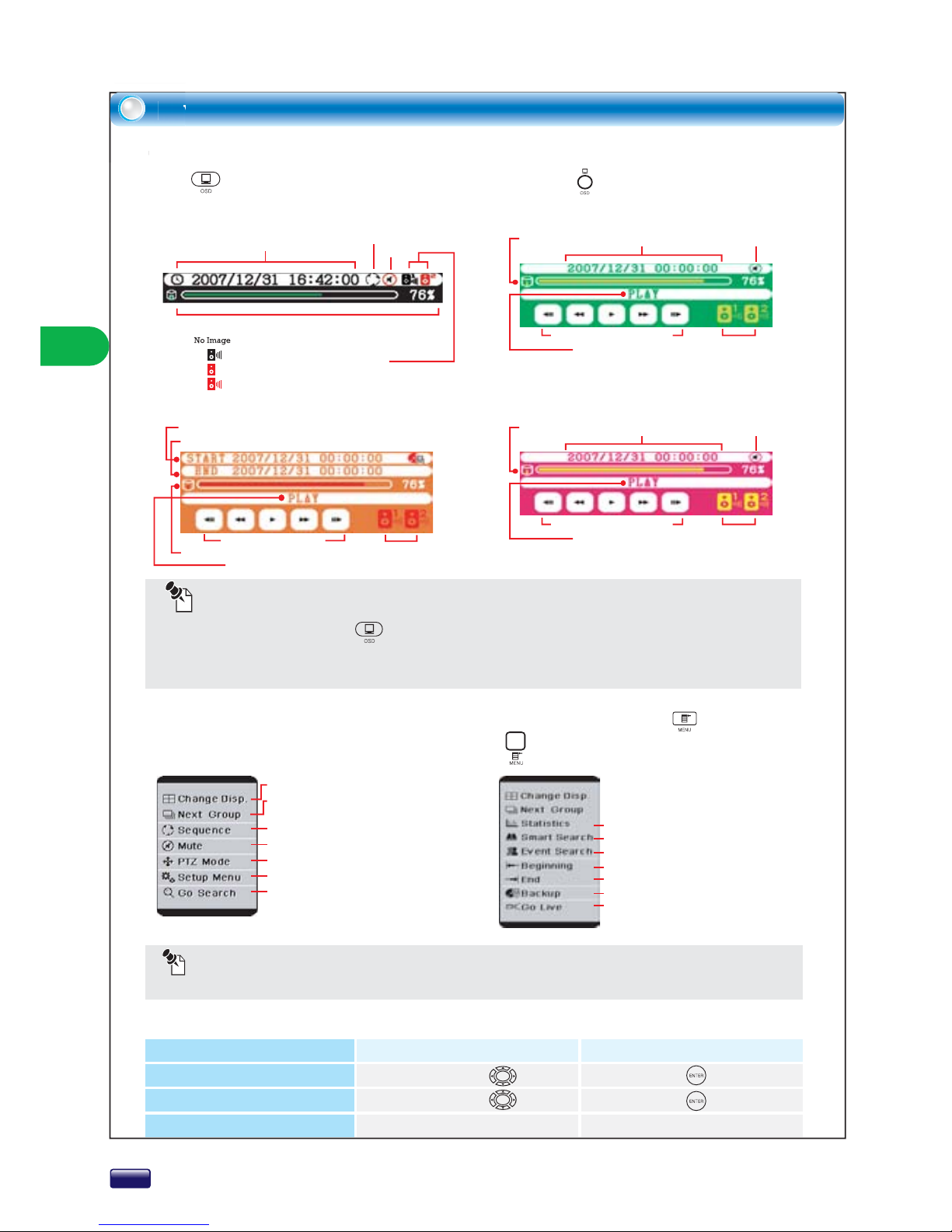

How to display DVR information On Screen Display(OSD)

Display the screen to regular sequence

Sound On/Off

Go to PTZ mode for control of PTZ

Go to Setup Menu

Go to Search mode

To toggle between the all OSD display mode and all OSD hide modes, press the

OSD button on the remote controller or the OSD button on the front panel.

Live Mode (Black) Search Mode : Normal (Green)

Smart Search Mode (Magenta)Backup Mode (Orange)

Current Mode

Disk Space

Audio out

Control

Playback Control

Current Mode

Date/Time Mute

Disk Space

Audio out

Control

Playback Control

Current Mode

Date/Time Mute

All OSD may not display on TV monitor which is connected to VIDEO OUT.

NOTICE

Disk Space Audio out

Control

Playback Control

End Date/Time

Start Date/Time

Disk Space

Sequence

: Audio Off & Recording Off

: Audio On & Recording Off

: Audio Off & Recording On

: Audio On & Recording On

Date/Time Mute

Change screen mode

Move the Next Group at 1, 4, 9Ch

screen mode

Go to the Statistics search menu

Go to the Smart search menu

Go to the Event search menu

Go to the beginning of recorded data

Go to the end of recorded data

Go to the Backup menu

Go to Live mode

This context menu will be appeared when you press the MENU button on

the remote controller or the MENU button on the front panel or right-click

on the mouse.

OPERATION

Mouse context menu

NOTICE

TABLE 1.

Press the enter button

Left-click

REMOTE CONTROLLER

FRONT PANEL

MOUSE

Press the direction buttons

Use the mouse

DEVICE MOVE SELECT

Whenever press the OSD button or OSD double-click by a mouse, OSD position

will be changed as follow.

Middle of the screen →Top of the screen →Bottom of the screen →Hidden →Mid.

To to

PER

OPERATION

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Swann DVR Handbücher

Swann

Swann 7085 series Bedienungsanleitung

Swann

Swann DVR4-2500 Bedienungsanleitung

Swann

Swann DVR16-4200 Bedienungsanleitung

Swann

Swann 24 ChannelDigital Video Recorder Bedienungsanleitung

Swann

Swann DVR4-NET-PLUS SW243-4NU Bedienungsanleitung

Swann

Swann DVR4-1000 Bedienungsanleitung

Swann

Swann RedAlert Single Channel Digital Security... Kurzanleitung

Swann

Swann SW242-2LP Bedienungsanleitung

Swann

Swann DVR4-5500 Bedienungsanleitung

Swann

Swann dvr4-1500 Bedienungsanleitung

Swann

Swann 4 Camera DVR Pack Bedienungsanleitung

Swann

Swann DVR4-9*50 Bedienungsanleitung

Swann

Swann DVR4-2500 Kurzanleitung

Swann

Swann DVR4-Advantage Bedienungsanleitung

Swann

Swann DVR4-1150 Bedienungsanleitung

Swann

Swann DVR4-1200 Bedienungsanleitung

Swann

Swann DVR16-8500AI SW243-X6G Bedienungsanleitung

Swann

Swann DVR8/16-8500AI Kurzanleitung

Swann

Swann 4-4350 Bedienungsanleitung

Swann

Swann RedAlert2 Bedienungsanleitung

Swann

Swann 8600 Series Bedienungsanleitung

Swann

Swann DVR4-9*50 Kurzanleitung

Swann

Swann DVR4-5600 Bedienungsanleitung

Swann

Swann QH16 Bedienungsanleitung

Beliebte DVR Handbücher anderer Marken

FLIR

FLIR M3100E Series Bedienungsanleitung

VTRACKPRO

VTRACKPRO FPRO300 Bedienungsanleitung

XtendLan

XtendLan DVR-1670C Bedienungsanleitung

urmet domus

urmet domus 1093/004AHD Bedienungsanleitung

Holux

Holux M1 Bedienungsanleitung

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Bedienungsanleitung

Whistler

Whistler D16VRS Bedienungsanleitung

Defender Security

Defender Security 82-20235 Bedienungsanleitung

MISUMI

MISUMI MP-WF100M Bedienungsanleitung

Speco

Speco D8HU Bedienungsanleitung

UST

UST DDR-E04AA Gebrauchsanweisung

Consolidated

Consolidated Digital Video Recorder Bedienungsanleitung

Mace

Mace DVR0404RW Kurzanleitung

RCA

RCA RTD315W Bedienungsanleitung

FSM

FSM Colibri Grande PRO Bedienungsanleitung

Hauppauge

Hauppauge HD PVR 2 Bedienungsanleitung

Identivision

Identivision ICR-PH161i PIONEER Bedienungsanleitung

DIGIFUSION

DIGIFUSION FVRT150 Bedienungsanleitung
