Sylvac S-Mike PRO Bedienungsanleitung
Instruction manual
Manuel d’instruction
Handbuch
Manuele d’uso
Instrucciones de uso
S_Mike PRO
2

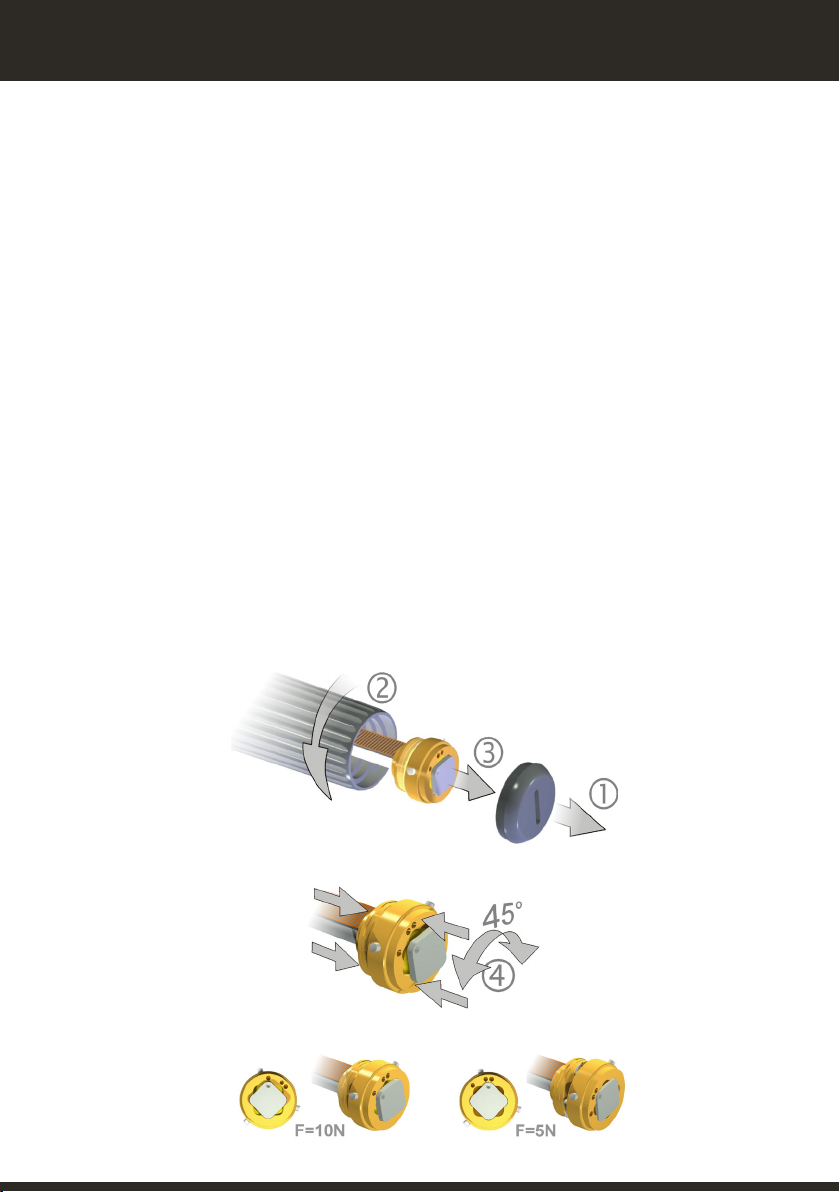

Force/Force/Messkraft/Forza/Fuerza
Measuring force adjustement
Only on model 0-30mm
Ajustage de la force de mesure
Uniquement pour modèle 0-30mm
Einstellbare Messkraft
Nur für Modell 0-30mm
Regolazione della forza di misurazione
Solo per il modello 0-30mm
Ajuste de la fuerza de medición
Solo para modelos de 0-30mm
EN
1. Maintenance
Store the instrument in a dry place to avoid corrosion of metal parts if
not used for a long time.
Do not press the movable key on the anvil: leave a gap of 1-2mm when
the instrument is not in use.
Do not use aggressive products (alcohol, trichloroethylene or other
aggressive liquids) to clean plastic parts.
Do not store the instrument in a place exposed to sunlight, heat or
humidity.
Important: in the event of liquid splashes, wipe off the metal parts
of the instrument to ensure proper mechanical operation and avoid
corrosion problems.
4

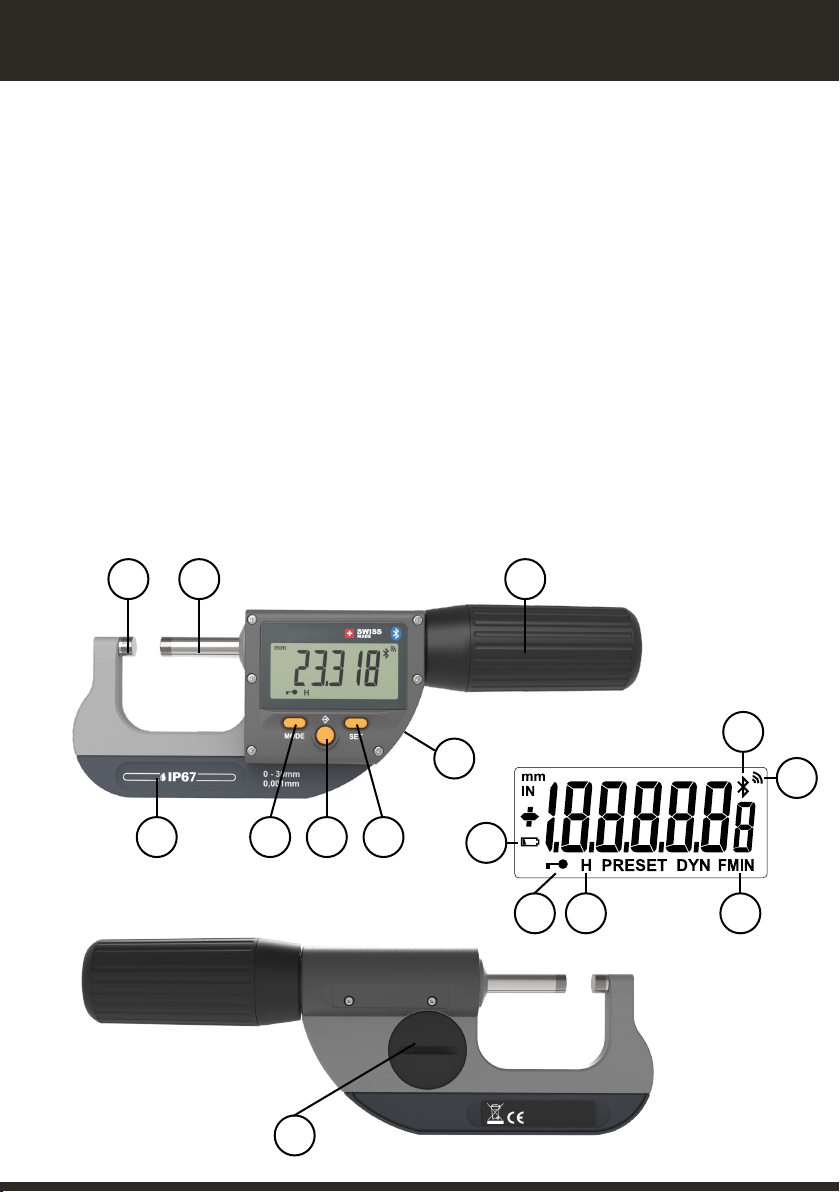

2. General description
The micrometer is equipped with a Smart Inductive Sensor (SIS)
which maintains the reference position even when the instrument is
in standby mode. Its non-rotating button principle enables rapid posi-
tioning. It features the following operating characteristics:
• Enter preset value.
• Change unit (mm / INCH).
• Measured value transmission via Proximity or Bluetooth®
connection (depending on model).
• Protection against dust ingress and liquid splashes (oil, water) to
IP67 (IEC 60529).
12 7
3 5 64
8
14
12
1511
10
13
9
EN
1. Measuring spindle
2. Anvil
3. Isolate plate
4. MODE button
5. Favourite button
6. SET button
7. Rotating thimble
8. Proximity connector
9. Battery cover
10. Low battery indicator
11. Value hold indicator
12. Data transfer indicator
13. Locking indicator
14. Bluetooth® indicator
15. Fmin mode indicator
6
3. Instrument features
The instrument has 2 operating modes: basic func-
tions (with direct access) and advanced functions.
In addition to the configuration functions, you can select the
HOLD function or activate the keyboard lock (LOC function). You
can also activate the FMIN function (see chap. 6).
The «favorite» button assigns direct access to the most
frequently used function (see chap. 10).
The «SET» button allows you to assign a preset va-
lue, quit a selection, and manage instrument switch-off.
By default, SIS mode enables automatic switch-off without loss of
origin (see chap. 11).
Customizing functions
You can activate or deactivate certain instrument functions via Power
RS/USB or Bluetooth® cables (see chap. 13).
Data transmission parameters
4800Bds, 7 bits, even parity, 2 stop bits.
SET
MODE
4. Start-up, initialization
Press a button.
The instrument displays «SET» to initialize the reference point. Return
the movable key to the anvil (or to a master gauge). Then press .
The instrument is now ready for use (check preset value, correct if
necessary and reset).
SET
EN
Next digit 0...9 save PRESET
PrE : Preset value input
bt : Bluetooth®. Activate/deactivate, reset Bluetooth® module or
display MAC address (depending on model).

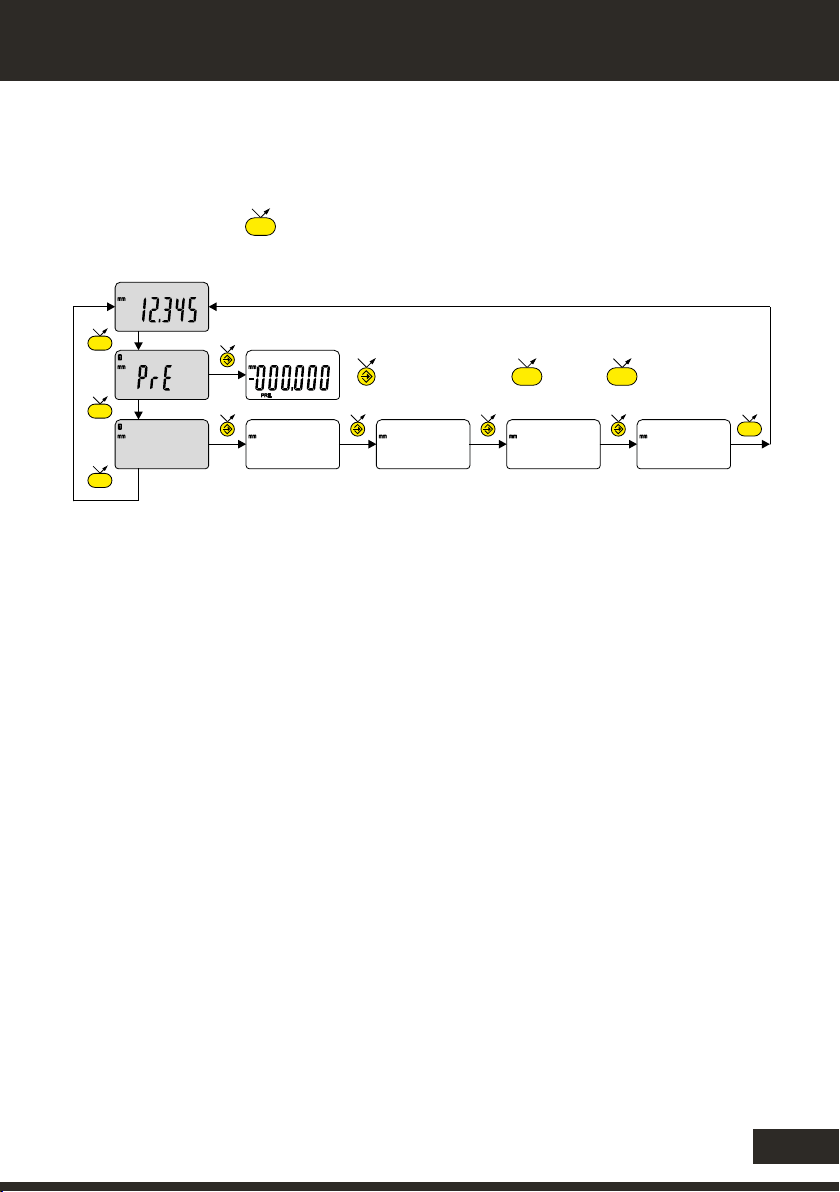

5. Basic functions
Each short press gives direct access to basic functions:
MODE
SET MODE
MODE
SET MODE
MODE
SET
MODE
MODE
SET MODE
MODE
MODE
MODE
bt Off rESEt
SET
MAC On
8

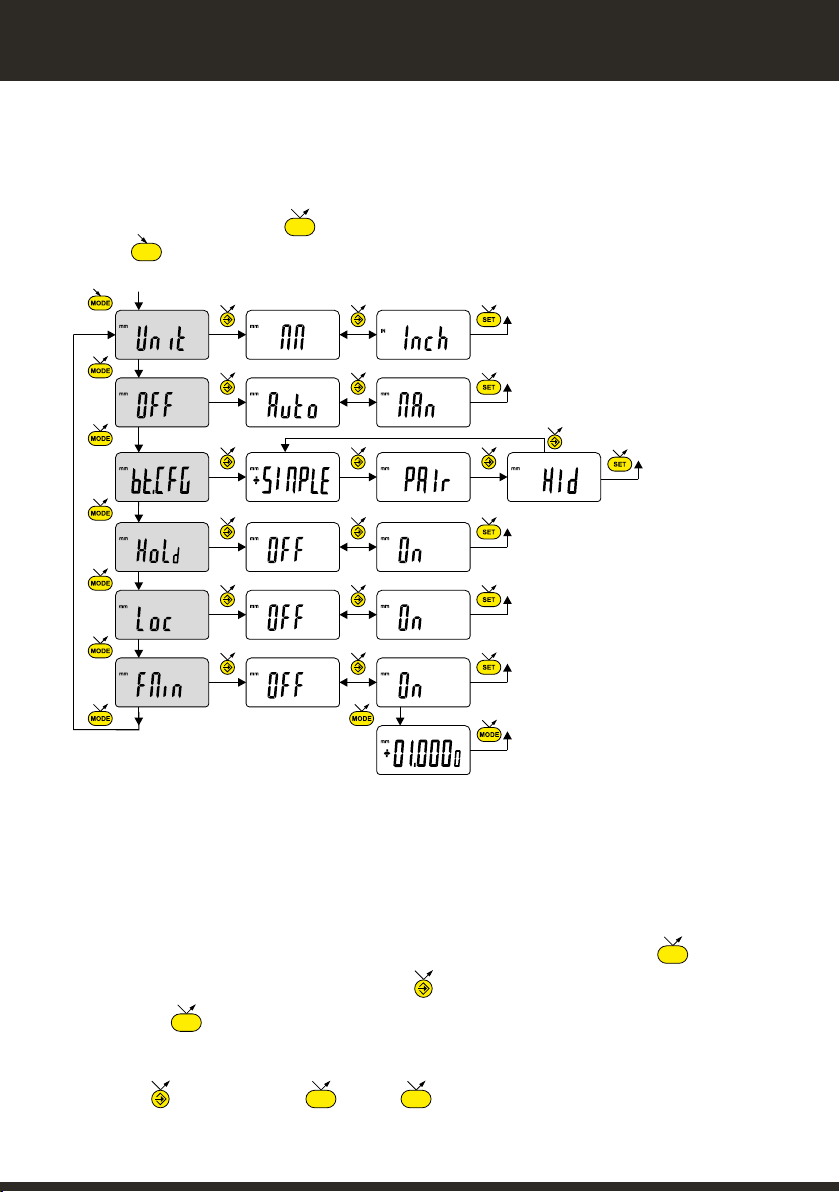

6. Avanced functions
A long press (<2s) on accesses the advanced functions. Each short
press then accesses the desired function:
MODE
SET MODE
MODE
SET
MODE
Unit : Unit selection (mm or inch).
OFF : Automatic switch-off mode.
MAn : disabled. Auto : active (after 10min. by default).
bt.CFG : Bluetooth® profile selection (see chap. 9 for details). The + symbol
indicates the active profile (depending on model).
HoLd : Select On to activate display freeze when briefly pressing .
Loc : Keypad lock. Only the favorite key remains active (to deactivate keypad
lock, press for 5 sec).
FMin : Activate FMIN function (see chap. 7 for details)
MODE
SET
MODE
MODE
SET MODE
MODE
SET
MODE
Next digit 0...9 save FMIN
MODE
SET MODE
MODE
SET
MODE
MODE
SET MODE
Without any pressure (after 5s): return to measuring mode (15s for preset
entry)
OFF . MAn:Mode d’extinction automatique = désactivé,
Auto = actif (après 10min. par défaut)
EN

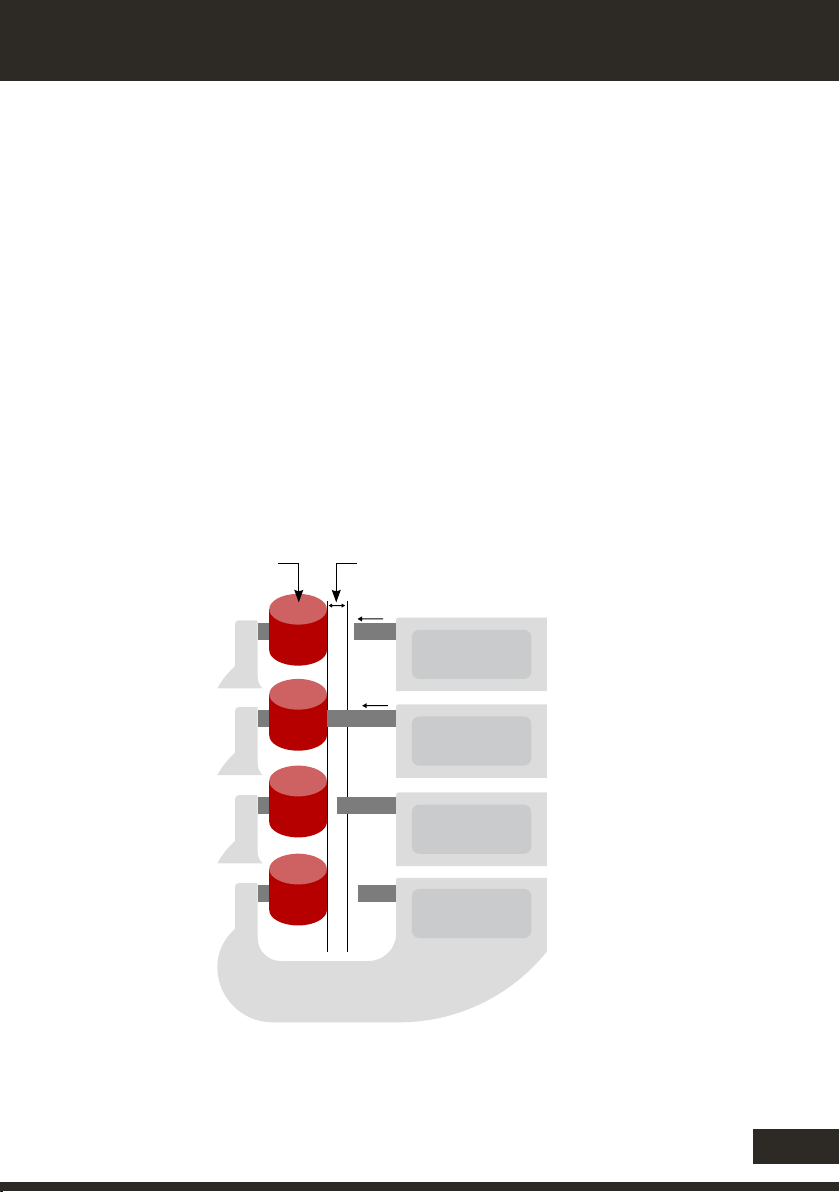

7. FMIN function (depends on model)
The high-speed micrometer features a spring-loaded spindle. This
construction ensures high repeatability, thanks to the constant force
in the measuring zone.
When the FMIN. mode is active, the minimum measuring value is auto-
matically stored and displayed.
The FMIN stroke value can be set by the user according to his needs
(0.010mm to 5.080mm depending on model).
Refer to chapter 6 to activate/deactivate or set the FMIN function.
Start measurement
Measurement
As long as the contact
points are in the FMIN
zone, the value displayed
remains unchanged.
If the contact points are
outside the FMIN range,
the value corresponding
to the actual spindle posi-
tion is displayed.
Example : Part Ø5.0mm Zone FMIN
5.225
5.000
DYNFMIN
DYNFMIN
DYNFMIN
FMIN
5.000
5.450
10
8. Proximity connection (Non-Bluetooth®
instrument only)
The instrument features a non-contact data output for direct connec-
tion to a PC or printer via a Proximity cable.
By default, a short press on the button transmits the current value.
The data transmission indicator is briefly displayed. Sending data can
also be requested by the peripheral device (see chap. 15. List of main
commands).
9. Bluetooth® configuration (Instrument
Bluetooth® only)
The connection procedure has been designed to be as simple as pos-
sible, and is distinguished by the 3 states below:
1. Symbol off.......... disconnected mode.
2. Symbol blink...... discovery mode.
3. Symbol on........ connected mode.
ThefollowingoptionscanbeselectedtocontroltheBluetooth®module.
On Activate Bluetooth® module (start discovery mode).
On Activate Bluetooth® module (start discovery mode).
OFF Deactivate Bluetooth® module (terminate active connection).
rESEt Clear Matching information.
MAC Display MAC (Media Access Control) address.
Three Bluetooth® profiles are available.
SIMPLE Unpaired profile (default).
PAIr Paired and secured profile.
HId Virtual keyboard mode (compatible with recent equipment
without driver installation).
Note:
Bluetooth® Matching information is deleted when the profile is
changed.
MODE
SET MODE
