Technogym Element+ Leg Press Bedienungsanleitung
E L E M E N T +
E S S E N T I A L S T R E N G T H
1
Leg Press
User manual
All equipment
2
Leg Press
Contents
Identification of the manufacturer and the equipment .............. 3
Description of the equipment.................................................... 4
Technical data ........................................................................... 5
Safety devices and warnings .................................................... 6
Place of installation ................................................................... 7
Lifting and handling the equipment........................................... 8
Adjusting the equipment ......................................................... 10
Routine maintenance .............................................................. 11
Replacing the padded components........................................ 13
Replacing the seat cable......................................................... 14
Adjusting the seat cable tension ............................................. 19
Replacing the weight stack cable ........................................... 20
Adjusting the weight stack cable tension................................ 26
Removing the weight stack panel ........................................... 27
Technical Service..................................................................... 28
Storage.................................................................................... 29
Disposing of the equipment .................................................... 29
Using the equipment ............................................................... 30
User manual .............................................................................. 1
Contents.................................................................................... 2
3
Leg Press
Controllare periodicamente lo stato di usura
Peso MAX utente: 180 kg
Peso MX di lavoro: vedi pacco pesi
Tipo: IC EN957 - 1/2
ELEMENT+ SILVER-BLU AVI CB350C0 - ALK0GGGK
Maximum user’s body weight: 180 kg
Maximum training weight: see weight block
CB350C0900001 c
AB
C
D
E

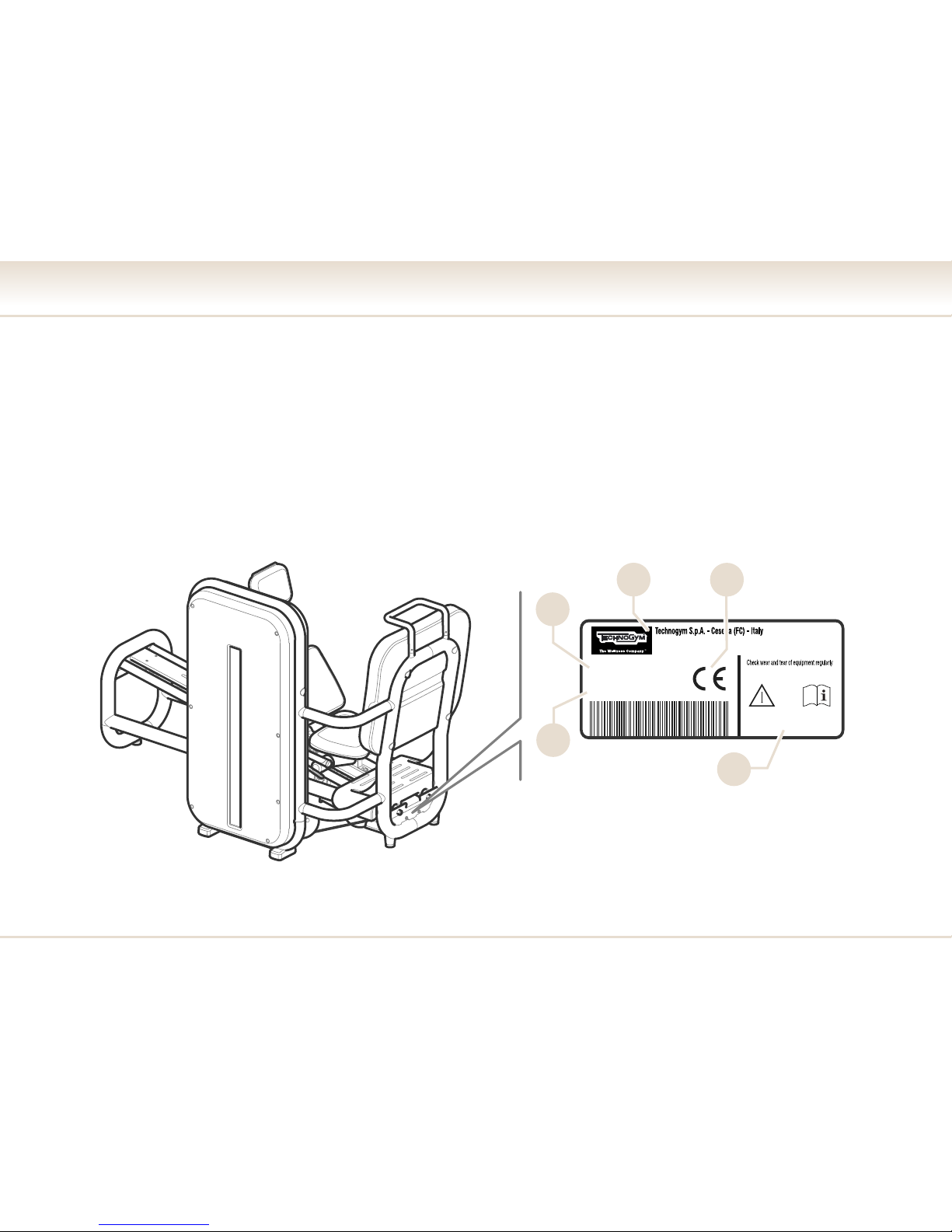

Identification of the manufacturer and the equipment
The identification plate of the equipment and manufacturer, affixed on the frame, gives the following details:
AName and address of the manufacturer
BCE Mark
CSerial number
DCautions and maximum user weight
EEquipment classification
4
Leg Press
A
B
D
E
F
C

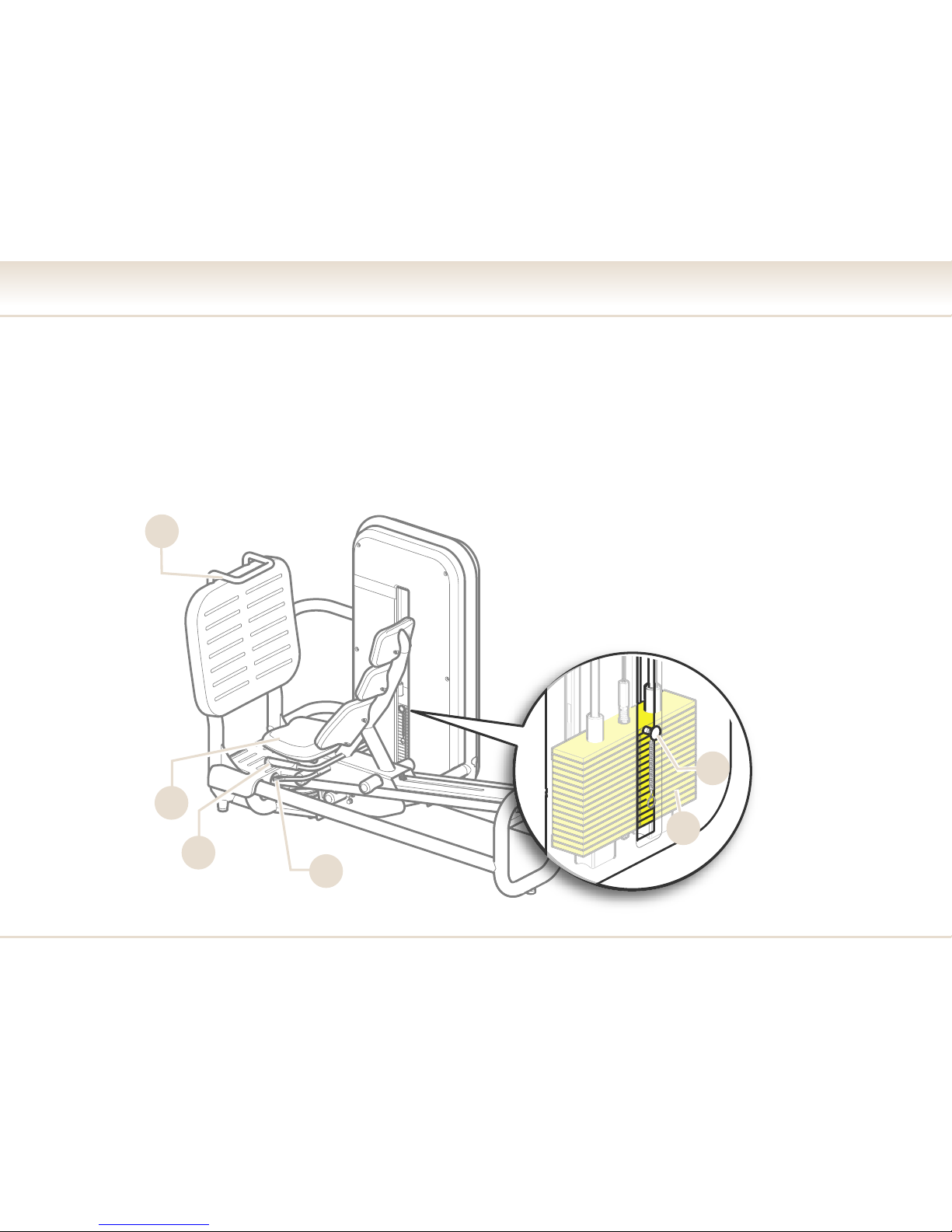

Description of the equipment
Seat (A): where the user sits to perform the exercise. Its position can be adjusted using the seat lever (B).
Upper handgrip (C): the user can enhance the comfort by holding it to get on and off the equipment.
Side handgrips (D): the user can enhance the comfort by holding them during the exercise.
Weight stack (E): the seat, operated by the user, moves the weights along two guides by means of a cable. A pin (F) is used for selecting
the load in order to adjust the exercise effort level.
5
Leg Press
08093012
1523 mm
(60")
2118 mm
(83")
1173 mm
(48")
155 kg (342 lb)
200 kg (400 lb)

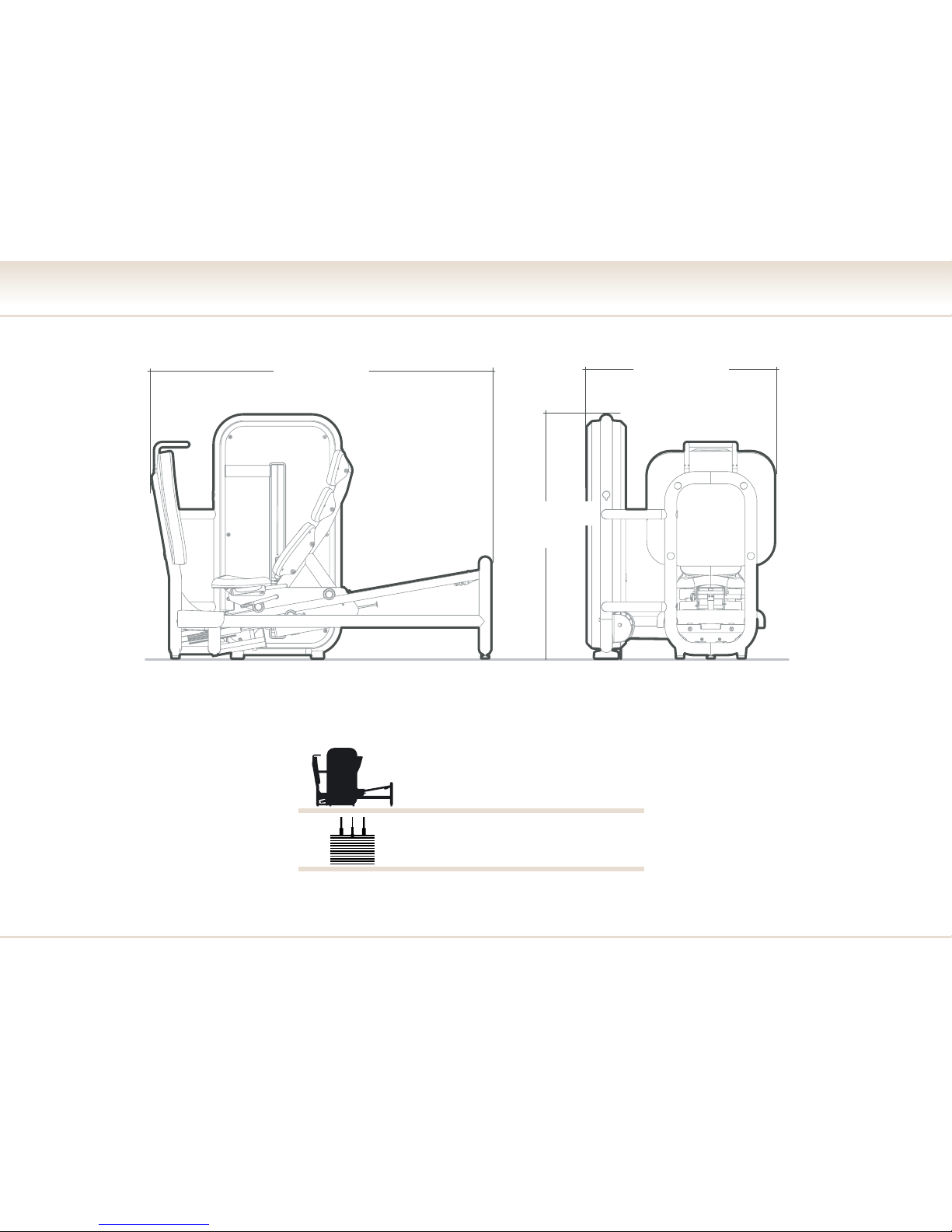

Technical data
6
Leg Press
Safety devices and warnings
The maximum user weight is 180 kg (397 lb).
The equipment does not have any sharp corners.
All the parts which come into contact with the body are adequately protected with rubber coverings or padding.
The weight stack is enclosed in protective panels.
WARNINGS
During all operations involving transport, maintenance and cleaning, pay attention to any part of the equipment where
body parts may become trapped.
It is important to pay attention to the labels affixed to the equipment, as they provide information about possible risks
and hazards.
We recommend immediately replacing the labels when they become damaged or difficult to read.
Pay particular attention to the parts of the equipment with labels indicating the “DANGER OF
SQUASHING”.
7
Leg Press
Place of installation
To guarantee safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements;
in particular, before choosing where to install the equipment it is recommended to check the following:
- temperature between +10°C and +25°C;
- sufficient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;
- adequate lighting, so that the physical exercise takes place in pleasant and relaxing conditions;
- sufficient clearance on all sides of the equipment, taking into account its maximum dimensions during the movements, necessary
for safety reasons;
- a flat, stable and vibration-free floor surface, with adequate carrying capacity for the equipment’s weight.
If the equipment is installed in a public recreational area, the place must conform to all the requirements prescribed by the regulations
in force.
WARNINGS
The equipment must be installed and used in a place whose access and supervision are specifically controlled by the
owner.
When installing the equipment, use suitable personal protective equipment.
8
Leg Press cont.
Lifting and handling the equipment
To move the equipment, use normal lifting and handling machine.
It is recommended to place some padded material between the frame and the lifting machine.
WARNING
The equipment must be moved with great care, due to the risk of it tipping over.
Before lifting the equipment, insert between the two panels of the weight stack the spacer provided at the time of delivery.

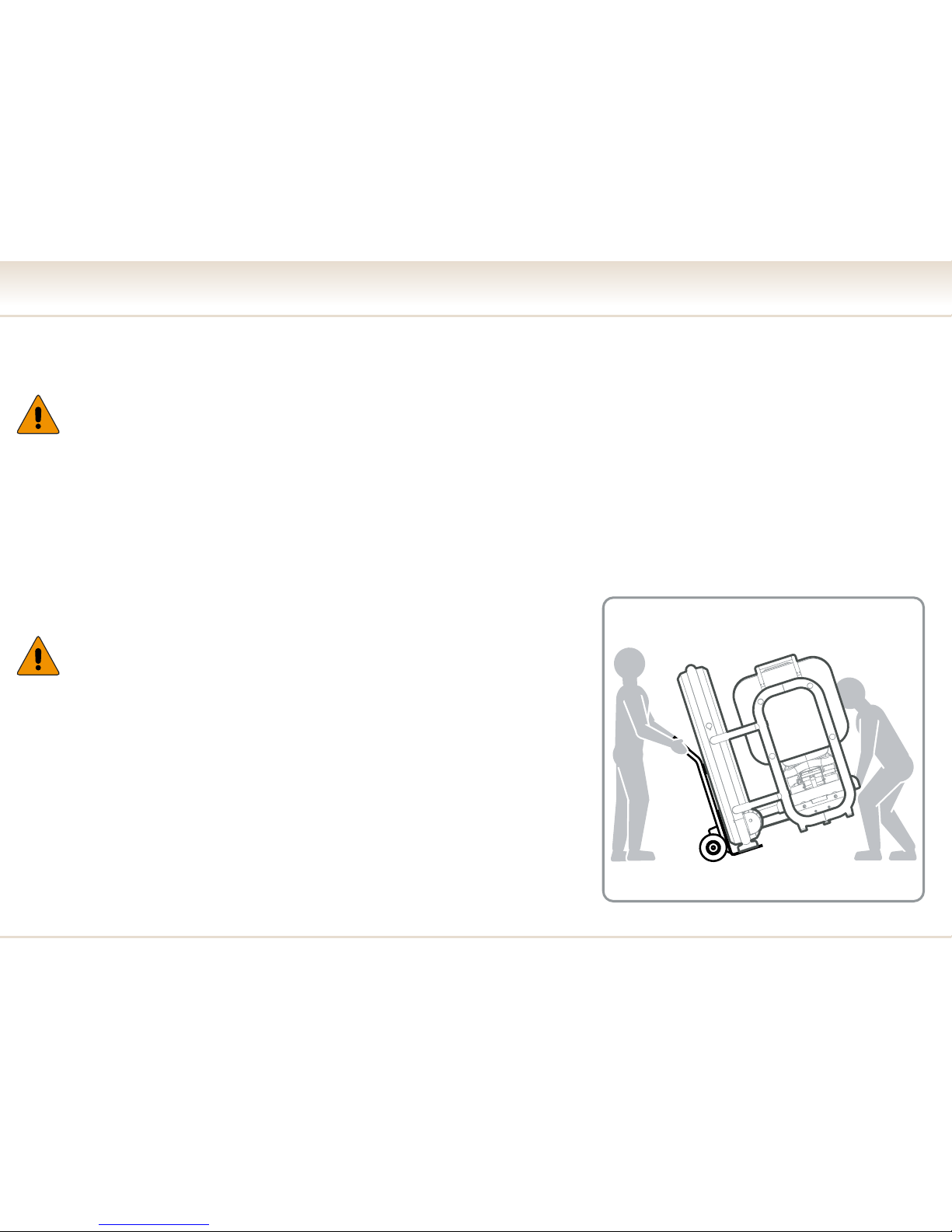

Lift the equipment from the weight stack side, as shown in the figure.
WARNING
Given the weight of the equipment, we recommend that more than one
person be involved in lifting it.
9
Leg Press
Lifting and handling the equipment

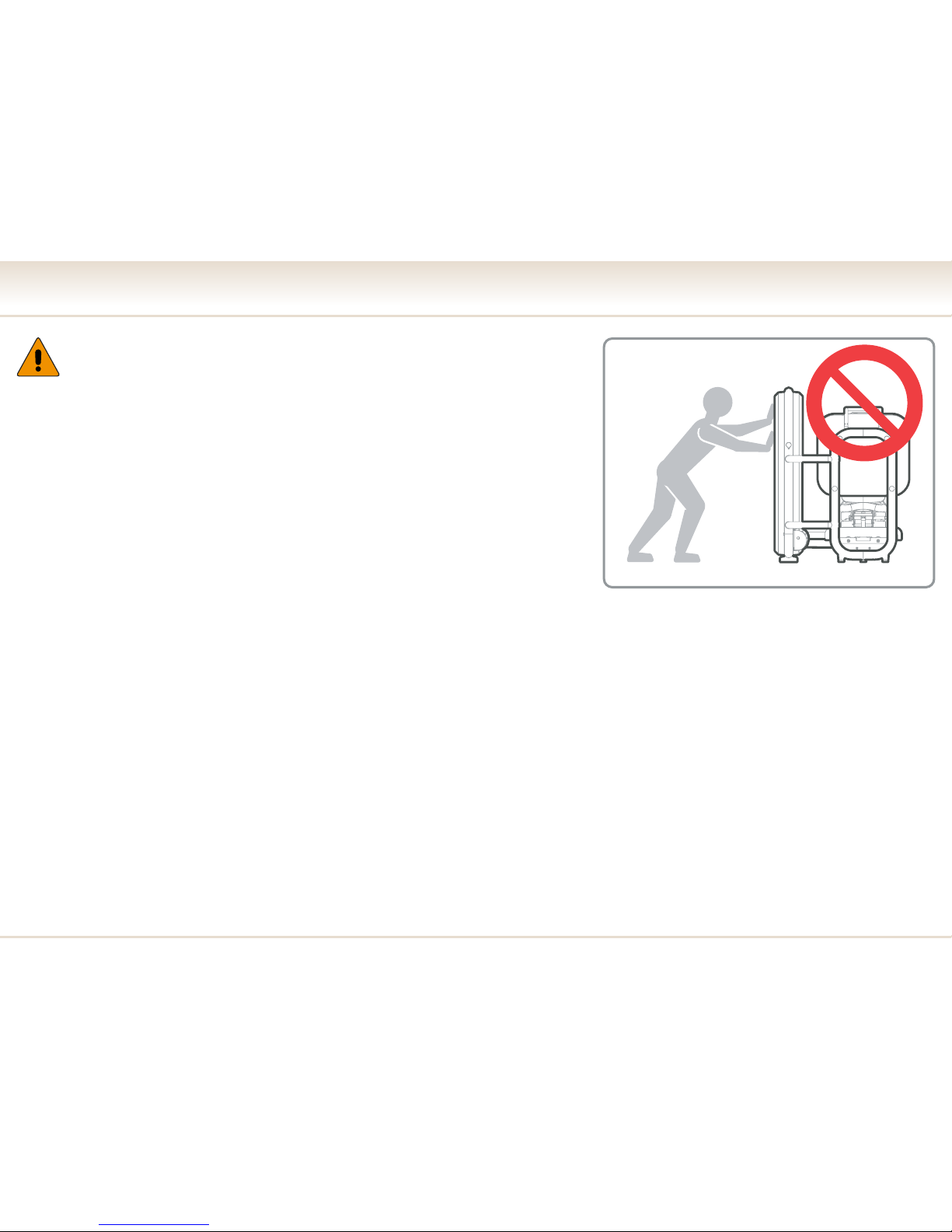

WARNING
When lifting the equipment, do not exert pressure against the weight
stack guards.
10
Leg Press
B
A

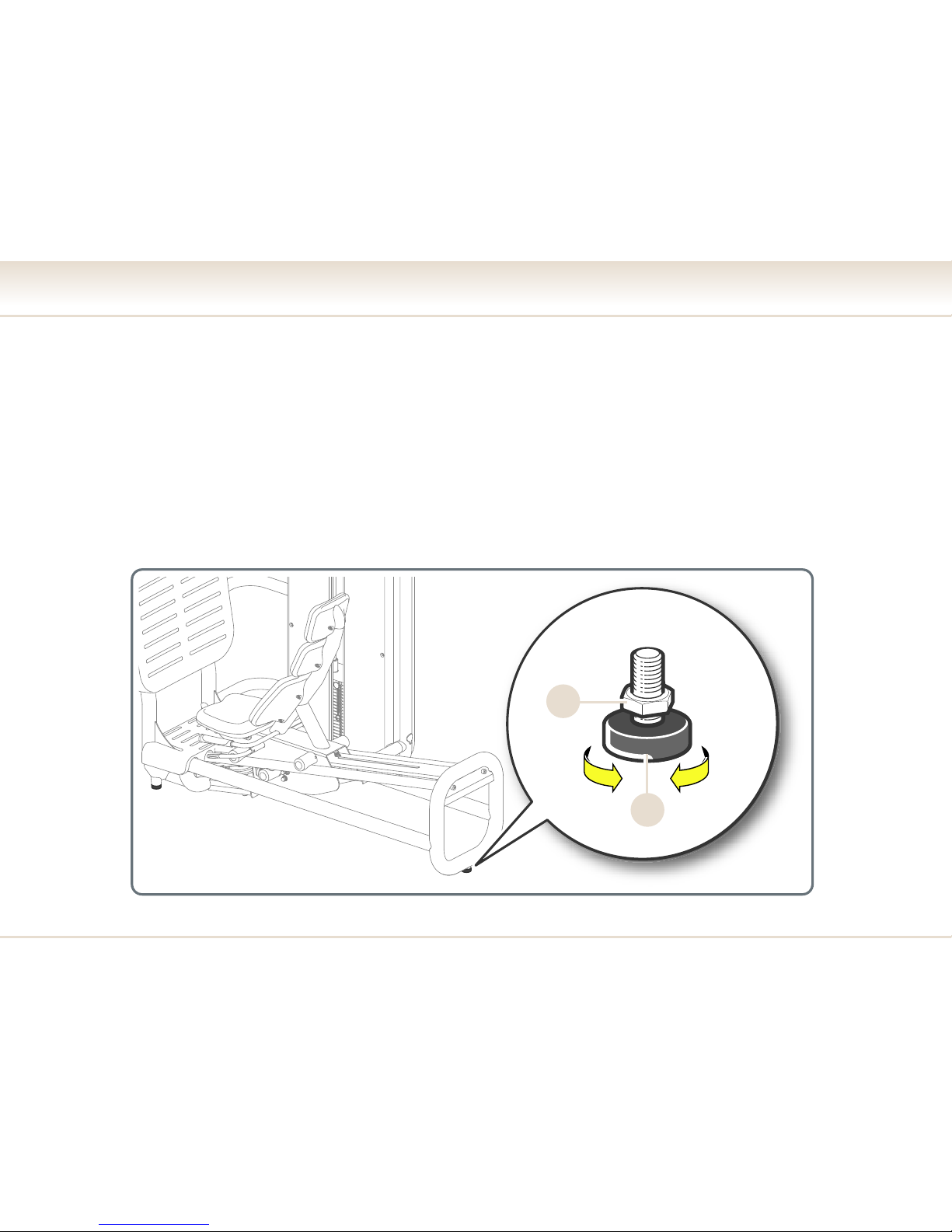

Adjusting the equipment
After the equipment has been positioned on the floor, check that it is level.
The foot (A) is adjustable for this purpose: loosen the lock nut (B) and tighten or loosen the foot until the equipment is stable.
When this is done, close the lock nut (B).
