Topfield TF 7710 HD PVR Bedienungsanleitung
TOPFIELD
TF 7700 HD PVR
TF 7710 HD PVR
User Guide
High Definition
Digital Satellite Receiver
Personal Video Recorder

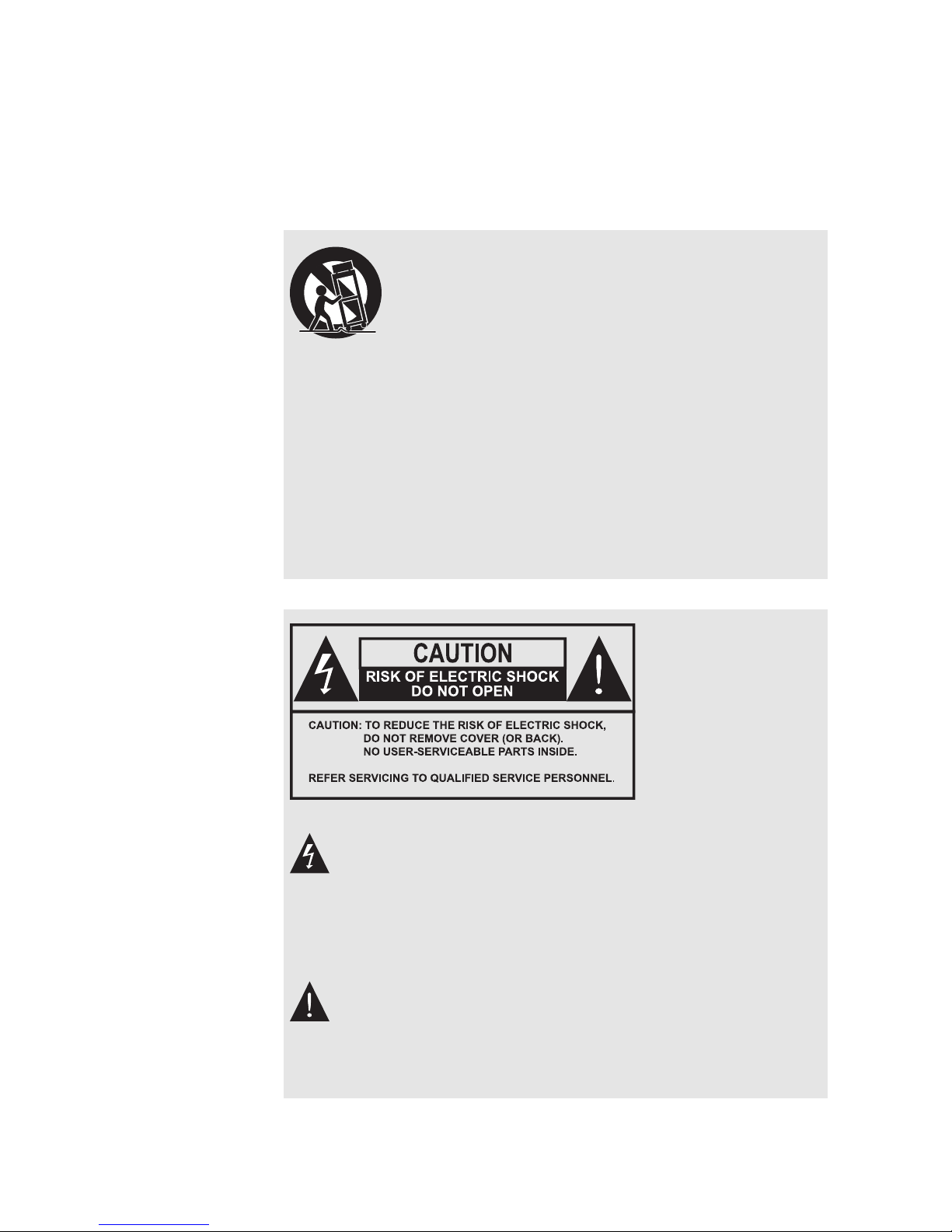

Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
•
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
•
The mains plug, which is used as a disconnect device,
shall remain readily operable.
The lighting flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to a person.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.
iv Contents
Contents
Contents iv
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
1.3 What is common interface? .................... 6
2 Setup 8
2.1 Unpacking .............................. 8
2.2 Safety precautions ......................... 8
2.3 Rear panel connections ....................... 10
2.4 Connecting up your digital receiver ............... 12
2.4.1 Connecting the antenna .................. 12
2.4.2 Connecting to your television set ............ 13
2.4.3 Connecting to your video cassette recorder ....... 16
2.5 Inserting batteries in the remote control ............. 16
2.6 Switching on for the first time ................... 17
2.6.1 Powering on and checking picture ............ 17
3 Preference Settings 18
3.1 Language settings .......................... 18
3.2 Video and audio settings ...................... 20
3.2.1 Colour model ........................ 20
Contents v
3.2.2 Video cassette recorder .................. 21
3.2.3 Television aspect ratio ................... 21
3.2.4 High definition television ................. 22
3.2.5 Audio mode ........................ 23
3.3 Local time setting .......................... 23
3.4 Parental control ........................... 24
3.5 Adjusting the On-Screen Display ................. 27
3.6 To turn on the time shift feature .................. 27
4 Service Search 28
4.1 Searching broadcasting services .................. 28
4.1.1 Configuring LNB settings ................. 28
4.1.2 Configuring DiSEqC 1.2 settings ............. 31
4.1.3 Configuring USALS settings ............... 32
4.1.4 Searching services ..................... 34
4.2 Copying services .......................... 37
4.3 Editing the transponder list .................... 37
4.4 Resetting to factory settings .................... 38
5 Daily Usage 39
5.1 Volume control ........................... 39
5.2 Watching television ......................... 39
5.2.1 The services list ....................... 39
5.2.2 The favourite services list ................. 42
5.2.3 Viewing programme information ............ 43
5.2.4 Selecting audio tracks ................... 44
5.2.5 Selecting subtitle tracks .................. 44
5.2.6 Viewing teletext ...................... 44
5.3 Viewing electronic programme guide .............. 45
5.4 Watching multifeed programme ................. 46
5.5 Using time shift ........................... 46
6 Listing Services 48
6.1 Editing the services list ....................... 48
6.2 Editing the favourite list ...................... 50
6.3 How to use on-screen keyboard .................. 52
vi Contents
6.4 Transferring receiver data ..................... 52
6.5 Editing channel data on your computer ............. 53
6.5.1 Editing satellite and transponder list .......... 55
6.5.2 Editing television and radio services list ........ 57
6.5.3 Editing favourite list .................... 58
7 Recording and Playing 60
7.1 Recording a programme ...................... 60
7.1.1 Instant recording ...................... 61
7.1.2 Timer recording ...................... 63
7.1.3 Scheduling recordings using the programme guide . . 65
7.1.4 Recording a pay service programme ........... 66
7.2 File archive ............................. 67
7.2.1 To delete a recording .................... 67
7.2.2 To sort recordings ..................... 67
7.2.3 To lock a recording ..................... 68
7.2.4 To rename a recording ................... 68
7.2.5 To make a new folder ................... 68
7.2.6 To move a recording to another folder .......... 68
7.2.7
To copy files between a USB storage and the digital
receiver ........................... 69
7.3 Playing back a recording ...................... 70
7.3.1 To navigate using the progress bar ............ 70
7.3.2 To play in slow motion .................. 71
7.3.3 To play in fast motion ................... 71
7.3.4 To make a bookmark .................... 72
7.3.5 To play back a recording repeatedly ........... 72
7.3.6 To play back recordings in sequence ........... 73
7.3.7 To play back a scrambled recording ........... 73
7.4 MP3 playback ............................ 74
7.5 Formatting the hard disk ...................... 74
8 Accessing to The Digital Receiver via The Internet 75
8.1 Configuring the router ....................... 76
8.1.1 To access within the local area network ......... 76
8.1.2 To access over the Internet ................ 77
Contents vii
8.2 Configuring the network settings on the digital receiver . . . . 79
8.3 Accessing the web server ..................... 80
9 Firmware Update 82
9.1 Checking the firmware information ............... 82
9.2 From a USB memory ........................ 84
9.3 From the firmware server via the Internet ............ 85
9.4 From your computer via RS-232 port ............... 86
9.5 From another digital receiver via RS-232 port .......... 87
9.6 Over the air ............................. 88
Index 89
1
Chapter 1
Introduction
The TF 7700 HD PVR/TF 7710 HD PVR digital receiver is fully
compliant with the international Digital Video Broadcasting
(DVB) standard, and thus is able to receive digital broadcasts
of that standard.
For its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 7700 HD PVR/TF 7710 HD PVR digital receiver has the
following features:
2 Introduction
•
Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-
ALS.
• Can store up to 5000 television and radio services.
• You can edit the services list.
•
You can create favourite lists of your favourite services.
•
You can view information about the current television or
radio programme.
•
Has an electronic programme guide that provides an
overview of scheduled programmes.
•
You can record one service while you are currently watch-
ing another.
•
The large storage capacity of the hard disk drive allows
you to record up to about 60 hours of television —in case
of 250 gigabytes— in excellent picture and sound quality.
•
Time shift is a special technical feature available on the TF
7700 HD PVR/TF 7710 HD PVR. You can pause the pro-
gramme you are watching and resume it again at a later
time. Then you can quickly go to any part of the current
programme by fast forward or backward search.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
