TRENDnet HotFlash TEW-429UF Bedienungsanleitung
Q: How do I connect to my wireless network?
A:

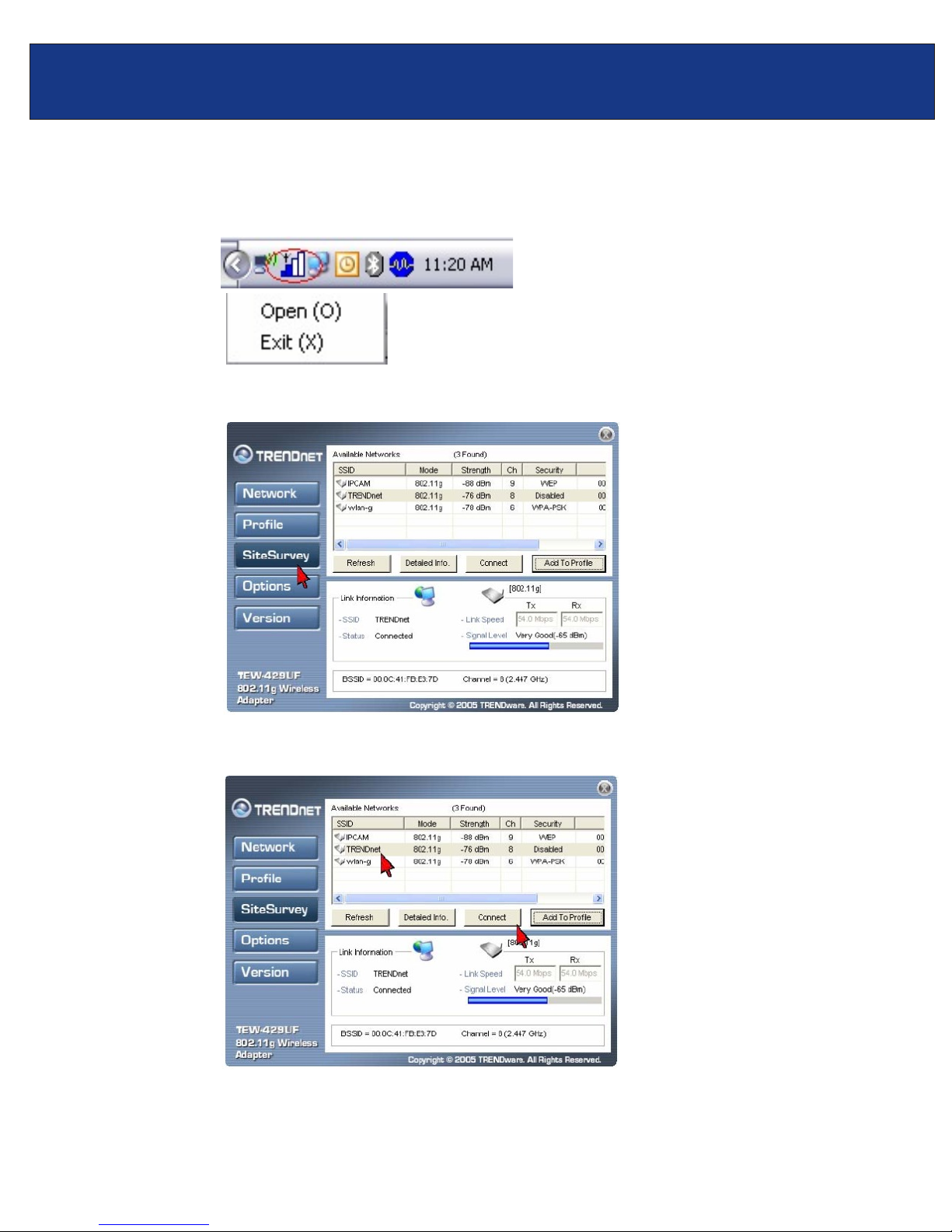

Step 2. Click on the “Site Survey” link then click on “Refresh”.
Step 3. Highlight the wireless network you want to connect to. Click “Connect” then click “Ok”.
Step 1. Open the utility by right clicking on the icon at the bottom right hand side of the screen
and click on “Open”.
TEW-429UF F.A.Q.
TEW-429UF F.A.Q.
Step 4. A window will pop up notifying you that the network will not be added to your profile list.
Click “OK”.
Step 2. Click on the “Site Survey” link then “Add to Profile”.
Q: How do I configure my TEW-429UF if my access point has encryption enabled?
A:Step 1. Open the utility by right clicking on the icon at the bottom right hand side of the screen
and click on “Open”.
Step 4. For WEP the “Security Mode” is set to “WEP”. Click “Configure”.
Step 5. Input your encryption settings and key, click “OK” then “Next”.
TEW-429UF F.A.Q.
Step 3. Name your profile and click “Next”.
TEW-429UF F.A.Q.
For WPA encryption the “Security Mode” is set to “WPA-PSK”, enter your key into the PSK
Passphrase field. Click “Next”.
Step 6. Make sure “Apply this profile now” is selected then click “Save”.
If you did not have encryption enabled it will switch over to the “Network” tab. If the connection
was successful you will receive signal level for Signal Strength.
TEW-429UF F.A.Q.
Q: What is Ad-Hoc Mode?
A:
Q: Why is the connect button grayed out on the site survey tab?
A:
Q: Why is the Wireless Networks tab missing under the properties of my wireless
network connection?
A:
Peer-to-peer wireless connection between computers when no router or access point is used.
Step 1 Open the utility by right clicking on the icon at the bottom right hand side of the screen
and click on “Open”.
The Wireless Zero Configuration service is not running.
Click on Start then Run. Type in “services.msc”, without the quotes and hit enter.
Step 2. Click on the “Options” tab and uncheck “Let Windows manage this wireless
adapter”. Then click “Apply Now”.
This will open the services window. Double click on the Wireless zero configuration service.
Make sure the Startup type is set to Automatic and click on “Start” to start the service. Click
“Apply” then “Ok”.
TEW-429UF F.A.Q.
Q: What scanning modes are available in the TEW-429UF?
A:
Q: How do I change the scanning mode of the TEW-429UF?
A:
Q: How long will the battery in the TEW-429UF last?
A:
Q: When the battery low icon appears, how long would it take before it totally
runs out?
A:
Q: How long is the charging time?
A:
Q: Is there an Auto Shutoff system for TEW-429UF?
A:
Q: Does the driver need to be installed to charge the TEW-429UF?
A:
There are three scanning modes available indicated by an icon in the LCD display.
1) S: Lists all available networks in range in order of signal strength.
2) F: Lists only unencrypted networks in range in order of signal strength.
3) D: Continuously refreshes details of the selected wireless network. It allows you to lock on
and monitor the signal strength as you move around.
Press and hold the seek button to toggle through the scanning modes. After you select the mode
press the seek button once to rescan in that mode.
On a full charge you can perform approximately 500 scanning processes.
You can perform approximately 20 more scans before the battery runs out.
Charging time is approximately 2 hours.
Yes, there is. The device will turn off automatically after 1 minute if there is no other button pushed.
No, you can connect to the PC/Laptop's USB port to charge without installing the driver
TEW-429UF F.A.Q.
Q: Why am I getting low signal strength?
A:There are a number of factors that can impact the range of wireless devices.
1) Keep the number of obstructions to a minimum. Each obstruction can reduce the range of a
wireless device. Position the wireless devices in a manner that will minimize the amount of
obstructions between them.
2) Building materials can have a large impact on your wireless signal. In an indoor environment
try to position the wireless devices so that the signal passes through drywall or open doorways
or space.
3) Antenna position can also have a large impact on your wireless signal. Use the adapter’s site
survey tool to determine the best antenna position for your wireless devices.
4) Interference from devices that produce RF noise can also impact your signal. Position your
wireless devices away from Microwaves, UPS’s, monitors, HAM radios, etc. Also, anything
operating on the 2.4ghz frequency will cause interference. Such as 2.4ghz cordless phones or
other wireless remotes operating on the 2.4ghz frequency.
If you are experiencing low, or no, signal strength consider repositioning the wireless devices,
repeating the signal or using stronger antenna’s to boost the signal strength.
Q: The battery icon does not appear on the adapter, why?
A:The battery icons would appear under these situations:
1) Low Battery Icon - Appears under Scan Mode when the battery is low.
2) Full Charged Battery Icon - Appears under Charge mode when the battery is fully charged
3) Charging Icon - Appears under Charge mode when it's charging.
TEW-429UF F.A.Q.
Q: How much memory does the TEW-429UF have?
A:
Q: What do the icons on the LCD represent?
A:
512MB
*Please note: Some of the listed capacity is used for formatting and other functions (20MB is
reserved for User's Guide and Driver Utility) and thus is not available for data storage. Please see
User's Guide for detail
TEW-429UF F.A.Q.
Q: How do I access the flash memory?
A:The adapter is installed as a drive on the computer. Open up “My Computer” and you will have a
“Removable Disk” drive with the next available drive letter.
