TRENDnet TBW-104UB Bedienungsanleitung

Table Contents

Introduction........................................................................................................................3

Key Features............................................................................................................................. 3

Getting Started...................................................................................................................4

Packing Contents...................................................................................................................... 4

Minimum System Requirements ............................................................................................... 4

Driver Installation ...................................................................................................................... 4

Appliactions Installed ................................................................................................................ 7

BlueSoleil Introduction......................................................................................................8

Main Windows........................................................................................................................... 8

Bluetooth Connection Management.........................................................................................11

Security Configurations............................................................................................................11

Appendix ..........................................................................................................................13

Specification............................................................................................................................ 13

Introduction

The TBW-104UB is a class 1 Bluetooth v2.0 compliant USB adapter. This Bluetooth device utilizes

Enhanced Data Rate (EDR) technology to support data rates up to 3Mbps. The TBW-104UB can

communicate with other Bluetooth devices to form a "Piconet". The TBW-104UB provides a fully

compliant Bluetooth system for data and audio applications.

The TBW-104UB features advanced wireless technology allowing it to coexist with 802.11b/g

devices. The TBW-104UB utilizes EDR technology to communicate with other Bluetooth v2.0

standard compliant devices at high speed to provide various applications, such as Bluetooth ready

DSC (digital camera), PDA data sync, mobile phone, Access Point, printer, keyboard, mouse, etc.

The Bluetooth adapter can easily connect to your Bluetooth-enabled devices up to 100 meters away

(depending on application environment and condition)

Key Features

ySupport full-speed Bluetooth operation with full Piconet support

yBluetooth v2.0 complaint with EDR (Enhanced Data Rate)

yBackward compatible with Bluetooth v1.1 & v1.2

yCoexist with IEEE 802.11b/g devices

ySupport AFH (Adaptive Frequency Hopping) and fast connection

yUp to 100 meters radio coverage distance (depending on application environment and condition)

yUp to 3 Mbps access data rate

yLow power consumption

yBundle with the IVT BlueSoleil Software.

Getting Started

Packing Contents

yTBW-104UB Advanced High Power Bluetooth USB Adapter

yQuick Installation Guide

yUtility & Driver CD-ROM

yUSB2.0Cable

Minimum System Requirements

yPC running Windows 2000, Windows XP, Windows Vista

yUSB 1.1 or 2.0 Port

yPentium 600 MHz processor or above

y128 MB RAM or above

y50MB free disk space on your hard drive

yCD-ROM drive

Driver Installation

If you have any Bluetooth driver (software) previously installed on your computer or built-in

Bluetooth device, please remove the driver and disable Bluetooth device first!

1. Please insert the Utility & Driver CD into CD-ROM drive, and then follow the instruction below to

install Utility and drivers.

Note: DO NOT connect the TBW-104UB USB adapter until instructed to do so.

Note: If the setup menu does not launch automatically, go to start Ærun Ætype in

D:\setup, where “D” in “D:\setup” is the letter assigned to your CD-ROM Drive, and

then press the ENTER key on your keyboard.

1. Please click Install

Utility to begin Bluetooth

adapter installation.

4. Please select I accept

the terms in the license

agreement. Click Next

3. Please Click Next

2. Please select Language

from the drop down

menu and then click OK.

7. Disregard all popup

Windows except for the

installation Window

shown to the right and

click Finish

6. Click Install

5. Please Click Next

8. Click Yes to restart the

computer.

9. A message appears in the

BlueSoleil toolbar

notifying the user to plug

in the Bluetooth adapter

2. Please plug in TBW-104UB. The drivers will install automatically.

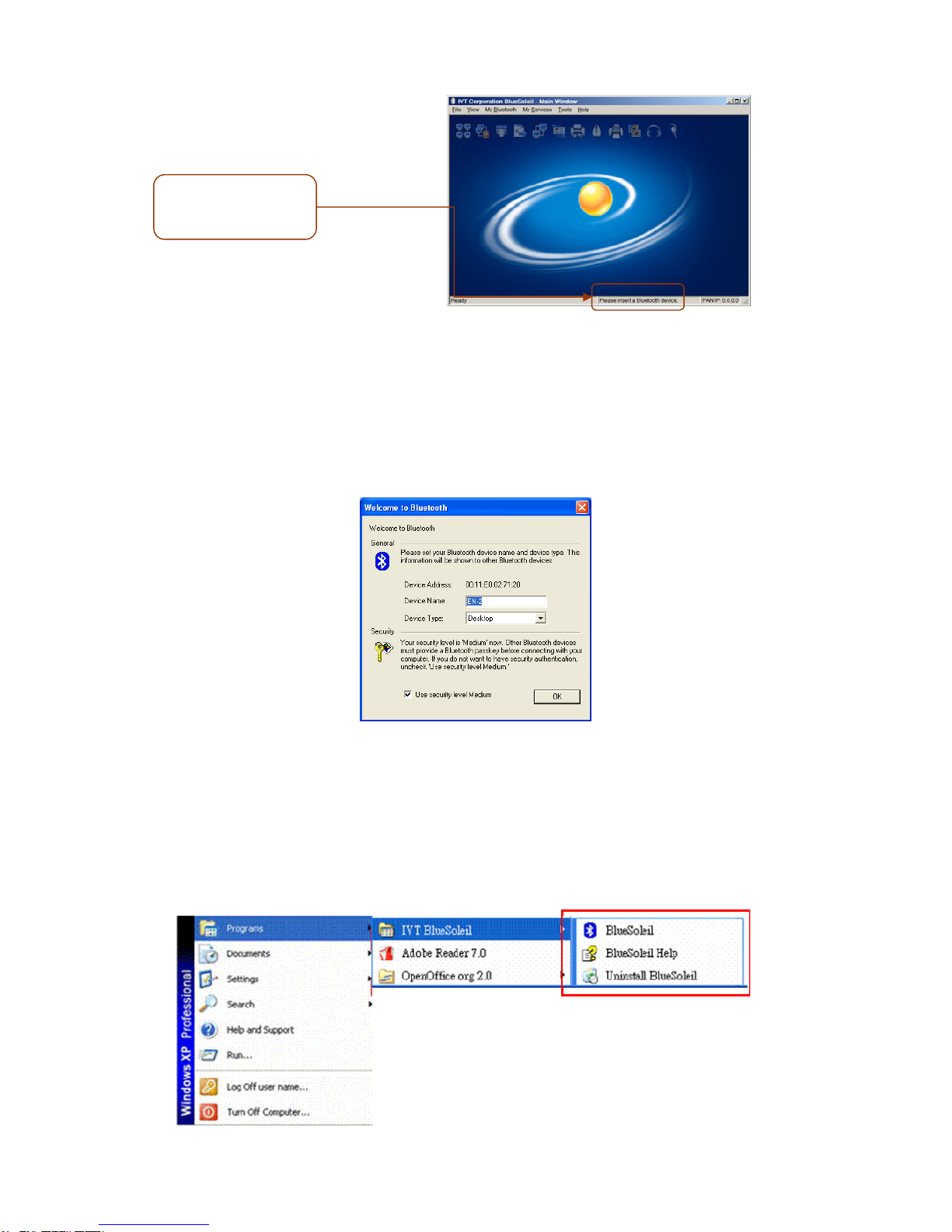

3. After the completion of the driver installation, the Welcome to Bluetooth screen will appear.

Assign your Windows system a device name and device type. In most cases, you should leave

the security setting checked. Click OK.

Appliactions Installed

After the completion of the driver and utility installation, the “IVT BlueSoleil” item will be added

to Windows Start Menu Programs group.

BlueSoleil Introduction

BlueSoleil is a Windows-based software from IVT that allows your Bluetooth® enabled desktop or

notebook computer to wirelessly connect to other Bluetooth enabled devices. BlueSoleil allows MS

Windows users to wirelessly access a wide variety of Bluetooth enabled digital devices, such as

cameras, mobile phones, headsets, printers, and GPS receivers. You can also form networks and

exchange data with other Bluetooth enabled computers or PDAs.

In order to connect and share services via Bluetooth wireless technology, two devices must support

the same Bluetooth Profile(s) as well as opposite device roles (i.e., one must be the server, and the

other must be the client). Bluetooth enabled devices often support multiple profiles, and if involved

in multiple connections, can perform different device roles simultaneously.

BlueSoleil supports the following Bluetooth functions (Profiles) in the following device roles:

Bluetooth Functions (Profiles) Client Server

Advanced Audio*

Basic Image Profile

Dial-Up Networking

Fax

File Transfer

Headset*

Human Interface Device

LAN access

Object Push

Personal Area Networking

Printer

Serial Port

Synchronization

Main Windows

Local Bluetooth Device

The Local Bluetooth enabled device, known as "My Device", represents the user's computer that is

running BlueSoleil.

Icon:

Operations:

•Hover mouse to display the local Bluetooth device's name or address (if without name).

•Click on the red ball to start or stop searching for Bluetooth devices in range.

•Right-click on the red ball to display a pop-up menu of related operations (e.g., General

Inquiry, My Services, Security, etc.).

Remote Bluetooth Devices

Remote devices are other Bluetooth enabled devices that are in the Bluetooth radio range of your

local device. BlueSoleil uses different icons to indicated different types of remtoe devices.

Icons

Icon Meanings

Remote devices can be in any of three states, which BlueSoleil indicates with different colors.

•White- Idle. The normal state of the device.

•Orange- Selected. You have selected the device.

•Green- Connected. The device is connected to your computer.

Operations

•Single-click on the icon to select.

•Double-click on the icon to search for the services supports by the remote Bluetooth

device .

•Right-click on the icon to display a pop-up menu of related operations (e.g. Refresh Services,

Pair Devices, Connect, etc.).

Bluetooth Service Buttons of Remote Device

Service buttons at the top of the Main Window represent a range of Bluetooth services potentially

supported by Remote Devices.

Icons

Icon Meanings

There are 3 states for the service icons, indicated by different forms.

•Idle. The normal state.

•Available - Highlighted. The Bluetooth service is available on the selected remote device.

•Connected - Green. The Bluetooth service is active in a connection with the remote device.
