Vacmaster VZA306P 0201 Bedienungsanleitung

Suzhou Cleva Electric Appliance Co., Ltd.

NO.8 Ting Rong Street 215122 Suzhou, China

Replacement Filters &

Accessories available at:

Vacmaster.com

FOR YOUR SAFETY

Read and understand this manual before use.

Keep this manual for future reference.

3 Gallon

Model No.

VZA306P 0201

Operator’s Manual

Dry Vacuum

TABLE OF CONTENTS

WARRANTY

Warranty .......................................................................................................................................

Important Safety Instructions........................................................................................................

Extension Cords ...........................................................................................................................

Symbols........................................................................................................................................

Unpacking & Checking Carton Contents......................................................................................

General Assembly Instructions.....................................................................................................

Dry Vacuum Operation .................................................................................................................

Maintenance.................................................................................................................................

Troubleshooting............................................................................................................................

Exploded View..............................................................................................................................

Parts List.......................................................................................................................................

SECTION PAGE

Thank you for purchasing this Vacmaster® dry vacuum cleaner. Feel condent that with

Vacmaster®you are obtaining a high quality product engineered for optimal performance.

This vacuum is capable of picking up dry materials.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

We take pride in producing a high quality, durable product. This Vacmaster®product carries a

limited two (2) year warranty against defects in workmanship and materials from date of purchase

under normal household use. If product is to be used for commercial, industrial, or rental use, a 90

day limited warranty will apply. Please keep your receipt as proof of purchase. This warranty gives

you specic legal rights, and you may have other rights, which vary from state to state. For product

service call Customer Service at 1-866-384-8432.

Not Covered by Warranty:

• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents,

improper maintenance, repairs, or alterations;

• Consumables such as lters and accessories;

• Normal wear and tear of parts and attachments, such as hose, nozzles, or casters;

• Normal deterioration of the exterior nish due to use or exposure;

• Any product where serial number/data label is tampered with or removed;

• Any product purchased from an unauthorized retailer.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.

When using an electrical appliance, basic precautions should always be followed,

including the following:

Failure to follow the warnings and instructions may result in electric shock, re

and/or serious injury.

• Do not leave appliance when plugged in. Unplug from outlet when not in use and before

servicing.

• Do not use outdoors or on wet surfaces.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been

dropped, damaged, left outdoors, or dropped into water, return it to a service center.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around

sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,

hair, and anything that may reduce air ow.

• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs.

• Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas where

they may be present.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use without dust bag and/or lters in place.

• Hold plug when rewinding cord reel. Do not allow plug to whip when rewinding.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

SAVE THESE INSTRUCTIONS

For Household Use Only

EXTENSION CORDS

SYMBOLS

When using an extension cord with your Dry Vacuum refer to the following table to determine the

required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord

are in good working condition. Make repairs or replacements before using the vacuum cleaner.

Only use extension cords that are rated for outdoor use.

25ft (7.62m) 50ft (15.24m) 100ft(30.48m)

Length of Extension Cord

150ft (45.72m)120V

Ampere rating

More than Not more than A.W.G. Wire Size

Not recommended

The following signal words and meanings are intended to explain the levels of risk associated with

this product.

SYMBOL SIGNAL MEANING

DANGER Indicates an imminently hazardous situation, which, if not

avoided, will result in death or serious injury.

WARNING Indicates a potentially hazardous situation, which, if not

avoided, could result in death or serious injury.

CAUTION Indicates a potentially hazardous situation, which, if not

avoided, may result in minor or moderate injury.

NOTICE (Without Safety Alert Symbol) Indicates a situation that may

result in property damage.

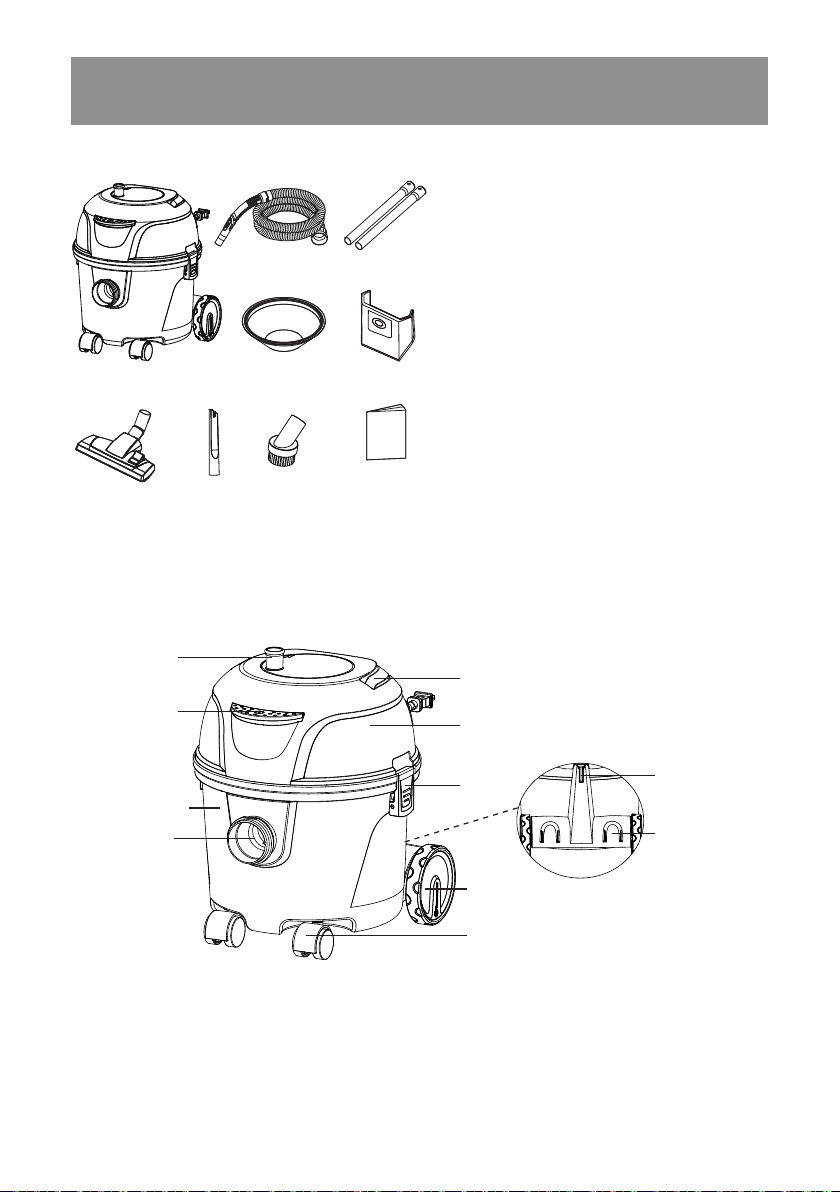

UNPACKING & CHECKING CARTON

CONTENTS

Remove all contents from the box.

Remove the power head and take out any

contents inside the collection tank.

Check each item against the carton

contents list.

NOTE: The hose and accessories for this

dry vacuum are 1-1/4 inch diameter.

A B C

FGHI

Carton Contents List

Key

Description................................Qty.

Vacuum................................1

Hose.............................................1

Extension Wand.............................2

Pre-filter................................1

Dust Collection Bag........................5

Multi-Surface Floor Nozzle.............1

Crevice Tool..................................1

Round Dust Brush..........................1

Operator’s Manual.........................1

Carry Handle

Power Head

Latch

Multi-Surface

Floor Nozzle

Storage

Accessory

Storage

Rear Wheel

Front Caster

Vacuum Port

Collection Tank

On/Off Switch

Cord Rewind

Knob

GENERAL ASSEMBLY INSTRUCTIONS

WARNING: DO NOT PLUG POWER CORD INTO POWER OUTLET. MAKE SURE

PLUG IS DISCONNECTED BEFORE ASSEMBLING THE VACUUM. TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN.

UNPACKING YOUR DRY VACUUM & GENERAL ASSEMBLY

1. Verify that the power cord is disconnected from the outlet (Fig. 1).

2. Undo the latches (Fig. 2).

3. Lift the power head off the collection tank and remove the pre-lter (Fig. 3).

4. Remove the contents from inside the collection tank and the box; make sure you have all

contents as listed in carton content list on page 5.

5. For improved dust ltration, t the dust bag ange onto the inlet port, taking care not to

damage the bag (Fig. 4).

6. Place the pre-lter onto the rim of the collection tank. Make sure the edge of the lter ts

snugly along the edge of the collection tank (Fig. 5).

NOTE: Ensure the dust collection bag and the pre-lter are correctly installed before each use.

7. With the lters installed, place the power head onto the collection tank and secure it with the

latches (Fig. 6 & 7).

8. Insert the locking end of the hose into the vacuum port of the collection tank and turn

clockwise to lock into place (Fig. 8).

9. Choose the desired attachment and insert onto the end of hose or extension wand (Fig. 9).

POLARIZED PLUG

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the

other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet,

reverse the plug. If it still does not t, contact a qualied electrician to install the proper outlet. Do

not change the plug in any way.

1234

56789

ⅠⅡ

Ⅰ

Ⅱ

DRY VACUUM OPERATION

DRY VACUUMING

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION

ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH

FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE

GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT

TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.

EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR

GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST,

DO NOT VACUUM TOXIC MATERIALS.

1. Verify that the power cord is disconnected from the outlet (Fig. 1).

2. For improved dust ltration, t the dust bag ange onto the inlet port, taking care not to damage

the bag (Fig. 2).

3. Place the pre-lter onto the rim of the collection tank. Make sure the edge of the lter ts snugly

along the edge of the collection tank (Fig. 3).

4. Place the power head back on the collection tank, and secure it in place using the latches

(Fig. 4).

OPERATING INSTRUCTIONS: DRY VACUUMING

5. Insert the locking end of the hose into the vacuum port on the collection tank and turn clockwise

to lock into place.

6. Choose the desired attachment and insert onto the end of the hose or extension wand (Fig. 5).

7. The air ow regulation on the hose handle allows you to adjust the amount of vacuum suction.

For best cleaning results, fully close the air ow regulation (Fig. 6).

NOTE: Open the air ow regulation for lightweight rugs or thick carpets. Close the air ow

regulation suction for upholstery, hard oor or low pile carpets.

WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE

SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.

12345

67810

﹢－

CAUTION: DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH WITH

THIS VACUUM. THIS IS A VERY FINE DUST WHICH WILL NOT BE CAPTURED BY THE

FILTER AND WILL CAUSE DAMAGE TO MOTOR.

CAUTION: THIS VACUUM IS INTENDED FOR DRY PICK-UP ONLY.

DRY VACUUM OPERATION

8. Pull out the power cord slowly (Fig. 7).

9. Plug the power cord into the outlet, turn on the dry vacuum by pressing the On/Off switch once

(Fig. 8 & 9).

10.Once you have nished vacuuming, press the power switch again to turn the vacuum off and

unplug the cord from the power outlet.

11.To rewind the cord, hold onto the vacuum port to ensure unit remains stationary and turn the

cord rewind knob clockwise.

USING THE ATTACHMENTS

1. Floor Nozzle: Use the standard setting for carpet cleaning. Push the carpet/bare oor selector

down to release the brush and squeegee for bare oor cleaning (Fig. 10).

2. Crevice Tool: For vacuuming edges, gaps, and reaching tight spaces.

3. Round Dust Brush: For vacuuming fragile or easily scratched items, such as furniture and

drapes.

NOTE: You may use the attachments by inserting onto the extension wands or directly onto the

hose.

1. Verify that the power cord is disconnected from the outlet (Fig. 1).

2. Disconnect the hose from the vacuum by turning counter-clockwise (Fig. 2).

3. Undo the latches and remove the power head from the collection tank (Fig. 3). Place power

head on a soft, clean surface upside down.

4. Clear all dirt or debris from the collection tank and hose into a proper waste container.

5. Clean or replace the lters .

6. Check the hose, attachments, and power cord to verify that they have not been damaged.

7. Place power head on collection tank and secure latches.

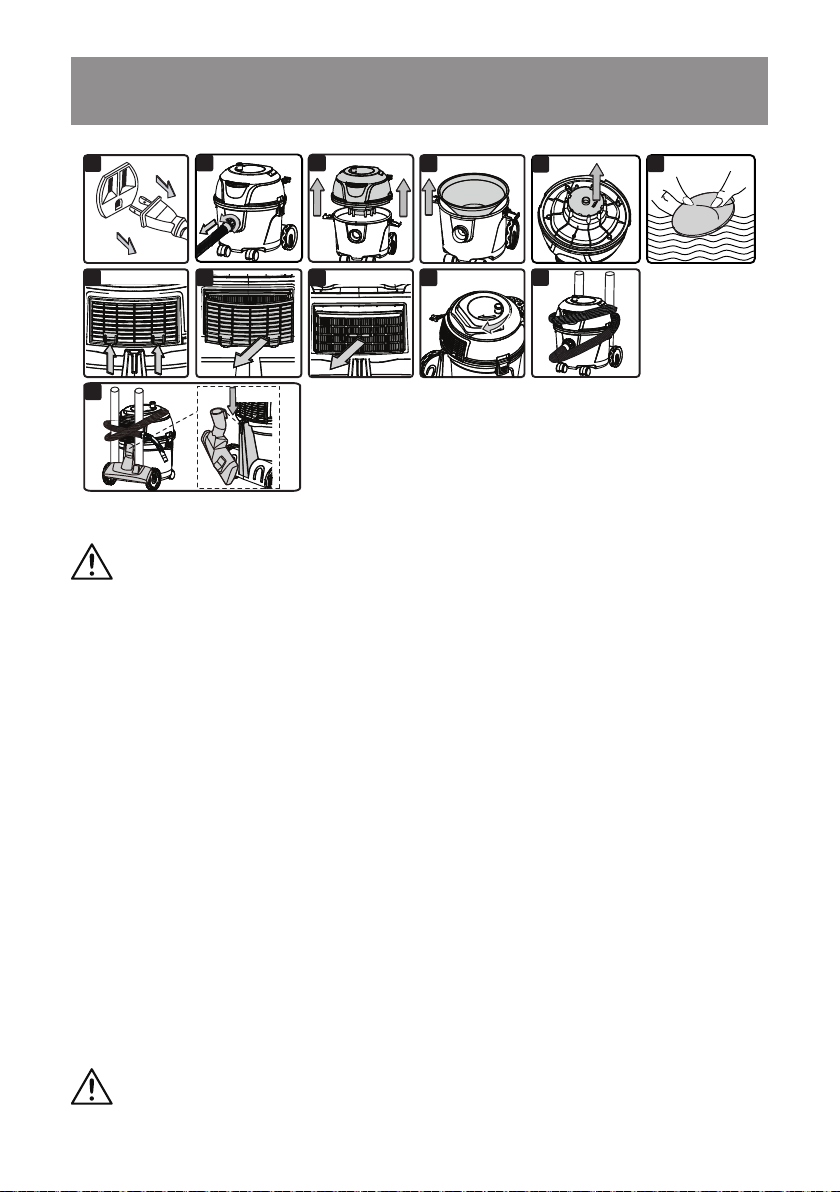

MAINTENANCE

123456

78910 11

EMPTYING THE COLLECTION TANK

WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET

BEFORE REMOVING THE POWER HEAD FROM COLLECTION TANK.

REMOVING & CLEANING THE PRE-FILTER

1. Verify that the power cord is disconnected from the outlet.

2. Remove the pre-lter up (Fig. 4).

3. Clean the pre-lter by gently tapping or brushing dirt off. If necessary, gently rinse the pre-lter

with clean water. Do not scrub or brush the pre-lter. Allow the pre-lter to air dry for 24 hours

before re-installing. DO NOT install pre-lter if it is damp, or it will damage the machine.

4. For optimal performance it is recommended to periodically replace the pre-lter.

REMOVING & CLEANING THE AIR INLET FILTER

1. Verify that the power cord is disconnected from the outlet.

2. With the removed power head in an upside down position, carefully remove the air inlet lter

from the tabs (Fig.5).

3. Wash and rinse the air inlet lter with clean water (Fig. 6).

4. Allow the wet lter to air dry for 24 hours before re-installing.

CAUTION: Make sure that the pre-lter and air inlet lter are dry before use, otherwise it

may cause poor cleaning performance or damage to the motor.

REMOVING & CLEANING EXHAUST FILTER

1. Verify that the power cord is disconnected from the outlet.

2. Unlock the exhaust lter door by lifting both of the locking tabs upwards and pull the door out

(Fig. 7 & 8).

3. Remove the exhaust lter from the vacuum (Fig. 9).

4. Clean the exhaust lter by gently tapping or brushing off dirt. If necessary, gently rinse the

exhaust lter with clean water. Do not scrub or brush the exhaust lter while wet. Allow the

exhaust lter to air dry for 24 hours before re-installing.

5. For optimal performance a new lter is recommended.

IMPORTANT! Clean or change the lters regularly for best performance. ALWAYS USE FILTERS

FOR DRY VACUUMING. If the machine is used without the lters, the motor will burn out and the

warranty will be voided. Always keep spare lters on hand.

NOTICE! The lters included are made of high quality materials designed to stop small dust

particles. The lters should be used for dry pick-up only. A dry lter is necessary to pick up dust.

If the lter is wet, it will clog quickly and be very difcult to clean. Handle the lter carefully when

removing it for cleaning and replacing it. Check the lters for tears or small holes, a small hole

can let dust pass through and out of the lter. Do not use a lter with holes or tears; replace it

immediately.

STORAGE

Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories

should be cleaned and stored so they can be readily available when needed. Store the vacuum

indoors.

1. Store the power cord in place by rotating the cord rewind knob clockwise as shown (Fig. 10).

NOTE: To avoid the power cord from getting stuck, do not retract the cord too fast or in wrong

direction.

2. Put the wands onto the attachment storage (Fig. 11 & 12).

3. The oor nozzle has a storage hook that slides into the slot on the back of the collection tank

(Fig. 12).

REPAIRS

Repairs for this dry vacuum should be performed only by qualied service personnel using only

identical replacement parts.

MAINTENANCE

CAUTION: Make sure the exhaust lter is dry before use.

Inhaltsverzeichnis

Andere Vacmaster Staubsauger Handbücher

Vacmaster

Vacmaster VDK611PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VJH1612PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VWMB508 0101 Bedienungsanleitung

Vacmaster

Vacmaster VDK1430SFC Bedienungsanleitung

Vacmaster

Vacmaster Joey Compact Bedienungsanleitung

Vacmaster

Vacmaster VQ1530SFDC Bedienungsanleitung

Vacmaster

Vacmaster V12 Bedienungsanleitung

Vacmaster

Vacmaster VBVA1010PF Bedienungsanleitung

Vacmaster

Vacmaster VSB1801NA Bedienungsanleitung

Vacmaster

Vacmaster VSG2101 Bedienungsanleitung

Vacmaster

Vacmaster VBV809PF Bedienungsanleitung

Vacmaster

Vacmaster VBV809PF Bedienungsanleitung

Vacmaster

Vacmaster VJC507P Bedienungsanleitung

Vacmaster

Vacmaster VOC1218PF-01 Bedienungsanleitung

Vacmaster

Vacmaster VMVK1630SWC Bedienungsanleitung

Vacmaster

Vacmaster VMVQ1530SWDC Bedienungsanleitung

Vacmaster

Vacmaster VOA407S Bedienungsanleitung

Vacmaster

Vacmaster VQ1115P Bedienungsanleitung

Vacmaster

Vacmaster MVOA407S Bedienungsanleitung

Vacmaster

Vacmaster EasyClean SCA0801 Bedienungsanleitung

Vacmaster

Vacmaster VHB307WM Bedienungsanleitung

Vacmaster

Vacmaster VJH1612PF 0202 Bedienungsanleitung

Vacmaster

Vacmaster VOC508S 1101 Bedienungsanleitung

Vacmaster

Vacmaster VJ1211P Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
