FOR YOUR SAFETY

Read and understand this manual before use.

Keep this manual for future reference.

Operator’s Manual

Wet/Dry Vacuum

9 Gallon

Model No.

VJF912PF 0201

TABLE OF CONTENTS

SECTION PAGE

Thank you for purchasing this Vacmaster® wet/dry vacuum cleaner. Feel condent that with

Vacmaster®you are obtaining a high quality product engineered for optimal performance.

This vacuum is capable of picking up liquids and dry materials.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

Warranty.........................................................................................................................................

Important Safety Instructions..........................................................................................................

Double Insulation Instructions........................................................................................................

Extension Cords.............................................................................................................................

Symbols.........................................................................................................................................

Unpacking & Checking Carton Contents........................................................................................

General Assembly Instructions.......................................................................................................

Dry Vacuum Operation...................................................................................................................

Liquid Vacuum Operation...............................................................................................................

Blower Operation............................................................................................................................

Maintenance...................................................................................................................................

Installing & Cleaning Cartridge Filter..............................................................................................

Installing & Cleaning Foam Wet Filter............................................................................................

Troubleshooting.............................................................................................................................

Exploded View...............................................................................................................................

Parts List........................................................................................................................................

WARRANTY

We take pride in producing a high quality, durable product. This Vacmaster

product carries a

limited three (3) year warranty against defects in workmanship and materials from date of purchase

under normal household use. If product is to be used for commercial, industrial, or rental use, a 90

day limited warranty will apply. Please keep your receipt as proof of purchase. This warranty gives

you specic legal rights, which may vary from state to state. For product service call Customer

Service at 1-866-384-8432.

Not Covered by Warranty:

• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents,

improper maintenance, repairs, or alterations;

• Consumables such as lters and accessories;

• Normal wear and tear of parts and attachments, such as hose, nozzles, or casters;

• Normal deterioration of the exterior nish due to use or exposure;

• Any product where serial number/data label is tampered with or removed;

• Any product purchased from an unauthorized retailer.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THIS MANUAL FOR FUTURE REFERENCE.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY:

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

Read and understand this operator’s manual and all labels on the vacuum cleaner before

operating. Safety is a combination of common sense, staying alert and knowing how your vacuum

works. Use this vacuum only as described in this manual. To reduce the risk of personal injury or

damage to your vacuum, use only manufacturer recommended accessories.

When using a vacuum, basic precautions should always be followed including

the following. Failure to follow the warnings and instructions may result in

explosion, re and/or serious injury.

• Do not run vacuum unattended.

• Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas where

they may be present.

• Do not vacuum, or use this vacuum near ammable liquids, gases, or explosive vapors like

gasoline or other fuels, lighter uids, cleaners, oil-based paints, natural gas, hydrogen, or

explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the

motor can ignite ammable vapors or dust.

• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.

• Do not use or store near hazardous materials.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not expose to rain. Store indoors.

• If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into

water, return it to a service center.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not use with damaged cord or plug.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around

sharp edges or corners.

• Keep cord away from heated surfaces.

• Do not run the vacuum over cord.

• Do not handle plug or vacuum with wet hands.

• Do not use without dust bag and/or lters in place.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• To reduce the risk of injury from accidental starting, unplug power cord before changing or

cleaning lter.

• Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.

• Turn off all controls before unplugging.

• Unplug before connecting or disconnecting hose, or any other accessories.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,

hair, and anything that may reduce air ow.

• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.

• Use extra care when cleaning on stairs.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• This vacuum is provided with double insulation. Use only identical replacement parts. See

DOUBLE INSULATION INSTRUCTIONS.

• Direct air discharge only at work area.

• Do not use Wet/Dry Vacuum as a sprayer.

• Do not direct air at bystanders.

• Keep children away when blowing.

• Wear safety goggles.

SAVE THESE INSTRUCTIONS

For Household Use Only

WARNING: To reduce the risk of electric shock - Unplug before cleaning or

servicing.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO

RAIN. STORE INDOORS.

WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE

OPERATOR’S MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES,

COALS, TOXIC, FLAMMABLE OR OTHER HAZARDOUS MATERIALS. DO NOT USE

AROUND EXPLOSIVE LIQUIDS OR VAPORS.

WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM WITH A

DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE

PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON

A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING

BE ADDED. SERVICING A DOUBLE INSULATED WET/DRY VACUUM REQUIRES

EXTREME CARE AND KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE

ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A

DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS

THEY REPLACE. YOUR DOUBLE-INSULATED WET/DRY VAC IS MARKED WITH THE

WORDS ‘DOUBLE INSULATED’ AND THE SYMBOL (SQUARE WITHIN A SQUARE)

MAY ALSO BE MARKED ON THE APPLIANCE.

CAUTION: To reduce the risk of injury from moving parts - Unplug before servicin.

CAUTION: DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH WITH

STANDARD WET/DRY FILTER. THIS TYPE OF DUST IS VERY FINE WHICH MAY

NOT BE CAPTURED BY THE FILTER AND CAUSE DAMAGE TO MOTOR. WHEN

VACUUMING FINE DUST USE A FINE DUST FILTER.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE

ONLY IDENTICAL REPLACEMENT PARTS.

DOUBLE INSULATION INSTRUCTIONS

This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system.

Use only identical replacements parts. Read the instructions for Servicing Double- Insulated Wet/

Dry Vacuums before servicing. Use this vacuum as described in this manual.

Observe the following warnings that appear on the motor housing of your vacuum.

When using as blower:

EXTENSION CORDS

When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine

the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension

cord are in good working condition. Make repairs or replacements before using the vacuum

cleaner. Only use extension cords that are rated for outdoor use.

Length of Extension Cord

120V 25ft (7.62m) 50ft (15.24m) 100ft (30.48m) 150ft (45.72m)

Ampere rating A.W.G. Wire Size

More than Not more than

0 6 18 16 16 14

6 10 18 16 14 12

10 12 16 16 14 12

12 16 14 12 Not recommended

The following signal words and meanings are intended to explain the levels of risk

associated with this product.

SYMBOL SIGNAL MEANING

DANGER Indicates an imminently hazardous situation, which,

if not avoided, will result in death or serious injury.

WARNING Indicates a potentially hazardous situation, which,

if not avoided, could result in death or serious injury.

CAUTION Indicates a potentially hazardous situation, which,

if not avoided, may result in minor or moderate injury.

NOTICE (Without Safety Alert Symbol) Indicates a situation

that may result in property damage.

SYMBOLS

UNPACKING & CHECKING CARTON

CONTENTS

Remove all contents from the box. Remove

the power head and take out any contents

inside the collection tank. Check each item

against the carton contents list.

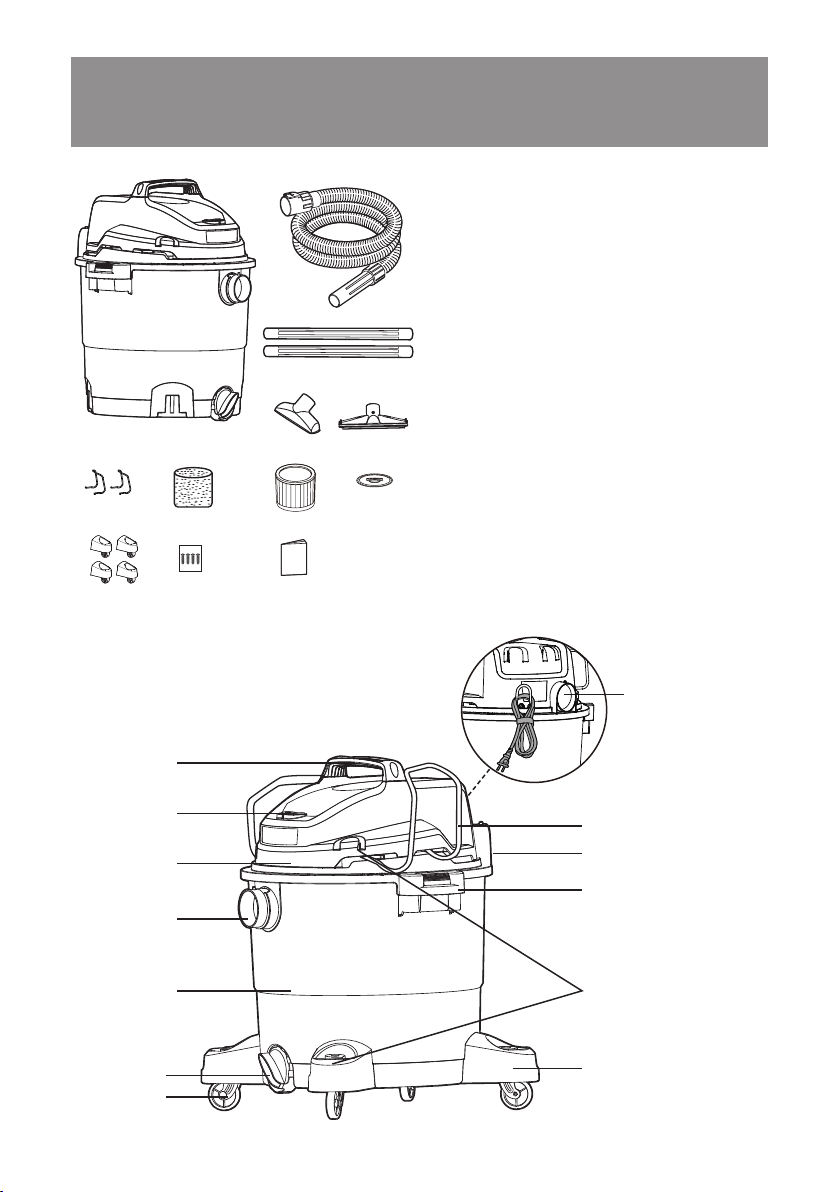

Carton Contents List:

Key Description ..…………....……….….... Qty.

Vacuum Assembly……………………....

Hose……………………………………...

Extension Wand………………..…........

Utility Nozzle.........................................

Floor Brush/Squeegee Nozzle……

Hose Storage Rack…………….............

Foam Wet Filter………..……….............

Cartridge Filter…………..………….......

Filter Retainer……………………..........

Caster Foot Assembly…...…….……....

4 Screws (Bag)…..…………………......

Operator’s Manual.…………………......

F G H I

K L

NOTE: The hose and accessories for this

vacuum are 1-7/8" (3.8 cm) diameter.

Hose Storage Rack

Blower Port

Power Cord Storage

Latch

Accessory Storage

Caster Foot

Caster

Drain Port

Collection Tank

Vacuum Port

Power Head

On/Off Switch

Handle

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

1. Verify that the power cord is disconnected from the outlet (Fig. 1).

2. Undo the latches (Fig. 2).

3. Lift the power head off the collection tank (Fig. 3).

4. Remove the contents from inside the collection tank; make sure you have all contents as listed

on page 7 (Fig. 4).

5. Turn the collection tank upside down and insert the four caster feet into the slots on the

collection tank and tighten with supplied screws. Verify that the casters are mounted correctly.

Do not over-tighten screws (Fig. 5).

6. Position the hose storage rack as illustrated. Squeeze the open sides of the hose storage rack

inward. Insert the hose storage rack into the channel on the front side of the power head just

above the top edge of the tank. Verify that the rack is secured in place as shown in Fig. 8. Then

squeeze in the other hose storage rack and insert it into the corresponding channel making sure

it is secured (Fig. 6 - 9).

A Philips head screwdriver is required.

GENERAL ASSEMBLY INSTRUCTIONS

WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE

SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY

VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN.

125

6710

11 12 13 14

DRY VACUUMING

7. Your vacuum comes ready for dry vacuum cleaning. If the cartridge lter is not installed, refer to

page 14 for installation instructions (Fig. 10 & 11).

8. For wet vacuum cleaning, remove the cartridge lter, and install the supplied foam wet lter.

See page 15 for the foam wet lter installation instructions (Fig. 12).

9. Place the power head back on the collection tank and secure into place using the latches

(Fig. 13 & 14).

10.Insert the larger end of the hose into the vacuum port on the collection tank and lock into place

(Fig. 15).

11.Choose the desired accessory and insert onto the end of the hose. (Fig. 16).

POLARIZED PLUG

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the

other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet,

reverse the plug. If it still does not t, contact a qualied electrician to install the proper outlet. Do

not change the plug in any way. Double insulation eliminates the need for the three wire

grounded power cord and grounded power supply system.

DRY VACUUM OPERATION

125

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION

ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS

WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR.

FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER

FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL,

OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO:

COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH

HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE

SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.

CAUTION: DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH

WITH STANDARD WET/DRY FILTER. THIS IS A VERY FINE DUST WHICH WILL NOT

BE CAPTURED BY THE FILTER AND MAY CAUSE DAMAGE TO MOTOR. WHEN

VACUUMING FINE DUST USE A FINE DUST FILTER (INCLUDED). TO PURCHASE

ADDITIONAL FINE DUST FILTERS, CALL 1-866-384-8432 OR GET THEM AT YOUR

LOCAL OR ONLINE VACMASTER®RETAILER.

1. Verify that the power cord is disconnected from the outlet (Fig. 1).

2. In order to prepare your vacuum for dry vacuuming, make sure the cartridge lter completely

covers the lter cage against the power head. Your wet/dry vacuum comes with the cartridge

lter pre-installed. For installation instructions, see page 14 (Fig. 2 & 3).

3. Place the lter retainer on the top of the cartridge lter and tighten down by turning the retainer

handle clockwise (Fig. 4).

4. Place the power head back on the collection tank and secure it in place using the latches (Fig. 5).

OPERATING INSTRUCTIONS: DRY VACUUMING

5. Insert the larger end of the hose into the vacuum port on the power head and lock into place.

6. Choose the desired accessory and insert onto the end of the hose (Fig.6).

7. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the power

outlet. Plug the power cord into the outlet (Fig. 7 & 8).

8. Turn the motor on by ipping the switch to the ‘I’ ON position and begin vacuuming (Fig. 9).

9. Once you have completed vacuuming, ip the switch to the ‘O’ OFF position and unplug the

power cord from the outlet.

O = OFF I = ON

DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Vacmaster Staubsauger Handbücher

Vacmaster

Vacmaster VQ1530SIWDC Bedienungsanleitung

Vacmaster

Vacmaster VJH1612PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VQ1220PFC Bedienungsanleitung

Vacmaster

Vacmaster VOC508S Bedienungsanleitung

Vacmaster

Vacmaster VFB511B 0201 Bedienungsanleitung

Vacmaster

Vacmaster VQ1220PFC Bedienungsanleitung

Vacmaster

Vacmaster VZA306P 1101 Bedienungsanleitung

Vacmaster

Vacmaster VBV1412P Bedienungsanleitung

Vacmaster

Vacmaster VJC607PF 0101 Bedienungsanleitung

Vacmaster

Vacmaster VK1620SWC Bedienungsanleitung

Vacmaster

Vacmaster VOC1210PF Bedienungsanleitung

Vacmaster

Vacmaster VJF607PF 1101 Bedienungsanleitung

Vacmaster

Vacmaster CC0101 Bedienungsanleitung

Vacmaster

Vacmaster VWM1218R Bedienungsanleitung

Vacmaster

Vacmaster VMVDK1538SWC-06 Bedienungsanleitung

Vacmaster

Vacmaster VBVA1010PF Bedienungsanleitung

Vacmaster

Vacmaster VWMB508 0101 Bedienungsanleitung

Vacmaster

Vacmaster VP321 Bedienungsanleitung

Vacmaster

Vacmaster VJC507P Bedienungsanleitung

Vacmaster

Vacmaster VOM205P Bedienungsanleitung

Vacmaster

Vacmaster V12 Bedienungsanleitung

Vacmaster

Vacmaster VFB511B 0201 Bedienungsanleitung

Vacmaster

Vacmaster VOC1218PF Bedienungsanleitung

Vacmaster

Vacmaster VBV809PF Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
