VarTech Systems DiamondVue VT190C Bedienungsanleitung

VT190 DiamondVue User Guide 150-065

VT190 DiamondVue Series

19.0” Flat Panel Series LCD Monitors

VT190C · VT190P · VT190R

VT190P-SS · VT190W · VT190M

Transflectives:

VT190PTSR · VT190PTSRSS

VT190RTSR · VT190WTSR · VT190MTSR

User’s Guide

Read these instructions completely before attempting to operate your new Color Display.

VarTech Systems Inc.

Solutions for Demanding Applications

Industrial CRT and Flat Panel Displays

Table Of Contents

Section Page Section Page

Section 1 Section 4

Introduction Touch screen

1.1 About LCD Monitors 1 4.1 Touch Screen Introduction 10

1.2 Product Safety Precautions 2 4.2 Touch Screen Definition 10-11

4.3 Touch Screen Serial Interface 11

Section 2 4.4 Setting up the Touch Interface 11

Display Setup 4.5 Installing Windows NT 4.0 Touch Drivers 12

2.1 Display Features 3 4.6 Installing Windows 95/98 Touch Drivers 12-13

2.2 Unpacking The Display 4 4.7 Installing Windows 2000 Touch Drivers 13

2.3 Included Parts 4

2.4 Connecting Your Display 4 Section 5

2.5 Signal Connections 4-6 Troubleshooting Tips 14-15

Section 3 Section 6

Getting Started Cleaning & Maintenance 16

3.1 Adjusting the Display 7

3.2 Adjustment Procedure 8-9 Section 7

Mechanical Drawings

Panel Mount Instructions 17

Chassis Mount Mechanical Drawings

Panel Mount Mechanical Drawings 18-19

Rack Mount Mechanical Drawings

Wall Mount Mechanical Drawings

Section 8

Display Specifications 20

VT190 DiamondVue User Guide 150-065

INTRODUCTION

Section

About LCD Monitors

What you gain by using an LCD monitor in your industrial controls

LCDs

are the future of display technology. CRTs although they have dropped

in cost significantly, do not offer the performance, reliability, and

mounting options available with LCDs. LCD monitors consist primarily of

an LCD, Video Board and a Back Light video. The LCD determines to a

large extent the viewing angle, brightness and contrast. Beyond that it is

the function of the video board which converts the analog RGB (Red, Green, Blue) signals from a

standard video card to a high quality, digital RGB that the LCD can display.

Recently the video card has taken on a new role. It is the responsibility of this device to “scale” a

particular video resolution to the “native” resolution of the LCD. Simply, consider that a computer is

putting out a VGA [640x480] resolution signal, yet the LCD that is connected is an XGA

[1024x768] display. The displayed picture would be in the center 1/3 of the LCD. With the

introduction of the scaling engine. The converter will mathematically recalculate the 640x480 to

1024x768. This may sound simple but it is in fact a complex algorithm that adjusts for different

aspect ratios and pixel alignment, essentially smoothing text and graphics to produce a picture

that is pleasant to the eye.

All Vartech displays from 12.1” (800x600) to 23.1 (1600x1200) incorporate scaling engines in the

converter card.

1.1

Product Safety Precautions

⇒ Ensure that sufficient space is available around the display to provide the circulation

necessary for cooling.

⇒ Ensure that the ambient air temperature will not exceed the specified maximum

temperature.

⇒ Do not attempt to service this display yourself. The rear chassis has a seal so that non

qualified personal will not expose themselves to dangerous voltages or other risks.

⇒ To protect from electrical shock, unplug the display power supply from the wall before

moving.

⇒ Do not expose the display to direct sunlight or heat.

⇒ Do not use this display near water

⇒ Do not place any heavy objects on the power cords. Damage may cause electrical shock.

⇒ Unplug the power supply from the wall or unit if one of the following conditions exists.

⇒ Power cord or plug is damaged or frayed

⇒ Liquid is spilled into the display or the display is exposed to rain or water.

⇒ The display does not operate normally when the operating instructions are

followed.

⇒ The display has been dropped or the enclosure has been damaged.

⇒ The display exhibits a distinct change in performance, indicating a need for

service.

1.1

VT190 DiamondVue User Guide 150-065

Section

DISPLAY SETUP

VT190 Series Display Features

⇒ Capable of displaying unlimited colors in a continuous spectrum. The high contrast LCD

enhances the image with no geometric distortion.

⇒ The VT190 DiamondVue Series directly accepts an analog 5 wire RGB with separate H/V sync

or 4 wire RGB with separate combined sync or 3 wire SOG.

⇒ The VT190 DiamondVue Series is auto synchronous adjusting the display to the appropriate

input between VGA, SVGA,XGA, and SXGA.

⇒ The VT190 DiamondVue Series is available in Panel Mount, Rack Mount, or Wall Mount

industrial packages.

⇒ The VT190 DiamondVue Series is supplied with a Anti-Reflective Screen unless equipped with

an optional Touch System.

⇒ The VT190 DiamondVue Series has an integrated 115/220VAC supply as standard on all

models.

2.1

⇒ VT190R, VT190P, VT190C, VT190W or VT190M LCD Monitor

⇒ 5 ft Video Cable

⇒ 10-32 Mounting Hardware. (For use with Panel Mount only)

⇒ 6 ft RS232 Touch Interface Cable (Optional when touch is installed)

⇒ CD ROM with Touch Screen Drivers (Optional when touch is installed)

⇒ Users Guide (Printed or on CD)

2.2 Unpacking and setting up your display

Your LCD monitor package will consist of the components listed below. Open shipping

container and lay all components on a flat clean surface.

2.3 What is included with your display

2.4 Connecting the Display

1. Connect all cables to the computer first. This would include the VGA cable and the optional

RS 232 serial touch screen connection.

2. After connecting the cables between the LCD monitor and the computer, plug the power

cord into the 115/220VAC power outlet.

3. Once the 115/220VAC connection is made, the display is active.

4. If your computer was off, turn on your computer.

5. Your display should now operate as a normal computer display showing your windows or

whatever video is being sent to the flat panel.

Note: If for any reason the display goes blank and gives an “out of Range” or “No Input Signal”,

your computer or video source is putting out a signal that is out of range of the LCD’s video

board. If this happens, reboot the computer or video source and make sure you are inputting

the correct signal. If the display doesn’t work properly, it may be because:

(a) The resolution is to high or low for the LCD.

(b) The refresh rate is set to high. Refresh on an LCD is different than a CRT. Set the refresh to

60Hz. CRT’s need a high refresh rate to avoid flicker. The refresh rate has no impact on

LCD’s.

(d) The unit is malfunctioning. If you believe this to be true, disconnect the video cable from the

rear of the LCD and connect to a known good computer CRT display. If the computer

display is working satisfactory and the video is within the appropriate range, then contact

Vartech Customer service for a RMA number at 800-223-8050.

2.5 Signal Connections

To avoid irregular operation and /or damage to the display, please insure correct video is being

supplied as shown on the following page.

VT190 DiamondVue User Guide 150-065

You can use an HD-15 connector cable or a BNC adapter cable to connect the flat panel

monitor to the host computer. The HD-15 video cable (supplied in the kit) you use with this

monitor is equipped with a conventional HD-15 connector at each end.

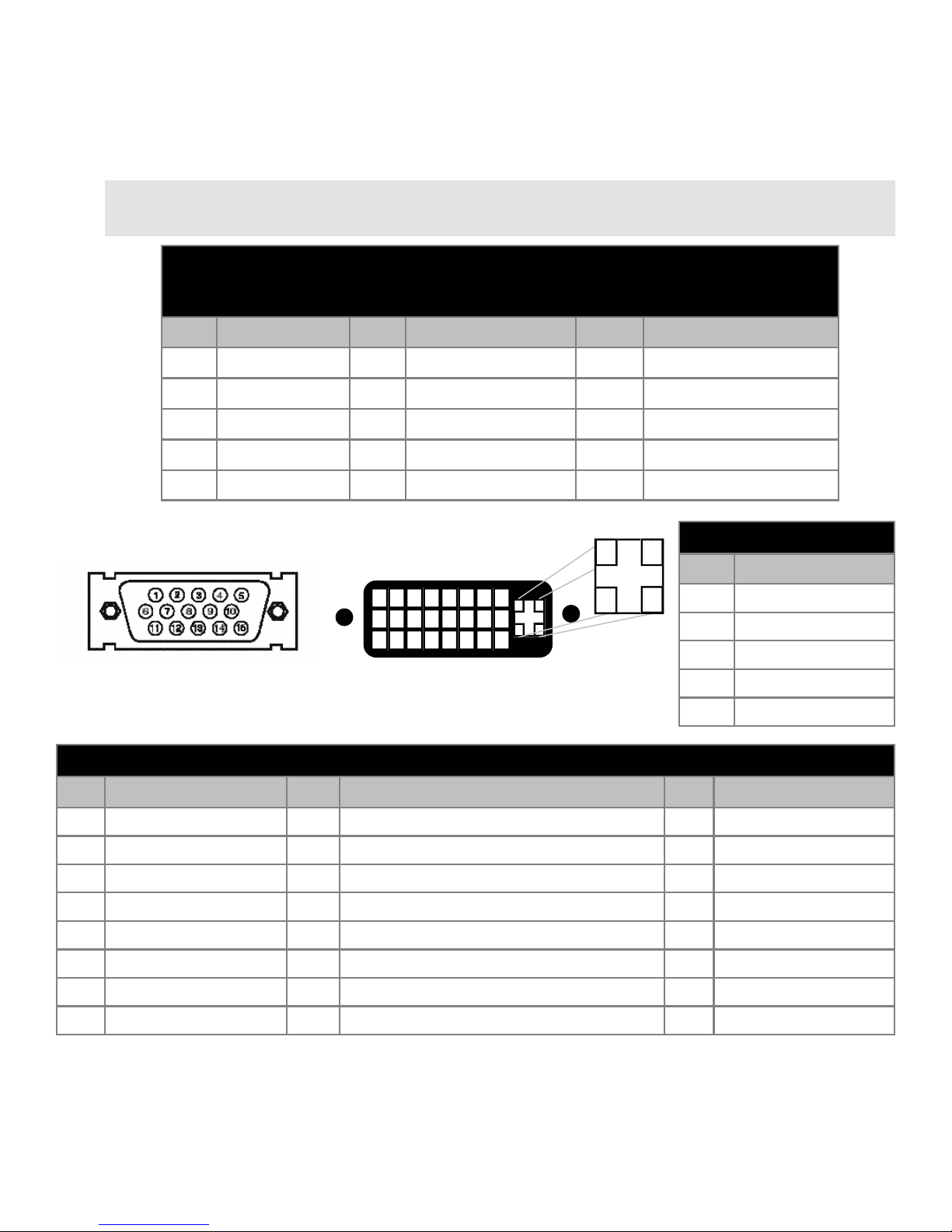

Note: The following figure is the view looking into the pin end of the male connector or solder

term end of the female connector.

Pin Signal Pin Signal Pin Signal

1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-

2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+

3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield

4 T.M.D.S. Data4- 12 T.M.D.S. Data3- 20 T.M.D.S. Data5-

5 T.M.D.S. Data4+ 13 T.M.D.S. Data3+ 21 T.M.D.S. Data5+

6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield

7 DDC Data 15 Ground (return for +5V, H. Sync and V. Sync) 23 T.M.D.S. Clock+

8 Analog Vertical Sync 16 Hot Plug Detect 24 T.M.D.S. Clock-

DVI-I

Pin Signal

C1 Analog Red

C2 Analog Green

C3 Analog Blue

C4 Analog H. Sync

C5 Analog Ground

DVI-I

DVI-I Connector

(Digital / Analog)

Pin Signal Pin Signal Pin Signal

1 Red Video 6 Red Video Ground 11 Not Used

2 Green Video 7 Green Video Ground 12 Bi-Directional Data

3 Blue Video 8 Blue Video Ground 13 Horizontal Sync

4 Not Used 9 No Connection 14 Vertical Sync

5 Return 10 Sync Ground 15 Data Clock (SCL)

HD15 Connector

The following table provides the pin numbers and corresponding pin assignments for

the HD-15 video connector.

1 8

C4C3

Composite Video Input Connector: CVBS 1.0V p-p

S-Video: S-VHS

LUMA Signal Input 0.7V p-p

CHROMA Signal Input 0.7V p-p

2.5 Signal Connections Cont.

HD15 Connector

Optional BNC Adaptor Cable

A 5BNC-to-HD15 adapter cable is available. The functions of the cables are described below.

⇒ R, B, and G: Red, Green, and Blue input connectors to establish color.

These are used for RS-343 analog signals.

⇒ HS/CS: Separate horizontal/composite sync signal from the video

source.

⇒ VS: Separate vertical sync signal from the video source.

BNC Adapter Cable

This table describes the signal types you can use with the connectors:

2.5 Signal Connections Cont.

BNC Signal Type Description R G B HS/ CS VS

Sync-on-Green

(Not Available)

Use the three video connectors.

Horizontal and vertical syncs are

supplied on the green video line.

X X X

Composite Sync

(Not available)

Use the three video connectors

plus the horizontal sync/

composite sync input

X X X X

Separate Horizontal

and Vertical Sync.

Use the three video connectors

plus the horizontal sync/

composite sync and vertical sync

input.

X X X X X

BNC Signal Types

VT190 DiamondVue User Guide 150-065

The VT190 DiamondVue Series display has an embedded microprocessor in the converter card. Once

you have the unit displaying the resolution you desire for your application do the following:

3.2

GETTING STARTED

Section

3.1 Adjusting the display

Definition of OSD (on screen display) Adjustments

On Screen Display

Major Category Adjustment Category

POWER Turns the systems ON/OFF

MENU Activates the OSD menu or goes to the previous menu

SEL • When the OSD menu is off, press more than 3 seconds

Performs “auto-adjustment’ function

• When the OSD menu is on

Selects the highlighted icon that the user wants.

DOWN • Moves the highlight icon up to the function that the user wants

UP • Moves the highlight icon down to the function that the user want

▼• Decreases the adjustment of the selected function

▲• Increases the adjustment of the selected function

INPUT • Selects the Input Signal among analog RGB, Digital DVI, CVBS and S-VHS

Accessing the Menu System

1. With the OSD off, push the MENU button to activate the main OSD menu.

2. Use the UP or DOWN buttons to move from one function to another. As you move from one icon to

another, the function name changes to reflect the function or group of functions represented by that

icon. Please refer to the following clause on the next page to view a complete list of all the functions

available for the driver board.

3. Pres the SEL button once to activate the highlighted function, use the UP or DOWN buttons to se-

lect the function.

4. After selecting a function, use the ▼or ▲buttons to make optimum adjustments. The setting bar

moves and the numeric value indicator changes to reflect your adjustements.

Note:The numeric value indicator is provided as a point of reference only and has nothing to do with

a real measurement.

5. Press the MENU button once to return to the main menu to select another function or press twice to

exit from the OSD.

3.3

Adjustment (PC)

OSD Agent Description

Adjustment is used to

fine tune and get the best

image by removing

noises that creates

unstable images with

jitters and Shimmers.

Brightness Adjusts the brightness of video

Contrast Adjusts the contrast of video.

Clock Removes the noises. When frequency value is

wrong, the image has horizontal lines especially in

1 dot on and off.

Phase Removes the noises. When phase value is wrong,

the image has vertical lines especially in 1 dot on

and off.

Auto Adjust “Auto adjustment” allows the monitor to self-adjust

to the incoming video signal. The values of phase,

frequency and position are adjusted automatically.

Adjustment (DVI)

OSD Agent Description

This function is active if

you select a digital DVI

source.

Brightness Adjusts the contrast of image.

Contrast Adjusts the brightness of image.

Adjustment (Video)

OSD Agent Description

Brightness Adjusts the brightness of video

Contrast Adjusts the contrast of video

This function is active if

you select an input

source other than PC.

(DVD, VCR) Color Changes the richness of color

Tint Changes the tone of color

Sharpness Adjusts the sharpness of video image

Adjustment

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere VarTech Systems Monitor Handbücher

VarTech Systems

VarTech Systems vt550 series Bedienungsanleitung

VarTech Systems

VarTech Systems VTPC2100VS Bedienungsanleitung

VarTech Systems

VarTech Systems VT420 Series Bedienungsanleitung

VarTech Systems

VarTech Systems VT19B-PW Bedienungsanleitung

VarTech Systems

VarTech Systems GDM-5001PT Bedienungsanleitung

VarTech Systems

VarTech Systems VT181R2 Bedienungsanleitung

VarTech Systems

VarTech Systems VT201CM Bedienungsanleitung

VarTech Systems

VarTech Systems VT190PVS Bedienungsanleitung

VarTech Systems

VarTech Systems VT121 DiamondVue Series Bedienungsanleitung

VarTech Systems

VarTech Systems VT20A Bedienungsanleitung

VarTech Systems

VarTech Systems VT121CC Bedienungsanleitung

VarTech Systems

VarTech Systems VTPC150XPE Bedienungsanleitung

VarTech Systems

VarTech Systems DiamondVue VT084C Bedienungsanleitung

VarTech Systems

VarTech Systems VT064P Bedienungsanleitung

VarTech Systems

VarTech Systems VT14B-C1 Bedienungsanleitung

VarTech Systems

VarTech Systems VT420D Bedienungsanleitung

VarTech Systems

VarTech Systems VT320D Bedienungsanleitung

VarTech Systems

VarTech Systems VT084XHB Bedienungsanleitung

VarTech Systems

VarTech Systems VT084XA4 Bedienungsanleitung

VarTech Systems

VarTech Systems VT181CH Bedienungsanleitung

VarTech Systems

VarTech Systems ColorVue VT190PC Bedienungsanleitung

VarTech Systems

VarTech Systems VT213C Bedienungsanleitung

VarTech Systems

VarTech Systems VT420W Bedienungsanleitung

VarTech Systems

VarTech Systems VT190P2 Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
