VT420D 1 150-114

Contents

Important

Safety

Instructions

………………………………………………...

Safety Precautions …………………………………………………………………...…… 2

Installation ………………....………………………………………………………….…… 3

Use ……………………………………….………………………………………………… 3

Clean ……………………………………….…………………………………….………… 5

Warning

for

use

……..…………………………………….………………….......

Features………………………………………………………………….……........

Package

Contents

……….....…………………….……………………………...

Dimension ……………………………………………………………………………….… 8

Installation ……………………………………………………………………………….… 8

Power Input …………….…….………………………………………………………….… 8

Power Interface ………..…….………………………………………………………….… 8

Connection …………….…..……….……………………..…………………………….… 9

Single Source Input ………….……………………………………………….................. 9

Operating

The

Monitor

…….…………….……………………………...............

The Side Controller Of The Monitor ……….....……………………..….…………….… 10

The Remote Controller(RCU) Instructions ……………..…………………………….… 10

Change The RCU Battery ………………..….………………………….……………..… 11

OSD Menu ………………..…………………..………………………….……………..… 12

OSD Operating ……………..……………..….………………………….……………..… 14

Default

Setting

…………………………………………………………….……...

Support

Timing

…………..…………………………….………………….……...

Specification

…………..……………….………..........

......................................

Troubleshooting

…………………………………….……….………………….

Compliance

……………………………..…………………….…………………...

VT420D 2 150-114

※ Please read this user’s manual cautiously and completely before operating this

monitor.

Impor

tant

Safety

Instructions

Before using the monitor, please read this user’s manual thoroughly to help protect against damage your own and

other people’s property from potential damage and ensure your own and other people personal safety.

Be sure to observe the following instructions with understood meaning below.

For your safety, be sure to observe the safety notice in this manual.

The installation or adjustment, please follow this manual instructions or refer to all servicing to qualified

service personnel.

Safety Precautions

If smoke or peculiar smell comes from the monitor, remove the power plug from the

outlet immediately .

If the monitor is still used in this condition, it may cause a fire or an electrical shock.

Make sure that the smoke or smell stopped, then contact VarTech for inspection.

If there isn’t picture, remove the power plug from the outlet immediately .

If the monitor is still used in this condition, it may cause a fire or an electrical shock.

Contact VarTech for inspection .

If water is spilled or objects are dropped into the monitor, remove the power plug from

the outlet immediately.

If the monitor is still used in this condition, it may cause a fire or an electrical shock.

Contact VarTech for inspection.

If the monitor is dropped or the cabinet is damaged, remove the power plug from the

outlet immediately .

If the monitor is still used in this condition, if may cause a fire or an electrical shock.

Contact VarTech for inspection.

To turn off the power of the monitor, press”O” on the main power switch at back cover.

The power standby/on indicator goes off and the set cannot to be turned on/ off by using the POWER button on

the remote control. (To turn on/off the monitor by the remote control, press the main power switch again and

light the power standby/on indicator.)

When turning off the monitor by pressing the POWER button on the remote control, the main power of the

monitor is not turned off completely.

To disconnect the monitor completely from power supply, remove the power plug from the outlet.

If the power cord or plug is damaged or becomes hot, turn off the main power switch of

the monitor, make sure the power plug has cooled down and remove the power plug

from the outlet .

If the monitor is still used in this condition, it may cause a fire or an electrical shock.

VT420D 3 150-114

Installation

Don't install in the high-temperature environment.

If the monitor used in high-temperature or in direct sunlight, it may cause the case or other parts to be distorted,

damaged, overheating or an electric shock.

Don't install in the high-humidity environment such as a bathroom or close to a

humidifier.

This may cause overheating or an electric shock.

Don't install near any heat sources such as radiators, heat registers, stoves, or other

apparatus that produce heat.

This may cause a fire or an electric shock.

Don't overload outlets or cables beyond electricity capacity.

Don't use extension cords, it may cause a fire or an electric shock.

Don't insert the power plug into an outlet other than 100~240V AC.

This may cause a fire or an electric shock.

Don’t use a damaged power plug or worn outlet.

Don’t insert the improper power plug ,it may cause a fire and an electric shock.

Don't place the monitor on an unstable shelf or desk, such as a shaky table.

The monitor may fall down and cause injury damage. Please install on a horizontal, stable surface.

Don't place objects on the monitor.

If the monitor is covered under the newspaper, tablecloth or curtain, the monitor vent could be clogged, and

it may make the monitor overheating and cause the fire.

If metal or liquid (putting the vase, glass or the cosmetics) get into the monitor, it may cause a fire or an

electrical shock.

If you put the heavy object on the monitor, it may fall down and cause the injury

Please Keep 10cm minimum distance between the monitor and the wall for sufficient ventilation.

Don't move the monitor when it’s connecting power cord and cables.

When moving the monitor, make sure to take off the power plug and cables from the outlet or sync source. If not, a fire

and an electric shock may occur. If the power plug is damaged, injury may result from the monitor fall down.

When unpacking or carrying the monitor, at least 2 people are needed. Make sure the monitor is upright.

When moving or putting the monitor, avoid to face the monitor up or down.

Handle the monitor so as not to jolt the monitor.

VT420D 4 150-114

Use

When getting problem at installation, please contact your distributor to install for you.

Don’t repair or open the monitor by yourself.

It may cause a fire or an electric shock. The monitor repair, please ask your distributor.

Protect and correctly use the power cord/ plug.

Don't heavy press the power cord/ plug, don't step on the power cord/plug.

Connect the power cord and the monitor, before insert the power plug into the wall outlet.

Don't operate the monitor with a damaged power cord, otherwise the monitor will be damaged.

Using the extension line precautions

If use the extension line, the current power of the

voltage

should be equal to the power consumption of the monitor

at least, if the power of the

voltage

is smaller than the monitor, it will cause the overheated phenomenon.

If there is thunder or lightning, don’t touch the monitor or the power plug.

This may cause an electric shock.

When remove the power plug from outlet on wall, don't revolve the power cord.

This may cause the power cord damaged. When take off the power plug, please hold the plug, don’t revolve.

Don’t sprinkle any kind of liquid on the monitor.

If the monitor is sprinkled by any kind of liquid, please be sure to take off the power plug and ask a qualified

service personnel to check the monitor.

If the monitor’s surface is touched be water, please clean it with a dry and soft cloth immediately.

Don’t sprinkle volatile liquid on the monitor such as insecticide.

If the liquid enter the monitor, it may cause the electrical failure.

Don’t insert or take off the power plug with wet hands.

This may cause an electric shock.

If the monitor isn’t in use for a long time, for safety, please take off the power plug.

This may cause breakdown, or it may cause a fire.

If the monitor isn’t in use for a long time, take off the power plug and store it in the proper package. The original

carton and packing should be used, if possible.

Don’t compress on the monitor panel.

This may cause personnel injury or panel damage and break-down.

Don't push or shake the monitor.

This may cause breakdown and the injury.

If the glass of the monitor panel is broken, liquid crystals may transude. Please don't touch the liquid

crystals.

If liquid crystals get into your eyes or touch your skin, wash with the clean water and go to a doctor

immediately.

VT420D 5 150-114

This product contains, including lead (it cause birth defects or other reproductive

harm.)

After handing, please wash hands.

Precautions for the remote control batteries..

Please only use the specified battery type CR2032.

Please be sure to insert batteries by matching the ┼ and─.

Don’t recharge, heat, disassemble, short or throw batteries into a fire.

Don’t mix a new battery with a used one.

Don’t mix different types of batteries together (only use the specified type). Or, it may cause burn and injury.

VT420D 6 150-114

Clean

If dust has collected on the power plug, removed the plug from the outlet and clean off

the dust.

The dust may cause a fire due to reduced insulation of the plug.

Take off the power plug before cleaning.

If not, it may cause an electric shock. Don’t revolve the power cord and the plug from the outlet.

Or, it may cause electric shock.

Cleaning the surface of the monitor.

When the surface of the monitor is polluted, please wipe the surface with the cotton or clean cloth lightly.

If pollution is not easy to clean out, can use the cloth with 50% of the alcohol .

Please notice carefully not to alcohol enter the monitor, it may cause electrical failures.

Warning For Use

On using

The monitor may produced overheat phenomenon during operation. Please be careful.

In case of the moving of long distance, please wrap the monitor with blanket to avoid damages. Please be

careful not to bump to the monitor.

Don't expose in the rubber or vinyl for a long time . It will damage the coating.

Exemptions

This product isn’t liable for any damage by natural disaster (such as earthquake, thunder, etc), fire, acts by

third parties, accidents, owner’s intentional misuse and fault, or uses in other improper conditions.

This product isn’t liable for incidental damages (such as profit loss or interruption in business, modification

or erasure of record data, etc.) caused by use or inability to use of this product.

This product isn’t liable for any damage cause by inappropriate operation, or not follows the user manual.

This product isn’t liable for any damage cause by misuse or malfunction through simultaneous use of this

product and the connected equipment or software.

This product isn’t liable for any damage cause by neglect of the instructions described about installation.

This product isn’t liable for any damage cause by improper installation.

This product isn’t liable for any damage cause by disassembled, modified or maintained by non-

authorized service center or people.

VT420D 7 150-114

Features

High-resolution HD panel

This monitor supports 1920 x 1080 HDTV format and can display true 16.7M colors, you can enjoy extreme fine

pictures.

MVA system less-reflection black TFT LCD panel

MVA system and Black TFT LCD panel offer bright and wide images with clear contrast. Even placed near the

windows, the monitor shows bright and clear image with little reflection. The viewing angles of the monitor are as

wide as 170° both horizontally and vertically, enough to enjoy clear images at any view angle.

Offer varieties of connection

Video system Input:

There are 3 choices of connection RGB Input:

There are 2 choices of connection Signal delivery

VIDEO RCA

S-VIDEO Mini Din 4 pin

COMPONENT Mini Din 8 pin

RGB ANALOG D-Sub 15pin

RGB DIGITAL DVI-ID 24pin

RS-232C in D-sub 9pin (Option)

Other functions

Building the photo sensor inside, the monitor will adjust the brightness according to the surrounding light

intensity.

There are two brightness levels pre-set. Under the bight condition, it will adjust to the bright mode. Under the

dim condition, the monitor will adjust to dim mode automatically.

Package Contents

Unpacking

VT420D is packed by the carton box. During transportation, in order to protect the monitor, VT420D is packed by

cushions to be safe protect and package.

Before unpacking your monitor, prepare a stable, level, and clean surface near a wall outlet for your monitor.

Set the LCD Monitor box in an upright position and open from the top of the box before removing the top

cushions.

Accessories

Q’ty Item Q’ty Item

1 set VT420D 1 pcs DVI-D 24 pin cable

1 pcs Power cord 1 pcs D-SUB 15pin cable

1 pcs User's manual 1 pcs S-VIDEO Mini Din 4 pin cable

1 pcs Remote controller 1 pcs Component Mini Din 8 pin cable

1 pcs RCA cable 1 pcs RS232C D-sub 9pin cable (Option)

VT420D 8 150-114

Dimension (Front & Back)

VT420D 9 150-114

Installation

Environmental state

Operating temperature︰ 5℃ ~ 40℃ (Fahrenheit : 41℉ ~ 104℉)

Humidity︰ max. 85%

Power Input

Power Cord

AC Power cord

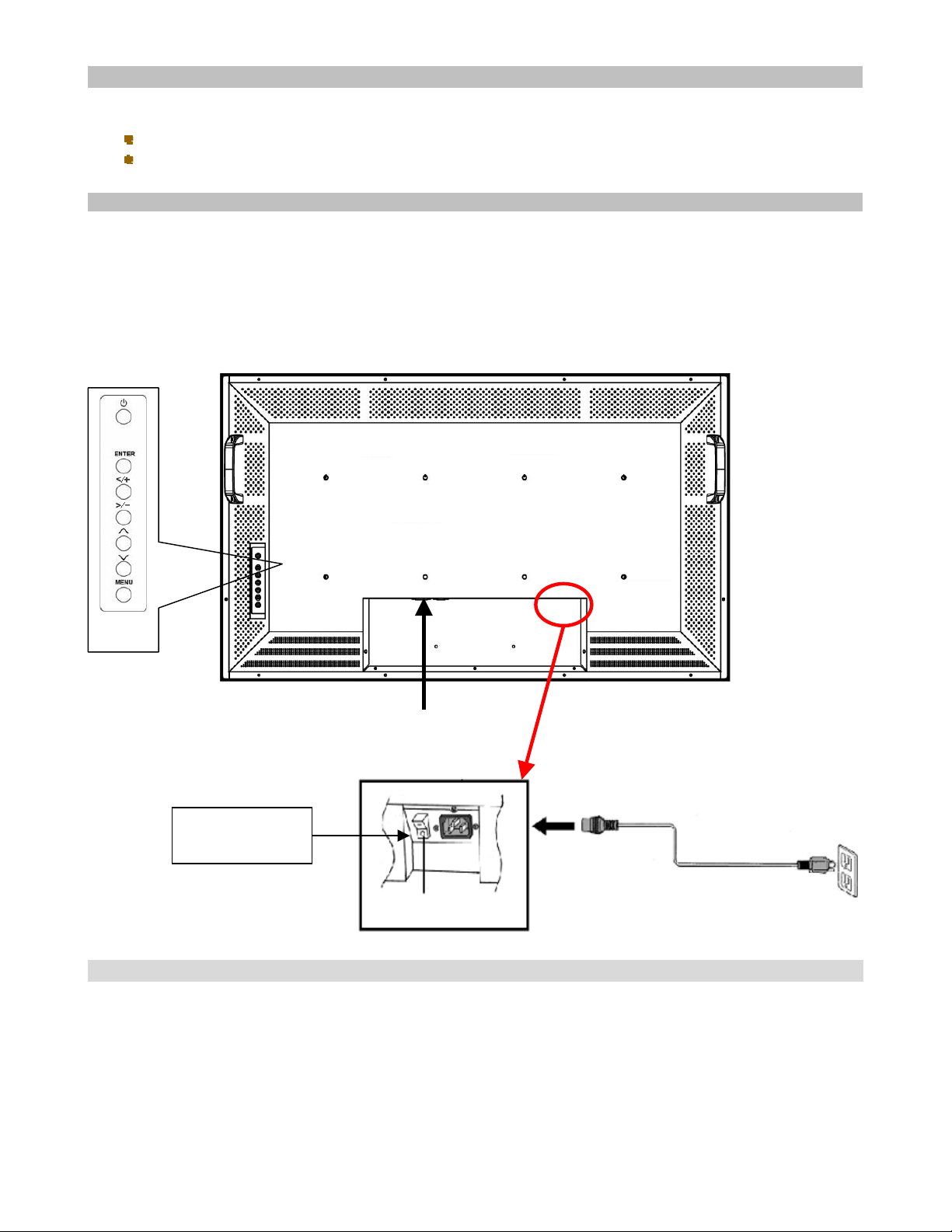

This power cord is used to connect the side controls of the LCD monitor and the wall outlet.

Connect the power cord into main power of the monitor, and “│” is power on, “○” is power off.

Input : 100-240V~ 3A 50/60Hz

The side of control

Single Input Interface

│is power on

○is power off

Main power –Switch &

AC socket

Power Interface

Main interface- switch & AC socket. Please see the chapter “Power input ”

The side controller of the monitor

The remote control (RCU )

Inhaltsverzeichnis

Andere VarTech Systems Monitor Handbücher

VarTech Systems

VarTech Systems VT121 DiamondVue Series Bedienungsanleitung

VarTech Systems

VarTech Systems VTPC2100VS Bedienungsanleitung

VarTech Systems

VarTech Systems VT190PVS Bedienungsanleitung

VarTech Systems

VarTech Systems VT084XHB Bedienungsanleitung

VarTech Systems

VarTech Systems ColorVue VT190PC Bedienungsanleitung

VarTech Systems

VarTech Systems DiamondVue VT084C Bedienungsanleitung

VarTech Systems

VarTech Systems VT14A-D Bedienungsanleitung

VarTech Systems

VarTech Systems VT121CC Bedienungsanleitung

VarTech Systems

VarTech Systems DiamondVue VT190C Bedienungsanleitung

VarTech Systems

VarTech Systems VT064P Bedienungsanleitung

VarTech Systems

VarTech Systems VTPC150XPE Bedienungsanleitung

VarTech Systems

VarTech Systems VT064C Bedienungsanleitung

VarTech Systems

VarTech Systems VT121XA4 Bedienungsanleitung

VarTech Systems

VarTech Systems VT320D Bedienungsanleitung

VarTech Systems

VarTech Systems VT420W Bedienungsanleitung

VarTech Systems

VarTech Systems VT150CHB Bedienungsanleitung

VarTech Systems

VarTech Systems VT190P2 Bedienungsanleitung

VarTech Systems

VarTech Systems VT181R2 Bedienungsanleitung

VarTech Systems

VarTech Systems VT20A Bedienungsanleitung

VarTech Systems

VarTech Systems VT084XA4 Bedienungsanleitung

VarTech Systems

VarTech Systems vt550 series Bedienungsanleitung

VarTech Systems

VarTech Systems GDM-5001PT Bedienungsanleitung

VarTech Systems

VarTech Systems DiamondVue VT201C Bedienungsanleitung

VarTech Systems

VarTech Systems DiamondVue VT150P Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
