ViTiny UM12 Bedienungsanleitung

Version 1.2A

User’s Guide

USB Microscope

Contents

1. Product Introduction ...........................2

1.1 Packing Contents: ........................2

1.2 Start to use ..................................2

1.3 Buttons on microscope................4

1.4 Microscope focus.........................5

2. Printed Notice......................................8

2.1 Maintenance................................8

2.2 Product Specification...................9

2.3 Safety Instructions .....................10

1. Product Introduction

1.1 Packing Contents:

The box contains 1 microscope and 7 accessories.

Item

Q’ty

Item

Q’ty

USB Microscope

Install CD

USB 2.0 Cable

User’s Guide

Stand S108

Calibrator

Stand assemble guide

White Balance card

1.2 Start to use

(1) Assemble microscope with Stand

Tighten microscope onto stand ○

a. (See stand assemble guide)

○

(2) Connect microscope to PC via complimentary USB cable ○

(3) Install Software

Install software CD and execute autorun(○

c)to install software.

For detailed install procedures, please refer to the Install

Manual inside the software CD. If the software CD is missing

or damaged, please download from http://www.vitiny.com .

(4) Connect to PC

Double click microscope software icon (○

d) on PC desktop.

When software opened, click on the connect icon(○

e) to

preview image from the software. Adjust stand height or

focus button If the image is out of focus or blurry. For

detailed software operation, please refer to the Application

○

Manual inside the software CD.。

1.3 Buttons on microscope

(1) Optical zoom

Zoom in/out button. Zoom in(○

f), when magnification is

higher, the distance is closer. Zoom out (○

g),when

magnification is smaller, the distance is longer. (○

microscope lens.

○

(2) LED Adjustment:

Preview image in higher magnification requires higher

luminance, on the contrary, lower magnification requires less

luminance. It’s suggested to set the “Auto Exposure” as

“Manual” in the software.

(○

i) Increase luminance. (○

j) Decrease luminance. (○

k) LED

Light. (○

k) LEDs for Lower working distance. (LED x 4), (○

LEDs for middle height working distance. (LED x 2), (○

m) LEDs

for higher working distance (LED x 2). LEDs options will change

automatically.

(3) USB port

USB port (○

n) supply power to microscope and PC connection

to preview image.

(4) Stand hole (○

O) to fix microscope.

1.4 Microscope focus

There are two ways to focus. First, choose focus distance to

adjust the microscope height, then zoom in/out on the software

or microscope until clear. Second, first to choose the image

sensor position then adjusts the microscope height. Distance:

distance from lens to object. Sensor position: Image sensor

position.

(1) Fix focus distance

Use knob (○

P) to adjust the distance from lens to object.

When the distance is closer, the magnification is higher. Either

use Distance control mode in the software or buttons on the

microscope to focus.

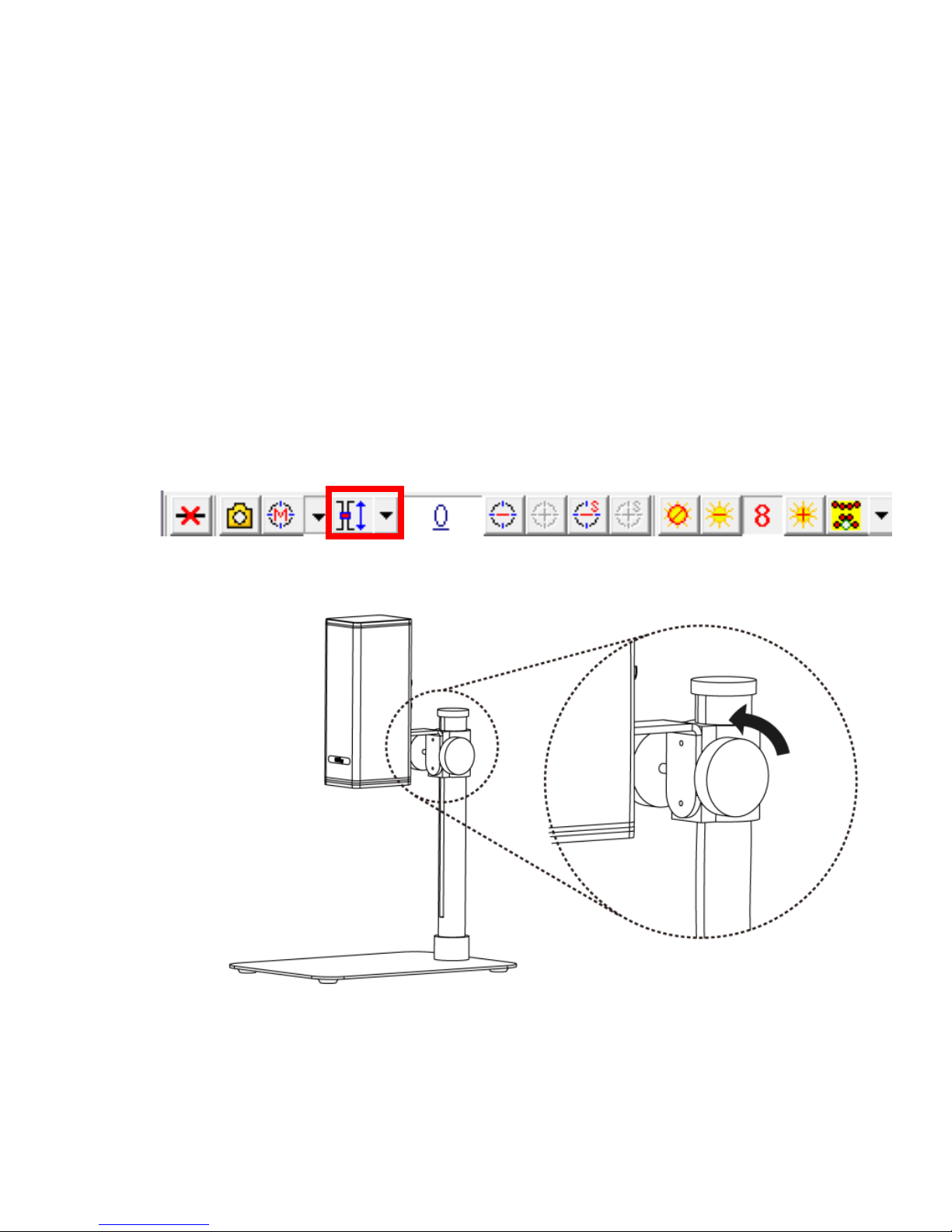

(2) Fix sensor position

Choose the desired distance or FOV from the drop down list in

the software.

When the sensor position is fixed, adjust the stand knob (○

to focus.

○

Magnification chart

26 focus section setting is based on the whole focus area, the

sensor position tells the magnification size, field of view, or

distance. The below chart is measured on 4:3 ratio on 21.5”

screen, it’s only a reference data, might not be accurate

enough. Based on the image ratio (preview window size), field

of view and magnification size will change.

Focus distance from 8mm~160mm(0.315~6.299 inch).

4:3 ratio on 21.5” monitor (Reference data)

Focus section

Distance(mm)

159

114

92.0

70.0

48.5

39.5

35.0

30.5

26.0

FOV(mm)

35.0

25.0

20.0

15.0

10.0

8.00

7.00

6.00

5.00

Magnification (X)

Focus section

Distance(mm)

23.0

21.0

19.0

17.0

16.0

15.0

14.0

13.0

12.0

FOV(mm)

4.50

4.00

3.50

3.00

2.80

2.60

2.40

2.20

2.00

Magnification (X)

113

122

131

142

155

170

Focus section

Distance(mm)

11.5

11.0

10.5

10.0

9.5

9.0

8.5

8.0

FOV(mm)

1.90

1.80

1.70

1.60

1.50

1.40

1.30

1.20

Magnification (X)

179

189

200

213

227

244

262

284

2. Printed Notice

Please read the following information before operating.

2.1 Maintenance

Please abide by the following rules while storing or using this product:

2.1.1 Keep dry: do not place the product in a humid environment. Dry surroundings

help extend the life of the product.

2.1.2 Avoid temperature shock: temperature shock (for example, taking the product

into a warm room from a cold environment) will cause internal condensation

inside the machine. Please put the device inside the protection bag or

handbag to prevent temperature shock, and avoid using the device in an

environment with extreme temperatures.

2.1.3 Avoid dropping: the device may malfunction if it encounters strong collision,

vibration, or distortion.

2.1.4 Turn the microscope off before cutting off the power supply : do not forced

cut off the power supply.

2.1.5 Do not face the lens against strong light or sunshine for extended periods of

time: Strong light rays may degrade sensitive elements and generate white

stains on images.

2.1.6 Handle the device carefully: do not disassemble USB cable and Lens

forcefully and avoid contact with the lens since they are subjected to

damage.

2.1.7 Make sure to switch the power supply off and unplug the power cable if the

device is not in operation for an extended period of time. Store the device in a

dry environment with excellent ventilation. Do not expose the machine in an

environment lower than -5ºC or higher than 50ºC.

2.1.8 While carrying, put the device inside the box to prevent it from being

damaged.
